aston martin v12 vantage (2011) body components, roadster parts diagram

010110-04-2 - Body Components, Roadster

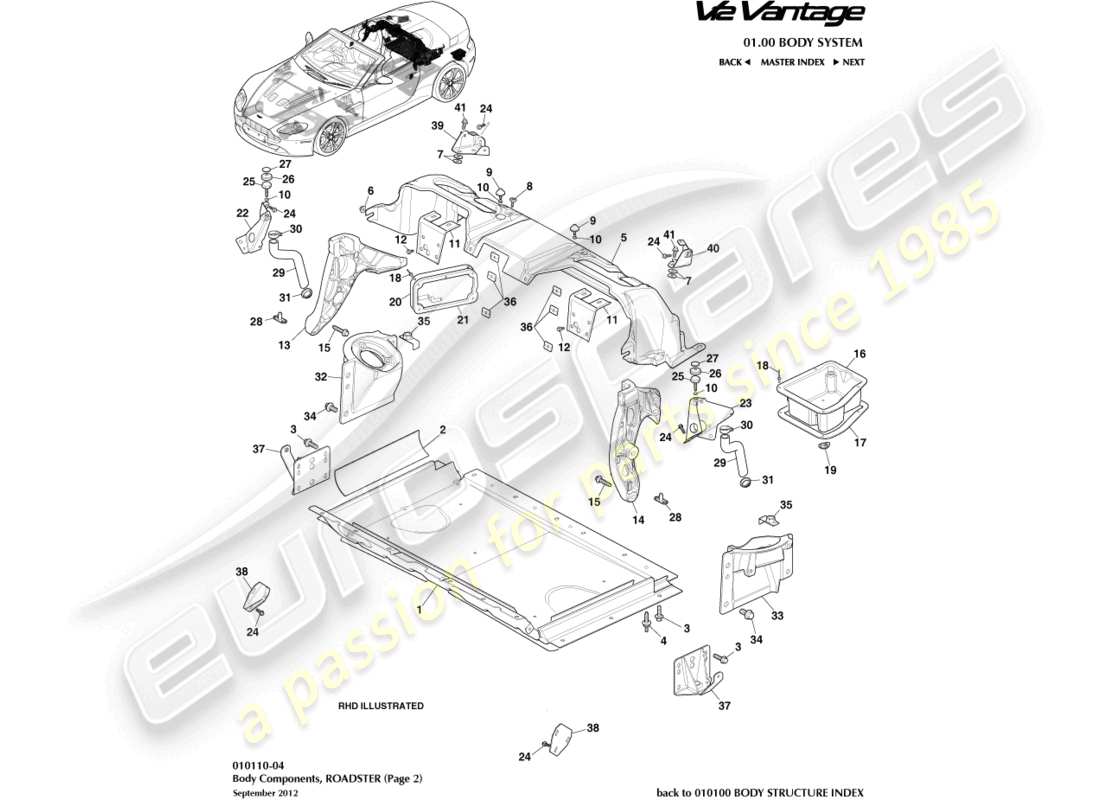

Aston Martin V12 Vantage (2011) Body Components, Roadster Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Key
                                                                            Price
                                                                            # 1
                                                                            MPN: 6G33-9N172-AE
                                                                            PANEL ASSY, FUEL TANK COMPARTMENT, LOWER
                                                                            from £400.81
                                                                            from £400.81
                                                                            ASSEMBLY PANEL FU/TNK COM Genuine Aston Martin - New (to order)
                                                                            # 2
                                                                            MPN: 4G43-9N070-AB
                                                                            INSULATION, FUEL TANK SUPPORT
                                                                            from £1.59
                                                                            from £1.59
                                                                            INSULATION, FUEL TANK SUPPORT Genuine Aston Martin - New (to order)
                                                                            # 3
                                                                            MPN: 703120
                                                                            SCREW, M8 X 25, HEX FLANGE HEAD
                                                                            from £3.45
                                                                            from £3.45
                                                                            SCREW M8X25 HEX FLNG Genuine Aston Martin - New (to order)
                                                                            INTERMEDIATE HEAT SHIELD BOLTS Genuine Ferrari Part - New (to order)
                                                                            # 4
                                                                            MPN: 702509
                                                                            STUD
                                                                            from £1.53
                                                                            from £1.53
                                                                            M8X23+M6X14 STUD Genuine Aston Martin - New (to order)
                                                                            # 5
                                                                            MPN: CG33-L21327-AA
                                                                            ROOF STOWAGE COVER, FRONT
                                                                            Sat Nav
                                                                            from £76.63
                                                                            from £76.63
                                                                            ROOF STOWAGE COVER, FRONT Genuine Aston Martin - New (to order)
                                                                            # 5
                                                                            MPN: 6G33-L21327-BB
                                                                            ROOF STOWAGE COVER, FRONT, NON MMM
                                                                            Non Sat Nav
                                                                            from £52.97
                                                                            from £52.97
                                                                            ROOF STOWAGE COVER, FRONT, NON MMM Genuine Aston Martin - New (to order)
                                                                            # 6
                                                                            MPN: 704327
                                                                            NUT AND WASHER, M6 HEX
                                                                            from £3.16
                                                                            from £3.16
                                                                            NUT & WASHER M6 HEX Genuine Aston Martin - New (to order)
                                                                            # 7
                                                                            MPN: AG43-32692-AA
                                                                            WASHER, M8, LARGE OD
                                                                            from £0.67
                                                                            from £0.67
                                                                            V2WASHER LARGE OD M8 Genuine Aston Martin - New (to order)
                                                                            # 8
                                                                            MPN: 6G33-FA0115-AB-PK
                                                                            SCREW, M6 X 20, SKT HEAD
                                                                            Pack of 20
                                                                            from £12.31
                                                                            from £12.31
                                                                            This part replaces part number 6G33-FA0115-AB
                                                                            SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
                                                                            # 9
                                                                            MPN: 6G33-3633038-AA
                                                                            CONICAL BUMP STOP, M6 X 20
                                                                            CONICAL BUMP STOP, M6 X 20 Genuine Aston Martin - New (to order)
                                                                            # 10
                                                                            MPN: 702994
                                                                            NUT, M6, HEX THIN
                                                                            from £0.47
                                                                            from £0.47
                                                                            NUT M6 HEX THIN Genuine Aston Martin - New In stock
                                                                            # 11
                                                                            MPN: 6G33-L43218-AE
                                                                            MOUNTING BRACKET, TONNEAU LATCH
                                                                            from £24.94
                                                                            from £24.94
                                                                            MOUNTING BRACKET, TONNEAU LATCH Genuine Aston Martin - New (to order)
                                                                            # 12
                                                                            MPN: 703264
                                                                            SCREW, M6 X 14, HEX HEAD
                                                                            SCREW, M6X12 HEX HD Genuine Aston Martin - New (to order)
                                                                            # 13
                                                                            MPN: 6G33-611D38-BA
                                                                            BRACKET, FRONT SEAT BELT RETAINER, RH
                                                                            from £47.55
                                                                            from £47.55
                                                                            BRACKET, FRONT SEAT BELT RETAINER, RH Genuine Aston Martin - New (to order)
                                                                            BRACKET, FRONT SEAT BELT RETAINER, RH Genuine Aston Martin - Used In stock
                                                                            # 14
                                                                            MPN: 6G33-611D39-BA
                                                                            BRACKET, FRONT SEAT BELT RETAINER, LH
                                                                            from £47.55
                                                                            from £47.55
                                                                            BRACKET, FRONT SEAT BELT RETAINER, LH Genuine Aston Martin - New (to order)
                                                                            BRACKET, FRONT SEAT BELT RETAINER, LH Genuine Aston Martin - Used In stock
                                                                            # 15
                                                                            MPN: 703142
                                                                            BOLT, M8 X 38, HEX FLANGE HEAD
                                                                            from £0.47
                                                                            from £0.47
                                                                            BOLT, M8 X 38, HEX FLANGE HEAD Genuine Aston Martin - New (to order)
                                                                            # 16
                                                                            MPN: 6G33-L14C445-AF
                                                                            FUSE BOX
                                                                            Includes Item 17
                                                                            from £58.73
                                                                            from £58.73
                                                                            FUSE BOX Genuine Aston Martin - New (to order)
                                                                            # 17
                                                                            MPN: 6G33-L41400-AB
                                                                            GASKET, FUSE BOX
                                                                            from £5.09
                                                                            from £5.09
                                                                            GASKET, FUSE BOX Genuine Aston Martin - New (to order)
                                                                            # 18
                                                                            MPN: 703754
                                                                            RIVET, 4.8 X 6.4-7.9
                                                                            from £0.61
                                                                            from £0.61
                                                                            RIVET, 4.8 X 6.4-7.9 Genuine Aston Martin - New (to order)
                                                                            # 19
                                                                            MPN: 702804
                                                                            DRAIN PLUG
                                                                            from £1.59
                                                                            from £1.59
                                                                            DRAIN PLUG RUBR-20MM Genuine Aston Martin - New (to order)
                                                                            # 20
                                                                            MPN: 6G33-7039-AC
                                                                            CLOSING PLATE, TONNEAU
                                                                            Includes Item 21
                                                                            from £17.07
                                                                            from £17.07
                                                                            CLOSING PLATE, TONNEAU Genuine Aston Martin - New (to order)
                                                                            # 21
                                                                            MPN: 6G33-L46062-AC
                                                                            GASKET, CLOSING PLATE
                                                                            GASKET, CLOSING PLATE Genuine Aston Martin - New (to order)
                                                                            # 22
                                                                            MPN: 6G33-N17K902-AF
                                                                            BRACKET, REAR BUMP STOP, RH
                                                                            from £52.05
                                                                            from £52.05
                                                                            BRACKET, REAR BUMP STOP, RH Genuine Aston Martin - New (to order)
                                                                            # 23
                                                                            MPN: 6G33-N17K903-AD
                                                                            BRACKET, REAR BUMP STOP, LH
                                                                            BRACKET, REAR BUMP STOP, LH Genuine Aston Martin - New (to order)
                                                                            # 24
                                                                            MPN: 703203
                                                                            SCREW, M6 X 20, HEX FLANGE HEAD
                                                                            from £0.47
                                                                            from £0.47
                                                                            SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                                                                            LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                                                                            # 25
                                                                            MPN: 4G43-16K808-AB
                                                                            SUPPORT, HOOD BUMPER
                                                                            from £2.44
                                                                            from £2.44
                                                                            SUPPORT HOOD BUMPER TO CO Genuine Aston Martin - New (to order)
                                                                            # 26
                                                                            MPN: 4G43-061B70-AA
                                                                            CAP DUST COVER
                                                                            from £0.47
                                                                            from £0.47
                                                                            CAP DUST COVER Genuine Aston Martin - New (to order)
                                                                            # 27
                                                                            MPN: XR83-16C952-AA
                                                                            SPACER, HOOD BUMPER
                                                                            from £3.44
                                                                            from £3.44
                                                                            SPACER, HOOD BUMPER Genuine Aston Martin - New (to order)
                                                                            # 28
                                                                            MPN: 4G43-L243A70-AA
                                                                            ALIGNMENT PIN, MAIN BEARING BRACKET
                                                                            from £27.62
                                                                            from £27.62
                                                                            ALIGNMENT PIN, MAIN BRG BRACKET Genuine Aston Martin - New (to order)
                                                                            # 29
                                                                            MPN: 6G33-L82844-AB
                                                                            DRAIN PIPE, REAR QUARTER
                                                                            from £8.54
                                                                            from £8.54
                                                                            DRAIN PIPE, REAR QUARTER Genuine Aston Martin - New (to order)
                                                                            # 30
                                                                            MPN: 699094
                                                                            CLAMP
                                                                            from £4.51
                                                                            from £4.51
                                                                            CLIP HOSE SPRG 16-25 Genuine Aston Martin - New (to order)
                                                                            # 31
                                                                            MPN: 6G33-58500W04-AB
                                                                            GROMMET, DRAIN HOSE
                                                                            from £0.50
                                                                            from £0.50
                                                                            GROMMET, DRAIN HOSE Genuine Aston Martin - New (to order)
                                                                            # 32
                                                                            MPN: DD23-18A000-AC
                                                                            MOUNTING, REAR SHOCK ABSORBER, RH
                                                                            from £114.11
                                                                            from £114.11
                                                                            MOUNTING, REAR SHOCK ABSORBER, RH Genuine Aston Martin - New (to order)
                                                                            # 33
                                                                            MPN: DD23-18A001-AC
                                                                            MOUNTING, REAR SHOCK ABSORBER, LH
                                                                            from £114.11
                                                                            from £114.11
                                                                            MOUNTING, REAR SHOCK ABSORBER, LH Genuine Aston Martin - New (to order)
                                                                            # 34
                                                                            MPN: 703185
                                                                            SCREW, M12 X 25, HEX FLANGE HEAD
                                                                            from £6.33
                                                                            from £6.33
                                                                            M12X1.75X25 HEX Genuine Aston Martin - New (to order)
                                                                            # 35
                                                                            MPN: 4G43-501B0-AC
                                                                            NUT PLATE, REAR SUBFRAME
                                                                            from £9.54
                                                                            from £9.54
                                                                            NUT PLTE REAR SFRME REAR Genuine Aston Martin - New (to order)
                                                                            # 36
                                                                            MPN: 6G33-L111C98-AB
                                                                            NUT PLATE, M8
                                                                            from £8.16
                                                                            from £8.16
                                                                            NUT PLATE, M8 Genuine Aston Martin - New (to order)
                                                                            # 37
                                                                            MPN: 6G33-5D022-AD
                                                                            BRACKET, REAR SUBFRAME STABILISER
                                                                            from £38.64
                                                                            from £38.64
                                                                            BRACKET REAR SB/FR STAB Genuine Aston Martin - New (to order)
                                                                            # 38
                                                                            MPN: GOAG33-L53948-AA
                                                                            BRACKET, ACTUATOR PIVOT
                                                                            BRACKET, ACTUATOR PIVOT Genuine Aston Martin - New (to order)
                                                                            # 39
                                                                            MPN: 6G33-L46302-AD
                                                                            REINFORCEMENT, TONNEAU ACTUATOR, RH
                                                                            from £27.61
                                                                            from £27.61
                                                                            REINFORCEMENT, TONNEAU ACTUATOR, RH Genuine Aston Martin - New (to order)
                                                                            # 40
                                                                            MPN: 6G33-L46303-AC
                                                                            REINFORCEMENT, TONNEAU ACTUATOR, LH
                                                                            from £27.61
                                                                            from £27.61
                                                                            REINFORCEMENT, TONNEAU ACTUATOR, LH Genuine Aston Martin - New (to order)
                                                                            # 41
                                                                            MPN: 703121
                                                                            SCREW, M8 X 20, HEX FLANGE HEAD
                                                                            from £0.47
                                                                            from £0.47
                                                                            SCREW M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
