aston martin v12 vantage (2011) body components, roadster parts diagram

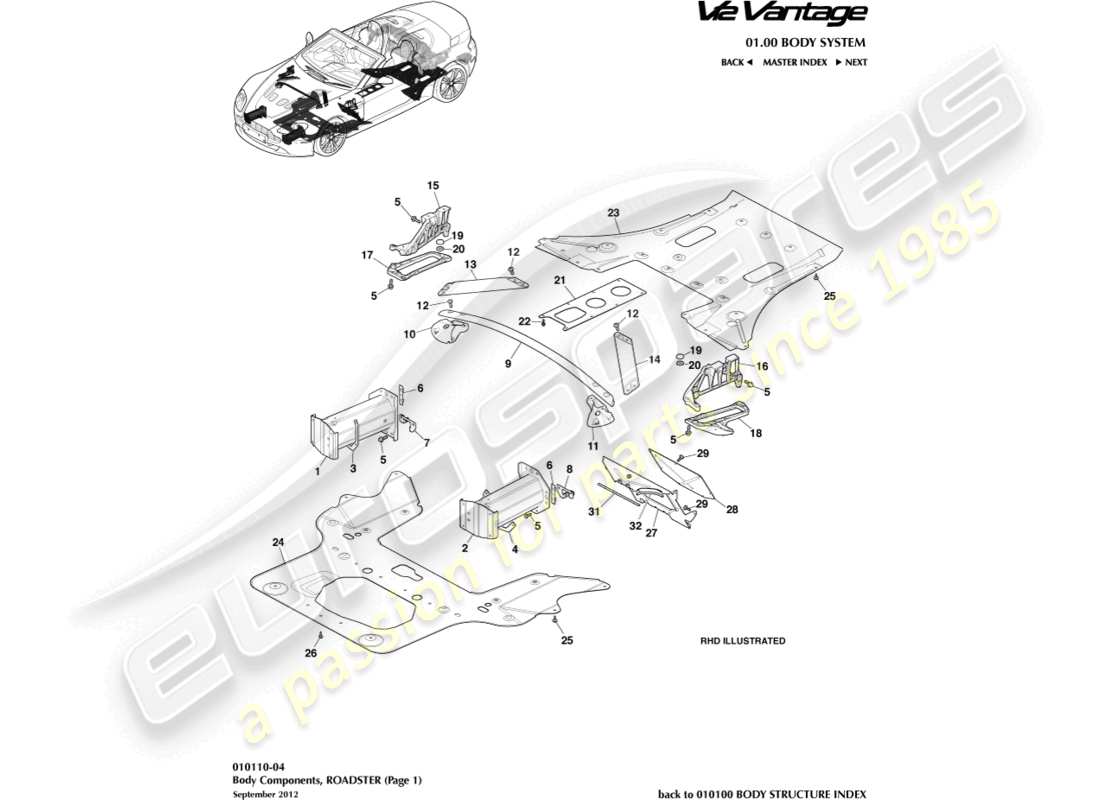

010110-04 - Body Components, Roadster

Aston Martin V12 Vantage (2011) Body Components, Roadster Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Key
                                                            Price
                                                            # 1
                                                            MPN: BD23-V17N800-BB
                                                            CRUSH CAN, BUMPER FRONT, RH
                                                            Structural Cat. A Only. Also require 1x item 7.
                                                            from £1,268.79
                                                            from £1,268.79
                                                            CRUSH CAN, BUMPER FRONT, RH Genuine Aston Martin - New (to order)
                                                            # 2
                                                            MPN: BD23-V17N801-BB
                                                            CRUSH CAN, BUMPER FRONT, LH
                                                            Structural Cat. A Only. Also require 1x item 8.
                                                            from £1,268.79
                                                            from £1,268.79
                                                            CRUSH CAN, BUMPER FRONT, LH Genuine Aston Martin - New (to order)
                                                            # 3
                                                            MPN: 6G33-6367912-AB
                                                            NUTPLATE ASSY, CRUSH CAN, LOWER, RH
                                                            from £6.67
                                                            from £6.67
                                                            NUTPLATE, CRUSH CAN, RH Genuine Aston Martin - New (to order)
                                                            FRONT RH CRASH CAN NUT PLATE Genuine Ferrari Part - New (to order)
                                                            # 4
                                                            MPN: 6G33-6367913-AB
                                                            NUTPLATE ASSY, CRUSH CAN, LOWER, LH
                                                            from £7.16
                                                            from £7.16
                                                            NUTPLATE, CRUSH CAN, LH Genuine Aston Martin - New (to order)
                                                            # 5
                                                            MPN: 703120
                                                            SCREW, M8X25, HEX FLANGE HEAD
                                                            from £3.45
                                                            from £3.45
                                                            SCREW M8X25 HEX FLNG Genuine Aston Martin - New (to order)
                                                            INTERMEDIATE HEAT SHIELD BOLTS Genuine Ferrari Part - New (to order)
                                                            # 6
                                                            MPN: AD23-71470-AA
                                                            NUTPLATE, FRONT CRASH STRUCTURE
                                                            from £4.05
                                                            from £4.05
                                                            NUTPLATE, FRONT CRASH STRUCTURE Genuine Aston Martin - New (to order)
                                                            # 7
                                                            MPN: BD23-71470-AC
                                                            NUTPLATE, RH
                                                            from £14.18
                                                            from £14.18
                                                            NUTPLATE, RH Genuine Aston Martin - New (to order)
                                                            # 8
                                                            MPN: BD23-71471-AC
                                                            NUTPLATE, LH
                                                            from £16.12
                                                            from £16.12
                                                            NUTPLATE, LH Genuine Aston Martin - New (to order)
                                                            # 9
                                                            MPN: AD23-108A75-AA
                                                            BRACE, FRONT CROSS
                                                            from £148.32
                                                            from £148.32
                                                            BRACE, FRONT CROSS Genuine Aston Martin - New (to order)
                                                            # 10
                                                            MPN: 4G43-108A86-BA
                                                            BRACKET, FRONT CROSS BRACE, RH
                                                            from £19.78
                                                            from £19.78
                                                            BRACKET, FRONT CROSS BRACE, RH Genuine Aston Martin - New (to order)
                                                            BRACKET, FRONT CROSS BRACE, RH Genuine Aston Martin - Used In stock
                                                            # 12
                                                            MPN: 702209
                                                            SCREW, M10X25, TORQUE DRIVE
                                                            from £0.81
                                                            from £0.81
                                                            BOLT-M10X25 T/DRIVE Genuine Aston Martin - New (to order)
                                                            # 13
                                                            MPN: GOAG43-F00198-AA
                                                            REINFORCEMENT, BODY FRONT CROSS BAR, RH
                                                            from £279.10
                                                            from £279.10
                                                            REINFORCEMENT, BODY FRONT CROSS BAR, RH Genuine Aston Martin - New (to order)
                                                            REINFORCEMENT, BODY FRONT CROSS BAR, RH Genuine Aston Martin - Used In stock
                                                            # 14
                                                            MPN: GOAG43-F00199-AA
                                                            REINFORCEMENT, BODY FRONT CROSS BAR, LH
                                                            from £279.10
                                                            from £279.10
                                                            REINFORCEMENT BODY FRONT CS BAR Genuine Aston Martin - New (to order)
                                                            REINFORCEMENT BODY FRONT CS BAR Genuine Aston Martin - Used In stock
                                                            # 15
                                                            MPN: 6G33-16798-BA
                                                            BRACKET, BONNET HINGE SUPPORT, RH
                                                            from £59.02
                                                            from £59.02
                                                            BRACKET, BONNET HINGE SUPT, RH Genuine Aston Martin - New (to order)
                                                            BRACKET, BONNET HINGE SUPT, RH Genuine Aston Martin - Used In stock
                                                            # 16
                                                            MPN: 6G33-16799-BA
                                                            BRACKET, BONNET HINGE SUPPORT, LH
                                                            from £59.02
                                                            from £59.02
                                                            BRACKET, BONNET HINGE SUPT, LH Genuine Aston Martin - New (to order)
                                                            BRACKET, BONNET HINGE SUPT, LH Genuine Aston Martin - Used In stock
                                                            # 17
                                                            MPN: 6G33-5340-BA
                                                            BRACKET, ECU MOUNTING, RH
                                                            from £41.90
                                                            from £41.90
                                                            BRACKET, ECU MOUNTING, RH Genuine Aston Martin - New (to order)
                                                            BRACKET, ECU MOUNTING, RH Genuine Aston Martin - Used In stock
                                                            # 18
                                                            MPN: 6G33-5341-BA
                                                            BRACKET, ECU MOUNTING, LH
                                                            from £37.05
                                                            from £37.05
                                                            BRACKET, ECU MOUNTING, LH Genuine Aston Martin - New (to order)
                                                            BRACKET, ECU MOUNTING, LH Genuine Aston Martin - Used In stock
                                                            # 19
                                                            MPN: 4G43-061B70-AA
                                                            CAP, DUST COVER
                                                            from £0.47
                                                            from £0.47
                                                            CAP DUST COVER Genuine Aston Martin - New (to order)
                                                            # 20
                                                            MPN: 4G43-16740-AB
                                                            PAD, COWL
                                                            from £5.25
                                                            from £5.25
                                                            PAD, HOD ON CWL Genuine Aston Martin - New (to order)
                                                            # 21
                                                            MPN: AD23-111K37-CA
                                                            REINFORCEMENT, CENTRE TUNNEL
                                                            from £20.91
                                                            from £20.91
                                                            This part replaces part number AD23-111K37-BA which we have in stock
                                                            REINFORCEMENT, CENTRE TUNNEL Genuine Aston Martin - New (to order)
                                                            # 22
                                                            MPN: 703203
                                                            SCREW, M6 X 20, HEX FLANGE HEAD
                                                            from £0.47
                                                            from £0.47
                                                            SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                                                            LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                                                            # 23
                                                            MPN: BG33-L17C857-KB
                                                            SHIELD, REAR BUMPER OPENING
                                                            SHIELD, REAR BUMPER OPENING Genuine Aston Martin - New (to order)
                                                            # 24
                                                            MPN: DD23-L11270-BA
                                                            REINFORCEMENT, FLOOR PAN FRONT
                                                            from £304.26
                                                            from £304.26
                                                            REINFORCEMENT, FLOOR PAN FRONT Genuine Aston Martin - New (to order)
                                                            # 25
                                                            MPN: 7G33-108256-AA
                                                            SCREW, M8 X 21
                                                            from £0.50
                                                            from £0.50
                                                            M8 X 21 HEX PLA PIL Genuine Aston Martin - New (to order)
                                                            REAR UNDERTRAY BOLTS Genuine Ferrari Part - New (to order)
                                                            # 26
                                                            MPN: 702839-PK
                                                            SCREW AND WASHER, M6 X 20
                                                            Pack of 10
                                                            from £3.22
                                                            from £3.22
                                                            SCREW&WSHR M6X20(10) Genuine Aston Martin - New (to order)
                                                            # 27
                                                            MPN: 4G43-111C61-AD
                                                            PANEL, DUMMY FRONT FLOOR, RHD
                                                            from £104.24
                                                            from £104.24
                                                            PANEL DUMMY FLR FRONT Genuine Aston Martin - New (to order)
                                                            PANEL DUMMY FLR FRONT Genuine Aston Martin - Used In stock
                                                            # 27
                                                            MPN: 9G43-111C60-GF
                                                            PANEL, DUMMY FRONT FLOOR, LHD
                                                            from £255.72
                                                            from £255.72
                                                            PANEL DUMMY FLR FRONT Genuine Aston Martin - New (to order)
                                                            # 28
                                                            MPN: 4G43-111B48-AB
                                                            PANEL, DUMMY FLOOR COVER
                                                            from £13.89
                                                            from £13.89
                                                            PANEL DUMMY FLR COVER FT Genuine Aston Martin - New (to order)
                                                            PANEL DUMMY FLR COVER FT Genuine Aston Martin - Used In stock
                                                            # 29
                                                            MPN: 701553
                                                            SCREW, M6 X 16, PAN HEAD
                                                            from £0.47
                                                            from £0.47
                                                            SCREW M6X16 PAN HD Genuine Aston Martin - New (to order)
                                                            # 30
                                                            MPN: 703163
                                                            NUT, M6, LOCKING
                                                            from £0.47
                                                            from £0.47
                                                            NUT M6 FLANGE LOCKING Genuine Aston Martin - New (to order)
                                                            # 31
                                                            MPN: 37-86191
                                                            EDGE PROTECTION STRIP, 280MM
                                                            from £1.04
                                                            from £1.04
                                                            EDGE PROTECTOR, 280MM Genuine Aston Martin - New (to order)
                                                            # 32
                                                            MPN: 37-86250
                                                            EDGE PROTECTION STRIP, 150MM
                                                            EDGE PROTECTION STRIP Genuine Aston Martin - New (to order)
