aston martin v12 vantage (2011) front structure parts diagram

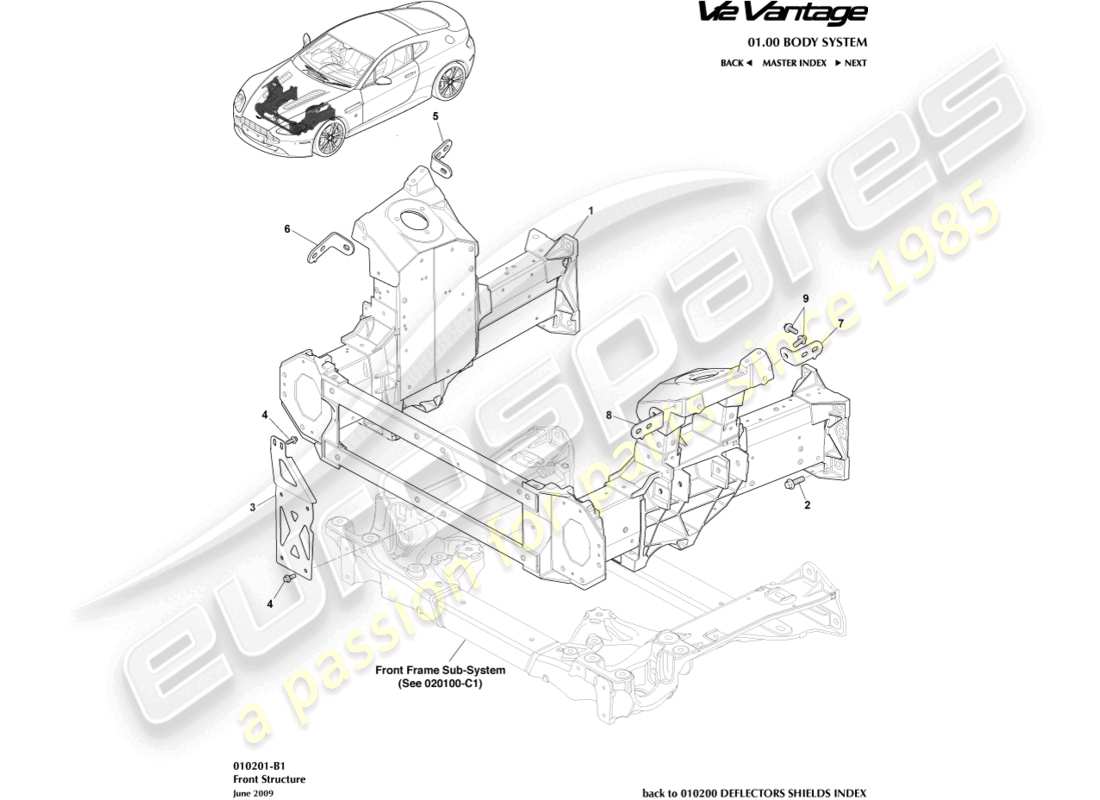

010201-B1 - front structure

Aston Martin V12 Vantage (2011) Front Structure Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: AD23-CSA01-AA
            front structure
            Chassis Plate Required, Structural Cat. A Only
            from £5,121.97
            from £5,121.97
            front structure Genuine Aston Martin - New (to order)
            # 2
            MPN: 703184
            SCREW, M12 X 40
            from £1.01
            from £1.01
            SCREW M12 X 40 HEX Genuine Aston Martin - New (to order)
            # 3
            MPN: AD23-10847-AB
            BRACE, FRONT CROSS
            from £19.04
            from £19.04
            BRACE, FRONT CROSS Genuine Aston Martin - New (to order)
            # 4
            MPN: 703121
            SCREW, M8 X 20
            from £0.47
            from £0.47
            SCREW M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
            # 5
            MPN: 6G33-130A32-AB
            BRACKET, FRONT SIDE MEMBER, RH
            from £8.51
            from £8.51
            BRACKET FRONT S/M RH Genuine Aston Martin - New (to order)
            BRACKET FRONT S/M RH Genuine Aston Martin - Used In stock
            # 5
            MPN: DG43-130A32-AA
            BRACKET, FRONT SIDE MEMBER, RH
            12.5MY
            from £48.50
            from £48.50
            BRACKET, REAR RH Genuine Aston Martin - New (to order)
            # 6
            MPN: 6G33-10594-AA
            BRACKET, FRONT SUSPENSION HOUSING, RH
            from £11.54
            from £11.54
            BRACKET FRONT SM TO FRONT Genuine Aston Martin - New (to order)
            BRACKET FRONT SM TO FRONT Genuine Aston Martin - Used In stock
            # 7
            MPN: 6G33-130A33-AB
            BRACKET FRONT SIDE MEMBER, LH
            from £8.51
            from £8.51
            BRACKET FRONT S/M LH Genuine Aston Martin - New (to order)
            BRACKET FRONT S/M LH Genuine Aston Martin - Used In stock
            # 7
            MPN: DG43-130A33-AA
            BRACKET FRONT SIDE MEMBER, LH
            12.5MY
            from £48.50
            from £48.50
            BRACKET FRONT S/M LH Genuine Aston Martin - New (to order)
            # 8
            MPN: 6G33-10595-AA
            BRACKET, FRONT SUSPENSION HOUSING, LH
            from £7.71
            from £7.71
            BRACKET FRONT SM TO HSNG Genuine Aston Martin - New (to order)
            BRACKET FRONT SM TO HSNG Genuine Aston Martin - Used In stock
            # 9
            MPN: 702210-PK
            BOLT, M10 X 30
            Pack of 10
            from £7.26
            from £7.26
            This part replaces part number 702210
            BOLT-M10X30 PACK 10 Genuine Aston Martin - New (to order)
            VENT PANEL BOLTS Genuine Ferrari Part - New (to order)
