010202-B1 - Grille Opening Panel

Aston Martin V12 Vantage (2011) Grille Opening Panel Parts Diagram

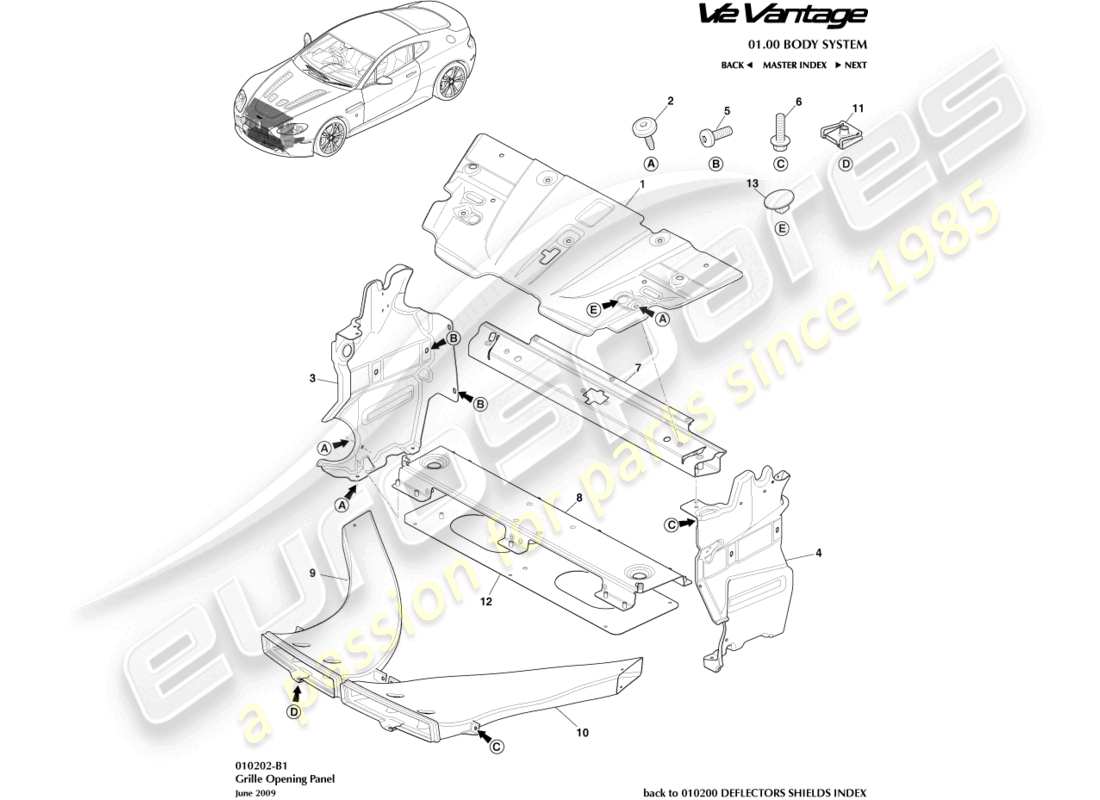

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 1
                            MPN: AD23-8136-BA
                            PANEL, RADIATOR GRILLE ASSEMBLY
                            from £592.54
                            from £592.54
                            PANEL, RADIATOR GRILLE ASSEMBLY Genuine Aston Martin - New (to order)
                            # 2
                            MPN: 6G33-FA0115-AB-PK
                            SCREW AND WASHER, M6 X 19
                            from £12.31
                            from £12.31
                            This part replaces part number 6G33-FA0115-AB
                            SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
                            # 3
                            MPN: AD23-F01990-AB
                            PANEL, AIR VENT, RH
                            from £228.07
                            from £228.07
                            PANEL, AIR VENT, RH Genuine Aston Martin - New (to order)
                            # 4
                            MPN: AD23-F01991-AB
                            PANEL, AIR VENT, LH
                            from £228.07
                            from £228.07
                            PANEL, AIR VENT, LH Genuine Aston Martin - New (to order)
                            # 5
                            MPN: 703172-PK
                            SCREW, M8 X 25
                            from £3.13
                            from £3.13
                            SCREW-M8X25 PAN (10) Genuine Aston Martin - New (to order)
                            VENT PANEL BOLTS Genuine Ferrari Part - New (to order)
                            # 6
                            MPN: 6G33-FA0115-AB-PK
                            SCREW, M6 X 20
                            from £12.31
                            from £12.31
                            This part replaces part number 6G33-FA0115-AB
                            SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
                            # 7
                            MPN: AD23-10853-AA
                            CROSSMEMBER, FRONT LATCH MOUNTING
                            CROSSMEMBER, FRONT LATCH MOUNTING Genuine Aston Martin - New (to order)
                            # 8
                            MPN: AD23-8052-AC
                            SUPPORT, RADIATOR
                            from £235.72
                            from £235.72
                            SUPPORT, RADIATOR Genuine Aston Martin - New (to order)
                            # 9
                            MPN: AD23-2D206-AA
                            DUCTING, BRAKE COOLING, RH
                            from £137.68
                            from £137.68
                            DUCTING, BRAKE COOLING, RH Genuine Aston Martin - New (to order)
                            # 10
                            MPN: AD23-2D207-AA
                            DUCTING, BRAKE COOLING, LH
                            from £148.74
                            from £148.74
                            DUCTING, BRAKE COOLING, LH Genuine Aston Martin - New (to order)
                            # 11
                            MPN: 7G43-10609E-AA-PK
                            NUT, M6, U TYPE
                            from £5.08
                            from £5.08
                            CLIP SPG M6 PK OF 10 Genuine Aston Martin - New In stock
                            FRONT UNDERTRAY CLIP Genuine Ferrari Part - New (to order)
                            # 12
                            MPN: AD23-8340-AA
                            SUPPORT, RADIATOR LOWER
                            from £133.10
                            from £133.10
                            SUPPORT, RADIATOR LOWER Genuine Aston Martin - New (to order)
                            # 13
                            MPN: 6G33-378744-AA
                            BUMP STOP GAP
                            from £5.64
                            from £5.64
                            BUMP STOP GAP Genuine Aston Martin - New (to order)
