010204-B1 - Front Wheel Arches

Aston Martin V12 Vantage (2011) Front Wheel Arches Parts Diagram

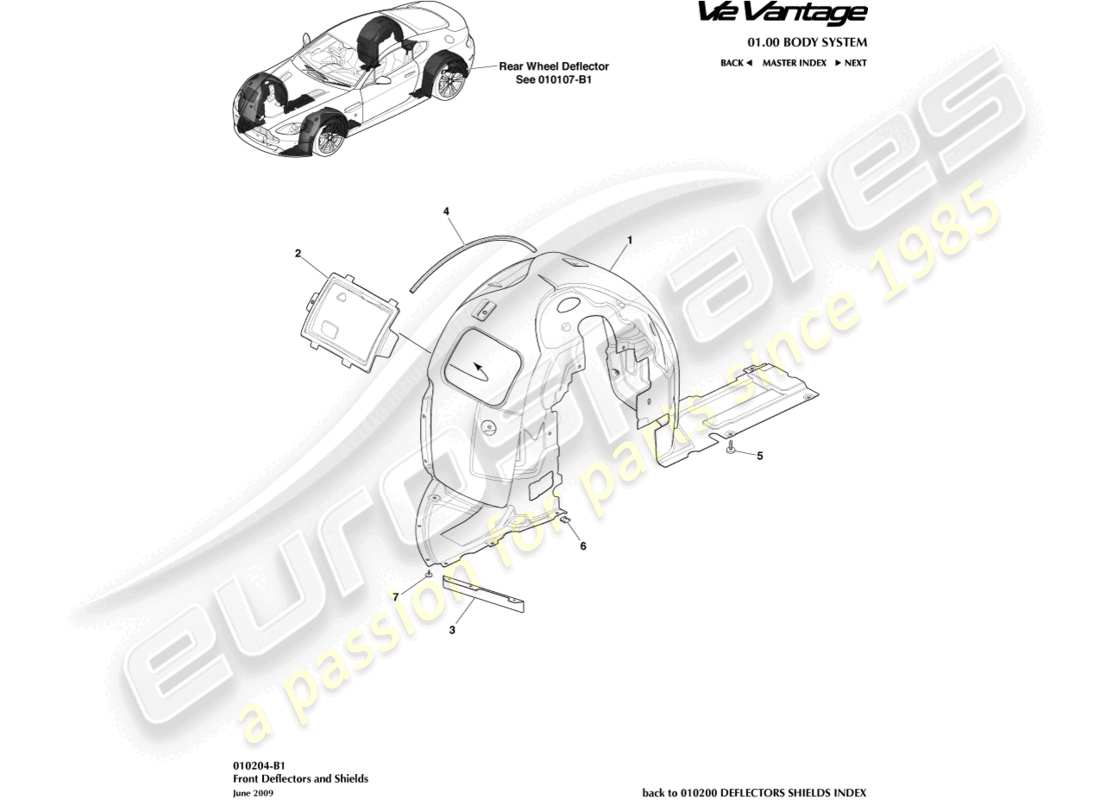

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: AD23-166562-BA
            LINER, FRONT WHEELARCH, RH
            Coupe
            from £243.49
            from £243.49
            LINER, FRONT WHEELARCH, RH, COUPE Genuine Aston Martin - New (to order)
            FRONT RH WHEEL ARCH LINER Genuine Ferrari Part - New (to order)
            # 1
            MPN: BG33-L166562-BA
            LINER, FRONT WHEELARCH, RH
            Roadster
            from £532.47
            from £532.47
            LINER, FRONT WHEELARCH, RH, ROADSTER Genuine Aston Martin - New (to order)
            # 1
            MPN: AD23-166563-BA
            LINER, FRONT WHEELARCH, LH
            Coupe
            from £461.37
            from £461.37
            LINER, FRONT WHEELARCH, LH, COUPE Genuine Aston Martin - New (to order)
            # 1
            MPN: BG33-L166563-BA
            LINER, FRONT WHEELARCH, LH
            Roadster
            from £532.47
            from £532.47
            LINER, FRONT WHEELARCH, LH, ROADSTER Genuine Aston Martin - New (to order)
            # 2
            MPN: 6G33-16F118-AA
            KIT, ACCESS DOOR, RH, FRONT W/A LINER
            from £73.54
            from £73.54
            KIT, ACCESS DOOR, RH, FRONT WHEELARCH LINER Genuine Aston Martin - New (to order)
            # 2
            MPN: 6G33-16F119-AA
            KIT, ACCESS DOOR, LH, FRONT W/A LINER
            from £36.77
            from £36.77
            KIT, ACCESS DOOR, LH, FRONT WHEEL ARCH LINER Genuine Aston Martin - New (to order)
            KIT, ACCESS DOOR, LH, FRONT WHEEL ARCH LINER Genuine Aston Martin - Used In stock
            # 3
            MPN: AD23-5E210-AA
            KIT, AIR DEFLECTOR, RH, FRONT W/A LINER
            KIT, AIR DEFLECTOR, RH, FRONT W/A LINER Genuine Aston Martin - New (to order)
            # 3
            MPN: AD23-5E211-AA
            KIT, AIR DEFLECTOR, LH, FRONT W/A LINER
            KIT, AIR DEFLECTOR, LH, FRONT W/A LINER Genuine Aston Martin - New (to order)
            # 4
            MPN: 6G33-DX88N-AA
            EDGING STRIP
            Supersession
            Supersession
            Genuine Aston Martin (no longer available to order)
            # 5
            MPN: 6G33-FA0115-AB-PK
            SCREW & WASHER, M6
            Pack of 20
            from £12.31
            from £12.31
            This part replaces part number 6G33-FA0115-AB
            SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
            # 7
            MPN: 702514
            SCREW, M6 X 14, PAN HEAD
            from £0.56
            from £0.56
            SCREW M6 X 14 HD INT Genuine Aston Martin - New In stock
            FRONT UNDERTRAY BOLT Genuine Ferrari Part - New (to order)
