aston martin v12 vantage (2011) bonnet and mounting parts diagram

010205-B1 - Bonnet and Mounting

Aston Martin V12 Vantage (2011) Bonnet and Mounting Parts Diagram

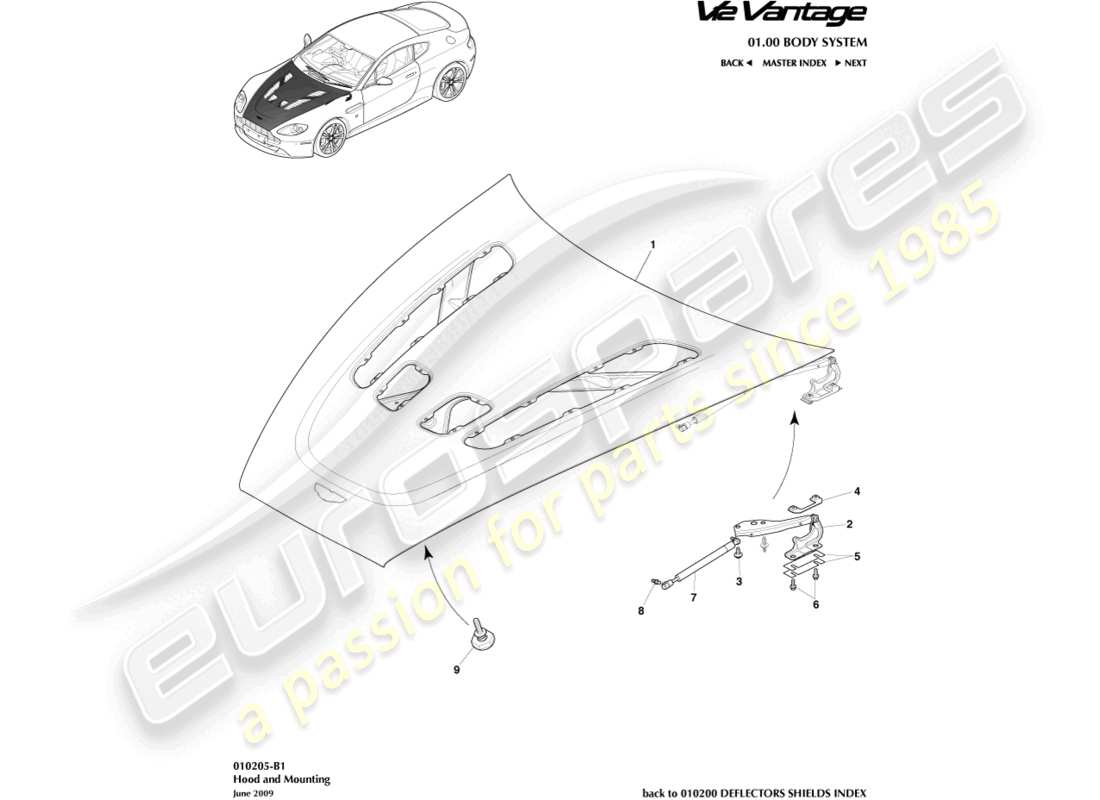

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: AD23-16612-AA
                      HOOD ASSY
                      HOOD ASSEMBLY Genuine Aston Martin - New (to order)
                      # -
                      -
                      PANEL, HOOD OUTER
                      # 2
                      MPN: 6G33-16801-AA
                      HINGE ASSEMBLY, HOOD LH
                      from £25.40
                      from £25.40
                      HINGE ASSEMBLY, HOOD, LH Genuine Aston Martin - New (to order)
                      # 2
                      MPN: 6G33-16800-AA
                      HINGE ASSEMBLY, HOOD RH
                      from £25.40
                      from £25.40
                      HINGE ASSEMBLY, HOOD, RH Genuine Aston Martin - New (to order)
                      # 3
                      MPN: 703139
                      SCREW/WASHER, M8 X 20, HINGE TO HOOD
                      from £1.95
                      from £1.95
                      SCREW/WASHER M8X20 Genuine Aston Martin - New (to order)
                      # 4
                      MPN: 6G33-16678-AA
                      NUTPLATE, HINGE
                      from £4.64
                      from £4.64
                      NUTPLATE, HINGE Genuine Aston Martin - New (to order)
                      # 5
                      MPN: 6G33-16B955-AA
                      SHIM, 1MM, HINGE
                      from £11.93
                      from £11.93
                      SHIM, 1MM, HINGE Genuine Aston Martin - New (to order)
                      # 6
                      MPN: 703121
                      SCREW, M8 X 20, HINGE TO CASTING
                      from £0.47
                      from £0.47
                      SCREW M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
                      # 7
                      MPN: 6G33-16C826-AB
                      GAS SPRING ASSEMBLY, HOOD
                      from £30.00
                      from £30.00
                      GAS SPRING ASSEMBLY, HOOD Genuine Aston Martin - New In stock
                      # 8
                      MPN: 1R12-640101-AA
                      BALL STUD
                      from £3.37
                      from £3.37
                      BALL STUD Genuine Aston Martin - New (to order)
                      # 9
                      MPN: 4G43-16K808-AB
                      BUFFER, HOOD
                      from £2.44
                      from £2.44
                      SUPPORT HOOD BUMPER TO CO Genuine Aston Martin - New (to order)
