aston martin v12 vantage (2011) deck lid, roadster parts diagram

010303-02 - Deck Lid, Roadster

Aston Martin V12 Vantage (2011) Deck Lid, Roadster Parts Diagram

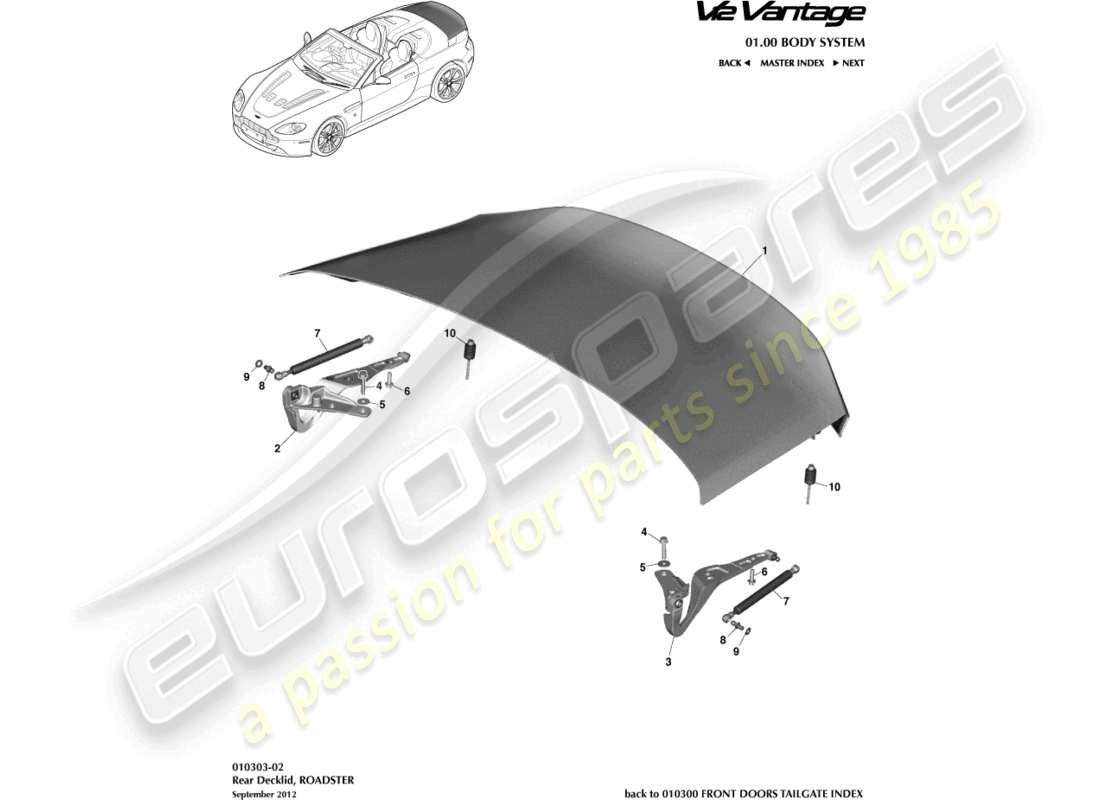

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: AD23-40110-AA
                      DECKLID ASSEMBLY
                      from £3,421.03
                      from £3,421.03
                      TAILGATE ASSEMBLY Genuine Aston Martin - New (to order)
                      # 2
                      MPN: 6G33-L42700-AK
                      HINGE ASSEMBLY, DECKLID, RH
                      from £163.43
                      from £163.43
                      HINGE ASSEMBLY, TRUNK LID, RH Genuine Aston Martin - New (to order)
                      # 3
                      MPN: 6G33-L42701-AK
                      HINGE ASSEMBLY, DECKLID, LH
                      from £170.96
                      from £170.96
                      HINGE ASSEMBLY, TRUNK LID, LH Genuine Aston Martin - New (to order)
                      # 4
                      MPN: 703584
                      SCREW, M8X40, HEX FLANGE HEAD
                      from £0.51
                      from £0.51
                      SCREW M8X40 FLANGE HD 8 Genuine Aston Martin - New (to order)
                      # 5
                      MPN: AG43-32692-AA
                      WASHER, M8
                      from £0.67
                      from £0.67
                      V2WASHER LARGE OD M8 Genuine Aston Martin - New (to order)
                      # 6
                      MPN: 703268
                      SCREW, M8X21
                      from £1.26
                      from £1.26
                      SCREW M8X1.25X21 Genuine Aston Martin - New (to order)
                      # 7
                      MPN: 6G33-L406A10-AD
                      GAS STRUT, DECKLID
                      from £47.49
                      from £47.49
                      GAS STRUT, TRUNK LID Genuine Aston Martin - New (to order)
                      # 8
                      MPN: 1R12-640101-AA
                      BALL STUD
                      from £3.37
                      from £3.37
                      BALL STUD Genuine Aston Martin - New (to order)
                      # 9
                      MPN: 703131
                      WASHER, M8
                      from £0.47
                      from £0.47
                      WASHER M8 PLAIN FORM Genuine Aston Martin - New (to order)
                      # 10
                      MPN: 6G33-N40452-AB
                      BUMPSTOP ASSEMBLY, DECKLID
                      from £10.52
                      from £10.52
                      BUMPSTOP ASSEMBLY LFT GTE Genuine Aston Martin - New (to order)
