aston martin v12 vantage (2011) tailgate, coupe parts diagram

010303-B1 - Tailgate, Coupe

Aston Martin V12 Vantage (2011) Tailgate, Coupe Parts Diagram

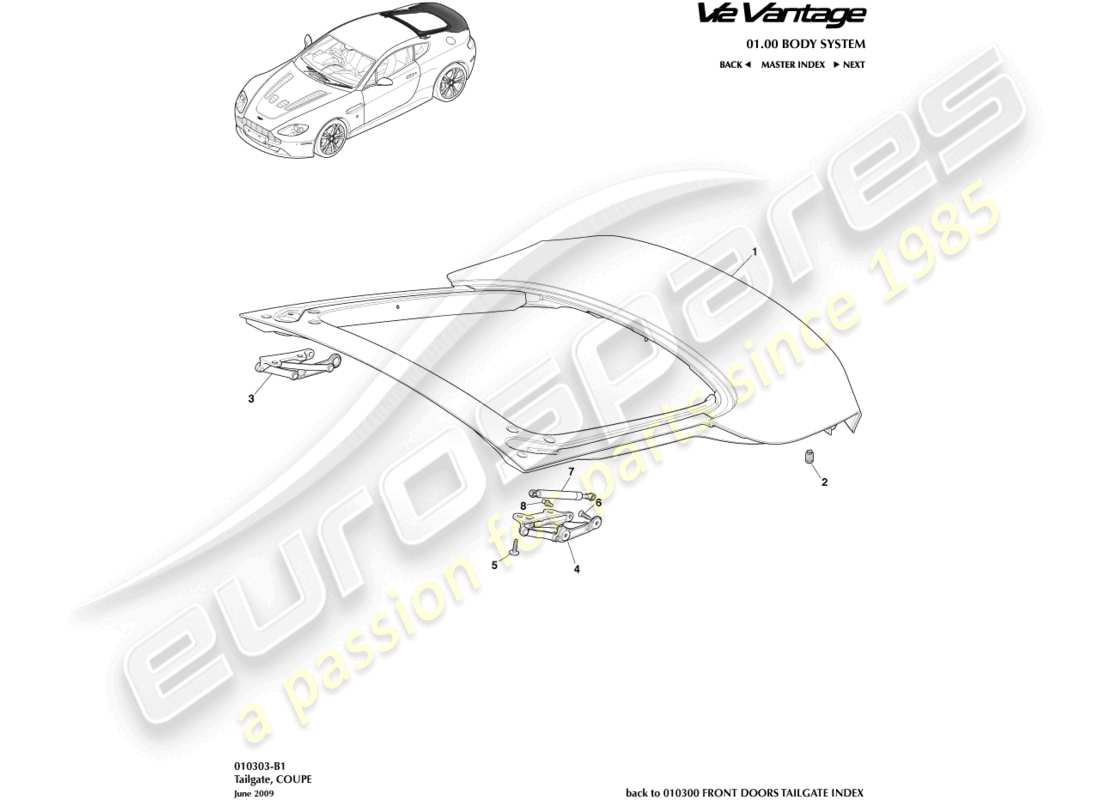

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: AD23-40110-AA
                  TAILGATE ASSEMBLY
                  from £3,421.03
                  from £3,421.03
                  TAILGATE ASSEMBLY Genuine Aston Martin - New (to order)
                  # 2
                  MPN: 6G33-N40452-AB
                  BUMPSTOP ASSEMBLY
                  from £10.52
                  from £10.52
                  BUMPSTOP ASSEMBLY LFT GTE Genuine Aston Martin - New (to order)
                  # 2
                  MPN: 6G33-200B10-AA
                  BUMPSTOP - PAINT PROTECTOR
                  Supersession
                  Supersession
                  Genuine Aston Martin (no longer available to order)
                  # 3
                  MPN: 6G33-C42701-AG
                  HINGE ASSEMBLY, TAILGATE, RH
                  from £178.65
                  from £178.65
                  Genuine Aston Martin (no longer available to order)
                  HINGE ASSEMBLY, TAILGATE, RH Genuine Aston Martin - Used In stock
                  # 4
                  MPN: 6G33-C42700-AG
                  HINGE ASSEMBLY, TAILGATE, LH
                  from £178.65
                  from £178.65
                  Genuine Aston Martin (no longer available to order)
                  HINGE ASSEMBLY, TAILGATE, RH Genuine Aston Martin - Used In stock
                  # 5
                  MPN: 703147
                  SCREW, M8 X 25 FLAT CSK
                  from £0.47
                  from £0.47
                  SCREW, M8 X 25 FLAT COUNTERSUNK Genuine Aston Martin - New (to order)
                  # 6
                  MPN: 702513
                  SCREW, M8 X 25
                  SCREW, M8 X 25 Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 6G33-406A10-AC
                  GAS STRUT, TAILGATE
                  from £32.33
                  from £32.33
                  GAS STRUT, TRUNK Genuine Aston Martin - New In stock
                  # 8
                  MPN: 1R12-640101-AA
                  BALL STUD
                  from £3.37
                  from £3.37
                  BALL STUD Genuine Aston Martin - New (to order)
                  # 9
                  MPN: DG33-19H207-AA/BA
                  ANTI-SQUEAK TAPE (PAIR)
                  Not illustrated
                  from £9.59
                  from £9.59
                  ANTI-SQUEAK TAPE (PAIR) Genuine Aston Martin - New (to order)
