aston martin v12 vantage (2011) floor trim parts diagram

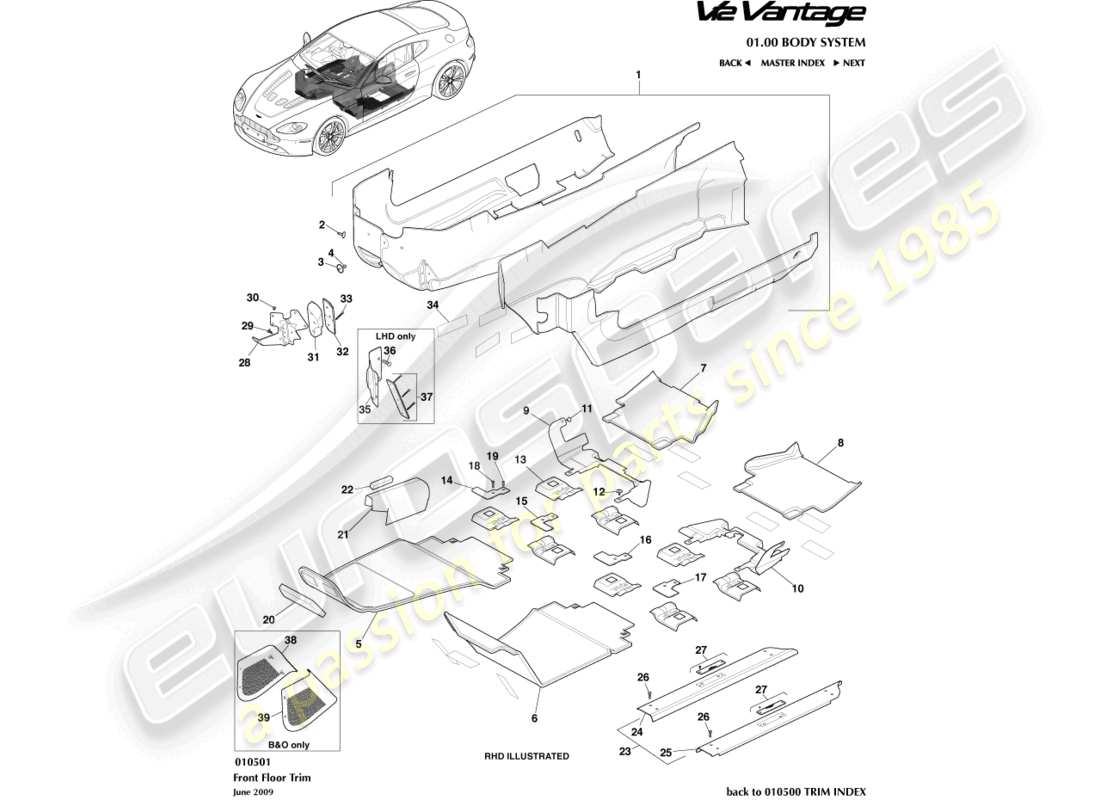

010501 - Floor Trim

Aston Martin V12 Vantage (2011) Floor Trim Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Key
                                              Price
                                              # 1
                                              MPN: 6G33-281B10-BDW
                                              KIT ASSEMBLY, SIDE CARPET, RHD
                                              Premium
                                              from £780.06
                                              from £780.06
                                              KIT ASSEMBLY, SIDE CARPET, RHD Genuine Aston Martin - New (to order)
                                              # 1
                                              MPN: 6G33-281B11-BDW
                                              KIT ASSEMBLY, SIDE CARPET, LHD
                                              Premium
                                              KIT ASSEMBLY, SIDE CARPET, LHD Genuine Aston Martin - New (to order)
                                              # 1
                                              MPN: AD23-281B10-BAW
                                              KIT ASSEMBLY, SIDE CARPET, RHD
                                              Lightweight
                                              from £1,394.75
                                              from £1,394.75
                                              KIT ASSEMBLY, SIDE CARPET, RHD Genuine Aston Martin - New (to order)
                                              # 1
                                              MPN: AD23-281B11-BAW
                                              KIT ASSEMBLY, SIDE CARPET, LHD
                                              Lightweight
                                              KIT ASSEMBLY, SIDE CARPET, LHD Genuine Aston Martin - New (to order)
                                              # 2
                                              MPN: 4G43-STC3710-AA-PK
                                              FASTENER, FIRTREE
                                              Supersession
                                              Supersession
                                              Genuine Aston Martin (no longer available to order)
                                              # 3
                                              MPN: 6G33-13925-AA
                                              RETAINER
                                              2off LHD
                                              from £0.47
                                              from £0.47
                                              M5 X 35 PSH ON FIX Genuine Aston Martin - New (to order)
                                              # 4
                                              MPN: 702295
                                              NUT, M5
                                              2off LHD
                                              from £0.47
                                              from £0.47
                                              NUT M5 HEX FLANGE Genuine Aston Martin - New (to order)
                                              # 5
                                              MPN: 6G33-130A12-BDW
                                              CARPET ASSEMBLY, FRONT FLOOR CENTRE, RH, RHD
                                              Premium
                                              CARPET ASSEMBLY, FRONT FLOOR CENTRE, RH, RHD Genuine Aston Martin - New (to order)
                                              # 5
                                              MPN: AD23-130A12-AAW
                                              CARPET ASSEMBLY, FRONT FLOOR CENTRE, RH, RHD
                                              Lightweight
                                              CARPET ASSEMBLY, FRONT FLOOR CENTRE, RH, RHD Genuine Aston Martin - New (to order)
                                              # 5
                                              MPN: 6G33-130A08-BCW
                                              CARPET ASSEMBLY, FRONT FLOOR CENTRE, RH, LHD
                                              Premium
                                              from £42.40
                                              from £42.40
                                              CARPET ASSEMBLY, FRONT FLOOR CENTRE, RH, LHD Genuine Aston Martin - New (to order)
                                              # 5
                                              MPN: AD23-130A08-AAW
                                              CARPET ASSEMBLY, FRONT FLOOR CENTRE, RH, LHD
                                              Lightweight
                                              CARPET ASSEMBLY, FRONT FLOOR CENTRE, RH, LHD Genuine Aston Martin - New (to order)
                                              # 6
                                              MPN: 6G33-130A10-BCW
                                              CARPET ASSEMBLY, FRONT FLOOR CENTRE, LH, RHD
                                              Premium
                                              CARPET ASSEMBLY, FRONT FLOOR CENTRE, LH, RHD Genuine Aston Martin - New (to order)
                                              # 6
                                              MPN: AD23-130A10-AWW
                                              CARPET ASSEMBLY, FRONT FLOOR CENTRE, LH, RHD
                                              Lightweight
                                              CARPET ASSEMBLY, FRONT FLOOR CENTRE, LH, RHD Genuine Aston Martin - New (to order)
                                              # 6
                                              MPN: 6G33-130A09-BDW
                                              CARPET ASSEMBLY, FRONT FLOOR CENTRE, LH, LHD
                                              Premium
                                              from £51.33
                                              from £51.33
                                              CARPET ASSEMBLY, FRONT FLOOR CENTRE, LH, LHD Genuine Aston Martin - New (to order)
                                              # 6
                                              MPN: AD23-130A09-BDW
                                              CARPET ASSEMBLY, FRONT FLOOR CENTRE, LH, LHD
                                              Lightweight
                                              CARPET ASSEMBLY, FRONT FLOOR CENTRE, LH, LHD Genuine Aston Martin - New (to order)
                                              # 7
                                              MPN: AD23-130A39-BBW
                                              CARPET ASSEMBLY, REAR FLOOR CENTRE, RH
                                              Premium
                                              CARPET ASSEMBLY, REAR FLOOR CENTRE, RH Genuine Aston Martin - New (to order)
                                              # 7
                                              MPN: AD23-130A39-ABW
                                              CARPET ASSEMBLY, REAR FLOOR CENTRE, RH
                                              Lightweight
                                              CARPET ASSEMBLY, REAR FLOOR CENTRE, RH Genuine Aston Martin - New (to order)
                                              # 8
                                              MPN: AD23-130A38-BBW
                                              CARPET ASSEMBLY, REAR FLOOR CENTRE, LH
                                              Premium
                                              CARPET ASSEMBLY, REAR FLOOR CENTRE, LH Genuine Aston Martin - New (to order)
                                              # 8
                                              MPN: AD23-130A38-ABW
                                              CARPET ASSEMBLY, REAR FLOOR CENTRE, LH
                                              Lightweight
                                              CARPET ASSEMBLY, REAR FLOOR CENTRE, LH Genuine Aston Martin - New (to order)
                                              # 9
                                              MPN: 6G33-100A90-AA
                                              SUPPORT, REAR FLOOR, RH
                                              from £18.59
                                              from £18.59
                                              SUPPORT, REAR FLOOR, RH Genuine Aston Martin - New (to order)
                                              SUPPORT, REAR FLOOR, RH Genuine Aston Martin - Used In stock
                                              # 10
                                              MPN: 6G33-100A91-AA
                                              SUPPORT, REAR FLOOR, LH
                                              from £18.59
                                              from £18.59
                                              SUPPORT, REAR FLOOR, LH Genuine Aston Martin - New (to order)
                                              SUPPORT, REAR FLOOR, LH Genuine Aston Martin - Used In stock
                                              # 11
                                              MPN: 4G43-MXC1800-AA-PK
                                              FASTENER, FIRTREE
                                              Supersession
                                              Supersession
                                              This part replaces part number 4G43-MXC1800-AA which we have in stock
                                              Genuine Aston Martin (no longer available to order)
                                              # 12
                                              MPN: 7G43-25954-AC
                                              SCREW AND WASHER M5 X 16
                                              from £1.04
                                              from £1.04
                                              SCREW AND WASHER M5 X 16 Genuine Aston Martin - New (to order)
                                              # 13
                                              MPN: 6G33-M1H403-AA
                                              COVER, FLOOR PAN
                                              from £1.79
                                              from £1.79
                                              FLOOR PAN COVER Genuine Aston Martin - New (to order)
                                              # 14
                                              MPN: 6G33-666A40-AB
                                              FINSHER, CARPET, COMMON RHS
                                              from £30.45
                                              from £30.45
                                              CRPT FINISH RHS COMM Genuine Aston Martin - New (to order)
                                              CRPT FINISH RHS COMM Genuine Aston Martin - Used In stock
                                              # 15
                                              MPN: 6G33-666A41-AB
                                              FINSHER, CARPET, COMMON LHS
                                              from £17.00
                                              from £17.00
                                              CRPT FINISH LHS COMM Genuine Aston Martin - New (to order)
                                              CRPT FINISH LHS COMM Genuine Aston Martin - Used In stock
                                              # 16
                                              MPN: 6G33-666A42-AA
                                              FINSHER, CARPET, PASSENGER SIDE RHS
                                              from £32.90
                                              from £32.90
                                              FINSHER, CARPET, PASSENGER SIDE RHS Genuine Aston Martin - New (to order)
                                              # 17
                                              MPN: 6G33-666A43-AA
                                              FINSHER, CARPET, PASSENGER SIDE LHS
                                              from £32.90
                                              from £32.90
                                              FINSHER, CARPET, PASSENGER SIDE LHS Genuine Aston Martin - New (to order)
                                              # 18
                                              MPN: 6G33-68D11-BA
                                              SCREW, CAP HEAD, M5 X 20
                                              from £0.82
                                              from £0.82
                                              CAP SCREW - M5X20 Genuine Aston Martin - New (to order)
                                              # 19
                                              MPN: 6G33-68D11-AA
                                              SCREW, CAP HEAD, M5 X 12
                                              from £0.47
                                              from £0.47
                                              CAP SCREW - M5X12 Genuine Aston Martin - New (to order)
                                              # 20
                                              MPN: 4G43-11458-AB
                                              FOAM BLOCK, DASH PANEL, RH
                                              from £11.92
                                              from £11.92
                                              FOAM BLOCK, HEEL IMPACT, RH, RHD Genuine Aston Martin - New (to order)
                                              # 20
                                              MPN: 4G43-11459-AB
                                              FOAM BLOCK, DASH PANEL, LH
                                              from £13.57
                                              from £13.57
                                              FOAM BLOCK, HEEL IMPACT, LH, LHD Genuine Aston Martin - New (to order)
                                              # 21
                                              MPN: 6G33-831236-AAW
                                              GAITER ASSEMBLY, HANDBRAKE, RHD
                                              from £483.97
                                              from £483.97
                                              GAITER ASSEMBLY, HANDBRAKE, RHD Genuine Aston Martin - New (to order)
                                              # 21
                                              MPN: 6G33-831237-AAW
                                              GAITER ASSEMBLY, HANDBRAKE, LHD
                                              from £483.97
                                              from £483.97
                                              GAITER ASSEMBLY, HANDBRAKE, LHD Genuine Aston Martin - New (to order)
                                              # 22
                                              MPN: 4G43-M4D4515-AA
                                              FOAM BLOCK, HANDBRAKE GAITER
                                              from £0.49
                                              from £0.49
                                              FOAM Genuine Aston Martin - New (to order)
                                              # 23
                                              MPN: 8G33-13242-AD
                                              KIT, PLATE DOOR, SCUFF PLATE
                                              Graphite
                                              KIT, PLATE DOOR, SCUFF PLATE Genuine Aston Martin - New (to order)
                                              # 23
                                              MPN: AG33-13242-AB
                                              KIT, PLATE DOOR, SCUFF PLATE
                                              Polished - Please see Bulletin PSB-2018-409
                                              KIT, PLATE DOOR, SCUFF PLATE Genuine Aston Martin - New (to order)
                                              # 23
                                              MPN: BG33-13242-AD
                                              KIT, PLATE DOOR, SCUFF PLATE
                                              N420/Black
                                              from £290.87
                                              from £290.87
                                              KIT, PLATE DOOR, SCUFF PLATE Genuine Aston Martin - New (to order)
                                              # 26
                                              MPN: 6G33-SS106209-AA-PK
                                              SCREW, SOCKET HEAD, M6 X 20
                                              SCREW, M6 X 20, SOCKET LOW HEAD Genuine Aston Martin - New (to order)
                                              # 27
                                              MPN: AD23-80-10019
                                              NAME PLATE, PERSONALISED
                                              from £301.46
                                              from £301.46
                                              NAME PLATE, PERSONALISED Genuine Aston Martin - New (to order)
                                              # 27
                                              MPN: AD23-80-10020
                                              NAME PLATE, STANDARD
                                              from £168.93
                                              from £168.93
                                              NAME PLATE, STANDARD Genuine Aston Martin - New (to order)
                                              # 27
                                              MPN: AD23-132A51-BA
                                              NAME PLATE
                                              Carbon Black Edition
                                              from £286.54
                                              from £286.54
                                              NAME PLATE Genuine Aston Martin - New (to order)
                                              # 27
                                              MPN: CD33-132A50-AA
                                              NAME PLATE, CARBON
                                              12.5MY
                                              from £243.46
                                              from £243.46
                                              NM PLT FRONT SILL SCF Genuine Aston Martin - New (to order)
                                              # 27
                                              MPN: DD23-132A51-BA
                                              Name Plate, V12 Vantage, Carbon Black
                                              12.5MY
                                              Name Plate, V12 Vantage, Carbon Black Genuine Aston Martin - New (to order)
                                              # 27
                                              MPN: DD23-132A51-AA
                                              Name Plate, V12 Vantage, Roadster
                                              Name Plate, V12 Vantage, Roadster Genuine Aston Martin - New (to order)
                                              # 28
                                              MPN: 6G33-3N234-AB
                                              BRACKET, FOOTREST, RHD
                                              from £32.59
                                              from £32.59
                                              BRACKET, FOOTREST, RHD Genuine Aston Martin - New (to order)
                                              # 29
                                              MPN: 4G43-MXC1800-AA-PK
                                              FASTENER, FIRTREE
                                              Supersession
                                              Supersession
                                              This part replaces part number 4G43-MXC1800-AA which we have in stock
                                              Genuine Aston Martin (no longer available to order)
                                              # 30
                                              MPN: 701556-PK
                                              SCREW, M5 X 16
                                              from £2.06
                                              from £2.06
                                              SCREW-M5X16 PN HD(10 Genuine Aston Martin - New (to order)
                                              # 31
                                              MPN: 6G33-044J08-AA
                                              FOAM FOOTREST
                                              from £10.67
                                              from £10.67
                                              FOAM FOOTREST RHD Genuine Aston Martin - New (to order)
                                              FOAM FOOTREST RHD Genuine Aston Martin - Used In stock
                                              # 32
                                              MPN: 6G33-12021-AA
                                              COVER PLATE, FOOTREST, RHD
                                              from £41.31
                                              from £41.31
                                              RH F/R COVER PLATE Genuine Aston Martin - New (to order)
                                              RH F/R COVER PLATE Genuine Aston Martin - Used In stock
                                              # 32
                                              MPN: CD33-12021-CA
                                              COVER PLATE, FOOTREST, RHD, BLACK PEDALS
                                              12.5MY
                                              from £85.58
                                              from £85.58
                                              RH F/R COVER BLACK Genuine Aston Martin - New (to order)
                                              # 33
                                              MPN: 6G33-E801202-AA
                                              SCREW, M5 X 45
                                              from £0.47
                                              from £0.47
                                              M5X45 COUNTERSUNK ST SCREW Genuine Aston Martin - New (to order)
                                              # 34
                                              MPN: 6G33-100N00-AA
                                              ADHESIVE TAPE
                                              from £8.92
                                              from £8.92
                                              ADHESIVE TAPE - DOUB Genuine Aston Martin - New (to order)
                                              # 35
                                              MPN: 4G43-18449-BD
                                              SCUFF PLATE ACCELERATOR FINISHER
                                              LHD only
                                              from £47.93
                                              from £47.93
                                              SCF PLT ACCEL FIN Genuine Aston Martin - New (to order)
                                              # 36
                                              MPN: 4G43-3L657-AA
                                              SCREW, M5 X 20
                                              LHD only
                                              from £0.47
                                              from £0.47
                                              SCW M5X20 COUNTERSUNK HD SS Genuine Aston Martin - New (to order)
                                              # 37
                                              MPN: 4G43-12020-BA
                                              Cover Plate, Footrest, LHD
                                              from £1,619.81
                                              from £1,619.81
                                              PAD ASSEMBLY FRONT ST FT Genuine Aston Martin - New (to order)
                                              # 37
                                              MPN: CD33-12020-CA
                                              COVER PLATE, FOOTREST, LHD, BLACK PEDALS
                                              12.5MY
                                              from £76.08
                                              from £76.08
                                              PAD ASSEMBLY FRONT ST BLACK Genuine Aston Martin - New (to order)
                                              # 38
                                              MPN: 9D33-311A76-CA
                                              Speaker Grille, Footwell Speaker, RH, B&O, Silver
                                              from £447.22
                                              from £447.22
                                              FOOTWELL SPEAKER GRL RH Genuine Aston Martin - New (to order)
                                              # 38
                                              MPN: 9D33-311A76-DA
                                              Speaker Grille, Footwell Speaker, RH, B&O, Black
                                              12.5MY
                                              from £456.40
                                              from £456.40
                                              FOOTWELL SPEAKER GRL RH Genuine Aston Martin - New (to order)
                                              # 39
                                              MPN: 9D33-311A77-CA
                                              Speaker Grille, Footwell Speaker, LH, B&O, Silver
                                              from £447.22
                                              from £447.22
                                              FOOTWELL SPEAKER GRL LH Genuine Aston Martin - New (to order)
                                              # 39
                                              MPN: 9D33-311A77-DA
                                              Speaker Grille, Footwell Speaker, LH, B&O, Black
                                              12.5MY
                                              from £456.40
                                              from £456.40
                                              FOOTWELL SPEAKER GRL LH Genuine Aston Martin - New (to order)
                                              # -
                                              -
                                              CARPET KIT, FRONT/REAR OBSIDIAN, RHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, FRONT/REAR OBSIDIAN, LHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, SIDE/CENTRE OBSIDIAN, RHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, SIDE/CENTRE OBSIDIAN, LHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, FRONT/REAR BLACK CHERRY, RHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, FRONT/REAR BLACK CHERRY, LHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, SIDE/CENTRE BLACK CHERRY, RHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, SIDE/CENTRE BLACK CHERRY, LHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, FRONT/REAR PARLIAMENT GREEN, RHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, FRONT/REAR PARLIAMENT GREEN, LHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, SIDE/CENTRE PARLIAMENT GREEN, RHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, SIDE/CENTRET PARLIAMENT GREEN, LHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, FRONT/REAR SANDSTORM, RHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, FRONT/REAR SANDSTORM, LHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, SIDE/CENTRE SANDSTORM, RHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, SIDE/CENTRE SANDSTORM, LHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, FRONT/REAR BLUE HAZE, RHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, FRONT/REAR BLUE HAZE, LHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, SIDE/CENTRE BLUE HAZE, RHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, SIDE/CENTRE BLUE HAZE, LHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, FRONT/REAR CASPIAN BLUE, RHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, FRONT/REAR CASPIAN BLUE, LHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, SIDE/CENTRE CASPIAN BLUE, RHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, SIDE/CENTRE CASPIAN BLUE, LHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, FRONT/REAR PHANTOM GREY, RHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, FRONT/REAR PHANTOM GREY, LHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, SIDE/CENTRE PHANTOM GREY, RHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, SIDE/CENTRE PHANTOM GREY, LHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, FRONT/REAR BITTER CHOCOLATE, RHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, FRONT/REAR BITTER CHOCOLATE, LHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, SIDE/CENTRE BITTER CHOCOLATE, RHD
                                              All model years
                                              # -
                                              -
                                              CARPET KIT, SIDE/CENTRE BITTER CHOCOLATE, LHD
                                              All model years
