aston martin v12 vantage (2011) header trim, coupe parts diagram

010503-B5 - Header Trim, Coupe

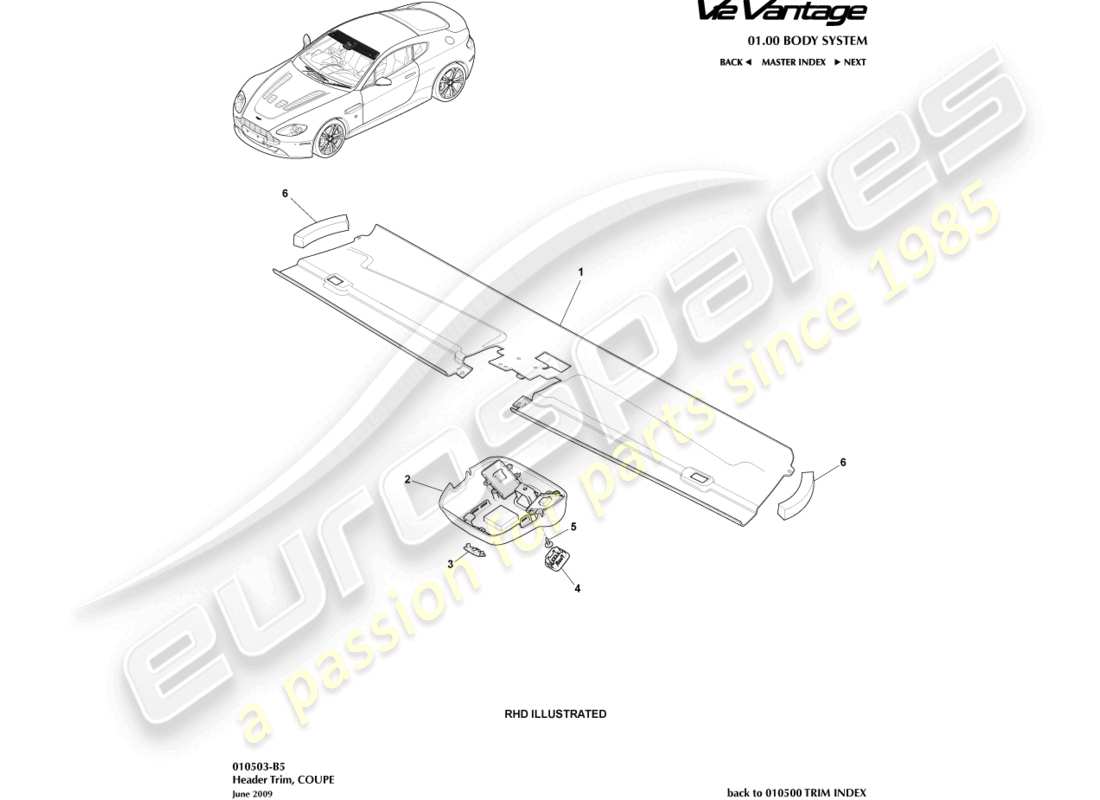

Aston Martin V12 Vantage (2011) Header Trim, Coupe Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: 8D33-03409-ADW
              PANEL ASSY, HEADER, RHD
              from £519.92
              from £519.92
              PANEL ASSEMBLY W/SHLD HDR Genuine Aston Martin - New (to order)
              # 1
              MPN: 8D33-03408-ADW
              PANEL ASSY, HEADER, LHD
              from £519.92
              from £519.92
              PANEL ASSEMBLY W/SHLD HDR L Genuine Aston Martin - New (to order)
              # 2
              MPN: 8D33-519A58-AGW
              CONSOLE ASSY, FRONT HEADER
              from £378.55
              from £378.55
              CONSOLE ASSEMBLY, FRONT HEADER Genuine Aston Martin - New (to order)
              # 3
              MPN: 8D33-13E714-AB
              BEZEL, LAMP AMBNT
              from £2.94
              from £2.94
              BEZEL, LAMP AMBNT Genuine Aston Martin - New (to order)
              # 4
              MPN: 8D33-19G379-AB
              Bezel, microphone retainer
              from £0.68
              from £0.68
              MIC BEZEL Genuine Aston Martin - New (to order)
              # 5
              MPN: 701157
              SCREW, 4.2 X 16
              from £0.47
              from £0.47
              SCREW, 4.2X16, TAP Genuine Aston Martin - New (to order)
              # 6
              MPN: 4G43-M4D4515-BA
              FOAM BLOCK
              Supersession
              Supersession
              Genuine Aston Martin (no longer available to order)
