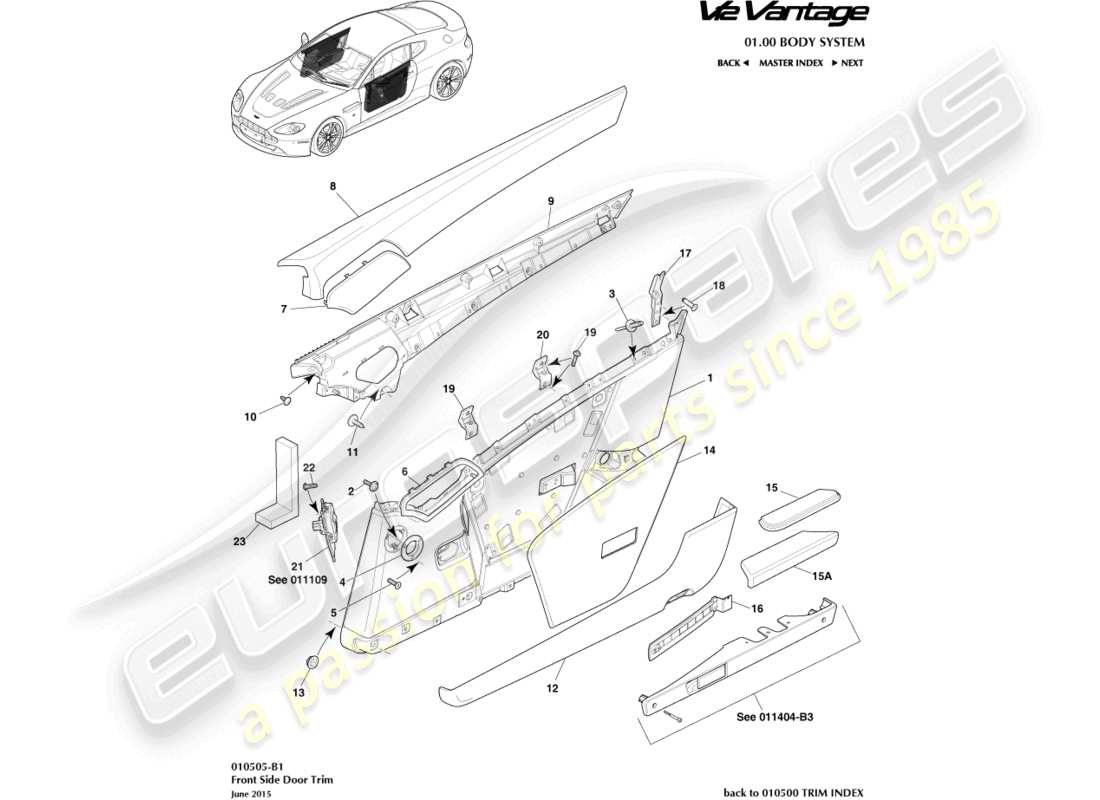

010505-B1 - DOOR TRIM

Aston Martin V12 Vantage (2011) Door Trim Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: AD23-23936-ABW
                  PANEL ASSY, FRONT DOOR TRIM LOWER, RH
                  from £1,372.12
                  from £1,372.12
                  PANEL ASSEMBLY, FRONT DOOR TRIM LOWER, RH Genuine Aston Martin - New (to order)
                  # 1
                  MPN: AD23-23937-ABW
                  PANEL ASSY, FRONT DOOR TRIM LOWER, LH
                  from £1,372.29
                  from £1,372.29
                  PANEL ASSEMBLY, FRONT DOOR TRIM LOWER, LH Genuine Aston Martin - New (to order)
                  # 2
                  MPN: 701573
                  SCREW AND WASHER, M4 X 16
                  5 per panel
                  Supersession
                  Supersession
                  Genuine Aston Martin (no longer available to order)
                  # 3
                  MPN: 6G33-RA610123-AA
                  RIVET, POP
                  6 per panel
                  from £0.47
                  from £0.47
                  POP RIVET ALUM 4.8 Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 9G33-C237898-AA
                  BEZEL, DOOR TRIM
                  1 per panel, Graphite
                  BEZEL,DOOR TRIM, GRAPHITE Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 9D33-C237898-AA
                  BEZEL, DOOR TRIM
                  1 per panel, Black
                  BEZEL, DOOR TRIM Genuine Aston Martin - New (to order)
                  # 5
                  MPN: 4G43-103081-BA
                  SCREW, M4 X16, SOCKET CSK HD
                  3 per panel
                  from £0.47
                  from £0.47
                  SCREW COUNTERSUNK M4 X 16 Genuine Aston Martin - New (to order)
                  # 6
                  MPN: 6G33-310C00-AA
                  BRACKET, RADIO SPEAKER GRILLE, RH
                  from £4.99
                  from £4.99
                  BRACKET SPK GRL DR TR Genuine Aston Martin - New (to order)
                  # 6
                  MPN: 6G33-310C01-AA
                  BRACKET, RADIO SPEAKER GRILLE, LH
                  from £4.99
                  from £4.99
                  BRACKET SPK GRL DR TR Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 6G33-C18982-AA
                  GRILLE, RADIO SPEAKER, RH
                  Graphite
                  from £40.42
                  from £40.42
                  GRILLE, RADIO SPEAKER, RH Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 6G33-C18983-AA
                  GRILLE, RADIO SPEAKER, LH
                  Graphite
                  from £40.42
                  from £40.42
                  GRILLE, RADIO SPEAKER, LH Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 6G33-C18980-AB
                  GRILLE, RADIO SPEAKER, RH
                  Platinum
                  from £73.53
                  from £73.53
                  GRILLE, RADIO SPEAKER, RH, PLATINUM Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 6G33-C18981-AA
                  GRILLE, RADIO SPEAKER, LH
                  Platinum
                  from £86.21
                  from £86.21
                  GRILLE, RADIO SPEAKER, LH Genuine Aston Martin - New (to order)
                  # 7
                  MPN: CY83-C18978-BA
                  GRILLE, DOOR SPEAKER, RH, BLACK, B&O
                  12.5MY
                  from £560.98
                  from £560.98
                  GRILLE, DOOR SPEAKER, RH, BLACK, B&O Genuine Aston Martin - New (to order)
                  # 7
                  MPN: CY83-C18979-BA
                  GRILLE, DOOR SPEAKER, LH, BLACK, B&O
                  12.5MY
                  from £560.98
                  from £560.98
                  GRILLE, DOOR SPEAKER, LH, BLACK, B&O Genuine Aston Martin - New (to order)
                  # 8
                  MPN: 6G33-23928-AAW
                  PANEL ASSY, DOOR TRIM APPLIQUE LEATHER, RH
                  from £408.52
                  from £408.52
                  PANEL ASSEMBLY, DOOR TRIM APPLIQUE, RH Genuine Aston Martin - New (to order)
                  # 8
                  MPN: 6G33-23929-AAW
                  PANEL ASSY, DOOR TRIM APPLIQUE LEATHER, LH
                  from £408.52
                  from £408.52
                  PANEL ASSEMBLY, DOOR TRIM APPLIQUE, LH Genuine Aston Martin - New (to order)
                  # 9
                  MPN: 6G33-23900-AC
                  PANEL, DOOR TRIM UPPER MOULDING, RH
                  from £101.09
                  from £101.09
                  PANEL, DOOR TRIM, UPPER, RH Genuine Aston Martin - New (to order)
                  # 9
                  MPN: 6G33-23901-AC
                  PANEL, DOOR TRIM UPPER MOULDING, LH
                  from £101.09
                  from £101.09
                  PANEL, DOOR TRIM, UPPER, LH Genuine Aston Martin - New (to order)
                  # 10
                  MPN: 6G33-104101-AB
                  SCREW, M4 X 10
                  1 per panel
                  SCREW, M4X10 Genuine Aston Martin - New (to order)
                  # 11
                  MPN: 701157-PK
                  SCREW, LARGE WASHER HEAD, 4.2 X 16
                  1 per panel
                  from £1.62
                  from £1.62
                  SCREW&WSHR 4.2X16(10 Genuine Aston Martin - New (to order)
                  # 12
                  MPN: 8D33-23718-ABW
                  POCKET ASSY, DOOR, RH
                  POCKET ASSEMBLY, DOOR, RH Genuine Aston Martin - New (to order)
                  # 12
                  MPN: 8D33-23719-ABW
                  POCKET ASSY, DOOR, LH
                  POCKET ASSEMBLY, DOOR, LH Genuine Aston Martin - New (to order)
                  # 13
                  MPN: 4G43-83000-BB
                  NUT, SPEED
                  10 per panel
                  from £0.47
                  from £0.47
                  NUT - SPEED M5 Genuine Aston Martin - New In stock
                  # 14
                  MPN: AD23-23864-BAW
                  INSERT ASSY, DOOR TRIM PANEL
                  from £544.90
                  from £544.90
                  INSERT ASSEMBLY, DOOR TRIM PANEL Genuine Aston Martin - New (to order)
                  # 15
                  MPN: 8D33-24070-AD
                  PAD ASSY, ARMREST, RH
                  Black Door Handle
                  from £200.42
                  from £200.42
                  PAD ASSEMBLY AREST UPPER RH Genuine Aston Martin - New (to order)
                  # 15
                  MPN: 8D33-24071-AD
                  PAD ASSY, ARMREST, LH
                  Black Door Handle
                  from £307.62
                  from £307.62
                  PAD ASSEMBLY AREST UPPER LH Genuine Aston Martin - New (to order)
                  # 15A
                  MPN: 8D33-24070-AD
                  PAD ASSY, ARMREST, RH
                  Carbon Door Handle
                  from £200.42
                  from £200.42
                  PAD ASSEMBLY AREST UPPER RH Genuine Aston Martin - New (to order)
                  # 15A
                  MPN: 8D33-24071-AD
                  PAD ASSY, ARMREST, LH
                  Carbon Door Handle
                  from £307.62
                  from £307.62
                  PAD ASSEMBLY AREST UPPER LH Genuine Aston Martin - New (to order)
                  # 16
                  MPN: 4G43-24242-ADW
                  INSERT ASSY, DOOR ARMREST RH
                  from £137.34
                  from £137.34
                  INSERT ASSEMBLY, DOOR ARMREST RH Genuine Aston Martin - New (to order)
                  # 16
                  MPN: 4G43-24243-ADW
                  INSERT ASSY, DOOR ARMREST LH
                  from £68.67
                  from £68.67
                  INSERT ASSEMBLY, DOOR ARMREST LH Genuine Aston Martin - New (to order)
                  INSERT ASSEMBLY, DOOR ARMREST LH Genuine Aston Martin - Used In stock
                  # 17
                  MPN: 6G33-20839-AA
                  RETAINER, DOOR TRIM UPPER MOULDING,RHS
                  1 per panel
                  from £7.59
                  from £7.59
                  RETAINER, DOOR TRIM, UPPER MOULDING, RH Genuine Aston Martin - New (to order)
                  # 17
                  MPN: 6G33-20839-BA
                  RETAINER, DOOR TRIM UPPER MOULDING,LHS
                  1 per panel
                  from £6.84
                  from £6.84
                  RETAINER, DOOR TRIM, UPPER MOULDING, LH Genuine Aston Martin - New (to order)
                  # 18
                  MPN: 4G43-17A873-AA
                  RIVET
                  2 per retainer
                  from £1.11
                  from £1.11
                  RIVET 4.8 X 12 Genuine Aston Martin - New (to order)
                  # 19
                  MPN: 6G33-20838-AA
                  RETAINER, DOOR TRIM UPPER MOULDING
                  2 per moulding
                  from £3.75
                  from £3.75
                  RETAINER,DOOR TRIM, UPPER Genuine Aston Martin - New (to order)
                  # 20
                  MPN: 701171
                  SCREW, M4.1 X 16
                  4 per retainer
                  from £0.47
                  from £0.47
                  SCREW, M4X16 Genuine Aston Martin - New (to order)
                  # 21
                  MPN: 9G33-14540-BA
                  SWITCHPACK, DRIVER, NON POWER FOLD
                  from £100.21
                  from £100.21
                  DRIVERS WINDOW SW Genuine Aston Martin - New (to order)
                  # 21
                  MPN: 9G33-14717-AA
                  SWITCHPACK, PASSENGER
                  from £633.66
                  from £633.66
                  This part replaces part number 6G33-14717-AA which we have in stock
                  WINDOW LIFT SWITCH Genuine Aston Martin - New (to order)
                  # 22
                  MPN: 701447
                  SCREW, M4 X12
                  4 per swtchpk
                  from £0.47
                  from £0.47
                  SCREW 4X12 PAN Genuine Aston Martin - New (to order)
                  # 23
                  MPN: 4G43-02275-AB
                  AIR OUTLET DUCT DOOR LOWER
                  1 per door
                  from £3.04
                  from £3.04
                  SE VENAIR OUTLET Genuine Aston Martin - New (to order)
