aston martin v12 vantage (2011) body side quarter trim, coupe parts diagram

010507-B1A - Body Side Quarter Trim, Coupe

Aston Martin V12 Vantage (2011) Body Side Quarter Trim, Coupe Parts Diagram

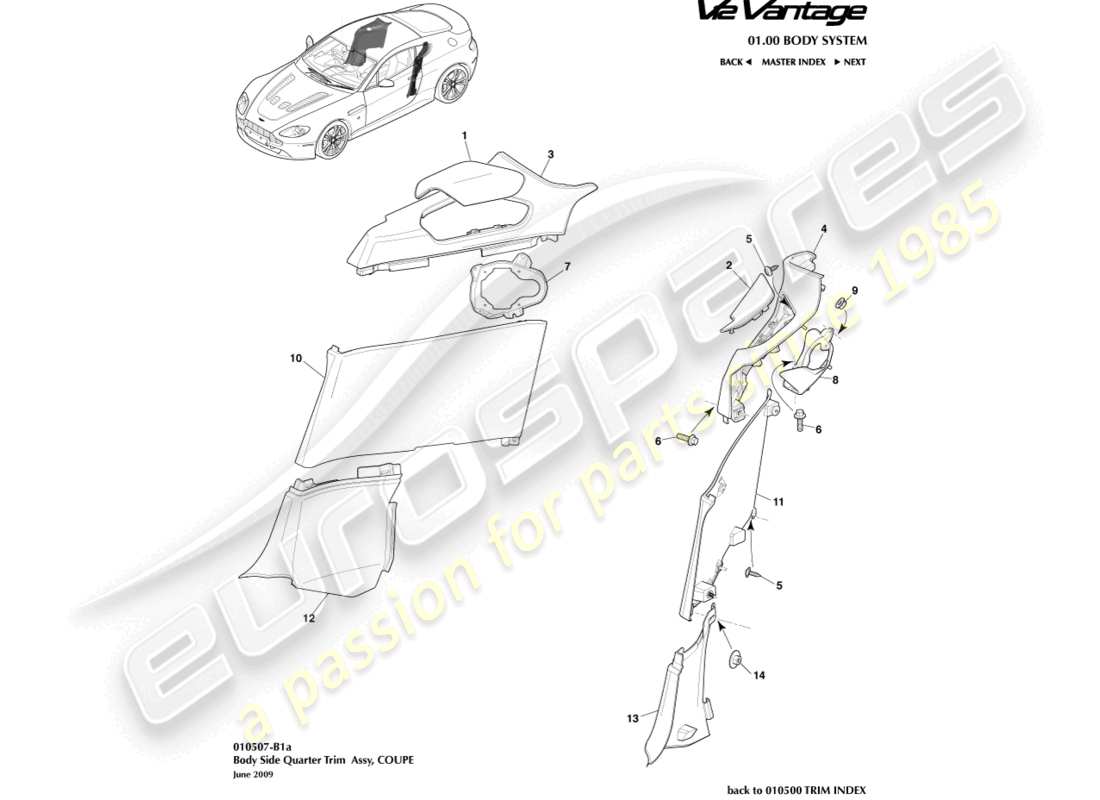

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: 6G33-310B08-BA
                  GRILLE ASSY, BODY SIDE RADIO SPEAKER, RH
                  GRILLE, BODY SIDE SPEAKER, RH Genuine Aston Martin - New (to order)
                  # 1
                  MPN: CY83-310B08-BA
                  GRILLE, REAR QUARTER SPEAKER, RH, BLACK
                  12.5MY
                  from £532.47
                  from £532.47
                  GRILLE, REAR QUARTER SPEAKER, RH, BLACK Genuine Aston Martin - New (to order)
                  # 2
                  MPN: 6G33-310B09-BA
                  GRILLE ASSY, BODY SIDE RADIO SPEAKER, LH
                  GRILLE, BODY SIDE SPEAKER, LH Genuine Aston Martin - New (to order)
                  # 2
                  MPN: CY83-310B09-BA
                  GRILLE, REAR QUARTER SPEAKER, LH, BLACK
                  12.5MY
                  from £532.47
                  from £532.47
                  GRILLE, REAR QUARTER SPEAKER, LH, BLACK Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-290A22-ADW
                  MOULDING ASSY, QUARTER TRIM UPPER, RH
                  from £790.30
                  from £790.30
                  MOULDING ASSEMBLY, UPPER TRIM, RH Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 6G33-290A23-ADW
                  MOULDING ASSY, QUARTER TRIM UPPER, LH
                  from £646.65
                  from £646.65
                  MOULDING ASSEMBLY, UPPER TRIM, LH Genuine Aston Martin - New (to order)
                  # 5
                  MPN: 701157-PK
                  SCREW, 4.2 X 16, LARGE WASHER HEAD
                  1 per moulding
                  from £1.62
                  from £1.62
                  SCREW&WSHR 4.2X16(10 Genuine Aston Martin - New (to order)
                  # 6
                  MPN: 703203
                  SCREW,, M6 X 20
                  2 per side
                  from £0.47
                  from £0.47
                  SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                  LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                  # 7
                  MPN: 6G33-18W808-AC
                  SUPPORT, RADIO REAR SPEAKER, RH
                  from £11.68
                  from £11.68
                  This part replaces part number 6G33-18W808-AB which we have in stock
                  SUPPORT, RADIO REAR SPEAKER, RH Genuine Aston Martin - New (to order)
                  # 8
                  MPN: 6G33-18W809-AC
                  SUPPORT, RADIO REAR SPEAKER, LH
                  from £11.68
                  from £11.68
                  This part replaces part number 6G33-18W809-AB which we have in stock
                  SUPPORT, RADIO REAR SPEAKER, LH Genuine Aston Martin - New (to order)
                  # 9
                  MPN: 702944
                  NUT, M6
                  3 per support
                  from £0.58
                  from £0.58
                  NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                  LOWER MESH NUTS Genuine Ferrari Part - New (to order)
                  # 10
                  MPN: 6G33-312A07-ACW
                  PANEL ASSY, QUARTER TRIM, RH
                  from £481.73
                  from £481.73
                  This part replaces part number 6G33-312A07-ABW
                  PANEL ASSEMBLY, QUARTER, LOWER, RHS Genuine Aston Martin - New (to order)
                  # 11
                  MPN: 6G33-312A08-ACW
                  PANEL ASSY, QUARTER TRIM, LH
                  from £481.73
                  from £481.73
                  PANEL ASSEMBLY, QUARTER, LOWER, LHS Genuine Aston Martin - New (to order)
                  # 12
                  MPN: 6G33-312A54-BFW
                  PANEL ASSY, QUARTER TRIM LOWER, RH
                  from £298.83
                  from £298.83
                  PANEL ASSEMBLY QUARTER TR LOWER R Genuine Aston Martin - New (to order)
                  # 13
                  MPN: 6G33-312A55-BGW
                  PANEL ASSY, QUARTER TRIM LOWER, LH
                  from £423.91
                  from £423.91
                  PANEL ASSEMBLY QUARTER TRIM LOWER, LHS Genuine Aston Martin - New (to order)
                  # 14
                  MPN: 704327
                  NUT AND WASHER, M6
                  1 per panel
                  from £3.16
                  from £3.16
                  NUT & WASHER M6 HEX Genuine Aston Martin - New (to order)
