aston martin v12 vantage (2011) rear end trim, coupe parts diagram

010507-B2 - Rear End Trim, Coupe

Aston Martin V12 Vantage (2011) Rear End Trim, Coupe Parts Diagram

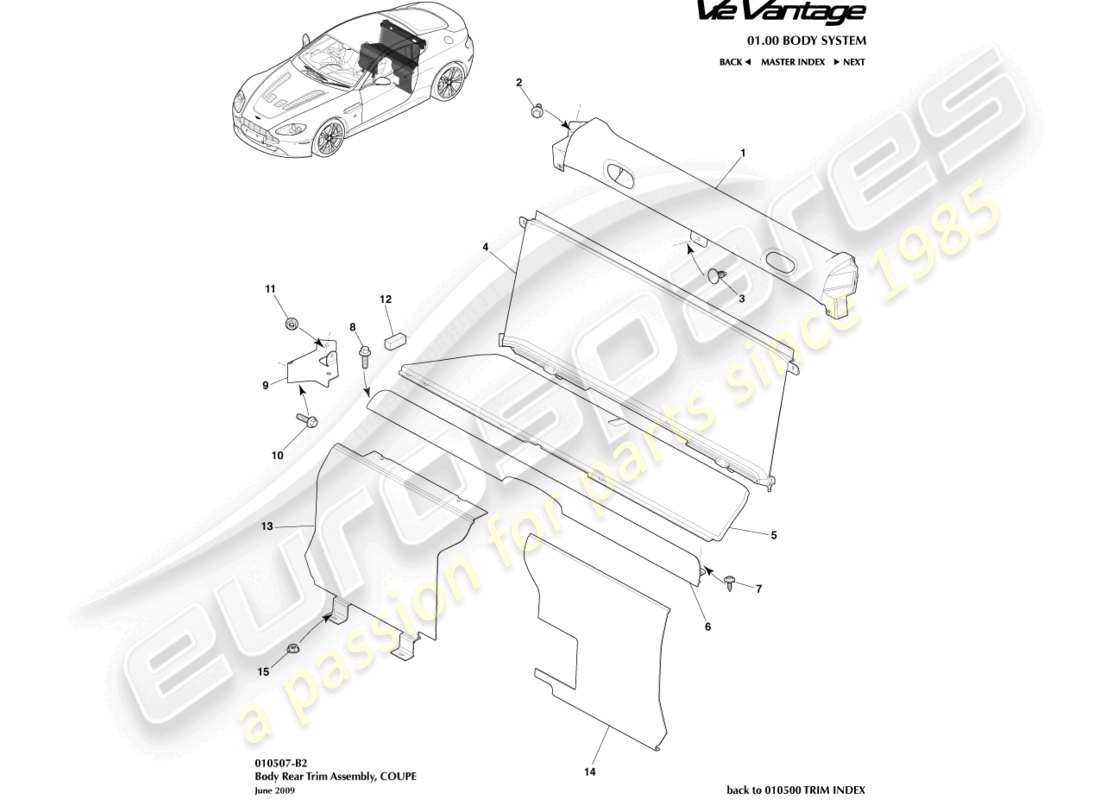

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 1
                                MPN: 6G33-674A09-AAW
                                FINISHER, REAR CABIN UPPER
                                FINISHER, REAR CABIN UPPER Genuine Aston Martin - New (to order)
                                # 2
                                MPN: 703203
                                SCREW, M6 X 20
                                from £0.47
                                from £0.47
                                SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                                LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                                # 3
                                MPN: 4G43-MXC1800-AA
                                FASTENER, FIR TREE
                                from £0.54
                                from £0.54
                                This part replaces part number 4G43-MXC1800-AA-PK
                                FASTENER, FIRTREE Genuine Aston Martin - New In stock
                                # 4
                                MPN: 6G33-60028-ABW
                                COVER ASSY, REAR BULKHEAD CENTRE
                                from £578.55
                                from £578.55
                                COVER ASSEMBLY, REAR BULKHEAD CENTRE Genuine Aston Martin - New (to order)
                                # 5
                                MPN: 6G33-11587-BBW
                                DOOR ASSY, STOWAGE COMPARTMENT
                                Supersession
                                Supersession
                                Genuine Aston Martin (no longer available to order)
                                # 6
                                MPN: 6G33-674A08-AB
                                FINISHER, REAR CABIN
                                from £68.99
                                from £68.99
                                FINISHER, REAR CABIN Genuine Aston Martin - New (to order)
                                # 7
                                MPN: 701157-PK
                                SCREW, SELF TAP 4.2 X 16
                                from £1.62
                                from £1.62
                                SCREW&WSHR 4.2X16(10 Genuine Aston Martin - New (to order)
                                # 8
                                MPN: 703203
                                SCREW, M6 X 20
                                from £0.47
                                from £0.47
                                SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                                LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                                # 9
                                MPN: 6G33-314A96-AC
                                BRACKET, REAR HEEL BOARD
                                from £11.03
                                from £11.03
                                BRACKET, REAR HEEL BOARD Genuine Aston Martin - New (to order)
                                BRACKET, REAR HEEL BOARD Genuine Aston Martin - Used In stock
                                # 10
                                MPN: 703203
                                SCREW, M6 X 20
                                from £0.47
                                from £0.47
                                SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                                LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                                # 11
                                MPN: 702944
                                NUT, M6
                                from £0.58
                                from £0.58
                                NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                                LOWER MESH NUTS Genuine Ferrari Part - New (to order)
                                # 12
                                MPN: 4G43-46660-AA
                                FOAM BLOCK, PARCEL SHELF
                                from £13.15
                                from £13.15
                                FOAM BLOCK, PARCEL SHELF Genuine Aston Martin - New (to order)
                                # 13
                                MPN: 6G33-674A06-BBW
                                HEEL BOARD ASSY, REAR RHS
                                Supersession
                                Supersession
                                Genuine Aston Martin (no longer available to order)
                                # 14
                                MPN: 6G33-275A08-AAW
                                COVER ASSY, REAR FLOOR TRIM PANEL, LHS
                                COVER ASSEMBLY, REAR FLOOR TRIM PANEL, LHS Genuine Aston Martin - New (to order)
                                # 15
                                MPN: 702944
                                NUT, M6
                                from £0.58
                                from £0.58
                                NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                                LOWER MESH NUTS Genuine Ferrari Part - New (to order)
