aston martin v12 vantage (2011) rear enviroment trim, roadster parts diagram

010507-B3 - Rear Enviroment Trim, Roadster

Aston Martin V12 Vantage (2011) Rear Enviroment Trim, Roadster Parts Diagram

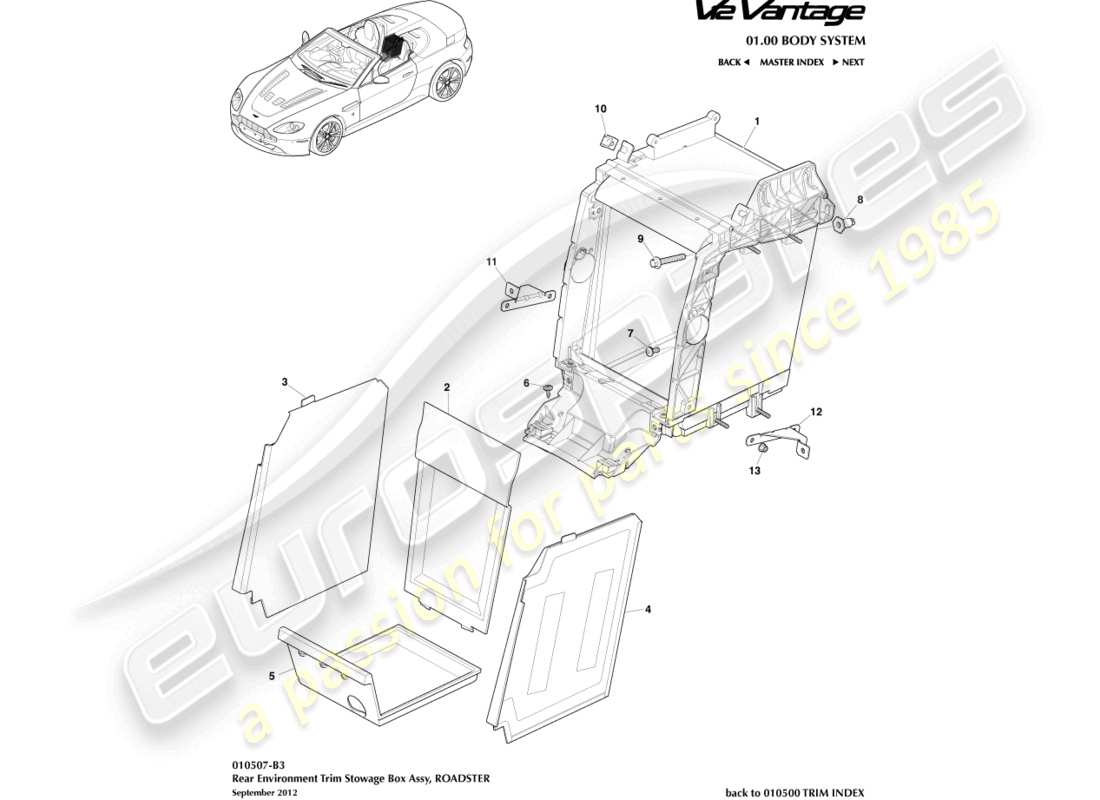

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: 6G33-L116A95-AH
                          BOX ASSEMBLY, STOWAGE
                          from £361.56
                          from £361.56
                          BOX ASSEMBLY, STOWAGE Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 6G33-L135A52-ACW
                          LINING ASSEMBLY, STOWAGE COMPARTMENT, REAR
                          from £22.83
                          from £22.83
                          LINING ASSEMBLY, STOWAGE COMPARTMENT, REAR Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 6G33-L11600-ACW
                          LINING ASSEMBLY, STOWAGE COMPARTMENT, RH
                          LNG ASSEMBLY STWG CMPT RH Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 6G33-L11601-ACW
                          LINING ASSEMBLY, STOWAGE COMPARTMENT, LH
                          LNG ASSEMBLY STWG CMPT LH Genuine Aston Martin - New (to order)
                          # 5
                          MPN: 6G33-L19C004-AC
                          MAT, STOWAGE BOX
                          from £11.88
                          from £11.88
                          MAT, STOWAGE BOX Genuine Aston Martin - New (to order)
                          # 6
                          MPN: 701157-PK
                          SCREW, 4.2 X 16
                          Pack of 10
                          from £1.62
                          from £1.62
                          SCREW&WSHR 4.2X16(10 Genuine Aston Martin - New (to order)
                          # 7
                          MPN: 703746
                          SCREW, M6 X 16, TORX PAN HEAD
                          from £0.47
                          from £0.47
                          SCREW-M6X16 PAN TORX Genuine Aston Martin - New (to order)
                          # 8
                          MPN: 6G33-E826A80-DA
                          NUT, M8, FLEXITOL ADJUSTER
                          from £2.55
                          from £2.55
                          M8 FLEXITOL TOL ADJ Genuine Aston Martin - New (to order)
                          # 9
                          MPN: 703193
                          BOLT, M8 X 55
                          from £0.47
                          from £0.47
                          BOLT M8X55 HEX FLANGE 8 Genuine Aston Martin - New (to order)
                          # 10
                          MPN: 702945
                          NUT, U TYPE
                          from £1.07
                          from £1.07
                          M6 J NUT Genuine Aston Martin - New (to order)
                          # 11
                          MPN: 6G33-L044B52-AC
                          BRACKET, REAR END TRIM LOWER INNER, RH
                          from £24.50
                          from £24.50
                          BRACKET, REAR END TRIM LOWER INNER, RH Genuine Aston Martin - New (to order)
                          # 12
                          MPN: 6G33-L044B53-AC
                          BRACKET, REAR END TRIM LOWER INNER, LH
                          from £24.50
                          from £24.50
                          BRACKET, REAR END TRIM LOWER INNER, LH Genuine Aston Martin - New (to order)
                          # 13
                          MPN: 703165
                          NUT, M5
                          from £0.47
                          from £0.47
                          NUT M5 HEX FLANGE PLAS Genuine Aston Martin - New (to order)
