010601-B13 - Body Insulation, Roadster

Aston Martin V12 Vantage (2011) Body Insulation, Roadster Parts Diagram

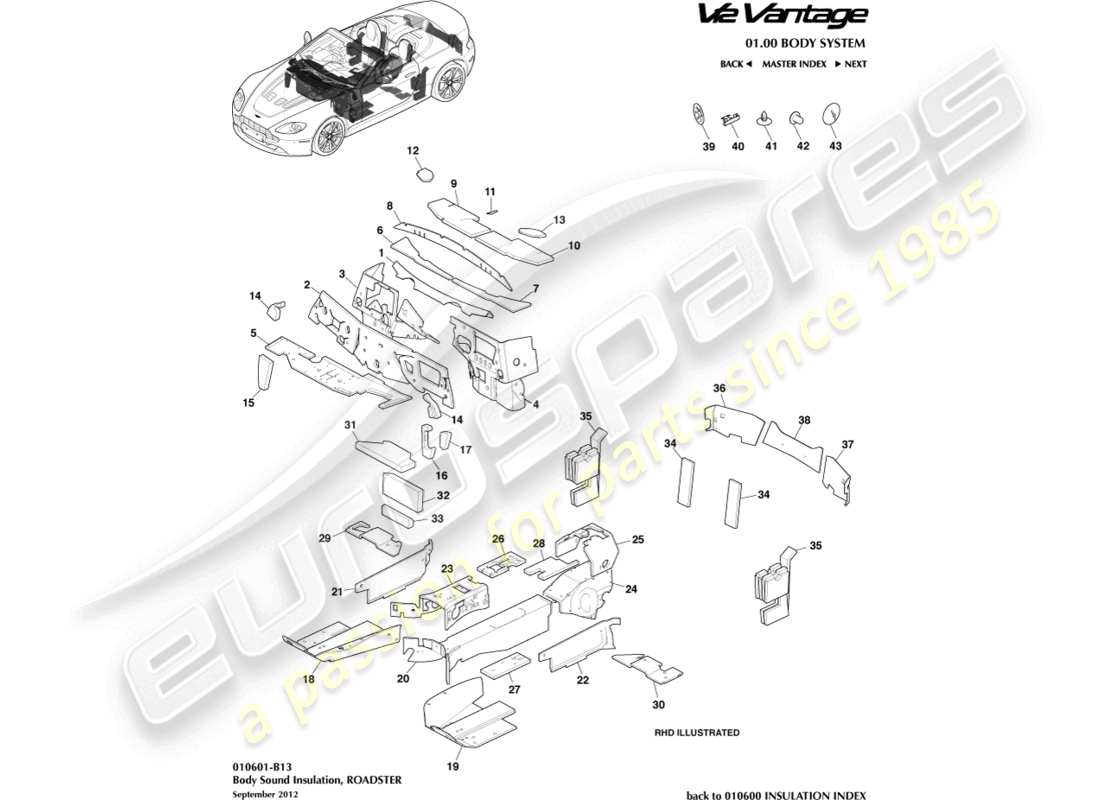

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Key
                                                                                        Price
                                                                                        # 1
                                                                                        MPN: 6G33-68066-AC
                                                                                        NVH, DASH FOAM, UNDERSIDE CAVITY ASSY
                                                                                        from £27.88
                                                                                        from £27.88
                                                                                        NVH DASH FOAM UNDER Genuine Aston Martin - New (to order)
                                                                                        # 2
                                                                                        MPN: 6G33-102B00-BC
                                                                                        SOUND INSULATION, ENGINE HOUSING, RHD
                                                                                        from £43.58
                                                                                        from £43.58
                                                                                        SOUND INSULATION, ENGINE HOUSING, RHD Genuine Aston Martin - New (to order)
                                                                                        # 2
                                                                                        MPN: 6G33-102B00-AC
                                                                                        SOUND INSULATION, ENGINE HOUSING, LHD
                                                                                        SOUND INSULATION, ENGINE HOUSING, LHD Genuine Aston Martin - New (to order)
                                                                                        # 3
                                                                                        MPN: DD33-002K06-AB
                                                                                        NVH, DASH INNER, RH, RHD
                                                                                        DSH INNER RH RHD Genuine Aston Martin - New (to order)
                                                                                        # 3
                                                                                        MPN: DD33-002K05-AB
                                                                                        NVH, DASH INNER, RH, LHD
                                                                                        NVH, DASH INNER, RH, LHD Genuine Aston Martin - New (to order)
                                                                                        # 4
                                                                                        MPN: DD33-015A22-AC
                                                                                        NVH, DASH INNER, LH, RHD
                                                                                        DSH INNER LH RHD Genuine Aston Martin - New (to order)
                                                                                        # 4
                                                                                        MPN: DD33-015A23-AC
                                                                                        NVH, DASH INNER, LH, LHD
                                                                                        DSH INNER LH LHD Genuine Aston Martin - New (to order)
                                                                                        # 5
                                                                                        MPN: 7G33-00152-BA
                                                                                        NVH, UNDER WIPER MOTOR, RHD
                                                                                        INSULATION, BODY TO FRONT Genuine Aston Martin - New (to order)
                                                                                        # 5
                                                                                        MPN: 7G33-00152-AB
                                                                                        NVH, UNDER WIPER MOTOR, LHD
                                                                                        Supersession
                                                                                        Supersession
                                                                                        Genuine Aston Martin (no longer available to order)
                                                                                        # 6
                                                                                        MPN: 4G43-02292-AB
                                                                                        NVH, UNDER COWL, RH
                                                                                        from £8.42
                                                                                        from £8.42
                                                                                        INS CWL SD PANEL LOWER S Genuine Aston Martin - New (to order)
                                                                                        # 7
                                                                                        MPN: 4G43-02293-AB
                                                                                        NVH, UNDER COWL, LH
                                                                                        from £8.42
                                                                                        from £8.42
                                                                                        INS CWL SD PANEL LOWER S Genuine Aston Martin - New (to order)
                                                                                        # 8
                                                                                        MPN: CG43-02139-AB
                                                                                        INSULATION, COWL TOP
                                                                                        INSULATION, COWL TOP Genuine Aston Martin - New (to order)
                                                                                        # 9
                                                                                        MPN: 8G43-48182-AB
                                                                                        FOAM PAD, UNDER IP, RH
                                                                                        from £12.99
                                                                                        from £12.99
                                                                                        FRONT DCT NVH IP RH Genuine Aston Martin - New (to order)
                                                                                        # 10
                                                                                        MPN: 8G43-48181-AB
                                                                                        FOAM PAD, UNDER IP, LH
                                                                                        from £12.99
                                                                                        from £12.99
                                                                                        FRONT DCT NVH IP LH Genuine Aston Martin - New (to order)
                                                                                        # 11
                                                                                        MPN: 9G43-047B22-AA
                                                                                        NVH PAD, IP, RADIO SPEAKER OPENING, CENTRE
                                                                                        I/P RADIATOR SPEAKER OPG CT Genuine Aston Martin - New (to order)
                                                                                        # 12
                                                                                        MPN: 9G43-046B72-AA
                                                                                        NVH PAD, IP, RADIO SPEAKER OPENING, RH
                                                                                        from £1.33
                                                                                        from £1.33
                                                                                        I/P RADO SPEAKER OPG RH Genuine Aston Martin - New (to order)
                                                                                        # 13
                                                                                        MPN: 9G43-046B73-AA
                                                                                        NVH PAD, IP, RADIO SPEAKER OPENING, LH
                                                                                        from £1.33
                                                                                        from £1.33
                                                                                        I/P RADO SPEAKER OPG LH Genuine Aston Martin - New (to order)
                                                                                        # 14
                                                                                        MPN: 6G33-28112-AA
                                                                                        NVH Foam Pad Assy, Fender Upper
                                                                                        from £13.15
                                                                                        from £13.15
                                                                                        NVH FENDER UPPER Genuine Aston Martin - New (to order)
                                                                                        # 15
                                                                                        MPN: 6G33-28110-AA
                                                                                        NVH FOAM PAD ASSY, FENDER LOWER, RH
                                                                                        from £13.15
                                                                                        from £13.15
                                                                                        NVH FENDER LOWER RH Genuine Aston Martin - New (to order)
                                                                                        # 16
                                                                                        MPN: 6G33-28111-AA
                                                                                        NVH FOAM PAD ASSY, FENDER LOWER, LH
                                                                                        from £13.15
                                                                                        from £13.15
                                                                                        NVH FENDER LOWER LH Genuine Aston Martin - New (to order)
                                                                                        # 17
                                                                                        MPN: 6G33-28121-AA
                                                                                        NVH FOAM PAD ASSY, FENDER CENTRE, LH
                                                                                        from £9.32
                                                                                        from £9.32
                                                                                        NVH FENDER CTR LH Genuine Aston Martin - New (to order)
                                                                                        # 18
                                                                                        MPN: 4G43-54571-AF
                                                                                        BAFFLE, FLOOR, RH
                                                                                        from £14.99
                                                                                        from £14.99
                                                                                        BAFFLE, FLOOR, RH Genuine Aston Martin - New (to order)
                                                                                        # 19
                                                                                        MPN: 4G43-54572-AE
                                                                                        BAFFLE, FLOOR, LH
                                                                                        from £14.99
                                                                                        from £14.99
                                                                                        BAFFLE, FLOOR, LH Genuine Aston Martin - New (to order)
                                                                                        # 20
                                                                                        MPN: 4G43-114B26-AH
                                                                                        INSULATION, TUNNEL
                                                                                        from £63.51
                                                                                        from £63.51
                                                                                        INSULATION, TUNNEL Genuine Aston Martin - New (to order)
                                                                                        # 21
                                                                                        MPN: 8G33-24926-AB
                                                                                        PAD, TUNNEL SIDE, RH
                                                                                        from £16.31
                                                                                        from £16.31
                                                                                        PAD TNL SD RH Genuine Aston Martin - New (to order)
                                                                                        # 22
                                                                                        MPN: 8G33-24927-AB
                                                                                        PAD, TUNNEL SIDE, LH
                                                                                        from £16.30
                                                                                        from £16.30
                                                                                        PAD TNL SD LH Genuine Aston Martin - New (to order)
                                                                                        # 23
                                                                                        MPN: 8G43-11446-AB
                                                                                        NVH, INTERIOR TUNNEL, FRONT
                                                                                        from £23.66
                                                                                        from £23.66
                                                                                        INS FLR PAN GR SH LV Genuine Aston Martin - New (to order)
                                                                                        # 24
                                                                                        MPN: 6G33-7Z309-AD
                                                                                        NVH, GEAR BOX INSULATION
                                                                                        from £64.62
                                                                                        from £64.62
                                                                                        NVH, GEAR BOX INSULATION Genuine Aston Martin - New (to order)
                                                                                        # 25
                                                                                        MPN: 6G33-5416-AD
                                                                                        NVH, TUNNEL REAR
                                                                                        from £13.26
                                                                                        from £13.26
                                                                                        NVH TNL REAR INNER CP FLANGE Genuine Aston Martin - New (to order)
                                                                                        # 26
                                                                                        MPN: 6G33-218060-AB
                                                                                        NVH, Gear Shifter Upper Assy
                                                                                        from £6.84
                                                                                        from £6.84
                                                                                        NVH GR STR UPPER ASSEMBLY Genuine Aston Martin - New (to order)
                                                                                        # 27
                                                                                        MPN: 6G33-218061-AB
                                                                                        NVH, Gear Shifter Lower Assy
                                                                                        from £10.96
                                                                                        from £10.96
                                                                                        NVH GR STR LOWER ASSEMBLY Genuine Aston Martin - New (to order)
                                                                                        # 28
                                                                                        MPN: 9G33-13082-AA
                                                                                        NVH, TUNNEL TOP, ARM REST
                                                                                        NVH, TUNNEL TOP, ARM REST Genuine Aston Martin - New (to order)
                                                                                        # 29
                                                                                        MPN: 8G33-11204-AB
                                                                                        NVH, REAR FLOOR PAN, RH
                                                                                        from £3.45
                                                                                        from £3.45
                                                                                        INS REAR PAN SND RH Genuine Aston Martin - New (to order)
                                                                                        # 30
                                                                                        MPN: 6G33-11205-AB
                                                                                        NVH, REAR FLOOR PAN, LH
                                                                                        from £10.63
                                                                                        from £10.63
                                                                                        INS REAR PAN SND LH Genuine Aston Martin - New (to order)
                                                                                        # 31
                                                                                        MPN: 6G33-13032-AA
                                                                                        NVH, BATTERY COMPARTMENT, TOP
                                                                                        from £11.98
                                                                                        from £11.98
                                                                                        NVH BATTERY COMP TOP Genuine Aston Martin - New (to order)
                                                                                        # 32
                                                                                        MPN: 6G33-199229-AA
                                                                                        NVH, BATTERY COMPARTMENT, REAR
                                                                                        from £9.32
                                                                                        from £9.32
                                                                                        NVH BATTERY COMP REAR Genuine Aston Martin - New (to order)
                                                                                        # 33
                                                                                        MPN: BG33-16F060-AA
                                                                                        NVH, BATTERY TRAY, LOWER
                                                                                        from £6.60
                                                                                        from £6.60
                                                                                        NVH, BATTERY TRAY, LOWER Genuine Aston Martin - New (to order)
                                                                                        # 34
                                                                                        MPN: 6G33-L31180-AA
                                                                                        NVH, REAR BULKHEAD, RH
                                                                                        NVH, REAR BULKHEAD, RH Genuine Aston Martin - New (to order)
                                                                                        # 35
                                                                                        MPN: BG33-L313A28-AA
                                                                                        NVH, REAR QUARTER STUFFER
                                                                                        from £64.17
                                                                                        from £64.17
                                                                                        REAR QUARTER STUFFER NVH Genuine Aston Martin - New (to order)
                                                                                        # 36
                                                                                        MPN: 6G33-F46402-AB
                                                                                        FLEECE, LUGGAGE COMPARTMENT REAR SIDE, RH
                                                                                        from £15.35
                                                                                        from £15.35
                                                                                        FLEECE REAR SD RH Genuine Aston Martin - New (to order)
                                                                                        # 37
                                                                                        MPN: 6G33-N46402-AB
                                                                                        FLEECE, LUGGAGE COMPARTMENT REAR SIDE, LH
                                                                                        from £7.39
                                                                                        from £7.39
                                                                                        FLEECE REAR SD LH Genuine Aston Martin - New (to order)
                                                                                        # 38
                                                                                        MPN: 6G33-A46402-AB
                                                                                        FLEECE, LUGGAGE COMPARTMENT REAR CENTRE
                                                                                        from £3.84
                                                                                        from £3.84
                                                                                        LUGG COMPT FLR FLC R Genuine Aston Martin - New (to order)
                                                                                        # 39
                                                                                        MPN: 6G33-WE600041-AB
                                                                                        WASHER, STARLOCK
                                                                                        from £0.77
                                                                                        from £0.77
                                                                                        WASHER, STARLOCK Genuine Aston Martin - New (to order)
                                                                                        # 40
                                                                                        MPN: 6G33-34983-AB
                                                                                        CLIP, NVH RETAINER
                                                                                        from £0.55
                                                                                        from £0.55
                                                                                        CLIP EDGE NVH RET Genuine Aston Martin - New (to order)
                                                                                        # 41
                                                                                        MPN: 697648
                                                                                        FASTENER, FIR TREE
                                                                                        from £0.51
                                                                                        from £0.51
                                                                                        FASTENER, FIRTREE Genuine Aston Martin - New (to order)
                                                                                        # 42
                                                                                        MPN: 702212
                                                                                        NUT, PUSH-ON
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        SNAPSAC 6.8MM PUSHON Genuine Aston Martin - New (to order)
                                                                                        # 43
                                                                                        MPN: 697564
                                                                                        NUT, PUSH-ON, M5
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        PUSH ON FIXER Genuine Aston Martin - New (to order)
