aston martin v12 vantage (2011) soft sealing, coupe parts diagram

010703 - Soft Sealing, Coupe

Aston Martin V12 Vantage (2011) Soft Sealing, Coupe Parts Diagram

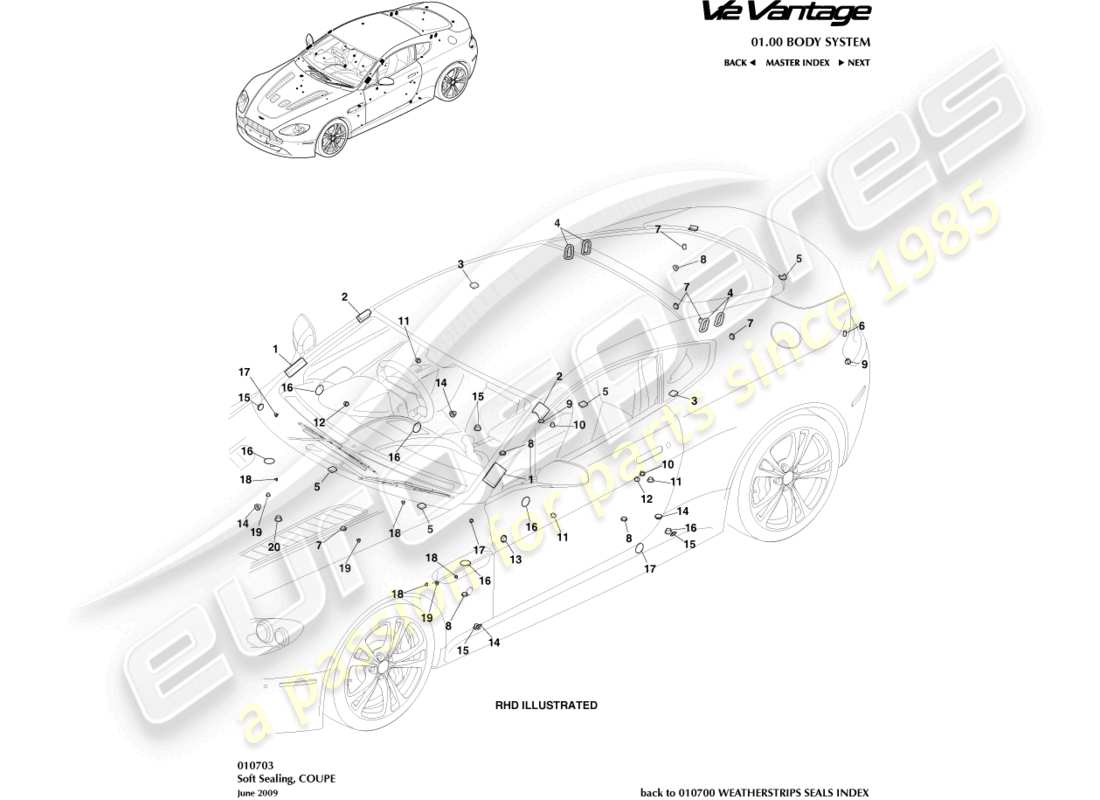

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Key
                                        Price
                                        # 1
                                        MPN: 4G43-F280C09-AA
                                        SEALING BLOCK, PILLAR
                                        from £13.38
                                        from £13.38
                                        A PILLAR SEALING BLK Genuine Aston Martin - New (to order)
                                        # 2
                                        MPN: 4G43-026A30-AB
                                        BAFFLE FRONT BODY PILLAR
                                        from £5.20
                                        from £5.20
                                        BAF FRONT BODY PLR Genuine Aston Martin - New (to order)
                                        # 3
                                        MPN: 6G33-58864-AA
                                        PAD, SEALING 30 X 30
                                        from £0.51
                                        from £0.51
                                        PAD, SEALING 30X30 Genuine Aston Martin - New (to order)
                                        # 4
                                        MPN: 6G33-9184-AA
                                        GASKET, HINGE MOUNTING
                                        from £1.76
                                        from £1.76
                                        GASKET, HINGE MOUNTING Genuine Aston Martin - New (to order)
                                        # 5
                                        MPN: 6G43-F78410-AA
                                        SEALING PAD, BUTYL
                                        from £0.96
                                        from £0.96
                                        SLNG PAD-AL BUTYL Genuine Aston Martin - New (to order)
                                        # 6
                                        MPN: 8G33-54442-AA
                                        CAP, NON THREADED, 12.7 X 22.2
                                        from £0.47
                                        from £0.47
                                        CAP, NON THREADED, 12.7 X 22.2 Genuine Aston Martin - New (to order)
                                        # 7
                                        MPN: 4G43-301347-AA
                                        GROMMET, LATCH BOX
                                        from £0.82
                                        from £0.82
                                        20MM BODY PLUG Genuine Aston Martin - New (to order)
                                        # 8
                                        MPN: 4G43-N804138-AA
                                        BUNG, 18MM
                                        from £0.47
                                        from £0.47
                                        18MM BUNG Genuine Aston Martin - New (to order)
                                        # 9
                                        MPN: 4G43-N808070-AA
                                        BUNG, 19MM
                                        from £1.11
                                        from £1.11
                                        PLUG-RUBBER-19MM BLK Genuine Aston Martin - New (to order)
                                        # 10
                                        MPN: 6G33-46447-AA
                                        BUNG, 16MM
                                        from £0.47
                                        from £0.47
                                        BUNG, 16MM Genuine Aston Martin - New (to order)
                                        # 11
                                        MPN: 6G33-N804263-AA
                                        BUNG, 22MM
                                        from £1.20
                                        from £1.20
                                        22MM BUNG Genuine Aston Martin - New (to order)
                                        # 12
                                        MPN: 6G33-N805935-AA
                                        PLUG AND GRIP, 20MM
                                        from £0.47
                                        from £0.47
                                        PLUG AND GRIP, M20 Genuine Aston Martin - New (to order)
                                        # 13
                                        MPN: 4G43-2273-AA
                                        GROMMET, PARKING BRAKE CABLE
                                        from £1.27
                                        from £1.27
                                        25MM BODY PLUG Genuine Aston Martin - New (to order)
                                        # 14
                                        MPN: 702804
                                        PLUG, PUSH IN RUBBER
                                        from £1.59
                                        from £1.59
                                        DRAIN PLUG RUBR-20MM Genuine Aston Martin - New (to order)
                                        # 15
                                        MPN: 6G33-N804814-AA
                                        BUNG, 24MM
                                        from £1.57
                                        from £1.57
                                        24MM BUNG Genuine Aston Martin - New (to order)
                                        # 16
                                        MPN: 4G43-L20220-AA
                                        SEAL PATCH, LARGE DIA 50MM
                                        from £0.47
                                        from £0.47
                                        SL PCH LG DOOR INNER Genuine Aston Martin - New (to order)
                                        # 17
                                        MPN: 4G43-N8000631-AA
                                        BUNG, 11MM
                                        BUNG, 11MM Genuine Aston Martin - New (to order)
                                        # 18
                                        MPN: 4G43-N811191-AA
                                        BUNG, 7MM
                                        LHD 5off
                                        from £0.47
                                        from £0.47
                                        PLUG-BLACK-7MM Genuine Aston Martin - New (to order)
                                        # 19
                                        MPN: 6G33-25919-AA
                                        BUNG, 12MM
                                        from £0.61
                                        from £0.61
                                        12MM BUNG Genuine Aston Martin - New (to order)
                                        # 20
                                        MPN: 6G33-N806457-AA
                                        BUNG, 20MM
                                        from £1.35
                                        from £1.35
                                        20MM BUNG Genuine Aston Martin - New (to order)
