aston martin v12 vantage (2011) windshield parts diagram

011101-B3 - WINDSHIELD

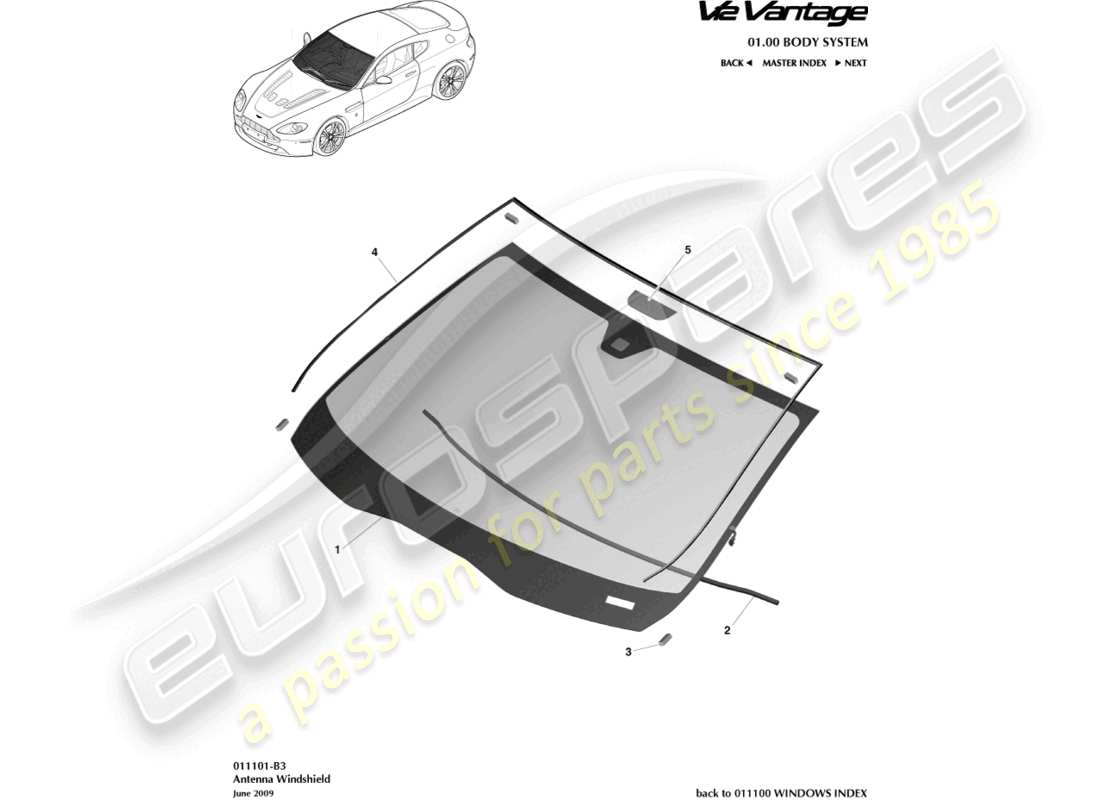

Aston Martin V12 Vantage (2011) Windshield Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 1
    MPN: 8G33-C03102-C-P1A01
    GLASS, FRONT WINDSHIELD, COUPE
    Foam and Finisher Req'd
    from £1,326.58
    from £1,326.58
    GLASS , FRONT WINDSHIELD, COUPE Genuine Aston Martin - New (to order)
    # 1
    MPN: 8G33-76-10657
    GLASS, FRONT WINDSHIELD, COUPE
    12MY, Excludes Finishers and Seals
    from £1,257.31
    from £1,257.31
    GLASS , FRONT WINDSHIELD, COUPE Genuine Aston Martin - New (to order)
    # 1
    MPN: CD33-76-10122
    GLASS, FRONT WINDSHIELD, COUPE
    12.5MY, Excludes Finishers and Seals
    from £1,929.41
    from £1,929.41
    W/SCRN ONLY C/W ANT Genuine Aston Martin - New (to order)
    # 1
    MPN: DG33-76-10659
    GLASS, FRONT WINDSHIELD, ROADSTER
    Excludes Finishers and Seals
    from £1,294.22
    from £1,294.22
    GLASS , FRONT WINDSHIELD, ROADSTER Genuine Aston Martin - New (to order)
    # 2
    MPN: 6G33-C03102-A-P1A04
    FOAM STRIP, FRONT WINDSHIELD
    from £5.06
    from £5.06
    FOAM STRIP - W/SHLD Genuine Aston Martin - New In stock
    # 3
    MPN: 4G43-03836-AB-PK
    BUMPON, RECTANGLE BLACK
    Pack of 10
    from £10.46
    from £10.46
    BUMPON BLACK-PACK 10 Genuine Aston Martin - New In stock
    # 4
    MPN: 6G33-C03102-B-P1A02
    FINISHER, FRONT WINDSHIELD
    Coupe
    from £163.88
    from £163.88
    FINISHER- FRONT W/SHLD Genuine Aston Martin - New (to order)
    # 4
    MPN: 6G33-L03102-A-P1A02
    FINISHER, FRONT WINDSHIELD
    Roadster
    from £227.30
    from £227.30
    FINISHER, WINDSHIELD Genuine Aston Martin - New (to order)
