aston martin v12 vantage (2011) instrument panel, lhd parts diagram

011201-B15 - Instrument Panel, LHD

Aston Martin V12 Vantage (2011) Instrument Panel, LHD Parts Diagram

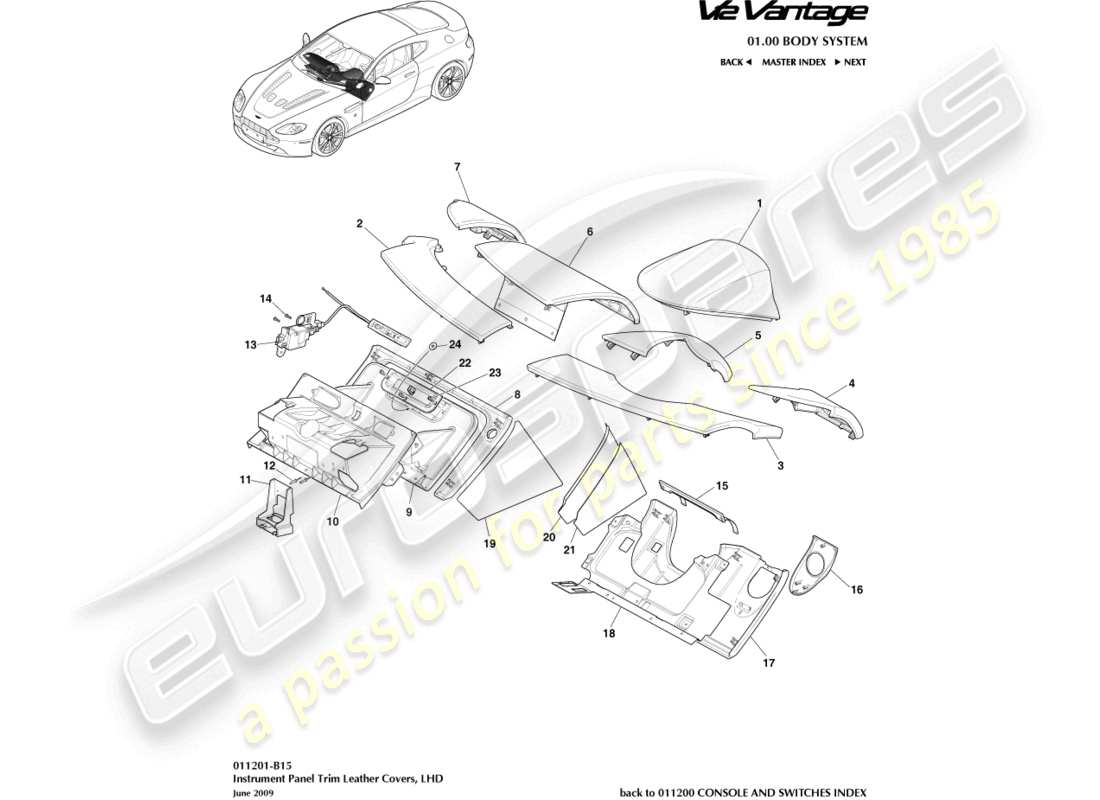

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Key
                                              Price
                                              # 1
                                              MPN: 6G33-10862-AGW
                                              HOOD ASSY, INSTRUMENT CLUSTER
                                              HOOD ASSEMBLY, INSTRUMENT CLUSTER Genuine Aston Martin - New (to order)
                                              # 2
                                              MPN: 6G33-C043C54-CEW
                                              COVER ASSY, INSTRUMENT PANEL, UPPER PASSENGER SIDE
                                              COVER ASSEMBLY, INSTRUMENT PANEL, UPPER PASSENGER SIDE Genuine Aston Martin - New (to order)
                                              # 2
                                              MPN: 9G33-C043C54-CBW
                                              COVER ASSY, INSTRUMENT PANEL, UPPER PASSENGER SIDE, B&O
                                              - B&O
                                              COVER ASSEMBLY, INSTRUMENT PANEL, UPPER PASSENGER SIDE, B&O Genuine Aston Martin - New (to order)
                                              # 3
                                              MPN: 6G33-C043C54-AEW
                                              COVER ASSY, INSTRUMENT PANEL, UPPER DRIVER SIDE
                                              COVER ASSEMBLY, INSTRUMENT PANEL, UPPER DRIVER SIDE Genuine Aston Martin - New (to order)
                                              # 3
                                              MPN: 9G33-C043C54-ABW
                                              COVER ASSY, INSTRUMENT PANEL, UPPER DRIVER SIDE, B&O
                                              - B&O
                                              COVER ASSEMBLY, INSTRUMENT PANEL, UPPER DRIVER SIDE, B&O Genuine Aston Martin - New (to order)
                                              # 4
                                              MPN: 6G33-C04634-ACW
                                              PANEL ASSY, INSTRUMENT UPPER, DRIVER SIDE OUTER, LH
                                              PANEL ASSEMBLY, INSTRUMENT UPPER, DRIVER SIDE OUTER, LH Genuine Aston Martin - New (to order)
                                              # 5
                                              MPN: 6G33-C04634-BCW
                                              PANEL ASSY, INSTRUMENT UPPER, DRIVER SIDE INNER, LH
                                              PANEL ASSEMBLY, INSTRUMENT UPPER, DRIVER SIDE INNER, LH Genuine Aston Martin - New (to order)
                                              # 6
                                              MPN: 6G33-C044H58-ACW
                                              PANEL AND DOOR ASSY, INSTRUMENT PANEL, AIRBAG
                                              PANEL AND DOOR ASSEMBLY, INSTRUMENT PANEL, AIRBAG Genuine Aston Martin - New (to order)
                                              # 7
                                              MPN: 6G33-C04635-ACW
                                              PANEL ASSY, INSTRUMENT UPPER, PASSENGER SIDE
                                              PANEL ASSEMBLY, INSTRUMENT UPPER, PASSENGER SIDE Genuine Aston Martin - New (to order)
                                              # 8
                                              MPN: 6G33-C043K93-ACW
                                              PANEL ASSY , INSTRUMENT LOWER PASSENGER SIDE
                                              PANEL ASSEMBLY , INSTRUMENT LOWER PASSENGER SIDE Genuine Aston Martin - New (to order)
                                              # 9
                                              MPN: 6G33-C06010-ABW
                                              GLOVE COMPARTMENT ASSY
                                              from £400.10
                                              from £400.10
                                              GLOVE COMPARTMENT ASSEMBLY Genuine Aston Martin - New (to order)
                                              # 10
                                              MPN: 6G33-56241-AE
                                              SIGHT SHIELD, GLOVEBOX MOULDING
                                              from £33.87
                                              from £33.87
                                              This part replaces part number 6G33-56241-AB which we have in stock
                                              SHIELD - SIGHT G/B Genuine Aston Martin - New (to order)
                                              # 11
                                              MPN: 9G43-370807-AA
                                              BRACKET, TPM MOUNTING
                                              from £6.92
                                              from £6.92
                                              BRACKET, TPM MOUNTING Genuine Aston Martin - New (to order)
                                              # 12
                                              MPN: 701580-PK
                                              RIVET
                                              from £6.44
                                              from £6.44
                                              RIVET DOME HEAD (20) Genuine Aston Martin - New (to order)
                                              # 13
                                              MPN: 6G33-F9C070-AA
                                              LATCH AND ACTUATOR ASSY, GLOVEBOX
                                              Supersession
                                              Supersession
                                              Genuine Aston Martin (no longer available to order)
                                              # 13
                                              MPN: 4G43-2K625-AA
                                              CABLE ADJUSTMENT, GLOVEBOX
                                              from £10.37
                                              from £10.37
                                              ABUTMENT CABLE G/C Genuine Aston Martin - New (to order)
                                              ABUTMENT CABLE G/C Genuine Aston Martin - Used In stock
                                              # 13
                                              MPN: 4G43-68-10703
                                              CABLE, FUEL FILLER FLAP RELEASE
                                              from £15.60
                                              from £15.60
                                              CABLE, FUEL FILLER FLAP RELEASE Genuine Aston Martin - New (to order)
                                              CABLE, FUEL FILLER FLAP RELEASE Genuine Aston Martin - Used In stock
                                              # 14
                                              MPN: 2W93-F9C070-AA
                                              FIXING
                                              FIXING Genuine Aston Martin - New (to order)
                                              # 15
                                              MPN: 4G43-3T501-AEW
                                              COVER, STEERING COLUMN UPPER SHRD
                                              from £43.58
                                              from £43.58
                                              CCR STRNG CLMN UPPER Genuine Aston Martin - New (to order)
                                              # 16
                                              MPN: 4G43-11A665-AC
                                              BEZEL, LIGHT SWITCH
                                              BEZEL, LIGHT SWITCH Genuine Aston Martin - New (to order)
                                              # 17
                                              MPN: 6G33-C04325-AEW
                                              PANEL ASSY , INSTRUMENT LOWER DRIVER SIDE
                                              PANEL ASSEMBLY , INSTRUMENT LOWER DRIVER SIDE Genuine Aston Martin - New (to order)
                                              # 18
                                              MPN: 4G43-60K51-CA
                                              PROTECTOR, KNEE
                                              from £37.09
                                              from £37.09
                                              KNEE PROTECTOR LHD Genuine Aston Martin - New (to order)
                                              # 19
                                              MPN: 6G33-044H41-AAW
                                              COVER, INSTRUMENT PANEL, (RH CENTRE)
                                              from £29.56
                                              from £29.56
                                              COVER, INSTRUMENT PANEL, (RH CENTRE) Genuine Aston Martin - New (to order)
                                              # 20
                                              MPN: 6G33-044H40-AAW
                                              COVER, INSTRUMENT PANEL, (LH CENTRE)
                                              from £29.56
                                              from £29.56
                                              COVER, INSTRUMENT PANEL, (LH CENTRE) Genuine Aston Martin - New (to order)
                                              # 21
                                              MPN: 4G43-044B95-AA
                                              SPACER, COVER
                                              SPACER, COVER Genuine Aston Martin - New (to order)
                                              # 22
                                              MPN: 4G43-C06157-AD
                                              STRIKER, GLOVE COMPARTMENT DOOR LATCH
                                              from £13.97
                                              from £13.97
                                              STRKR GLV COMPT DR Genuine Aston Martin - New (to order)
                                              # 23
                                              MPN: 4G43-105104-AA
                                              SCREW, M4 X 8, CAP HEAD
                                              from £0.47
                                              from £0.47
                                              SCREW CAP HD M4X8 Genuine Aston Martin - New (to order)
                                              # 24
                                              MPN: 9D33-46662-AA
                                              WASHER, 14MM, 43 ID 14 OD 0.8 THK
                                              from £0.47
                                              from £0.47
                                              14 MM WASHER Genuine Aston Martin - New (to order)
