aston martin v12 vantage (2011) ccb to biw brackets parts diagram

011201-E1 - CCB to BIW Brackets

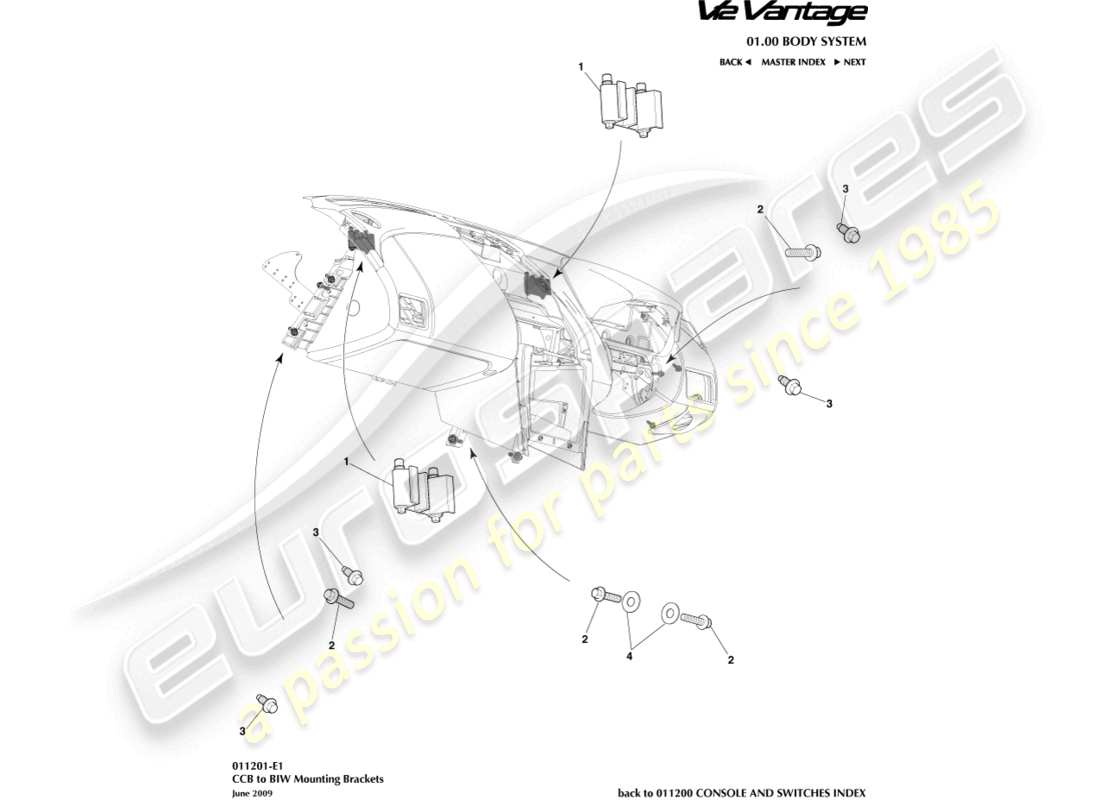

Aston Martin V12 Vantage (2011) CCB to BIW Brackets Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 4G43-044C32-AA
          BRACKET ASSY INSTRUMENT PANEL TO COWL TOP
          from £42.55
          from £42.55
          BRACKET I/PNL CWL TOP Genuine Aston Martin - New (to order)
          # 2
          MPN: 700229
          BOLT, M8 X 35
          from £0.47
          from £0.47
          BOLT M8X35 HEX FLANGE Genuine Aston Martin - New (to order)
          # 3
          MPN: 703187
          SCREW, M8 X 25
          from £0.47
          from £0.47
          SCREW M8 X 25 HEX Genuine Aston Martin - New (to order)
          # 4
          MPN: 697134
          WASHER, M8
          from £0.55
          from £0.55
          WASHER-M8 PLAIN L OD Genuine Aston Martin - New (to order)
