aston martin v12 vantage (2011) centre console with armrest parts diagram

011202-B4 - Centre Console with Armrest

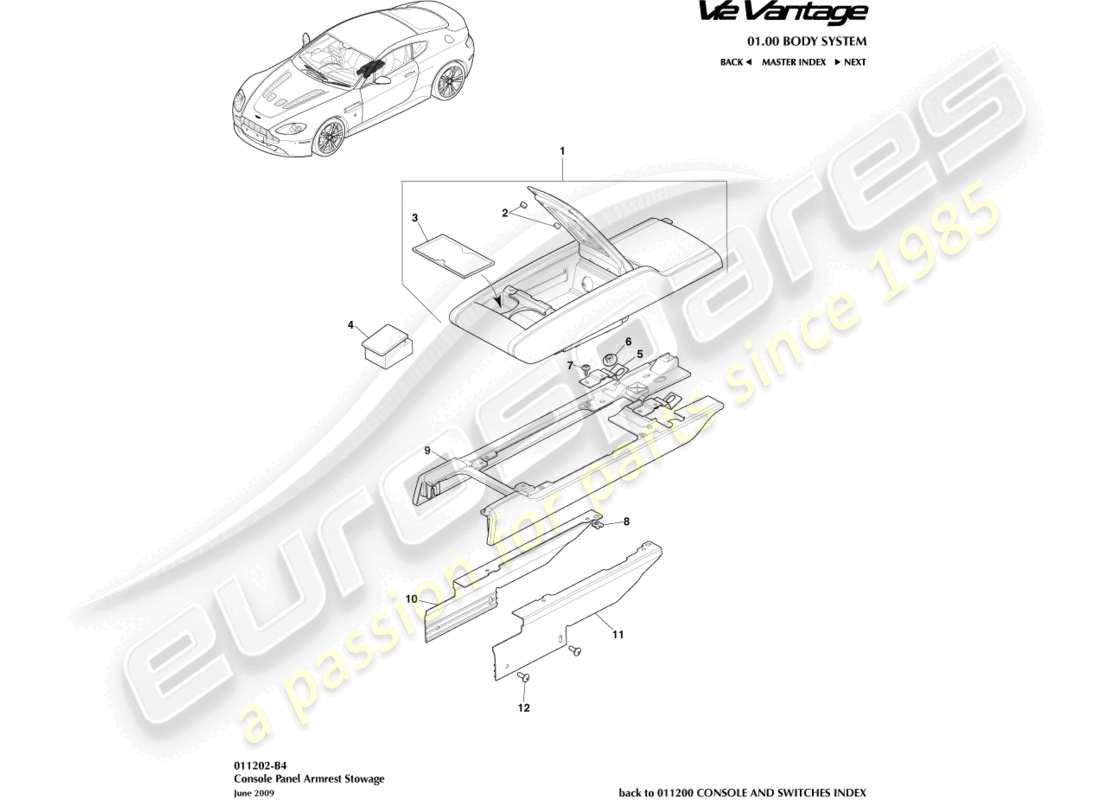

Aston Martin V12 Vantage (2011) Centre Console with Armrest Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: 9G33-C045C76-AHW
                      CENTRE CONSOLE, WITH STOWAGE, LONG
                      Coupe
                      from £1,588.20
                      from £1,588.20
                      CONSOLE, WITH STOWAGE, WITH CUPHOLDER Genuine Aston Martin - New (to order)
                      # 1
                      MPN: 9G33-L045C76-AHW
                      CENTRE CONSOLE, WITH STOWAGE, SHORT
                      Roadster
                      from £1,312.77
                      from £1,312.77
                      CONSOLE, WITH STOWAGE, WITH CUPHOLDER Genuine Aston Martin - New (to order)
                      # 2
                      MPN: 8G43-23697-AA
                      MAGNET
                      from £8.67
                      from £8.67
                      MAGNET AND BUMPSTOP Genuine Aston Martin - New (to order)
                      # 3
                      MPN: 8G43-040K60-AA
                      MAT
                      from £7.64
                      from £7.64
                      MAT, PHONE SHELF Genuine Aston Martin - New (to order)
                      # 4
                      MPN: 9G33-044J16-AAW
                      SUPPORT, ELBOW
                      from £204.46
                      from £204.46
                      SUPPORT, ELBOW Genuine Aston Martin - New (to order)
                      # 5
                      MPN: 8G43-13522-AA
                      BRACKET, STOWAGE COMPARTMENT MOUNTING
                      from £5.70
                      from £5.70
                      BRACKET STWG CMPT MTNG Genuine Aston Martin - New (to order)
                      # 6
                      MPN: 701194
                      NUT/WASHER M6
                      from £0.47
                      from £0.47
                      NUT&WASHER M6 HEXFLG Genuine Aston Martin - New (to order)
                      # 7
                      MPN: 701157-PK
                      SCREW, 4.2X16
                      from £1.62
                      from £1.62
                      SCREW&WSHR 4.2X16(10 Genuine Aston Martin - New (to order)
                      # 8
                      MPN: 701448
                      NUT, U TYPE
                      from £0.47
                      from £0.47
                      NUT 4.2 2.1-3.1 U TY Genuine Aston Martin - New (to order)
                      SPLITTER NUTS Genuine Ferrari Part - New (to order)
                      # 9
                      MPN: 6G33-67446-BAW
                      PANEL ASSEMBLY, CONSOLE
                      Coupe
                      from £1,161.45
                      from £1,161.45
                      SUPPORT FRAME, CONSOLE Genuine Aston Martin - New (to order)
                      # 9
                      MPN: 8G33-L067446-ABW
                      PANEL ASSEMBLY, CONSOLE
                      Roadster
                      PANEL ASSEMBLY, CONSOLE Genuine Aston Martin - New (to order)
                      # 10
                      MPN: 4G43-043B04-AB
                      REINFORCEMENT ASSEMBLY, RHS
                      from £20.14
                      from £20.14
                      REINFORCEMENT ASSEMBLY CNSL PANEL Genuine Aston Martin - New (to order)
                      REINFORCEMENT ASSEMBLY CNSL PANEL Genuine Aston Martin - Used In stock
                      # 11
                      MPN: 4G43-043B05-AB
                      REINFORCEMENT ASSEMBLY, LHS
                      from £20.14
                      from £20.14
                      REINFORCEMENT ASSEMBLY CNSL PANEL Genuine Aston Martin - New (to order)
                      REINFORCEMENT ASSEMBLY CNSL PANEL Genuine Aston Martin - Used In stock
                      # 12
                      MPN: 703149
                      SCREW, M6X16
                      from £0.47
                      from £0.47
                      SCREW M6X16 PAN Genuine Aston Martin - New (to order)
