aston martin v12 vantage (2011) hood latch system parts diagram

011403-B1 - Hood Latch System

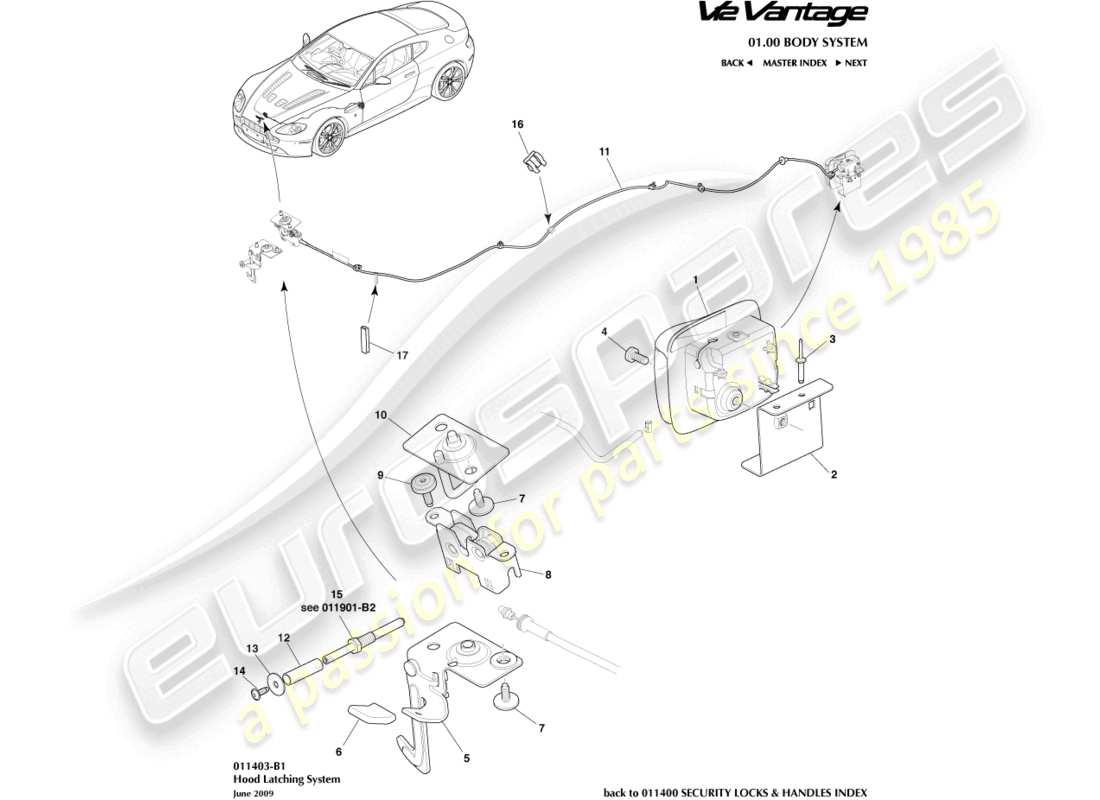

Aston Martin V12 Vantage (2011) Hood Latch System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 1
                                    MPN: 9G43-64-11062
                                    LEVER, HOOD RELEASE
                                    from £55.18
                                    from £55.18
                                    LEVER-BONNET RELEASE Genuine Aston Martin - New (to order)
                                    LEVER-BONNET RELEASE Genuine Aston Martin - Used In stock
                                    # 2
                                    MPN: 4G43-16C730-AB
                                    BRACKET, HOOD RELEASE LEVER
                                    from £8.93
                                    from £8.93
                                    HOOD REL HNDL MOUNTING BR Genuine Aston Martin - New (to order)
                                    # 3
                                    MPN: 701580-PK
                                    RIVET, BLIND 4 X 1-7
                                    from £6.44
                                    from £6.44
                                    RIVET DOME HEAD (20) Genuine Aston Martin - New (to order)
                                    # 4
                                    MPN: 701553
                                    SCREW, M6 X 16
                                    from £0.47
                                    from £0.47
                                    SCREW M6X16 PAN HD Genuine Aston Martin - New (to order)
                                    # 5
                                    MPN: 6G33-16B768-AE
                                    LATCH ASSEMBLY, HOOD, SECONDARY
                                    from £214.34
                                    from £214.34
                                    LATCH ASSEMBLY, HOOD, SECONDARY Genuine Aston Martin - New (to order)
                                    # 6
                                    MPN: 6G33-16C774-AA
                                    SLEEVE, HOOD LATCH STRIKER PIN
                                    from £29.32
                                    from £29.32
                                    SLEEVE, HOOD LATCH STRIKER PIN Genuine Aston Martin - New (to order)
                                    # 7
                                    MPN: 702514
                                    SCREW, M6 X 14
                                    from £0.56
                                    from £0.56
                                    SCREW M6 X 14 HD INT Genuine Aston Martin - New In stock
                                    FRONT UNDERTRAY BOLT Genuine Ferrari Part - New (to order)
                                    # 8
                                    MPN: 1X43-16700-AD
                                    LATCH ASSEMBLY, HOOD
                                    LATCH ASSEMBLY, HOOD Genuine Aston Martin - New (to order)
                                    # 9
                                    MPN: 6G33-FA0115-AB-PK
                                    SCREW AND WASHER, M6 X 21
                                    from £12.31
                                    from £12.31
                                    This part replaces part number 6G33-FA0115-AB
                                    SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
                                    # 10
                                    MPN: 6G43-64-10121
                                    STRIKER ASSEMBLY, HOOD
                                    from £89.35
                                    from £89.35
                                    STRIKER ASSEMBLY, HOOD Genuine Aston Martin - New (to order)
                                    # 11
                                    MPN: 6G33-16C656-AD
                                    CABLE ASSEMBLY, HOOD RELEASE
                                    from £13.32
                                    from £13.32
                                    CABLE ASSEMBLY, HOOD RELEASE Genuine Aston Martin - New (to order)
                                    CABLE ASSEMBLY, HOOD RELEASE Genuine Aston Martin - Used In stock
                                    # 12
                                    MPN: 4G43-16C774-AB
                                    SLEEVE, RELEASE LEVER
                                    from £0.88
                                    from £0.88
                                    SLEEVE, RELEASE LEVER Genuine Aston Martin - New (to order)
                                    # 13
                                    MPN: 697517-PK
                                    WASHER, M5 X 19 X 1.5 THICK
                                    from £13.40
                                    from £13.40
                                    WSHR-M6 L/OD BLK(20) Genuine Aston Martin - New (to order)
                                    # 14
                                    MPN: 6G33-51756-AA-PK
                                    SCREW, M05 X 13 PAN HEAD
                                    from £2.68
                                    from £2.68
                                    SCREW-M5X13 PN HD(10 Genuine Aston Martin - New In stock
                                    # 15
                                    MPN: 6G33-16A788-AC
                                    PIN, HOOD LATCH
                                    from £18.58
                                    from £18.58
                                    PIN, HOOD LATCH Genuine Aston Martin - New (to order)
                                    # 16
                                    MPN: 702515
                                    CLIP
                                    from £0.47
                                    from £0.47
                                    CLIP Genuine Aston Martin - New (to order)
                                    # 17
                                    MPN: 6G33-16E648-AA
                                    EDGE PROTECTOR
                                    from £4.73
                                    from £4.73
                                    EDGE PROTECTOR Genuine Aston Martin - New (to order)
