aston martin v12 vantage (2011) trunk latch system, roadster parts diagram

011405-B2 - Trunk Latch System, Roadster

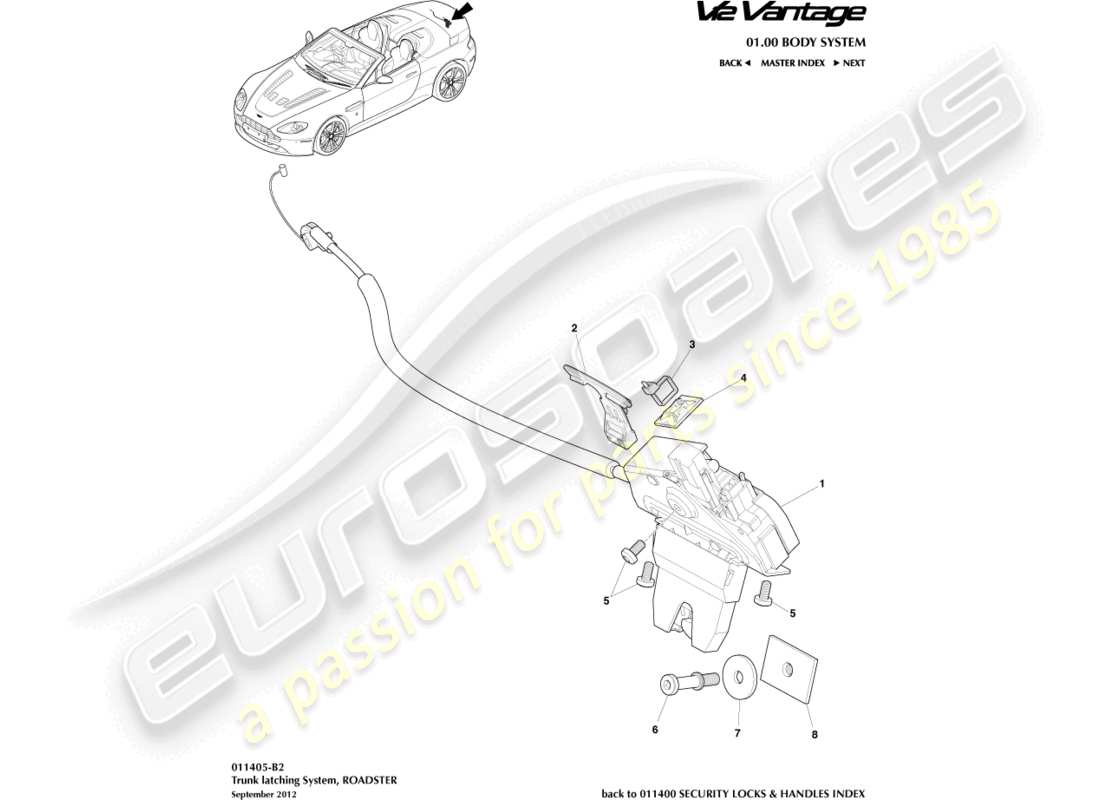

Aston Martin V12 Vantage (2011) Trunk Latch System, Roadster Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: 6G33-31253052-AA
                  LATCH, DECK LID
                  from £199.26
                  from £199.26
                  This part replaces part number 4G43-67-10813
                  LATCH- LFT/GT Genuine Aston Martin - New (to order)
                  # 2
                  MPN: 6G43-67-10237

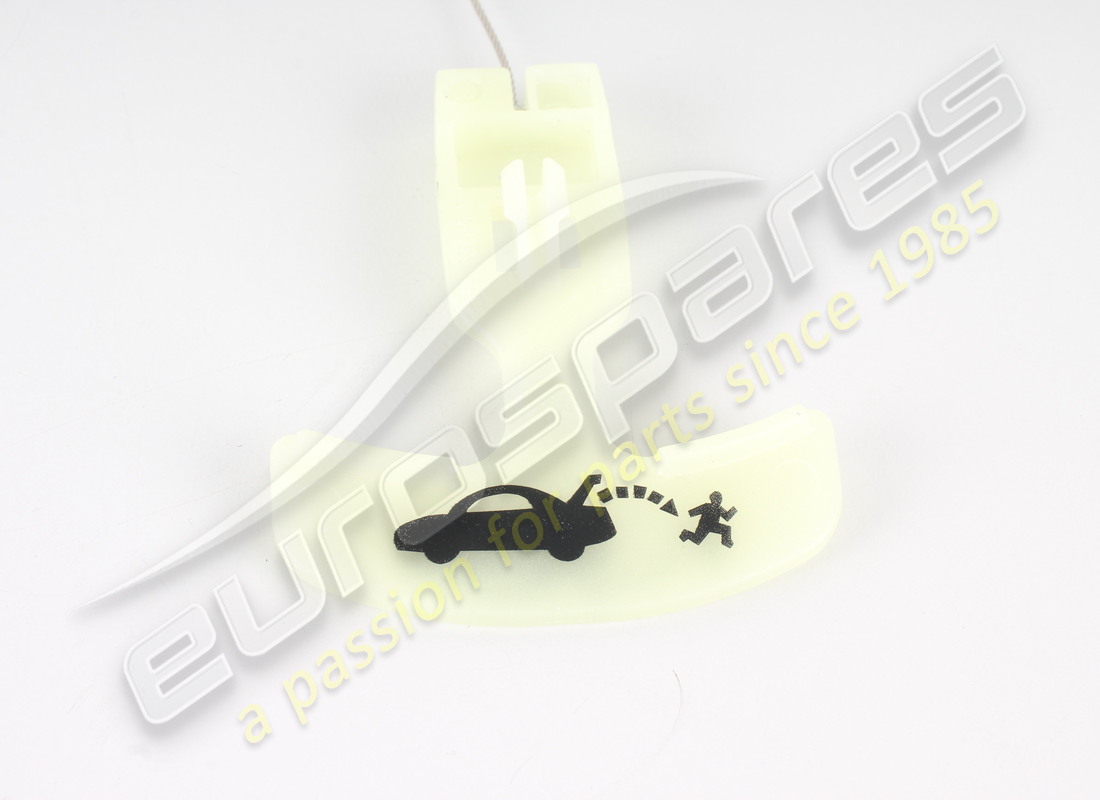

                  HANDLE, EMERGENCY LATCH RELEASE, DECK LID
                  from £10.24
                  from £10.24
                  EMERGENCY REL HANDLE Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 37-90075
                  CABLE TIE, 290MM
                  from £0.47
                  from £0.47
                  TIE STRAP-290MM Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 699763
                  BASE, SELF ADHESIVE
                  from £0.47
                  from £0.47
                  SELF ADHESIVE BASE Genuine Aston Martin - New (to order)
                  # 5
                  MPN: 702293
                  SCREW, M6 X 12, PAN HEAD
                  from £0.47
                  from £0.47
                  SCREW M6X12 PAN HD Genuine Aston Martin - New (to order)
                  # 6
                  MPN: 6G33-L404A42-AB
                  STRIKER PIN
                  from £8.92
                  from £8.92
                  STRIKER PIN, TTRUNK LID Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 6G33-43422-AA
                  WASHER, DECK LID STRIKER
                  from £0.94
                  from £0.94
                  WASHER DECKLID STRIK Genuine Aston Martin - New (to order)
                  # 8
                  MPN: 6G33-431B56-AB
                  NUT PLATE, DECK LID STRIKER
                  from £5.70
                  from £5.70
                  NUT PLATE, TRUNK LID STRIKER Genuine Aston Martin - New (to order)
