aston martin v12 vantage (2011) roadster roof, page 2 parts diagram

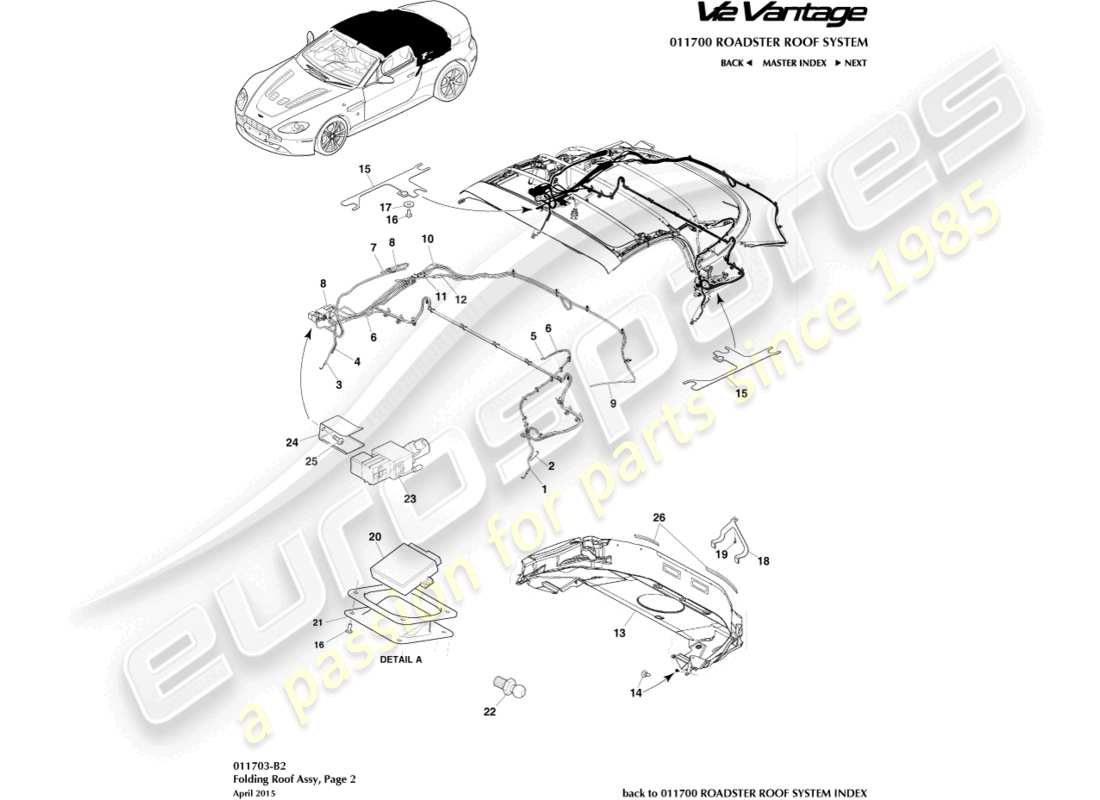

011703-B2-2 - Roadster Roof, Page 2

Aston Martin V12 Vantage (2011) Roadster Roof, Page 2 Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Key
                                                Price
                                                # 1
                                                MPN: 6G33-53391-CB
                                                PIPE, HYDRAULIC MAIN CYL, LH FRONT (12)
                                                from £339.00
                                                from £339.00
                                                PIPE, HYDRAULIC MAIN CYLINDER , LH FRONT (12) Genuine Aston Martin - New (to order)
                                                # 2
                                                MPN: 6G33-53391-BB
                                                PIPE, HYDRAULIC MAIN CYL, LH REAR (11)
                                                from £339.00
                                                from £339.00
                                                PIPE, HYDRAULIC MAIN CYLINDER , LH REAR (11) Genuine Aston Martin - New (to order)
                                                # 3
                                                MPN: 6G33-53390-CB
                                                PIPE, HYDRAULIC MAIN CYL, RH FRONT (14)
                                                from £290.80
                                                from £290.80
                                                PIPE, HYDRAULIC MAIN CYLINDER , RH FRONT (14) Genuine Aston Martin - New (to order)
                                                # 4
                                                MPN: 6G33-53390-BB
                                                PIPE, HYDRAULIC MAIN CYL, RH REAR (13)
                                                from £254.24
                                                from £254.24
                                                PIPE, HYDRAULIC MAIN CYLINDER , RH REAR (13) Genuine Aston Martin - New (to order)
                                                # 5
                                                MPN: 6G33-539B05-AB
                                                PIPE, HYDRAULIC ROOF CYL, LH FRONT (31)
                                                from £291.67
                                                from £291.67
                                                PIPE, HYDRAULIC ROOF CYLINDER , LH FRONT (31) Genuine Aston Martin - New (to order)
                                                # 6
                                                MPN: 6G33-539B05-BB
                                                PIPE, HYDRAULIC ROOF CYL, LH REAR (32)
                                                from £291.67
                                                from £291.67
                                                PIPE, HYDRAULIC ROOF CYLINDER , LH REAR (32) Genuine Aston Martin - New (to order)
                                                # 7
                                                MPN: 6G33-539B04-AB
                                                PIPE, HYDRAULIC ROOF CYL, RH FRONT (33)
                                                from £242.78
                                                from £242.78
                                                PIPE, HYDRAULIC ROOF CYLINDER , RH FRONT (33) Genuine Aston Martin - New (to order)
                                                # 8
                                                MPN: 6G33-539B04-BB
                                                PIPE, HYDRAULIC ROOF CYL, RH REAR (34)
                                                from £254.24
                                                from £254.24
                                                PIPE, HYDRAULIC ROOF CYLINDER , RH REAR (34) Genuine Aston Martin - New (to order)
                                                # 9
                                                MPN: 6G33-539B07-AB
                                                PIPE, HYDRAULIC TONNEAU CYL, LH FRONT (22)
                                                from £212.98
                                                from £212.98
                                                PIPE, HYDRAULIC TONNEAU CYLINDER , LH FRONT (22) Genuine Aston Martin - New (to order)
                                                # 10
                                                MPN: 6G33-539B07-BB
                                                PIPE, HYDRAULIC TONNEAU CYL, LH REAR (21)
                                                from £334.77
                                                from £334.77
                                                PIPE, HYDRAULIC TONNEAU CYLINDER , LH REAR (21) Genuine Aston Martin - New (to order)
                                                # 11
                                                MPN: 6G33-539B06-AB
                                                PIPE, HYDRAULIC TONNEAU CYL, RH FRONT (24)
                                                from £262.74
                                                from £262.74
                                                PIPE, HYDRAULIC TONNEAU CYLINDER , RH FRONT (24) Genuine Aston Martin - New (to order)
                                                # 12
                                                MPN: 6G33-539B06-BB
                                                PIPE, HYDRAULIC TONNEAU CYL, RH REAR (23)
                                                from £262.03
                                                from £262.03
                                                PIPE, HYDRAULIC TONNEAU CYLINDER , RH REAR (23) Genuine Aston Martin - New (to order)
                                                # 13
                                                MPN: 6G33-2442-AE
                                                LINER, TONNEAU WELL
                                                from £479.02
                                                from £479.02
                                                LINER, TONNEAU WELL Genuine Aston Martin - New (to order)
                                                # 14
                                                MPN: 4G43-MXC1800-AA-PK
                                                CLIP, FIR TREE
                                                Pack of 20
                                                Supersession
                                                Supersession
                                                This part replaces part number 4G43-MXC1800-AA which we have in stock
                                                Genuine Aston Martin (no longer available to order)
                                                # 15
                                                MPN: 6G33-76501B02-AB
                                                SHIM, HALF BEARING BRACKET
                                                from £6.82
                                                from £6.82
                                                SHIM, HALF BEARING BRACKET Genuine Aston Martin - New (to order)
                                                # 16
                                                MPN: 703149
                                                SCREW, M6 X 16, PAN TORX HEAD
                                                from £0.47
                                                from £0.47
                                                SCREW M6X16 PAN Genuine Aston Martin - New (to order)
                                                # 17
                                                MPN: 697810-PK
                                                WASHER, M6 X 25 X 1.6, STAINLESS BLACK
                                                Pack of 10
                                                WASHER M6X25MM, STAINLESS Genuine Aston Martin - New (to order)
                                                # 18
                                                MPN: 6G33-130B14-AA
                                                BRACKET, CARPET/ TONNEAU INTERFACE
                                                BRACKET, CARPET/ TONNEAU INTERFACE Genuine Aston Martin - New (to order)
                                                # 19
                                                MPN: 700607
                                                SCREW, M6 X 20, HEX FLANGE HEAD
                                                from £0.47
                                                from £0.47
                                                SCREW M6X20 HEX FLANGE Genuine Aston Martin - New (to order)
                                                # 20
                                                MPN: 6G33-13B524-CH
                                                MODULE, FOLDING ROOF
                                                from £1,204.26
                                                from £1,204.26
                                                This part replaces part number 6G33-13B524-CG
                                                MODULE, FOLDING ROOF Genuine Aston Martin - New (to order)
                                                # 21
                                                MPN: 6G33-13B524-AD
                                                BRACKET, MODULE MOUNTING
                                                from £55.61
                                                from £55.61
                                                BRACKET, MOUNTING CRM Genuine Aston Martin - New (to order)
                                                # 22
                                                MPN: 6G33-76501B03-AB
                                                BALL STUD, M10 X 1.5
                                                from £2.04
                                                from £2.04
                                                BALL STUD, M10 X 1.5 Genuine Aston Martin - New (to order)
                                                # 23
                                                MPN: 6G33-9G806-AA
                                                LOCK VALVE, HYDRAULIC
                                                from £226.90
                                                from £226.90
                                                LOCK VALVE, HYDRAULIC Genuine Aston Martin - New (to order)
                                                # 24
                                                MPN: 6G33-76501B04-AB
                                                BRACKET, TENSION BOW LOCK VALVE
                                                BRACKET, TENSION BOW LOCK VALVE Genuine Aston Martin - New (to order)
                                                # 25
                                                MPN: 704701
                                                SCREW, M6 X 20, TORX HEAD
                                                from £2.21
                                                from £2.21
                                                SCREW M6X20 SOCKET HD Genuine Aston Martin - New (to order)
                                                # 26
                                                MPN: 697666
                                                TAPE, DOUBLE SIDED - 50MTR ROLL
                                                2x 205mm required
                                                from £43.11
                                                from £43.11
                                                TAPE-D/SIDED-BULKSTK Genuine Aston Martin - New (to order)
                                                # -
                                                -
                                                BELT KIT, TENSION, LH
                                                # -
                                                -
                                                BELT KIT, TENSION, RH
                                                # -
                                                -
                                                CABLE, TENSION
                                                # -
                                                -
                                                STRAP, CONTROL
                                                Hydraulic Pipe Protection
