aston martin v12 vantage (2011) roadster roof, page 1 parts diagram

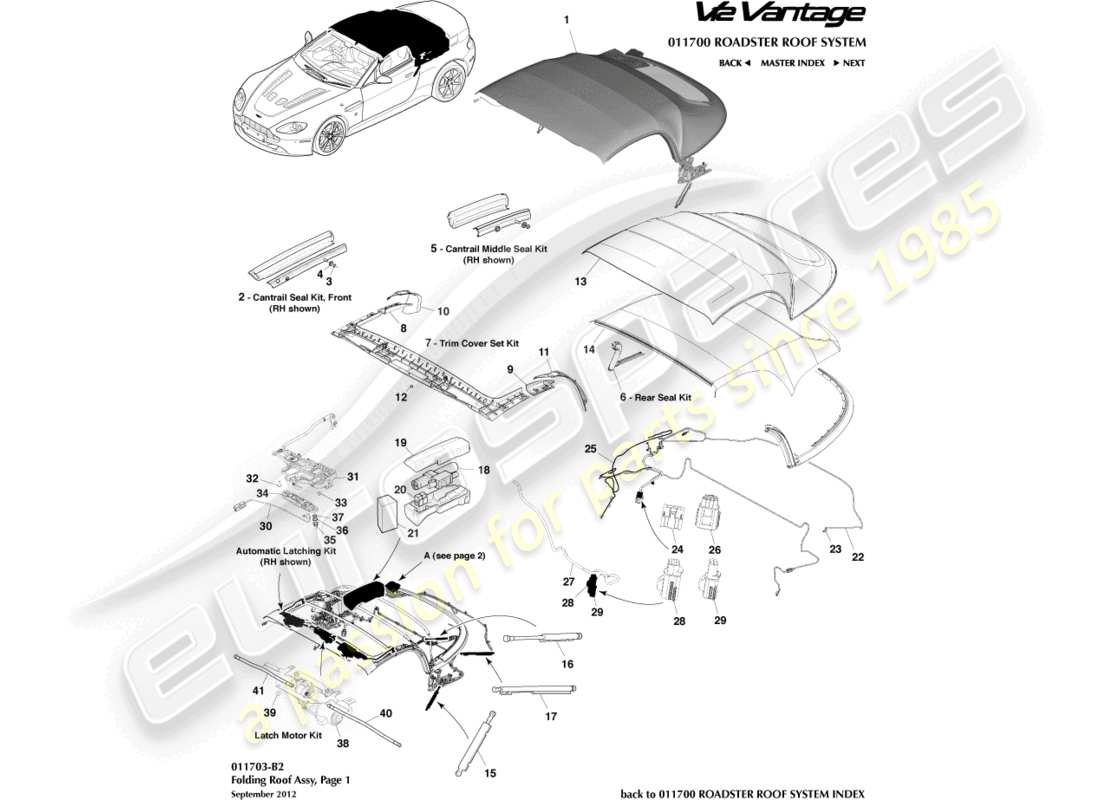

011703-B2 - Roadster Roof, Page 1

Aston Martin V12 Vantage (2011) Roadster Roof, Page 1 Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 1
                                MPN: 6G33-76501B00-BB
                                ROOF ASSY, FOLDING
                                Colour Coded, Order With VIN.
                                from £17,653.61
                                from £17,653.61
                                ROOF ASSEMBLY, FOLDING Genuine Aston Martin - New (to order)
                                # 1
                                MPN: 6G33-76501B10-BB
                                ROOF ASSY, FOLDING
                                Bitter Chocolate
                                from £15,808.47
                                from £15,808.47
                                ROOF ASSEMBLY, FOLDING Genuine Aston Martin - New (to order)
                                # 2
                                MPN: 6G33-L51210-AA
                                SEAL KIT, FRONT CANTRAIL, RH
                                Flocked
                                from £389.64
                                from £389.64
                                SEAL KIT, FRONT CANTRAIL, RH Genuine Aston Martin - New (to order)
                                # 2
                                MPN: 6G33-L51211-AA
                                SEAL KIT, FRONT CANTRAIL, LH
                                Flocked
                                from £423.71
                                from £423.71
                                SEAL KIT, FRONT CANTRAIL, LH Genuine Aston Martin - New (to order)
                                # 2
                                MPN: 6G33-L51210-AB
                                SEAL KIT, FRONT CANTRAIL, RH
                                Non Flocked
                                from £317.76
                                from £317.76
                                SEAL KIT, FRONT CANTRAIL, RH Genuine Aston Martin - New (to order)
                                # 2
                                MPN: 6G33-L51211-AB
                                SEAL KIT, FRONT CANTRAIL, LH
                                Non Flocked
                                from £190.70
                                from £190.70
                                SEAL KIT, FRONT CANTRAIL, LH Genuine Aston Martin - New (to order)
                                # 3
                                MPN: 4G43-1001991-AA
                                NUT, WASHER, M5
                                Seal Kit Attach
                                from £0.84
                                from £0.84
                                WASHER NUT M5 Genuine Aston Martin - New (to order)
                                # 4
                                MPN: 4G43-75999-AA
                                WASHER, SHIM
                                Seal Kit Attach
                                from £23.75
                                from £23.75
                                WASHER, SHIM Genuine Aston Martin - New (to order)
                                # 5
                                MPN: 6G33-L51220-AA
                                SEAL KIT, MIDDLE CANTRAIL, RH
                                Flocked
                                from £361.69
                                from £361.69
                                SEAL KIT, MIDDLE CANTRAIL, RH Genuine Aston Martin - New (to order)
                                # 5
                                MPN: 6G33-L51221-AA
                                SEAL KIT, MIDDLE CANTRAIL, LH
                                Flocked
                                from £370.73
                                from £370.73
                                SEAL KIT, MIDDLE CANTRAIL, LH Genuine Aston Martin - New (to order)
                                # 5
                                MPN: 6G33-L51220-AB
                                SEAL KIT, MIDDLE CANTRAIL, RH
                                Non Flocked
                                from £317.26
                                from £317.26
                                SEAL KIT, MIDDLE CANTRAIL, RH Genuine Aston Martin - New (to order)
                                # 5
                                MPN: 6G33-L51221-AB
                                SEAL KIT, MIDDLE CANTRAIL, LH
                                Non Flocked
                                from £317.26
                                from £317.26
                                SEAL KIT, MIDDLE CANTRAIL, LH Genuine Aston Martin - New (to order)
                                # 6
                                MPN: 6G33-L51230-AA
                                SEAL KIT, REAR
                                Flocked
                                from £1,429.33
                                from £1,429.33
                                SEAL KIT, REAR Genuine Aston Martin - New (to order)
                                # 6
                                MPN: 6G33-L51230-AB
                                SEAL KIT, REAR
                                Non-Flocked
                                from £798.33
                                from £798.33
                                SEAL KIT, REAR Genuine Aston Martin - New (to order)
                                # -
                                -
                                RIVET, BLIND
                                Part of item 6
                                # 7
                                MPN: 6G33-03508-AB
                                TRIM COVER SET, HEADER/ CANTRAIL/ B-POST
                                Black, Includes Fixings
                                from £1,500.91
                                from £1,500.91
                                TRIM COVER SET, HEADER/ CANTRAIL/ B-POST Genuine Aston Martin - New (to order)
                                # 7
                                MPN: 6G33-03508-BB
                                TRIM COVER SET, HEADER/ CANTRAIL/ B-POST
                                Ivory, Includes Fixings
                                from £1,500.91
                                from £1,500.91
                                TRIM COVER SET, HEADER/ CANTRAIL/ B-POST Genuine Aston Martin - New (to order)
                                # 7
                                MPN: 6G33-03508-CB
                                TRIM COVER SET, HEADER/ CANTRAIL/ B-POST
                                Moon Shadow, Includes Fixings
                                from £1,500.91
                                from £1,500.91
                                TRIM COVER SET, HEADER/ CANTRAIL/ B-POST Genuine Aston Martin - New (to order)
                                # 7
                                MPN: 6G33-03508-DB
                                TRIM COVER SET, HEADER/ CANTRAIL/ B-POST
                                Taylors Grey, Includes Fixings
                                from £1,500.91
                                from £1,500.91
                                TRIM COVER SET, HEADER/ CANTRAIL/ B-POST Genuine Aston Martin - New (to order)
                                # 7
                                MPN: 6G33-03508-EB
                                TRIM COVER SET, HEADER/ CANTRAIL/ B-POST
                                Chancellors Red, Includes Fixings
                                from £1,500.91
                                from £1,500.91
                                TRIM COVER SET, HEADER/ CANTRAIL/ B-POST Genuine Aston Martin - New (to order)
                                # 12
                                MPN: 4G43-56051-AA
                                COVER, PLUG HOLE
                                Black
                                from £51.62
                                from £51.62
                                HOLE COVER PLUG, BLACK Genuine Aston Martin - New (to order)
                                # 12
                                MPN: 4G43-56051-BA
                                COVER, PLUG HOLE
                                Ivory
                                from £51.62
                                from £51.62
                                HOLE COVER PLUG, IVORY Genuine Aston Martin - New (to order)
                                # 12
                                MPN: 4G43-56051-CA
                                COVER, PLUG HOLE
                                Moon shadow
                                from £41.94
                                from £41.94
                                HOLE COVER PLUG, MOON SHADOW Genuine Aston Martin - New (to order)
                                # 12
                                MPN: 4G43-56051-DA
                                COVER, PLUG HOLE
                                Taylors Grey
                                from £41.94
                                from £41.94
                                HOLE COVER PLUG, TAILOR GREY Genuine Aston Martin - New (to order)
                                # 13
                                MPN: 6G33-70351-AB
                                CANOPY COVER AND GLASS KIT
                                Black
                                from £5,069.84
                                from £5,069.84
                                CANOPY COVER CG KIT (INCL GLASS) Genuine Aston Martin - New (to order)
                                # 13
                                MPN: 6G33-70351-BB
                                CANOPY COVER AND GLASS KIT
                                Atlantic Blue
                                from £5,069.84
                                from £5,069.84
                                CANOPY COVER CG KIT (INCL GLASS) Genuine Aston Martin - New (to order)
                                # 13
                                MPN: 6G33-70351-CB
                                CANOPY COVER AND GLASS KIT
                                Sandstorm
                                from £3,611.10
                                from £3,611.10
                                CANOPY COVER CG KIT (INCL GLASS) Genuine Aston Martin - New (to order)
                                # 13
                                MPN: 6G33-70351-DB
                                CANOPY COVER AND GLASS KIT
                                Westminster Green
                                from £5,069.84
                                from £5,069.84
                                CANOPY COVER CG KIT (INCL GLASS) Genuine Aston Martin - New (to order)
                                # 13
                                MPN: 6G33-70351-EB
                                CANOPY COVER AND GLASS KIT
                                Titan Grey
                                from £5,069.84
                                from £5,069.84
                                CANOPY COVER CG KIT (INCL GLASS) Genuine Aston Martin - New (to order)
                                # 13
                                MPN: 6G33-70351-FB
                                CANOPY COVER AND GLASS KIT
                                Burgundy
                                from £8,362.54
                                from £8,362.54
                                CANOPY COVER CG KIT (INCL GLASS) Genuine Aston Martin - New (to order)
                                # 13
                                MPN: 6G33-70351-GB
                                CANOPY COVER AND GLASS KIT
                                Grenadine Red
                                from £5,324.68
                                from £5,324.68
                                CANOPY COVER CG KIT (INCL GLASS) Genuine Aston Martin - New (to order)
                                # 13
                                MPN: 6G33-70351-HB
                                CANOPY COVER AND GLASS KIT
                                Bitter Chocolate
                                from £8,362.54
                                from £8,362.54
                                CANOPY COVER CG KIT (INCL GLASS) Genuine Aston Martin - New (to order)
                                # -
                                -
                                RIVET, BLIND
                                per kit
                                # -
                                -
                                SPRING CLIP
                                per kit
                                # 14
                                MPN: 6G33-70352-AA
                                INNERLINING CG AND FIXINGS
                                Obsidian Black
                                from £1,874.37
                                from £1,874.37
                                INNERLINING CG AND FIXINGS Genuine Aston Martin - New (to order)
                                # 14
                                MPN: 6G33-70352-BA
                                INNERLINING CG AND FIXINGS
                                Ivory
                                from £1,877.01
                                from £1,877.01
                                INNERLINING CG AND FIXINGS Genuine Aston Martin - New (to order)
                                # 14
                                MPN: 6G33-70352-CA
                                INNERLINING CG AND FIXINGS
                                Moon shadow
                                from £1,384.54
                                from £1,384.54
                                INNERLINING CG AND FIXINGS Genuine Aston Martin - New (to order)
                                # 14
                                MPN: 6G33-70352-DA
                                INNERLINING CG AND FIXINGS
                                Tailors Grey
                                from £1,903.96
                                from £1,903.96
                                INNERLINING CG AND FIXINGS Genuine Aston Martin - New (to order)
                                # 14
                                MPN: 6G33-70352-EA
                                INNERLINING CG AND FIXINGS
                                Chancellors Red
                                from £1,384.54
                                from £1,384.54
                                INNERLINING CG AND FIXINGS Genuine Aston Martin - New (to order)
                                # 14
                                MPN: 6G33-70352-FA
                                INNERLINING CG AND FIXINGS
                                Light Tan
                                from £1,384.54
                                from £1,384.54
                                INNERLINING CG AND FIXINGS Genuine Aston Martin - New (to order)
                                # 15
                                MPN: 6G33-50639-AA
                                HYDRAULIC CYLINDER, MAIN, LH
                                from £561.88
                                from £561.88
                                HYDRAULIC CYLINDER, MAIN, LH Genuine Aston Martin - New (to order)
                                # 15
                                MPN: 6G33-50638-AA
                                HYDRAULIC CYLINDER, MAIN, RH
                                from £593.20
                                from £593.20
                                HYDRAULIC CYLINDER, MAIN, RH Genuine Aston Martin - New (to order)
                                # 16
                                MPN: 6G33-539A79-AA
                                TENSION BOW, CYLINDER, LH
                                from £624.34
                                from £624.34
                                TENSION BOW, CYLINDER, LH Genuine Aston Martin - New (to order)
                                # 16
                                MPN: 6G33-539A78-AA
                                TENSION BOW, CYLINDER, RH
                                from £703.20
                                from £703.20
                                TENSION BOW, CYLINDER, RH Genuine Aston Martin - New (to order)
                                # 17
                                MPN: 6G33-53391-AA
                                CYLINDER, TONNEAU, LH
                                from £580.02
                                from £580.02
                                CYLINDER, TONNEAU, LH Genuine Aston Martin - New (to order)
                                # 17
                                MPN: 6G33-53390-AA
                                CYLINDER, TONNEAU, RH
                                from £549.40
                                from £549.40
                                CYLINDER, TONNEAU, RH Genuine Aston Martin - New (to order)
                                # 18
                                MPN: 6G33-9G803-AA
                                PUMP, HYDRAULIC
                                from £3,339.96
                                from £3,339.96
                                PUMP, HYDRAULIC Genuine Aston Martin - New (to order)
                                # 19
                                MPN: 6G33-L31123-AA
                                COVER, PUMP
                                from £104.64
                                from £104.64
                                COVER, PUMP Genuine Aston Martin - New (to order)
                                # -
                                -
                                FLUID, HOOD, 1L BOTTLE
                                # 21
                                MPN: 6G33-L31124-AA
                                SOUND PAD, HYDRAULIC PUMP
                                SOUND PAD, HYDRAULIC PUMP Genuine Aston Martin - New (to order)
                                # 22
                                MPN: 6G33-9G804-AB
                                HARNESS, HYDRAULIC PUMP
                                from £1,024.24
                                from £1,024.24
                                HARNESS, HYDRAULIC PUMP Genuine Aston Martin - New (to order)
                                # 27
                                MPN: 4G43-1007570-AA
                                HARNESS, HEADER LATCH WIRING
                                from £39.93
                                from £39.93
                                HARNESS, HEADER LATCH WIRING Genuine Aston Martin - New (to order)
                                # 30
                                MPN: 4G43-765013-AE
                                HARNESS KIT, LATCH BRACKET
                                HARNESS KIT, LATCH BRACKET Genuine Aston Martin - New (to order)
                                # 31
                                MPN: 6G33-L51270-AA
                                LATCHING KIT, FULLY AUTOMATIC, RH
                                from £571.62
                                from £571.62
                                LATCHING KIT, FULLY AUTOMATIC, RH Genuine Aston Martin - New (to order)
                                # 31
                                MPN: 6G33-L51260-AA
                                LATCHING KIT, FULLY AUTOMATIC, LH
                                from £639.66
                                from £639.66
                                LATCHING KIT, FULLY AUTOMATIC, LH Genuine Aston Martin - New (to order)
                                # 33
                                MPN: 4G43-69832-AA
                                NUT, M6, HEXAGON
                                Latching kit attach
                                from £0.83
                                from £0.83
                                HEX NUT M6 Genuine Aston Martin - New (to order)
                                # 34
                                MPN: 4G43-765010-AF
                                STRIKER HEADER, RH
                                from £63.04
                                from £63.04
                                STRIKER, HEADER, RH Genuine Aston Martin - New (to order)
                                # 34
                                MPN: 4G43-765011-AE
                                STRIKER HEADER, LH
                                STRIKER, HEADER, LH Genuine Aston Martin - New (to order)
                                # 35
                                MPN: 703169
                                NUT, M6, HEX FLANGE HEAD
                                per latching bracket
                                from £0.71
                                from £0.71
                                This part replaces part number 703168
                                NUT M6 HEX FLANGE Genuine Aston Martin - New (to order)
                                # 36
                                MPN: 703131
                                WASHER, M8
                                per latching bracket
                                from £0.47
                                from £0.47
                                WASHER M8 PLAIN FORM Genuine Aston Martin - New (to order)
                                # 37
                                MPN: 4G43-76501B03-AB
                                SHIM, LATCHING BRACKET, 0.5MM
                                from £0.47
                                from £0.47
                                SHIM, LATCHING BRACKET, 0.5MM Genuine Aston Martin - New (to order)
                                # 37
                                MPN: 4G43-76501B04-AB
                                SHIM, LATCHING BRACKET, 1MM
                                from £0.47
                                from £0.47
                                SHIM, LATCHING BRACKET, 1MM Genuine Aston Martin - New (to order)
                                # 38
                                MPN: 4G43-L51240-AA
                                MOTOR KIT, LATCH
                                from £214.68
                                from £214.68
                                LTH MTR CG SPR PT AS Genuine Aston Martin - New (to order)
                                # 39
                                MPN: 4G43-69832-AA
                                NUT, M6, HEXAGON
                                Motor kit attach
                                from £0.83
                                from £0.83
                                HEX NUT M6 Genuine Aston Martin - New (to order)
                                # 40
                                MPN: 4G43-1012525-AA
                                FLEX SHAFT, LH
                                from £55.80
                                from £55.80
                                FLEX SHAFT LH Genuine Aston Martin - New (to order)
                                # 41
                                MPN: 4G43-1012524-AA
                                FLEX SHAFT, RH
                                from £55.80
                                from £55.80
                                FLEX SHAFT RH Genuine Aston Martin - New (to order)
                                # -
                                -
                                HARNESS AND HYDRAULICS FIXING KIT
                                # -
                                -
                                LOWERING LEVER REPAIR KIT
                                As per SB0303
                                # -
                                -
                                PATCH, CANOPY, BLACK
                                As per SB0310
