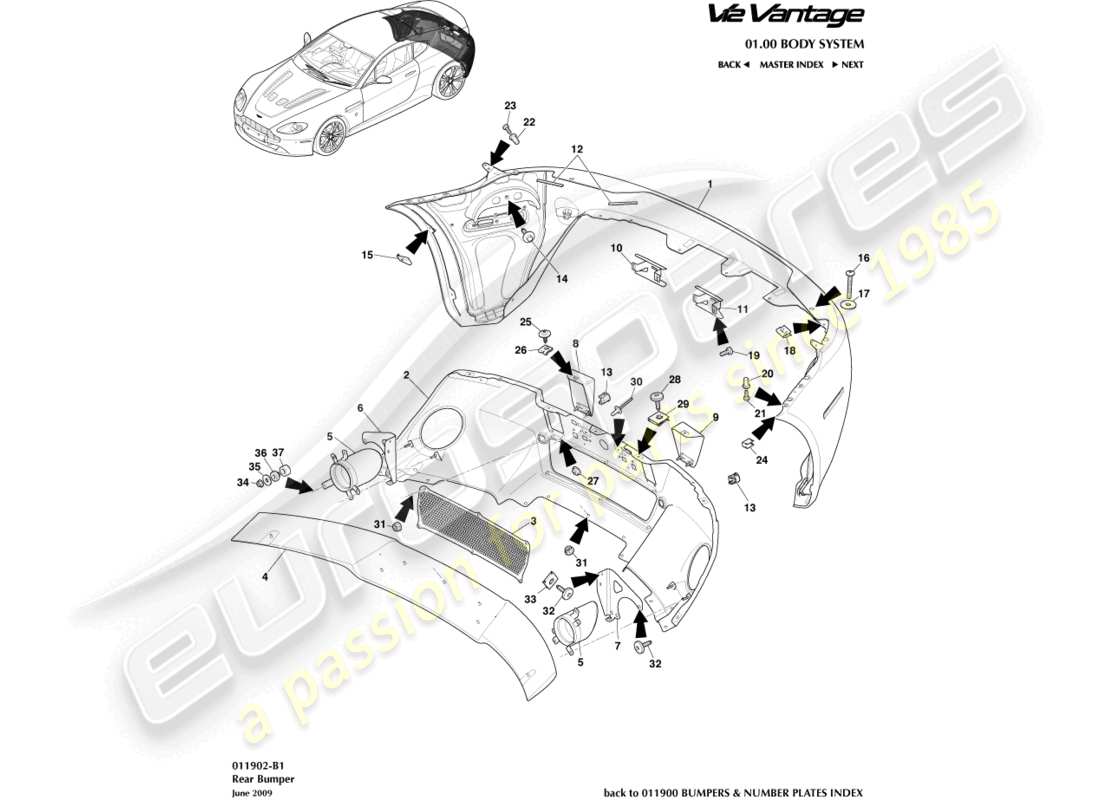

011902-B1 - REAR BUMPER

Aston Martin V12 Vantage (2011) Rear Bumper Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 1
                                                        MPN: AD23-17K835-AD
                                                        COVER ASSEMBLY, REAR BUMPER, ROW
                                                        COVER ASSEMBLY, REAR BUMPER, ROW Genuine Aston Martin - New (to order)
                                                        # 1
                                                        MPN: DD23-17K835-AF
                                                        COVER ASSEMBLY, REAR BUMPER, ROW
                                                        12.5MY
                                                        Supersession
                                                        Supersession
                                                        Genuine Aston Martin (no longer available to order)
                                                        # 1
                                                        MPN: DD23-17K835-BF
                                                        COVER ASSEMBLY, REAR BUMPER, FEDERAL
                                                        COVER ASSEMBLY, REAR BUMPER, FEDERAL Genuine Aston Martin - New (to order)
                                                        # 2
                                                        MPN: AD23-17E955-BA
                                                        DIFFUSER, REAR BUMPER ASSEMBLY, ROW
                                                        DIFFUSER, REAR BUMPER ASSEMBLY, ROW Genuine Aston Martin - New (to order)
                                                        # 2
                                                        MPN: AD23-17E955-AB
                                                        DIFFUSER, REAR BUMPER ASSEMBLY, GCC
                                                        DIFFUSER, REAR BUMPER ASSEMBLY, GCC Genuine Aston Martin - New (to order)
                                                        # 2
                                                        MPN: DD23-17E955-BA
                                                        DIFFUSER, REAR BUMPER ASSEMBLY, ROW, CARBON
                                                        from £4,035.76
                                                        from £4,035.76
                                                        DIFFUSER, REAR BUMPER ASSEMBLY, ROW, CARBON Genuine Aston Martin - New (to order)
                                                        # 2
                                                        MPN: DD23-17E955-AA
                                                        DIFFUSER, REAR BUMPER ASSEMBLY, FEDERAL, CARBON
                                                        from £4,542.17
                                                        from £4,542.17
                                                        DIFFUSER, REAR BUMPER ASSEMBLY, FEDERAL, CARBON Genuine Aston Martin - New (to order)
                                                        # 3
                                                        MPN: AD23-501T0-AA
                                                        MESH, REAR BUMPER ASSEMBLY
                                                        from £152.06
                                                        from £152.06
                                                        MESH, REAR BUMPER ASSEMBLY Genuine Aston Martin - New (to order)
                                                        # 4
                                                        MPN: AD23-33612-AD
                                                        BLADE, REAR BUMPER ASSEMBLY
                                                        from £437.13
                                                        from £437.13
                                                        BLADE, REAR BUMPER ASSEMBLY Genuine Aston Martin - New (to order)
                                                        # 5
                                                        MPN: AD23-5K238-BC
                                                        FINISHER, EXHAUST, RH, BRIGHT FINISH
                                                        from £267.01
                                                        from £267.01
                                                        FINISHER, TAIL PIPE, RH, BRIGHT FINISH Genuine Aston Martin - New (to order)
                                                        # 5
                                                        MPN: CG33-5K238-AA
                                                        FINISHER, EXHAUST, RH, BLACK
                                                        12.5MY
                                                        from £812.01
                                                        from £812.01
                                                        FINISHER, TAIL PIPE, RH, BLACK Genuine Aston Martin - New (to order)
                                                        # 5
                                                        MPN: AD23-5K239-BC
                                                        FINISHER, EXHAUST, LH, BRIGHT FINISH
                                                        from £267.01
                                                        from £267.01
                                                        FINISHER, TAIL PIPE, LH, BRIGHT FINISH Genuine Aston Martin - New (to order)
                                                        # 5
                                                        MPN: CG33-5K239-AA
                                                        FINISHER, EXHAUST, LH, BLACK
                                                        12.5MY
                                                        from £812.01
                                                        from £812.01
                                                        FINISHER, TAIL PIPE, LH, BLACK Genuine Aston Martin - New (to order)
                                                        # 6
                                                        MPN: 6G33-5N201-KD
                                                        BRACKET, EXHAUST MOUNTING, RH
                                                        from £59.35
                                                        from £59.35
                                                        BRACKET, TAILPIPE MOUNTING, RH Genuine Aston Martin - New (to order)
                                                        # 7
                                                        MPN: 6G33-5N202-KD
                                                        BRACKET, EXHAUST MOUNTING, LH
                                                        from £59.35
                                                        from £59.35
                                                        BRACKET, TAILPIPE MOUNTING, LH Genuine Aston Martin - New (to order)
                                                        # 8
                                                        MPN: AD23-17C772-AB
                                                        COVER REAR OVER, RIDER ASSY, RH, BLACK
                                                        from £137.75
                                                        from £137.75
                                                        COVER, REAR OVERRIDER ASSEMBLY, RH, BLACK Genuine Aston Martin - New (to order)
                                                        # 8
                                                        MPN: AD23-17C772-CA
                                                        COVER REAR OVER, RIDER ASSY, RH, GRAPHITE
                                                        from £45.36
                                                        from £45.36
                                                        COVER, REAR OVERRIDER ASSEMBLY, RH, GRAPHITE Genuine Aston Martin - New (to order)
                                                        # 9
                                                        MPN: AD23-17C773-AB
                                                        COVER REAR OVER, RIDER ASSY, LH, BLACK
                                                        from £137.75
                                                        from £137.75
                                                        COVER, REAR OVERRIDER ASSEMBLY, LH, BLACK Genuine Aston Martin - New (to order)
                                                        # 9
                                                        MPN: AD23-17C773-CA
                                                        COVER REAR OVER, RIDER ASSY, LH, GRAPHITE
                                                        from £30.44
                                                        from £30.44
                                                        COVER, REAR OVERRIDER ASSEMBLY, LH, GRAPHITE Genuine Aston Martin - New (to order)
                                                        # 10
                                                        MPN: 6G33-17B681-AH
                                                        BRACKET, REAR BUMPER MOUNTING, RH
                                                        BRACKET, REAR BUMPER MOUNTING, RH Genuine Aston Martin - New (to order)
                                                        # 11
                                                        MPN: 6G33-17B682-AH
                                                        BRACKET, REAR BUMPER MOUNTING, LH
                                                        BRACKET, REAR BUMPER MOUNTING, LH Genuine Aston Martin - New (to order)
                                                        # 12
                                                        MPN: 6G33-17B685-AA
                                                        SUPPORT PLATE, BUMPER SIDE OUTER
                                                        from £12.99
                                                        from £12.99
                                                        SUPPORT PLATE, OUTER Genuine Aston Martin - New (to order)
                                                        # 13
                                                        MPN: 8D33-37-10004
                                                        BRACKET, PARKING AID SENSOR, INNER
                                                        from £2.27
                                                        from £2.27
                                                        This part replaces part number 6M2T-15K872-AA
                                                        BRKT-PRK AID SNS INNER Genuine Aston Martin - New (to order)
                                                        # 14
                                                        MPN: 703734
                                                        SCREW AND WASHER, M6 X 25
                                                        from £0.74
                                                        from £0.74
                                                        BOLT &WASHER-M6X25 Genuine Aston Martin - New (to order)
                                                        # 15
                                                        MPN: 702511-PK
                                                        NUT, U TYPE
                                                        from £4.01
                                                        from £4.01
                                                        NUT-SPG 4.8X0.70(10) Genuine Aston Martin - New (to order)
                                                        # 16
                                                        MPN: 703144
                                                        BOLT, M6 X 45
                                                        from £1.45
                                                        from £1.45
                                                        BOLT M6X45 PAN Genuine Aston Martin - New (to order)
                                                        # 18
                                                        MPN: 4G43-8191-AA-PK
                                                        CLIP, BUMPER RADIATOR
                                                        from £3.02
                                                        from £3.02
                                                        CLIP-BUMPER GRL(10) Genuine Aston Martin - New (to order)
                                                        LOWER MESH CLIPS Genuine Ferrari Part - New (to order)
                                                        # 19
                                                        MPN: 701553
                                                        SCREW, M6 X 16
                                                        from £0.47
                                                        from £0.47
                                                        SCREW M6X16 PAN HD Genuine Aston Martin - New (to order)
                                                        # 20
                                                        MPN: 6G33-51756-BB
                                                        RIVNUT, CLOSED HEX HEAD
                                                        from £0.47
                                                        from £0.47
                                                        M5 CLOSED HEX RIVNUT Genuine Aston Martin - New (to order)
                                                        # 21
                                                        MPN: 702084
                                                        SCREW, M5 X 12
                                                        Supersession
                                                        Supersession
                                                        Genuine Aston Martin (no longer available to order)
                                                        # 22
                                                        MPN: 6G33-51756-BB
                                                        RIVNUT, CLOSED HEX HEAD
                                                        from £0.47
                                                        from £0.47
                                                        M5 CLOSED HEX RIVNUT Genuine Aston Martin - New (to order)
                                                        # 23
                                                        MPN: 6G33-51756-AA-PK
                                                        SCREW, M5 X 13
                                                        from £2.68
                                                        from £2.68
                                                        SCREW-M5X13 PN HD(10 Genuine Aston Martin - New In stock
                                                        # 24
                                                        MPN: W701025-S437M
                                                        CLIP
                                                        CLIP Genuine Aston Martin - New (to order)
                                                        # 25
                                                        MPN: 702510-PK
                                                        SCREW AND WASHER
                                                        per cover, rear over
                                                        from £2.99
                                                        from £2.99
                                                        SCREW & WASHER (5) Genuine Aston Martin - New In stock
                                                        # 26
                                                        MPN: 701448
                                                        NUT, U TYPE
                                                        per cover, rear over
                                                        from £0.47
                                                        from £0.47
                                                        NUT 4.2 2.1-3.1 U TY Genuine Aston Martin - New (to order)
                                                        SPLITTER NUTS Genuine Ferrari Part - New (to order)
                                                        # 27
                                                        MPN: 4G43-83000-BB
                                                        NUT, SPEED
                                                        from £0.47
                                                        from £0.47
                                                        NUT - SPEED M5 Genuine Aston Martin - New In stock
                                                        # 28
                                                        MPN: 6G33-FA0115-AB-PK
                                                        SCREW AND WASHER, M6 X 19
                                                        from £12.31
                                                        from £12.31
                                                        This part replaces part number 6G33-FA0115-AB
                                                        SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
                                                        # 30
                                                        MPN: 7G43-0526-AA
                                                        RIVET, BLIND
                                                        from £0.47
                                                        from £0.47
                                                        RIVET, BLIND Genuine Aston Martin - New (to order)
                                                        # 31
                                                        MPN: 702944
                                                        NUT, M6
                                                        from £0.58
                                                        from £0.58
                                                        NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                                                        LOWER MESH NUTS Genuine Ferrari Part - New (to order)
                                                        # 32
                                                        MPN: 6G33-FA0115-AB-PK
                                                        SCREW AND WASHER, M6 X 19
                                                        per bkt
                                                        from £12.31
                                                        from £12.31
                                                        This part replaces part number 6G33-FA0115-AB
                                                        SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
                                                        # 34
                                                        MPN: 702295
                                                        NUT, M5
                                                        per tailpipe
                                                        from £0.47
                                                        from £0.47
                                                        NUT M5 HEX FLANGE Genuine Aston Martin - New (to order)
                                                        # 35
                                                        MPN: 697517-PK
                                                        WASHER, BLACK M6 X18
                                                        per tailpipe
                                                        from £13.40
                                                        from £13.40
                                                        WSHR-M6 L/OD BLK(20) Genuine Aston Martin - New (to order)
                                                        # 36
                                                        MPN: 6G33-5K239-BA-PK
                                                        ISOLATOR, TAILPIPE MOUNTING INNER
                                                        per tailpipe
                                                        from £44.59
                                                        from £44.59
                                                        This part replaces part number 6G33-5K239-BA-KIT
                                                        SPACER-T/PP MOUNTING (10) Genuine Aston Martin - New (to order)
                                                        # 37
                                                        MPN: 6G33-5K239-CA-PK
                                                        ISOLATOR, TAILPIPE MOUNTING OUTER
                                                        per tailpipe
                                                        from £64.92
                                                        from £64.92
                                                        SPACER-T/PP MOUNTING (10) Genuine Aston Martin - New (to order)
