aston martin v12 vantage (2011) engine structure parts diagram

030100-E1 - Engine Structure

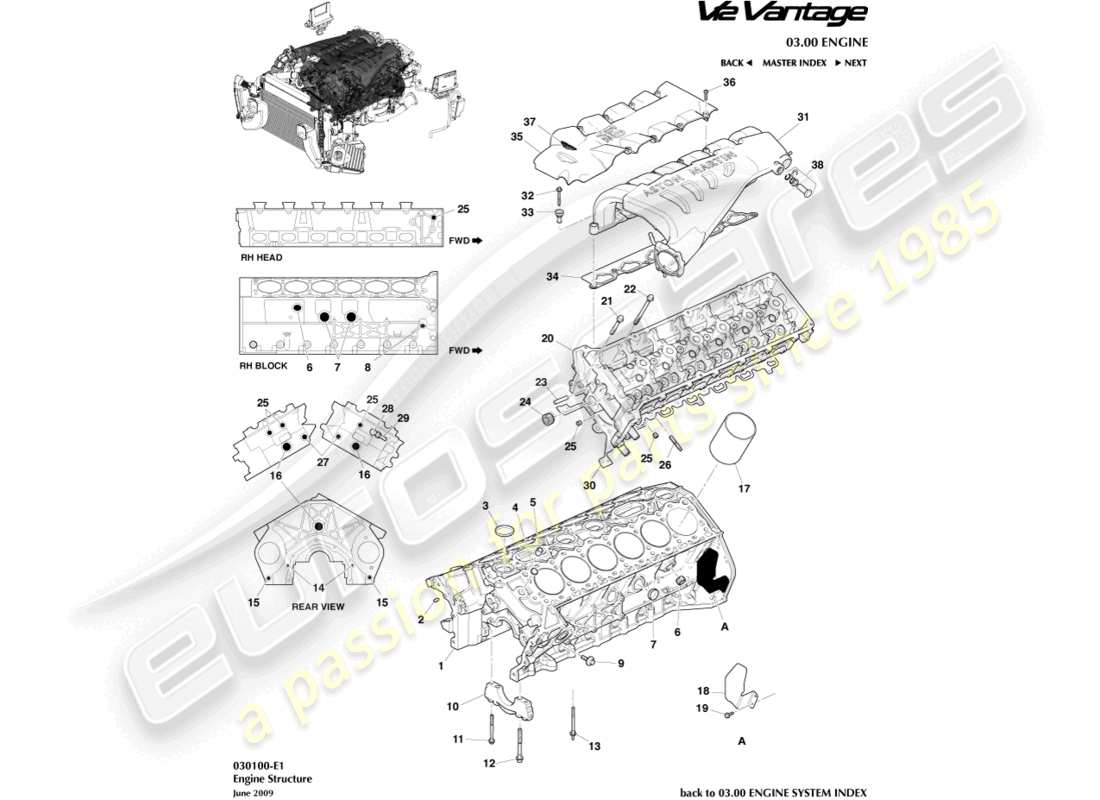

Aston Martin V12 Vantage (2011) Engine Structure Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                #
                                                                                Part number
                                                                                Description
                                                                                Key
                                                                                Price
                                                                                # -
                                                                                MPN: AD23-6007-AA
                                                                                ENGINE ASSEMBLY, 6.0L V12, NEW
                                                                                from £35,100.51
                                                                                from £35,100.51
                                                                                ENGINE ASSEMBLY, 6.0L V12, NEW Genuine Aston Martin - New (to order)
                                                                                # -
                                                                                MPN: 091959
                                                                                ENGINE ASSEMBLY, 6.0L V12, REMANUFACTURED
                                                                                from £23,050.99
                                                                                from £23,050.99
                                                                                ENGINE ASSEMBLY, 6.0L V12, REMANUFACTURED Genuine Aston Martin - New (to order)
                                                                                # 1
                                                                                MPN: AD43-6010-AA
                                                                                CYLINDER BLOCK ASSY
                                                                                from £9,197.60
                                                                                from £9,197.60
                                                                                CYLINDER BLOCK ASSEMBLY Genuine Aston Martin - New (to order)
                                                                                # 2
                                                                                MPN: 01-84995
                                                                                PIN, 8.0 X 18.0 DOWEL
                                                                                from £0.67
                                                                                from £0.67
                                                                                DOWEL-8X18 Genuine Aston Martin - New (to order)
                                                                                # 3
                                                                                MPN: 01-85000
                                                                                PLUG, 52.6 DIA CUP
                                                                                from £9.78
                                                                                from £9.78
                                                                                PLUG-CUP Genuine Aston Martin - New (to order)
                                                                                # 4
                                                                                MPN: 01-85001
                                                                                PLUG, 19.35 DIA EXP CUP
                                                                                from £4.60
                                                                                from £4.60
                                                                                PLUG-CUP-EXPANSION Genuine Aston Martin - New (to order)
                                                                                # 5
                                                                                MPN: 01-84994
                                                                                PIN, 16 X 19 HOLLOW DOWEL
                                                                                from £0.52
                                                                                from £0.52
                                                                                DOWEL-16X19 Genuine Aston Martin - New (to order)
                                                                                # 6
                                                                                MPN: 01-84998
                                                                                PLUG 3/4-14 PTF INT HEX
                                                                                from £0.96
                                                                                from £0.96
                                                                                PLUG-PIPE 3/4X14 Genuine Aston Martin - New (to order)
                                                                                # 7
                                                                                MPN: 01-84997
                                                                                PLUG 1.26 CUP (32MM)
                                                                                from £3.01
                                                                                from £3.01
                                                                                PLUG-CUP 1.25 Genuine Aston Martin - New (to order)
                                                                                # 8
                                                                                MPN: W701515-S900
                                                                                PLUG, 1/4Â? - 18 X 10.8
                                                                                PLUG.1/4-18X10.8.HI Genuine Aston Martin - New (to order)
                                                                                # 9
                                                                                MPN: 4G43-01-10819
                                                                                BOLT, CRANKSHAFT MAIN BEARING CAP, (SIDE)
                                                                                from £22.85
                                                                                from £22.85
                                                                                BOLT-MAIN BRG CAP Genuine Aston Martin - New (to order)
                                                                                # 10
                                                                                MPN: 1R12-01-10678
                                                                                CAP, CRANKSHAFT MAIN BEARING
                                                                                from £51.98
                                                                                from £51.98
                                                                                CAP, CRANKSHAFT MAIN BEARING Genuine Aston Martin - New (to order)
                                                                                # 11
                                                                                MPN: 4G43-01-10203
                                                                                BOLT, CRANKSHAFT MAIN BEARING CAP
                                                                                from £9.04
                                                                                from £9.04
                                                                                BOLT-M10X1.5X91 Genuine Aston Martin - New (to order)
                                                                                # 12
                                                                                MPN: 4G43-01-10202
                                                                                BOLT, CRANKSHAFT MAIN BEARING CAP
                                                                                from £3.72
                                                                                from £3.72
                                                                                BOLT, CRANKSHAFT MAIN BEARING CAP Genuine Aston Martin - New (to order)
                                                                                # 13
                                                                                MPN: 01-85133
                                                                                BOLT, MAIN BEARING CAP OUTER
                                                                                from £16.76
                                                                                from £16.76
                                                                                STUD BOLT-BRG CAPS Genuine Aston Martin - New (to order)
                                                                                # 14
                                                                                MPN: W701500-S300
                                                                                PIN, M6 X 16 DOWEL CHAMFER HEAD
                                                                                PIN 6X16 DWL CHMFR H Genuine Aston Martin - New (to order)
                                                                                # 15
                                                                                MPN: 699134
                                                                                DOWEL
                                                                                from £10.82
                                                                                from £10.82
                                                                                DOWEL, HOLLOW Genuine Aston Martin - New (to order)
                                                                                # 16
                                                                                MPN: 01-84998
                                                                                PLUG 3/4-14 PTF INT HEX
                                                                                from £0.96
                                                                                from £0.96
                                                                                PLUG-PIPE 3/4X14 Genuine Aston Martin - New (to order)
                                                                                # 17
                                                                                MPN: 7G43-6055-AA
                                                                                SLEEVE, CYLINDER BORE
                                                                                from £36.27
                                                                                from £36.27
                                                                                SLEEVE, CYLINDER BORE Genuine Aston Martin - New (to order)
                                                                                # 18
                                                                                MPN: 8G43-6K342-BB
                                                                                HEATSHIELD, CRANKSHAFT TIMING SENSOR
                                                                                from £29.22
                                                                                from £29.22
                                                                                SHLD-CSHAFT TM SNS H Genuine Aston Martin - New (to order)
                                                                                # 19
                                                                                MPN: 700606
                                                                                SCREW M6X12 FLG HD
                                                                                from £0.47
                                                                                from £0.47
                                                                                SCREW M6X12 FLANGE Genuine Aston Martin - New (to order)
                                                                                # 20
                                                                                MPN: 8D33-6M099-AA
                                                                                CYLINDER HEAD ASSY LH (INC VALVES/ADJUSTERS/SPRINGS ETC, MINUS CAMS ETC)
                                                                                CYLINDER HEAD ASSEMBLY LH (INC VALVES/ADJUSTERS/SPRINGS ETC, MINUS CAMS ETC) Genuine Aston Martin - New (to order)
                                                                                # 20
                                                                                MPN: 8D33-6F093-AA
                                                                                CYLINDER HEAD ASSY RH (INC VALVES/ADJUSTERS/SPRINGS ETC, MINUS CAMS ETC)
                                                                                CYLINDER HEAD ASSEMBLY RH (INC VALVES/ADJUSTERS/SPRINGS ETC, MINUS CAMS ETC) Genuine Aston Martin - New (to order)
                                                                                # 21
                                                                                MPN: 06-85052
                                                                                BOLT, FLG, M8 X 32
                                                                                BOLT, M8X32, FLANGE Genuine Aston Martin - New (to order)
                                                                                # 22
                                                                                MPN: 06-86044
                                                                                BOLT, FLG, M10 X 151.5 CYLINDER HEAD TO BLOCK
                                                                                from £12.19
                                                                                from £12.19
                                                                                BOLT-M10X1.5X151.5 Genuine Aston Martin - New (to order)
                                                                                # 23
                                                                                MPN: W701501-S300
                                                                                PIN, 10 X 49.25
                                                                                PIN 10X49.25 DWL Genuine Aston Martin - New (to order)
                                                                                # 25
                                                                                MPN: W701515-S900
                                                                                PLUG 1/4-18X10.8 HI
                                                                                PLUG.1/4-18X10.8.HI Genuine Aston Martin - New (to order)
                                                                                # 26
                                                                                MPN: 703704
                                                                                STUD, M8
                                                                                from £6.28
                                                                                from £6.28
                                                                                STUD M8X13.6+16 Genuine Aston Martin - New (to order)
                                                                                # 27
                                                                                MPN: W701516-S901
                                                                                PLUG, 3/8" - 18 SOCKET HEAD
                                                                                PLUG, 3/8 INCH  - 18 SOCKET HEAD Genuine Aston Martin - New (to order)
                                                                                # 28
                                                                                MPN: 1R1E-9B339-AB
                                                                                ADAPTOR, OIL PRESSURE SENDER
                                                                                ADAPTOR, OIL PRESSURE SENDER Genuine Aston Martin - New (to order)
                                                                                # 29
                                                                                MPN: 1R12-39-10532
                                                                                SWITCH ASSY, OIL PRESSURE
                                                                                from £5.19
                                                                                from £5.19
                                                                                SWITCH-OIL PRESSURE Genuine Aston Martin - New (to order)
                                                                                # 30
                                                                                MPN: 1R12-06-10469
                                                                                GASKET, CYLINDER HEAD, LH
                                                                                Supersession
                                                                                Supersession
                                                                                Genuine Aston Martin (no longer available to order)
                                                                                # 30
                                                                                MPN: 1R12-06-10468
                                                                                GASKET, CYLINDER HEAD, RH
                                                                                Supersession
                                                                                Supersession
                                                                                Genuine Aston Martin (no longer available to order)
                                                                                # 31
                                                                                MPN: AD23-9424-BA
                                                                                INTAKE, MANIFOLD ASSY LHS
                                                                                from £1,080.47
                                                                                from £1,080.47
                                                                                INTAKE, MANIFOLD ASSEMBLY LHS Genuine Aston Martin - New (to order)
                                                                                # 31
                                                                                MPN: AD23-9424-AA
                                                                                INTAKE, MANIFOLD ASSY RHS
                                                                                from £1,080.47
                                                                                from £1,080.47
                                                                                INTAKE, MANIFOLD ASSEMBLY RHS Genuine Aston Martin - New (to order)
                                                                                # 32
                                                                                MPN: 702852
                                                                                BOLT, FLG, M6 X 53
                                                                                from £8.31
                                                                                from £8.31
                                                                                BOLT-M6X1.0X47 HEX Genuine Aston Martin - New (to order)
                                                                                # 33
                                                                                MPN: 4G43-08-10002
                                                                                ISOLATOR, INTAKE, MANIFOLD
                                                                                from £17.07
                                                                                from £17.07
                                                                                ISOLATOR Genuine Aston Martin - New (to order)
                                                                                # 34
                                                                                MPN: 1R12-08-10077-PK
                                                                                GASKET, INTAKE MANIFOLD TO CYLINDER HEAD
                                                                                from £164.10
                                                                                from £164.10
                                                                                This part replaces part number 1R13-08-10077-PK
                                                                                INTAKE MANIFOLD GASKETS (pack of 2) Genuine Aston Martin - New In stock
                                                                                Alternative (#1R12-08-10077) INTAKE MANIFOLD GASKET (Single) Genuine Aston Martin - New (to order)
                                                                                # 35
                                                                                MPN: 8D33-9J444-BB
                                                                                SUPPORT, INTAKE, MANIFOLD
                                                                                from £360.14
                                                                                from £360.14
                                                                                SUPPORT, INTAKE, MANIFOLD Genuine Aston Martin - New (to order)
                                                                                # 36
                                                                                MPN: 702847
                                                                                SCREW, M6 X 25 PAN HEAD
                                                                                from £0.83
                                                                                from £0.83
                                                                                SCREW-M6X25 PAN INT Genuine Aston Martin - New (to order)
                                                                                # 37
                                                                                MPN: 8D33-001B46-BB
                                                                                BADGE ASSEMBLY, SUPPORT
                                                                                from £72.76
                                                                                from £72.76
                                                                                ENGINE MANIFOLD BDGE Genuine Aston Martin - New (to order)
                                                                                # 38
                                                                                MPN: 705136
                                                                                CARTRIDGE ASSY
                                                                                Supersession
                                                                                Supersession
                                                                                Genuine Aston Martin (no longer available to order)
