aston martin v12 vantage (2011) engine lubrication parts diagram

030200-E1 - Engine Lubrication

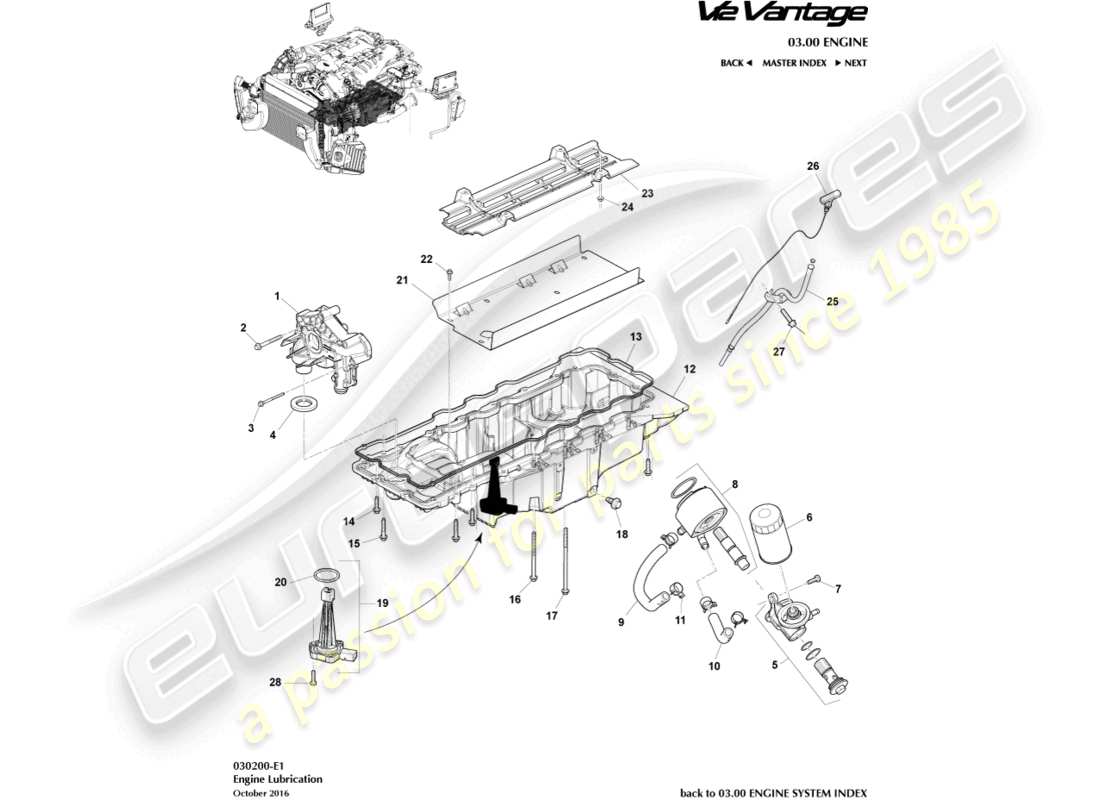

Aston Martin V12 Vantage (2011) Engine Lubrication Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Key
                                                  Price
                                                  # 1
                                                  MPN: 8G43-04-11112
                                                  PUMP, ENGINE OIL
                                                  from £1,521.79
                                                  from £1,521.79
                                                  SERVICE ASSY-OIL PMP Genuine Aston Martin - New (to order)
                                                  # 2
                                                  MPN: 702552
                                                  BOLT, M8X70
                                                  from £0.71
                                                  from £0.71
                                                  BOLT M8 X 70 Genuine Aston Martin - New (to order)
                                                  # 4
                                                  MPN: 4G43-04-10196
                                                  SEAL, OIL PUMP PICK UP TUBE
                                                  from £62.82
                                                  from £62.82
                                                  SEAL, OIL PUMP PICKUP TUBE TO PAN Genuine Aston Martin - New (to order)
                                                  # 5
                                                  MPN: AD23-6C739-BB
                                                  Oil Filter Housing Assembly
                                                  from £1,161.45
                                                  from £1,161.45
                                                  Oil Filter Housing Assembly Genuine Aston Martin - New (to order)
                                                  # 6
                                                  MPN: AD23-6714-AA
                                                  FILTER ASSY, OIL
                                                  Supersession
                                                  Supersession
                                                  Genuine Aston Martin (no longer available to order)
                                                  # 7
                                                  MPN: W713132-S440
                                                  BOLT M8X25
                                                  BOLT M8X25 Genuine Aston Martin - New (to order)
                                                  # 8
                                                  MPN: AD23-6A642-AA
                                                  COOLER ASSY, ENGINE OIL
                                                  from £490.62
                                                  from £490.62
                                                  COOLER ASSEMBLY, ENGINE OIL Genuine Aston Martin - New (to order)
                                                  # 9
                                                  MPN: AD23-8B451-AA
                                                  Hose Assy, Engine Oil Cool Outlet
                                                  from £97.44
                                                  from £97.44
                                                  HOSE ASSEMBLY, ENGINE OIL COOL OUTLET Genuine Aston Martin - New (to order)
                                                  # 10
                                                  MPN: AD23-6N867-AA
                                                  Hose Assy, Engine Oil Cool Inlet
                                                  from £84.73
                                                  from £84.73
                                                  HOSE ASSEMBLY, ENGINE OIL COOL INLET Genuine Aston Martin - New (to order)
                                                  # 11
                                                  MPN: 32-85381
                                                  CLAMP 24 DIA
                                                  pt of Hose Assy
                                                  from £4.10
                                                  from £4.10
                                                  CLAMP Genuine Aston Martin - New (to order)
                                                  # 12
                                                  MPN: AD23-6675-BC
                                                  PAN, OIL
                                                  PAN, OIL Genuine Aston Martin - New (to order)
                                                  # 13
                                                  MPN: 04-85092
                                                  GASKET, OIL PAN
                                                  from £73.11
                                                  from £73.11
                                                  GASKET, OIL PAN Genuine Aston Martin - New In stock
                                                  # 14
                                                  MPN: 702687
                                                  SCREW M8X30 HEX FLG HD
                                                  BOLT M8 X 30 Genuine Aston Martin - New (to order)
                                                  # 15
                                                  MPN: W500312-S437
                                                  SCREW M8X45 HEX FLG HD
                                                  SCREW M8X45 HEX FLANGE HD Genuine Aston Martin - New (to order)
                                                  # 16
                                                  MPN: W500386-S437
                                                  BOLT M8X120 HEX FLG HD
                                                  BOLT M8X120 HEX FLANGE HD Genuine Aston Martin - New (to order)
                                                  # 17
                                                  MPN: AD23-806156-AA
                                                  BOLT AND WASHER M8X170
                                                  from £51.17
                                                  from £51.17
                                                  BOLT AND WASHER M8X170 Genuine Aston Martin - New (to order)
                                                  # 18
                                                  MPN: 4G43-04-10205
                                                  DRAIN PLUG, M12
                                                  Minimum order quantity of 8
                                                  from £13.65
                                                  from £13.65
                                                  DRAIN PLUG, OIL PAN Genuine Aston Martin - New In stock
                                                  # 19
                                                  MPN: 4G43-04-10972
                                                  SENSOR ASSEMBLY, ENGINE OIL LEVEL
                                                  from £60.66
                                                  from £60.66
                                                  SNSR ASSY-ENG LOWOIL Genuine Aston Martin - New (to order)
                                                  # 20
                                                  MPN: 8W93-87030-BA
                                                  GASKET, ENGINE LOW OIL LEVEL SENSOR
                                                  ALWAYS REPLACE. DO NOT RE-USE
                                                  from £22.68
                                                  from £22.68
                                                  O RING, ENGINE LOW OIL LEVEL SENSOR Genuine Aston Martin - New (to order)
                                                  # 21
                                                  MPN: AD23-6686-AB
                                                  BAFFLE, OIL PAN
                                                  BAFFLE, OIL PAN Genuine Aston Martin - New (to order)
                                                  # 22
                                                  MPN: 702601
                                                  SCREW M56X20 HF 8N
                                                  Oil Pan Baffle
                                                  from £0.47
                                                  from £0.47
                                                  SCREW M56X20 HF 8N Genuine Aston Martin - New (to order)
                                                  # 23
                                                  MPN: AD23-6B660-AC
                                                  BAFFLE, CRANKSHAFT WINDAGE OIL
                                                  from £191.50
                                                  from £191.50
                                                  TRAY, WINDAGE Genuine Aston Martin - New (to order)
                                                  # 24
                                                  MPN: 703168
                                                  NUT M6 HEX FLG
                                                  Supersession
                                                  Supersession
                                                  Genuine Aston Martin (no longer available to order)
                                                  # 25
                                                  MPN: 4G4E-6754-AD
                                                  TUBE ASSY, OIL LEVEL INDICATOR
                                                  from £36.92
                                                  from £36.92
                                                  TUBE ASSEMBLY, OIL LEVEL INDICATOR Genuine Aston Martin - New (to order)
                                                  # 26
                                                  MPN: 8D33-6750-AB
                                                  INDICATOR ASSY, OIL LEVEL
                                                  from £28.71
                                                  from £28.71
                                                  INDICATOR ASSEMBLY, OIL LEVEL Genuine Aston Martin - New (to order)
                                                  # 27
                                                  MPN: 701745
                                                  BOLT, M8 FLANGE HEAD, DIP STICK TUBE
                                                  from £0.47
                                                  from £0.47
                                                  BOLT, M8 FLANGE HEAD, DIPSTICK TUBE Genuine Aston Martin - New (to order)
                                                  # 28
                                                  MPN: 702847
                                                  SCREW M6X25 PAN HD LOBE D
                                                  from £0.83
                                                  from £0.83
                                                  SCREW-M6X25 PAN INT Genuine Aston Martin - New (to order)
