aston martin v12 vantage (2011) engine cooling parts diagram

030300-E1 - engine cooling

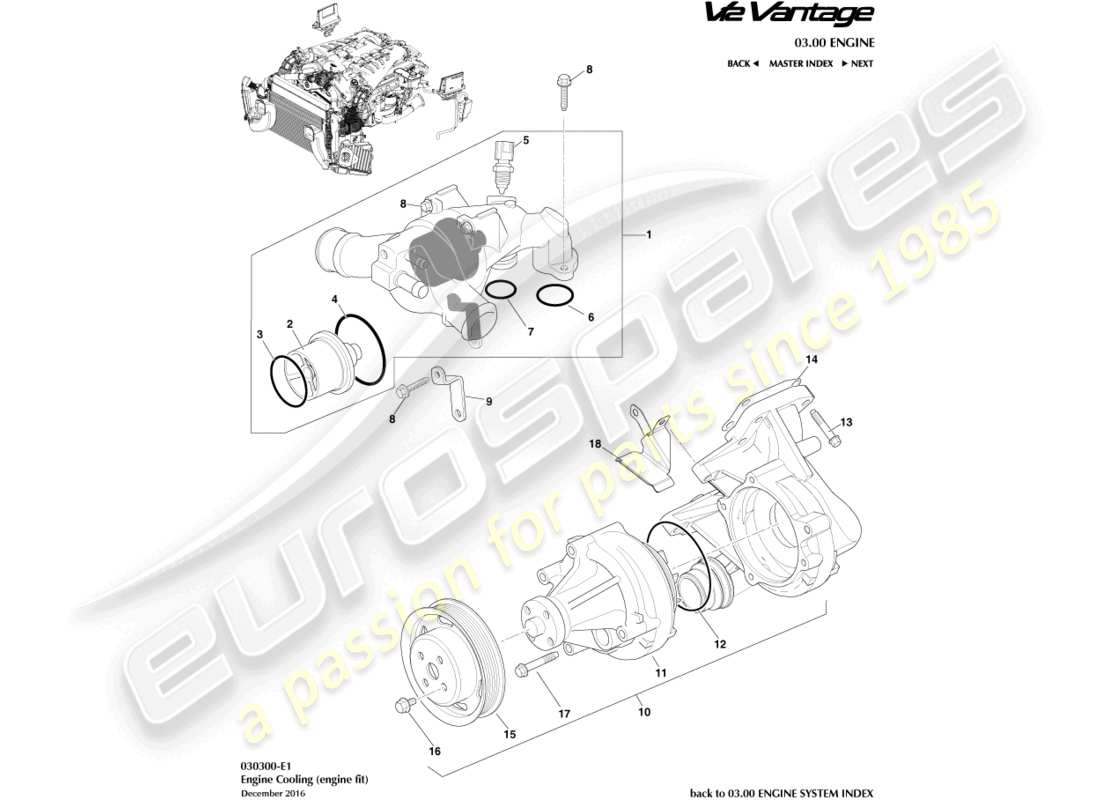

Aston Martin V12 Vantage (2011) Engine Cooling Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 1
                                      MPN: 8G43-8A586-AA
                                      THERMOST ASSEMBLY
                                      THERMOSTAT AND HOUSING Genuine Aston Martin - New (to order)
                                      # 2
                                      MPN: 4G4E-8575-AB
                                      THERMOSTAT, COOLANT
                                      from £205.64
                                      from £205.64
                                      This part replaces part number 32-85118
                                      THERMO ASSEMBLY WTR Genuine Aston Martin - New (to order)
                                      # 3
                                      MPN: 32-85116
                                      SEAL, THERMOSTAT
                                      from £103.76
                                      from £103.76
                                      SEAL, THERMOSTAT Genuine Aston Martin - New (to order)
                                      # 4
                                      MPN: 32-85114
                                      O-RING
                                      from £1.55
                                      from £1.55
                                      O-RING Genuine Aston Martin - New In stock
                                      # 5
                                      MPN: 6G43-39-10080
                                      SENSOR, ENGINE COOLANT TEMPERATURE
                                      from £282.60
                                      from £282.60
                                      SNSR ASY-ENG ELEC CN Genuine Aston Martin - New (to order)
                                      # 6
                                      MPN: 32-85112
                                      O-RING, WATER OUTLET CONNECTION
                                      from £3.42
                                      from £3.42
                                      O RING-WATER OUTLET Genuine Aston Martin - New In stock
                                      # 7
                                      MPN: 32-85113
                                      O-RING, WATER OUTLET CONNECTION
                                      from £0.52
                                      from £0.52
                                      O RING SEAL Genuine Aston Martin - New In stock
                                      # 8
                                      MPN: 702855
                                      BOLT AND WASHER, M6 X 30
                                      from £1.67
                                      from £1.67
                                      BOLT &WASHER-M6X30 Genuine Aston Martin - New (to order)
                                      # 9
                                      MPN: 7G43-8A588-AA
                                      BRACKET, ENGINE THERMOSTAT CONNECTION
                                      from £56.73
                                      from £56.73
                                      BRKT-ENG.THERMO CONN Genuine Aston Martin - New (to order)
                                      # 10
                                      MPN: AD23-8K168-AB
                                      WATERPUMP AND COVER ASSY
                                      from £1,140.36
                                      from £1,140.36
                                      WATERPUMP AND COVER ASSEMBLY Genuine Aston Martin - New (to order)
                                      # 11
                                      MPN: 4G43-05-10957
                                      WATERPUMP ASSY
                                      from £465.63
                                      from £465.63
                                      W/PUMP ASSY(NOSECONE Genuine Aston Martin - New (to order)
                                      # 12
                                      MPN: 1R12-32-10531
                                      O RING SEAL FOR PUMP
                                      from £20.48
                                      from £20.48
                                      SEAL RING-4.0 ID Genuine Aston Martin - New (to order)
                                      # 13
                                      MPN: 703694
                                      BOLT AND WASHER, M8 X 45
                                      from £3.49
                                      from £3.49
                                      BOLT&WASHER M8X45 HF Genuine Aston Martin - New (to order)
                                      # 13
                                      MPN: 702842
                                      BOLT, FLG, M8 X 41
                                      from £0.47
                                      from £0.47
                                      BOLT-M8X1.25X41 HEX Genuine Aston Martin - New (to order)
                                      # 14
                                      MPN: 05-85382
                                      GASKET
                                      from £32.39
                                      from £32.39
                                      WATER PUMP GASKET Genuine Aston Martin - New (to order)
                                      # 15
                                      MPN: 05-85104
                                      PULLEY, WATER PUMP
                                      from £385.67
                                      from £385.67
                                      PULLEY, WATER PUMP Genuine Aston Martin - New (to order)
                                      # 16
                                      MPN: 702843
                                      SCREW AND WASHER, M8 X 19
                                      from £0.73
                                      from £0.73
                                      SCREW &WASHER M8X19 Genuine Aston Martin - New (to order)
                                      # 17
                                      MPN: 702846
                                      BOLT, FLG, M8 X 45
                                      BOLT-M8X45 HEX FLANGE 8 Genuine Aston Martin - New (to order)
                                      # 18
                                      MPN: 4G43-18482-AA
                                      HOSE GUARD, WATER PUMP
                                      from £25.03
                                      from £25.03
                                      HOSE GUARD Genuine Aston Martin - New (to order)
