aston martin v12 vantage (2011) engine cooling, line fit parts diagram

030300-S1 - Engine Cooling, Line Fit

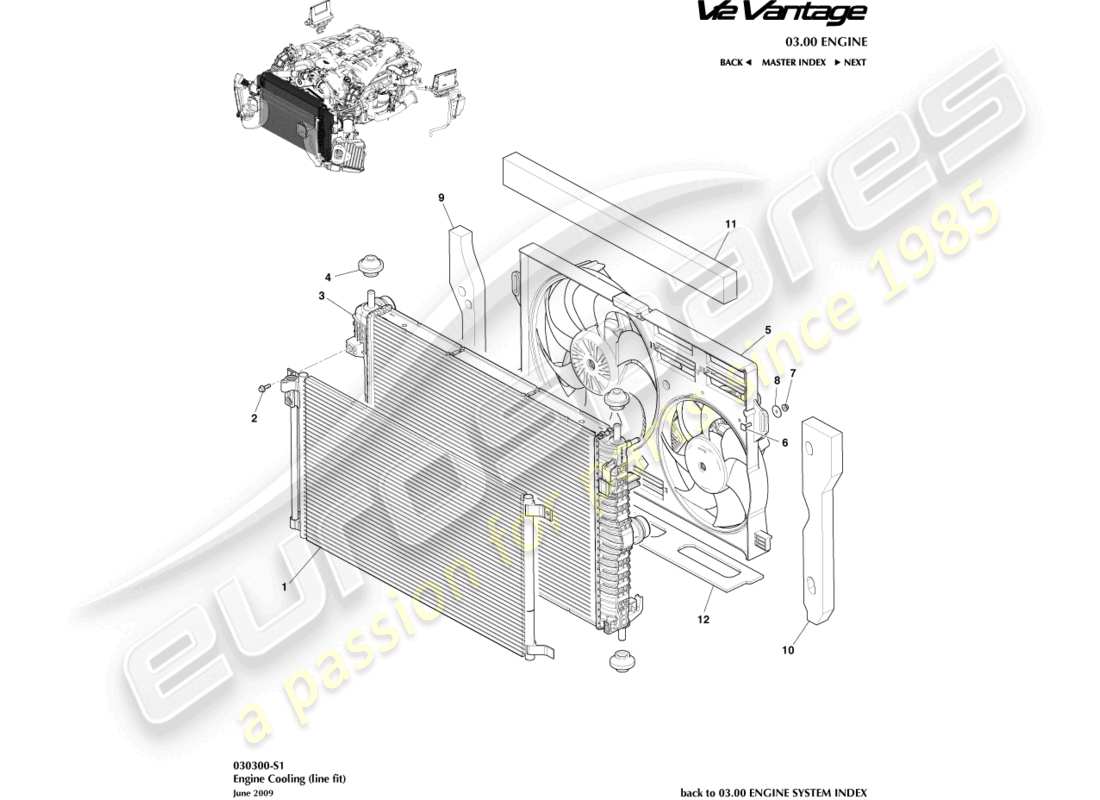

Aston Martin V12 Vantage (2011) Engine Cooling, Line Fit Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: 9G43-19710-AA
                      CONDENSER AIR CONDITIONING
                      from £509.55
                      from £509.55
                      CONDENSER ASSEMBLY Genuine Aston Martin - New (to order)
                      # 2
                      MPN: 703750
                      BOLT, FLG, M6 X 20
                      from £1.73
                      from £1.73
                      SCREW-M6X20 HEX FLD Genuine Aston Martin - New (to order)
                      # 3
                      MPN: 8D33-8005-AB
                      RADIATOR ASSY, MANUAL
                      Supersession
                      Supersession
                      Genuine Aston Martin (no longer available to order)
                      # 4
                      MPN: 32-85101-PK
                      BUSH, MOUNTING
                      Pack of 2
                      from £2.95
                      from £2.95
                      BUSH, MOUNTING Genuine Aston Martin - New (to order)
                      BUSH, MOUNTING Genuine Aston Martin - Used In stock
                      # 5
                      MPN: 8D33-8C607-AD
                      FAN MODULE
                      from £605.32
                      from £605.32
                      FAN MODULE Genuine Aston Martin - New (to order)
                      # 6
                      MPN: 703728
                      BOLT, M6 X 19 SQUARE HEAD
                      from £7.59
                      from £7.59
                      SCREW-M6X19 SQUAREHD Genuine Aston Martin - New (to order)
                      # 7
                      MPN: 703168
                      NUT, FLG, M6
                      Supersession
                      Supersession
                      Genuine Aston Martin (no longer available to order)
                      # 8
                      MPN: 697810-PK
                      WASHER, PLAIN 6 X 25MM OD
                      Pack of 10
                      WASHER M6X25MM, STAINLESS Genuine Aston Martin - New (to order)
                      # 9
                      MPN: AD23-F8B171-AB
                      SEAL, RADIATOR LH
                      from £36.44
                      from £36.44
                      SEAL, RADIATOR LH Genuine Aston Martin - New (to order)
                      # 10
                      MPN: AD23-F8B170-AB
                      SEAL, RADIATOR RH
                      from £36.44
                      from £36.44
                      SEAL, RADIATOR RH Genuine Aston Martin - New (to order)
                      # 11
                      MPN: 9G33-8N301-AA
                      SEAL, RADIATOR AIR UPPER
                      SEAL, RADIATOR AIR UPPER Genuine Aston Martin - New (to order)
                      # 12
                      MPN: AD23-8C477-AA
                      SEAL, RADIATOR AIR LOWER
                      from £13.73
                      from £13.73
                      SEAL, RADIATOR AIR LOWER Genuine Aston Martin - New (to order)
                      # -
                      -
                      ANTIFREEZE
                      Pack of 12
