aston martin v12 vantage (2011) air charging parts diagram

031200 - Air Charging

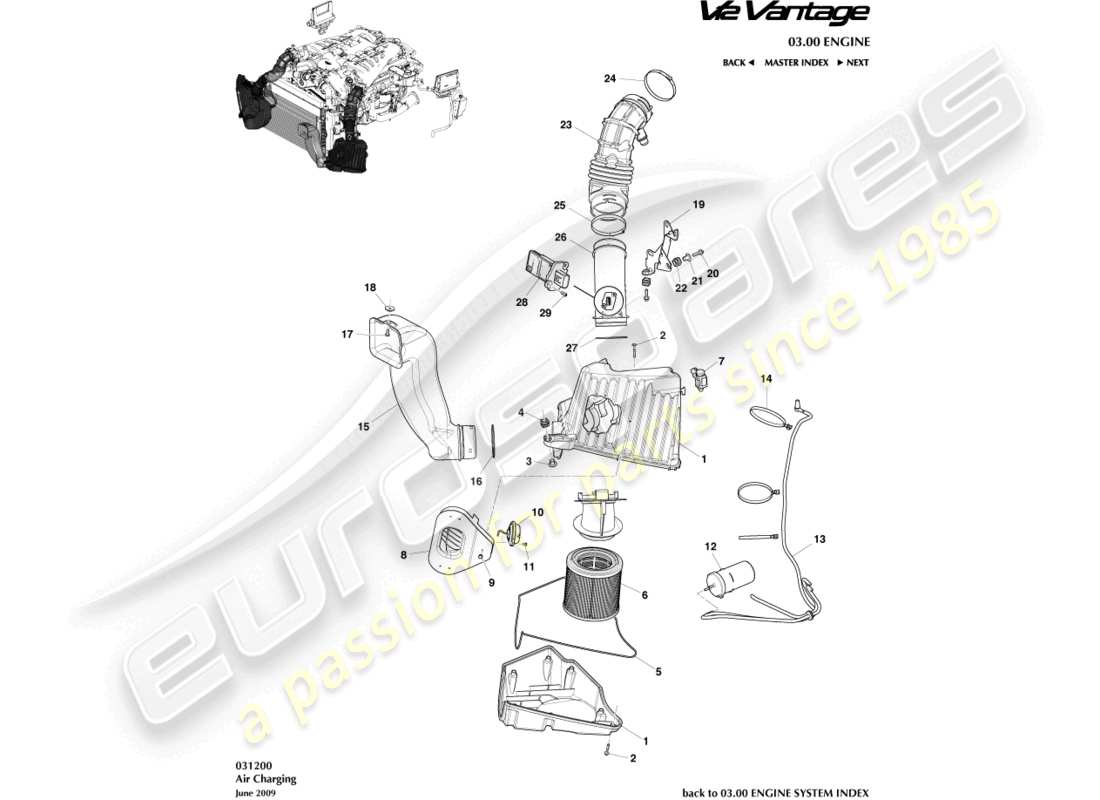

Aston Martin V12 Vantage (2011) Air Charging Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Key
                                                          Price
                                                          # 1
                                                          MPN: 8D33-9600-CA
                                                          AIRBOX ASSY, LH
                                                          from £698.60
                                                          from £698.60
                                                          AIRBOX ASSY-LHS Genuine Aston Martin - New (to order)
                                                          # 1
                                                          MPN: 8D33-9600-BA
                                                          AIRBOX ASSY, RH
                                                          from £698.58
                                                          from £698.58
                                                          AIRBOX ASSY-RHS Genuine Aston Martin - New (to order)
                                                          # 2
                                                          MPN: 4G43-0410-AA
                                                          SCREW, SELF TAP
                                                          from £1.40
                                                          from £1.40
                                                          SCREW, SELF TAP Genuine Aston Martin - New (to order)
                                                          # 3
                                                          MPN: 4G43-5144-AA
                                                          SPACER
                                                          from £8.67
                                                          from £8.67
                                                          SPACER Genuine Aston Martin - New (to order)
                                                          # 4
                                                          MPN: 4G43-9697-CA
                                                          GROMMET
                                                          from £8.04
                                                          from £8.04
                                                          GROMMET Genuine Aston Martin - New (to order)
                                                          # 5
                                                          MPN: 4G43-9C664-AB
                                                          GASKET, AIR CLEANER
                                                          from £11.60
                                                          from £11.60
                                                          GSKT-A/CLNR ELEM Genuine Aston Martin - New (to order)
                                                          # 6
                                                          MPN: 4G43-9601-AB-PK
                                                          FILTER, AIR CLEANER
                                                          from £49.95
                                                          from £49.95
                                                          This part replaces part number A4G43-9601-AB
                                                          Genuine Aston Martin (no longer available to order)
                                                          Alternative (#4G43-9601-AB) AIR FILTER (single) Genuine Aston Martin - New In stock
                                                          # 7
                                                          MPN: 6L34-9H465-BA
                                                          VALVE ASSY, THERM AIR CONTROL
                                                          from £59.27
                                                          from £59.27
                                                          SOLENOID VAC Genuine Aston Martin - New (to order)
                                                          # 8
                                                          MPN: 8D33-3N731-AA
                                                          HOUSING, VALVE ASSY
                                                          from £153.54
                                                          from £153.54
                                                          VALVE HSG ASSEMBLY - A15 Genuine Aston Martin - New (to order)
                                                          # 9
                                                          MPN: 8D33-5F006-AA
                                                          RIVET, VALVE HOUSING ASSY
                                                          from £2.11
                                                          from £2.11
                                                          RIVET Genuine Aston Martin - New (to order)
                                                          # 10
                                                          MPN: 8D33-7L576-AA
                                                          ACTUATOR, CONTROL VALVE
                                                          from £193.16
                                                          from £193.16
                                                          ACTUATOR CONTR VLV Genuine Aston Martin - New (to order)
                                                          # 11
                                                          MPN: W506941-S437
                                                          SCREW M4X8 PAN
                                                          SCREW, M4X8, PAN HD Genuine Aston Martin - New (to order)
                                                          # 12
                                                          MPN: 8D33-2K061-AA
                                                          VALVE RESERVOIR
                                                          from £96.94
                                                          from £96.94
                                                          VACUUM RESERVOIR Genuine Aston Martin - New (to order)
                                                          # 13
                                                          MPN: 8D33-43836-AA
                                                          HOSE ASSY, VACUUM
                                                          from £114.73
                                                          from £114.73
                                                          VACUUM HOSE ASSEMBLY Genuine Aston Martin - New (to order)
                                                          # 14
                                                          MPN: 8D33-ANR1350-AA
                                                          CABLE TIE AND CLIP
                                                          per Hose assy
                                                          from £4.49
                                                          from £4.49
                                                          TIE CABLE HOS CLIP A Genuine Aston Martin - New (to order)
                                                          # 15
                                                          MPN: AD23-9A675-BA
                                                          AIR BOX INTAKE, RAM AIR LH
                                                          from £155.00
                                                          from £155.00
                                                          AIR BOX INTAKE, RAM AIR LH Genuine Aston Martin - New (to order)
                                                          # 15
                                                          MPN: AD23-9A675-AA
                                                          AIR BOX INTAKE, RAM AIR RH
                                                          from £155.00
                                                          from £155.00
                                                          AIR BOX INTAKE, RAM AIR RH Genuine Aston Martin - New (to order)
                                                          # 16
                                                          MPN: 4G43-6C704-AA
                                                          O-RING, ENGINE DUCT
                                                          from £13.42
                                                          from £13.42
                                                          O-RING ENG DUCT Genuine Aston Martin - New (to order)
                                                          # 17
                                                          MPN: 4G43-2705-AA
                                                          RIVET
                                                          from £0.47
                                                          from £0.47
                                                          RIVET, PLASTIC Genuine Aston Martin - New (to order)
                                                          # 18
                                                          MPN: 4G43-9N967-AA
                                                          GROMMET
                                                          from £64.59
                                                          from £64.59
                                                          GROMMET, AIR CLEANER Genuine Aston Martin - New (to order)
                                                          # 19
                                                          MPN: BD23-9B609-AA
                                                          BRACKET, AIR CLEANER OUTER LH
                                                          from £73.54
                                                          from £73.54
                                                          BRACKET, AIR CLEANER OUTER LH Genuine Aston Martin - New (to order)
                                                          # 19
                                                          MPN: BD23-9B609-BA
                                                          BRACKET, AIR CLEANER OUTER RH
                                                          from £73.54
                                                          from £73.54
                                                          BRACKET, AIR CLEANER OUTER RH Genuine Aston Martin - New (to order)
                                                          # 20
                                                          MPN: 703025
                                                          BOLT, FLG M6 X 25
                                                          from £0.47
                                                          from £0.47
                                                          SCREW M6X1.0X25 HEX Genuine Aston Martin - New (to order)
                                                          # 21
                                                          MPN: 4G43-5144-AA
                                                          SPACER, AIR CLEANER BRACKET
                                                          from £8.67
                                                          from £8.67
                                                          SPACER Genuine Aston Martin - New (to order)
                                                          # 22
                                                          MPN: 4G43-9697-CA
                                                          GROMMET, AIR CLEANER BRACKET
                                                          from £8.04
                                                          from £8.04
                                                          GROMMET Genuine Aston Martin - New (to order)
                                                          # 23
                                                          MPN: AD23-9C623-BB
                                                          DUCT ASSY, AIR CLEANER TO ENG LH
                                                          from £56.84
                                                          from £56.84
                                                          DUCT ASSEMBLY, AIR CLEANER TO ENG LH Genuine Aston Martin - New (to order)
                                                          # 23
                                                          MPN: AD23-9C623-AA
                                                          DUCT ASSY, AIR CLEANER TO ENG RH
                                                          from £56.84
                                                          from £56.84
                                                          DUCT ASSEMBLY, AIR CLEANER TO ENG RH Genuine Aston Martin - New (to order)
                                                          # 24
                                                          MPN: 4G43-9N832-BA
                                                          CLAMP ASSY, AIR CLEANER HOSE
                                                          Supersession
                                                          Supersession
                                                          Genuine Aston Martin (no longer available to order)
                                                          # 25
                                                          MPN: 4G43-9N832-AA
                                                          CLAMP ASSY, AIR CLEANER HOSE
                                                          from £14.14
                                                          from £14.14
                                                          CLMP ASY-A/CLNR HOS Genuine Aston Martin - New (to order)
                                                          # 26
                                                          MPN: 4G43-12B612-AB
                                                          BODY MS AIRFLOW ASSY
                                                          from £5.75
                                                          from £5.75
                                                          BDY-ENG ELECTRIC MS AI Genuine Aston Martin - New (to order)
                                                          BDY-ENG ELECTRIC MS AI Genuine Aston Martin - Damaged In stock
                                                          # 27
                                                          MPN: 4G43-6C704-BA
                                                          O RING, ENGINE DUCT
                                                          from £14.92
                                                          from £14.92
                                                          O-RING ENG DCT INTR Genuine Aston Martin - New (to order)
                                                          # 28
                                                          MPN: 4G43-08-10933
                                                          SENSOR ASSY, ENGINE MASS AIR FLOW
                                                          from £86.47
                                                          from £86.47
                                                          SNS ASSEMBLY ENG ELETR Genuine Aston Martin - New (to order)
                                                          # 29
                                                          MPN: 4G43-0410-BB
                                                          SCREW, SELF TAP
                                                          from £3.98
                                                          from £3.98
                                                          SCREW, SELF TAP Genuine Aston Martin - New (to order)
