031300 - Evaporative Emissions

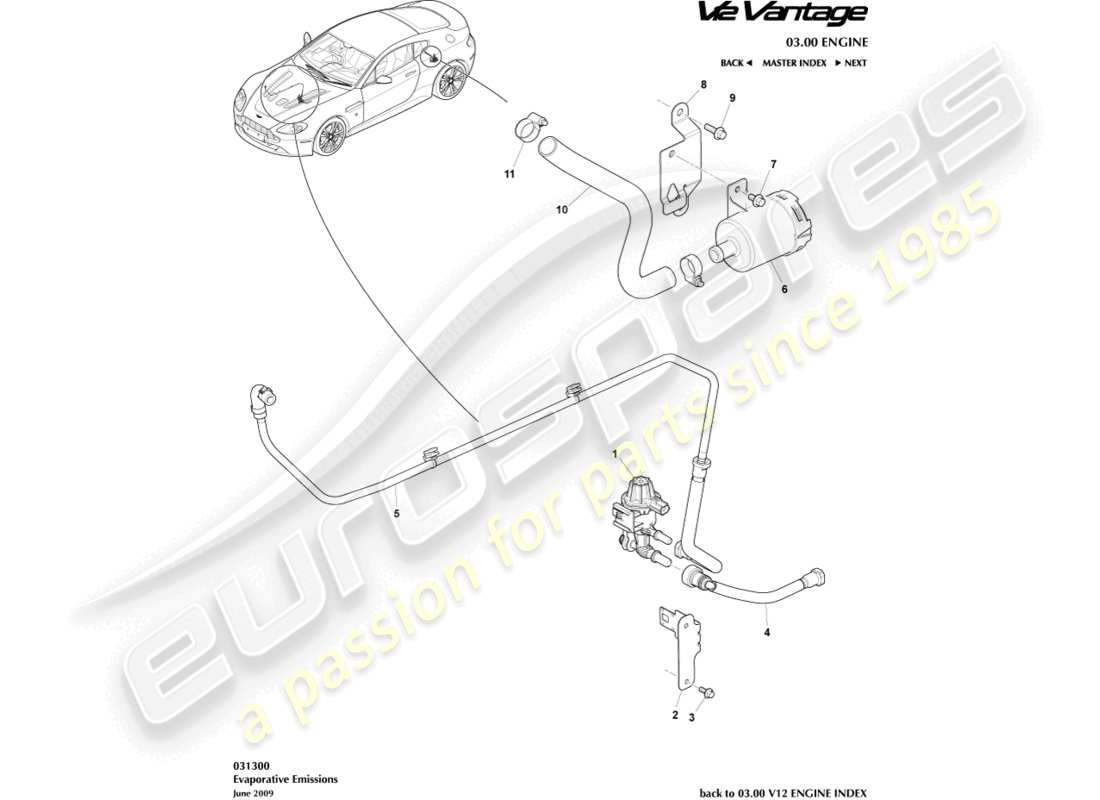

Aston Martin V12 Vantage (2011) Evaporative Emissions Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 4G43-34-10937
                        VALVE ASSY, FU/ VPR
                        from £50.13
                        from £50.13
                        This part replaces part number 4L24-9G641-BB which we have in stock
                        VALVE, FUEL/ VAPOUR PURGE ELECTRONIC Genuine Aston Martin - New (to order)
                        # 2
                        MPN: AD23-9G743-AA
                        BRACKET, ELECT FUEL VPR MGT
                        BRACKET, ELECTRIC FUEL VPR MGT Genuine Aston Martin - New (to order)
                        # 3
                        MPN: 703265
                        SCREW M6X16
                        from £0.47
                        from £0.47
                        SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                        # 4
                        MPN: AD23-9B051-AA
                        TUBE, VPR VALVE INLET, ROW
                        from £12.63
                        from £12.63
                        TUBE-FU/VPR VLV INLET Genuine Aston Martin - New (to order)
                        TUBE-FU/VPR VLV INLET Genuine Aston Martin - Used In stock
                        # 5
                        MPN: 4G43-9D289-BD
                        EVMV TO VAC HARNESS
                        from £54.84
                        from £54.84
                        PIPE, VALVE TO MANIFOLD Genuine Aston Martin - New (to order)
                        PIPE, VALVE TO MANIFOLD Genuine Aston Martin - Used In stock
                        # 6
                        MPN: 4G43-9B995-AA
                        FILTER, FUEL/VAPOUR STRG CAN
                        from £10.78
                        from £10.78
                        FLTR FU/VPR STEERING CNS Genuine Aston Martin - New (to order)
                        FLTR FU/VPR STEERING CNS Genuine Aston Martin - Used In stock
                        # 7
                        MPN: 701179
                        SCREW M6X12
                        from £0.47
                        from £0.47
                        SCREW M6X12 HEX FLANGE Genuine Aston Martin - New (to order)
                        # 8
                        MPN: AD23-9C177-AA
                        BRACKET ASSY, FU/TANK VENT VALVE
                        BRACKET ASSEMBLY, FU/TANK VENT VALVE Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 703203
                        SCREW M6X20 HEX FLG HD
                        from £0.47
                        from £0.47
                        SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                        LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                        # 10
                        MPN: 6G33-9F984-AB
                        HOSE ASSY, BYPASS
                        from £39.92
                        from £39.92
                        HOS ASY-FU/VPR CNSTR Genuine Aston Martin - New (to order)
                        # 11
                        MPN: 699094
                        CLAMP, NORMA 16-25
                        from £4.51
                        from £4.51
                        CLIP HOSE SPRG 16-25 Genuine Aston Martin - New (to order)
