aston martin v12 vantage (2011) exhaust manifolds parts diagram

031400-E1 - EXHAUST MANIFOLDS

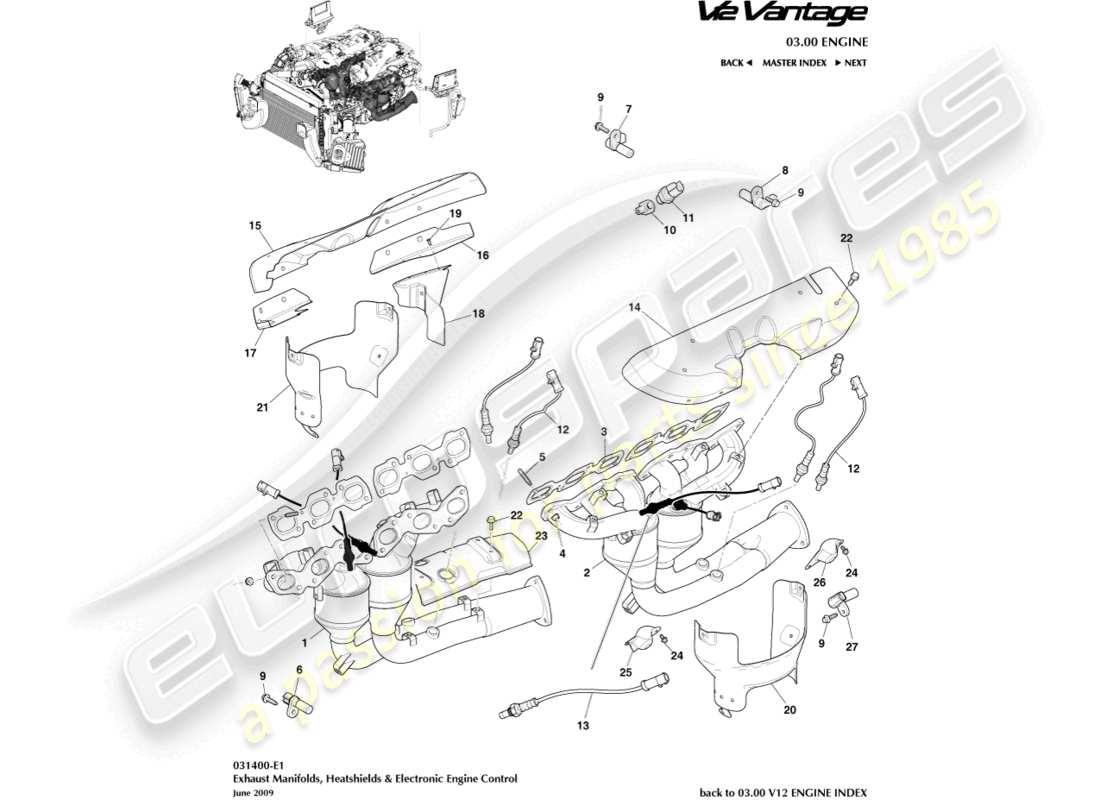

Aston Martin V12 Vantage (2011) Exhaust Manifolds Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Key
                                                      Price
                                                      # 1
                                                      MPN: 8G43-5G236-AA
                                                      MANIFOLD & CAT CONVERTER ASSY, RH
                                                      Supersession
                                                      Supersession
                                                      Genuine Aston Martin (no longer available to order)
                                                      # 2
                                                      MPN: 8G43-5G232-AA
                                                      MANIFOLD & CAT CONVERTER ASSY, LH
                                                      MANIFOLD AND CAT CONVERTER ASSEMBLY, LH Genuine Aston Martin - New (to order)
                                                      # -
                                                      -
                                                      CLIP, HEATSHIELD NUT FIXING
                                                      # 3
                                                      MPN: 4G43-35-10003
                                                      GASKET, EXHAUST MANIFOLD
                                                      from £34.78
                                                      from £34.78
                                                      GASKET, EXHAUST MANIFOLD Genuine Aston Martin - New (to order)
                                                      # 4
                                                      MPN: 697775-PK
                                                      NUT, M8 HEX FLG HD
                                                      12 per side W701706-S
                                                      from £24.51
                                                      from £24.51
                                                      This part replaces part number 697775
                                                      NUT, M8 HEX FLANGE HD Genuine Aston Martin - New (to order)
                                                      # 5
                                                      MPN: 703704
                                                      STUD, M8X24.7 SHOULDER
                                                      12 per side W701706-S
                                                      from £6.28
                                                      from £6.28
                                                      STUD M8X13.6+16 Genuine Aston Martin - New (to order)
                                                      # 6
                                                      MPN: 1R12-39-10475
                                                      SENSOR ASSY, CRANKSHAFT, FRONT
                                                      from £26.21
                                                      from £26.21
                                                      SENSOR-CRANK TIMING Genuine Aston Martin - New (to order)
                                                      # 7
                                                      MPN: 4G43-39-10014
                                                      SENSOR ASSY, CAMSHAFT, RH
                                                      from £404.17
                                                      from £404.17
                                                      This part replaces part number 07-85754
                                                      SENSOR-CRANK TIMING Genuine Aston Martin - New (to order)
                                                      # 8
                                                      MPN: 07-85755
                                                      SENSOR ASSY, CAMSHAFT, LH
                                                      from £164.02
                                                      from £164.02
                                                      SENSOR CID LH Genuine Aston Martin - New (to order)
                                                      # 9
                                                      MPN: 702542
                                                      SCREW, FLG, M6 X 20
                                                      from £0.77
                                                      from £0.77
                                                      BOLT M6 X 20 Genuine Aston Martin - New (to order)
                                                      # 10
                                                      MPN: 06-85664
                                                      FITTING, OIL PRESSURE SENDER SWITCH
                                                      FITTING, OIL PRESSURE SENDER SWITCH Genuine Aston Martin - New (to order)
                                                      # 11
                                                      MPN: 1R12-39-10532
                                                      SWITCH ASSY, OIL PRESSURE SENDER
                                                      from £5.19
                                                      from £5.19
                                                      SWITCH-OIL PRESSURE Genuine Aston Martin - New (to order)
                                                      # 12
                                                      MPN: 1R12-39-10175
                                                      SENSOR, EXHAUST, POST CAT
                                                      from £79.69
                                                      from £79.69
                                                      This part replaces part number 39-85392 - and 2 more. Click to view details
                                                      CAT.MONITOR SENSOR Genuine Aston Martin - New (to order)
                                                      CAT.MONITOR SENSOR Genuine Aston Martin - Used In stock
                                                      # 13
                                                      MPN: 1R12-39-10174
                                                      SENSOR, EXHAUST, PRE CAT
                                                      from £110.48
                                                      from £110.48
                                                      This part replaces part number 39-85391
                                                      SENSOR, HEGO, REAR Genuine Aston Martin - New (to order)
                                                      SENSOR, HEGO, REAR Eurospares Approved Part - New In stock
                                                      # -
                                                      -
                                                      SENSOR RING, IGNITION PULSE
                                                      # 14
                                                      MPN: 4G43-9A462-AC
                                                      HEATSHIELD, EXHAUST MANIFOLD LH
                                                      from £38.01
                                                      from £38.01
                                                      HEATSHIELD, EXHAUST MANIFOLD LH Genuine Aston Martin - New (to order)
                                                      HEATSHIELD, EXHAUST MANIFOLD LH Genuine Aston Martin - Used In stock
                                                      # 15
                                                      MPN: 4G43-9A462-BC
                                                      HEATSHIELD, EXHAUST MANIFOLD RH
                                                      from £38.01
                                                      from £38.01
                                                      HEATSHIELD, EXHAUST MANIFOLD RH Genuine Aston Martin - New (to order)
                                                      HEATSHIELD, EXHAUST MANIFOLD RH Genuine Aston Martin - Used In stock
                                                      # 16
                                                      MPN: 8D33-9A462-BB
                                                      HEATSHIELD, EXHAUST MANIFOLD LH
                                                      from £33.25
                                                      from £33.25
                                                      EXH H/SHIELD LH Genuine Aston Martin - New (to order)
                                                      EXH H/SHIELD LH Genuine Aston Martin - Used In stock
                                                      # 17
                                                      MPN: 4G43-9A462-CC
                                                      HEATSHIELD, EXHAUST MANIFOLD
                                                      from £33.25
                                                      from £33.25
                                                      EXH MANIFOLD H/SHLD Genuine Aston Martin - New (to order)
                                                      EXH MANIFOLD H/SHLD Genuine Aston Martin - Used In stock
                                                      # 18
                                                      MPN: 8G43-9A462-AB
                                                      HEATSHIELD, EXHAUST MANIFOLD LH
                                                      HEATSHIELD, EXHAUST MANIFOLD LH Genuine Aston Martin - New (to order)
                                                      # 19
                                                      MPN: W525104-S303
                                                      Rivet, 4X10.7 Blnd Stl Dm Hd
                                                      Rivet, 4X10.7 Blnd Stl Dm Hd Genuine Aston Martin - New (to order)
                                                      # 20
                                                      MPN: 4G43-9N454-AD
                                                      HEATSHIELD, EXHAUST MANIFOLD RH
                                                      from £85.30
                                                      from £85.30
                                                      HEATSHIELD, EXHAUST MANIFOLD RH Genuine Aston Martin - New (to order)
                                                      # 21
                                                      MPN: 4G43-9N454-BC
                                                      HEATSHIELD, EXHAUST MANIFOLD LH
                                                      HEATSHIELD, EXHAUST MANIFOLD LH Genuine Aston Martin - New (to order)
                                                      # 22
                                                      MPN: 703264
                                                      SCREW, M6X14 FLG HD
                                                      SCREW, M6X12 HEX HD Genuine Aston Martin - New (to order)
                                                      # 23
                                                      MPN: AD23-C5K286-AA
                                                      HEATSHIELD, EXHAUST PIPE RH
                                                      from £79.81
                                                      from £79.81
                                                      HEATSHIELD, EXHAUST PIPE RH Genuine Aston Martin - New (to order)
                                                      # 24
                                                      MPN: 702542
                                                      BOLT, M6 X 20
                                                      from £0.77
                                                      from £0.77
                                                      BOLT M6 X 20 Genuine Aston Martin - New (to order)
                                                      # 25
                                                      MPN: CD33-45367-AB
                                                      HEATSHIELD, KNOCK SENSOR, LH FRONT
                                                      from £8.05
                                                      from £8.05
                                                      HEATSHIELD, KNOCK SENSOR, LH FRONT Genuine Aston Martin - New (to order)
                                                      # 25
                                                      MPN: CD33-45368-AA
                                                      HEATSHIELD, KNOCK SENSOR, RH FRONT
                                                      from £8.05
                                                      from £8.05
                                                      HEATSHIELD, KNOCK SENSOR, RH FRONT Genuine Aston Martin - New (to order)
                                                      # 26
                                                      MPN: CD33-45367-BA
                                                      HEATSHIELD, KNOCK SENSOR, LH REAR
                                                      from £8.05
                                                      from £8.05
                                                      HEATSHIELD, KNOCK SENSOR, LH REAR Genuine Aston Martin - New (to order)
                                                      # 27
                                                      MPN: 4G43-39-10014
                                                      SENSOR ASSY, CRANKSHAFT, REAR
                                                      from £404.17
                                                      from £404.17
                                                      This part replaces part number 07-85754
                                                      SENSOR-CRANK TIMING Genuine Aston Martin - New (to order)
