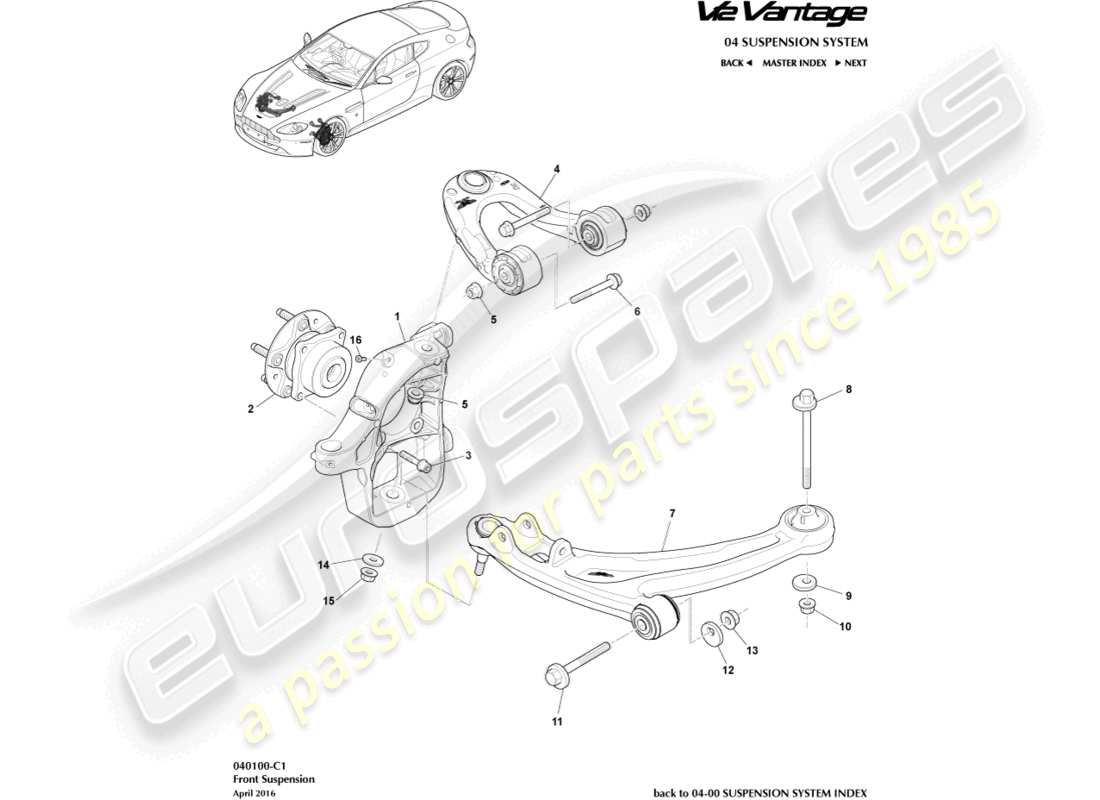

040100-C1 - Front Suspension Assembly

Aston Martin V12 Vantage (2011) Front Suspension Assembly Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 1
                                MPN: 8D33-3K186-AC
                                KNUCKLE ASSY, FRONT WHEEL RH
                                from £1,139.83
                                from £1,139.83
                                KNL ASSEMBLY FRONT WHEEL RH Genuine Aston Martin - New (to order)
                                # 1
                                MPN: 8D33-3K185-AC
                                KNUCKLE ASSY, FRONT WHEEL LH
                                from £1,139.83
                                from £1,139.83
                                KNL ASSEMBLY FRONT WHEEL LH Genuine Aston Martin - New (to order)
                                # 2
                                MPN: 4G43-2B663-AD
                                HUB & BEARING ASSY, FRONT
                                from £340.93
                                from £340.93
                                HB & BRG ASSEMBLY FRONT BRK Genuine Aston Martin - New (to order)
                                # 3
                                MPN: 4G43-0783-AA
                                SCREW WITH WASHER
                                BOLT, M10 X 55 GRD 10.9 Genuine Aston Martin - New (to order)
                                # 4
                                MPN: 6G33-3084-AB
                                ARM ASSY, FRONT SUSPENSION, UPPER, RH
                                Coupe
                                from £409.24
                                from £409.24
                                ARM ASSEMBLY FRONT SUSP UPPER Genuine Aston Martin - New (to order)
                                # 4
                                MPN: DG43-3084-AB
                                ARM ASSY, FRONT SUSPENSION, UPPER, RH
                                Roadster
                                from £247.39
                                from £247.39
                                ARM ASSEMBLY, FRONT SUSPENSION, UPPER, RH Genuine Aston Martin - New (to order)
                                # 4
                                MPN: 6G33-3091-AB
                                ARM ASSY, FRONT SUSPENSION, UPPER, LH
                                Coupe
                                from £409.24
                                from £409.24
                                ARM ASSEMBLY FRONT SUSP UPPER Genuine Aston Martin - New (to order)
                                # 4
                                MPN: DG43-3091-AB
                                ARM ASSY, FRONT SUSPENSION, UPPER, LH
                                Roadster
                                from £266.27
                                from £266.27
                                ARM ASSEMBLY, FRONT SUSPENSION, UPPER, LH Genuine Aston Martin - New (to order)
                                # 5
                                MPN: 703565
                                NUT & WASHER M12
                                from £0.74
                                from £0.74
                                This part replaces part number 699876
                                NUT-M12 HEX FLANGE PLAS Genuine Aston Martin - New (to order)
                                # 6
                                MPN: 703180
                                BOLT M12 X 90
                                BOLT, M12 X 90 Genuine Aston Martin - New (to order)
                                # 7
                                MPN: 8G33-3A052-AB
                                ARM ASSY, LOWER FRONT SUSPENSION RH
                                from £489.65
                                from £489.65
                                FRONT LOWER ARM ASSEMBLY Genuine Aston Martin - New (to order)
                                # 7
                                MPN: 8G33-3A053-AB
                                ARM ASSY, LOWER FRONT SUSPENSION LH
                                from £489.65
                                from £489.65
                                FRONT LOWER ARM ASSEMBLY Genuine Aston Martin - New (to order)
                                # 8
                                MPN: 4G43-3B236-BB
                                BOLT, ECCENTRIC M12, LOWER ARM FIX
                                from £40.37
                                from £40.37
                                CAM & BOLT ASSEMBLY FRONT Genuine Aston Martin - New (to order)
                                # 9
                                MPN: 4G43-3B237-BB
                                WASHER, M12, ECCENTRIC
                                from £6.92
                                from £6.92
                                WASHER M12 ECCENTRIC Genuine Aston Martin - New (to order)
                                # 10
                                MPN: 703565
                                NUT & WASHER M12
                                from £0.74
                                from £0.74
                                This part replaces part number 699876
                                NUT-M12 HEX FLANGE PLAS Genuine Aston Martin - New (to order)
                                # 11
                                MPN: 4G43-3B236-CB
                                BOLT, M14 ECCENTRIC
                                from £16.95
                                from £16.95
                                CAM BOLT M14 Genuine Aston Martin - New (to order)
                                # 12
                                MPN: 4G43-3B237-CA
                                WASHER, M14, ECCENTRIC
                                from £6.54
                                from £6.54
                                CAM WASHER - FRONT LCA Genuine Aston Martin - New In stock
                                # 13
                                MPN: 701337
                                NUT, M14
                                Supersession
                                Supersession
                                Genuine Aston Martin (no longer available to order)
                                # 14
                                MPN: GG33-39078-AA
                                WASHER
                                from £10.49
                                from £10.49
                                WASHER Genuine Aston Martin - New (to order)
                                # 15
                                MPN: 703565
                                NUT, M12 HEX
                                from £0.74
                                from £0.74
                                This part replaces part number 699876
                                NUT-M12 HEX FLANGE PLAS Genuine Aston Martin - New (to order)
                                # 16
                                MPN: 4G43-13D026-AA
                                SCREW, DISC SHIELD RETAINING
                                from £0.47
                                from £0.47
                                SCREW M6 X 1.0 X 14 Genuine Aston Martin - New (to order)
