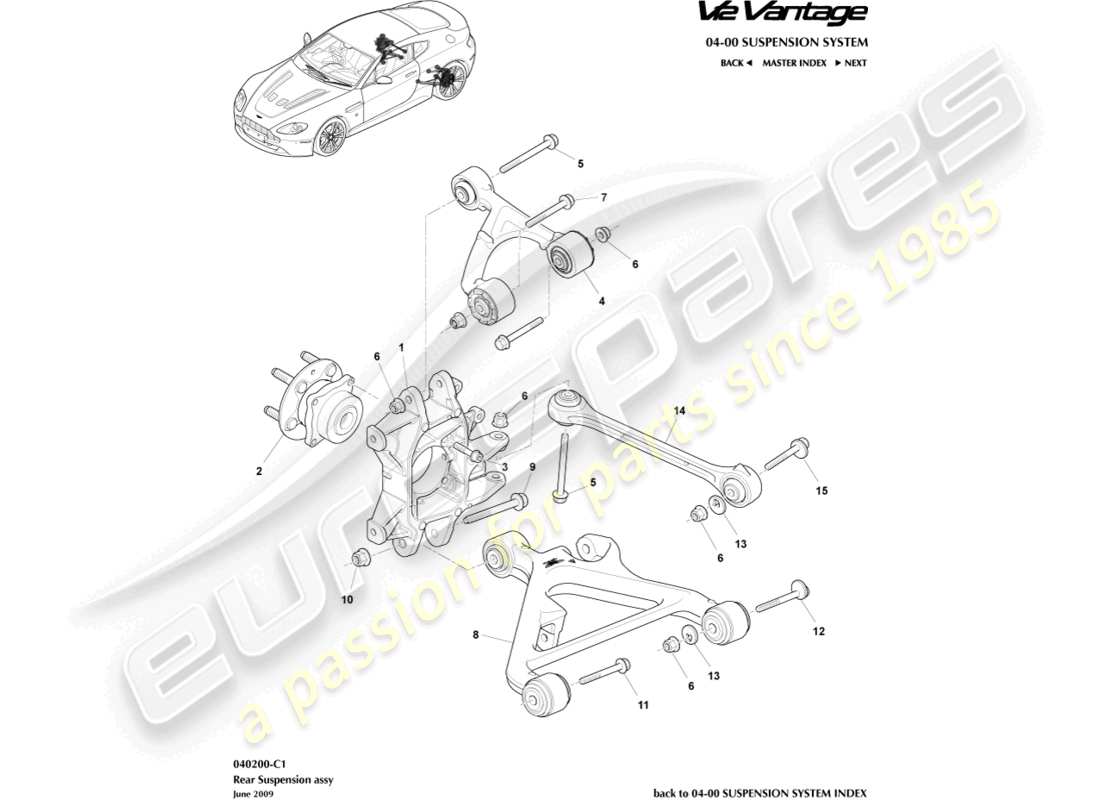

040200-C1 - Rear Suspension Assembly

Aston Martin V12 Vantage (2011) Rear Suspension Assembly Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: AD23-5A970-AA
                          KNUCKLE REAR, RH
                          from £1,105.59
                          from £1,105.59
                          KNL-RR WHEEL RH Genuine Aston Martin - New (to order)
                          # 1
                          MPN: AD33-5A971-AA
                          KNUCKLE REAR, LH
                          KNUCKLE REAR, LH Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-2B663-AD
                          HUB AND BEARING ASSEMBLY
                          from £340.93
                          from £340.93
                          HB & BRG ASSEMBLY FRONT BRK Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 4G43-0783-AA
                          BOLT M10X55
                          Pack of 5
                          BOLT, M10 X 55 GRD 10.9 Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 6G33-5K742-AA
                          ARM ASSEMBLY, REAR SUSPENSION, UPPER, RH
                          Coupe
                          from £472.91
                          from £472.91
                          ARM & BSHG ASY-RR SU Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 6G33-5K743-AA
                          ARM ASSEMBLY, REAR SUSPENSION, UPPER, LH
                          Coupe
                          from £472.91
                          from £472.91
                          ARM ASSEMBLY, SUSPENSION, UPPER, LH Genuine Aston Martin - New (to order)
                          # 4
                          MPN: CD33-5K743-AB
                          ARM ASSEMBLY, REAR SUSPENSION, UPPER
                          Roadster
                          from £372.25
                          from £372.25
                          ARM & BUSH ASSEMBLY REAR S Genuine Aston Martin - New (to order)
                          # 6
                          MPN: 703565
                          NUT, FLG, M12
                          from £0.74
                          from £0.74
                          This part replaces part number 699876
                          NUT-M12 HEX FLANGE PLAS Genuine Aston Martin - New (to order)
                          # 7
                          MPN: 703181
                          BOLT, FLG, M12X85
                          from £7.09
                          from £7.09
                          BOLT M12X85 HEX FLNG Genuine Aston Martin - New (to order)
                          # 8
                          MPN: 6G43-5B530-AE
                          ARM ASSEMBLY, LOWER, REAR SUSPENSION, RH
                          ARM ASSEMBLY, LOWER, REAR SUSPENSION, RH Genuine Aston Martin - New (to order)
                          # 8
                          MPN: 6G43-5B531-AE
                          ARM ASSEMBLY, LOWER, REAR SUSPENSION, LH
                          ARM ASSEMBLY, LOWER, REAR SUSPENSION, LH Genuine Aston Martin - New (to order)
                          # 9
                          MPN: 703133
                          BOLT, M14X110MM
                          from £12.30
                          from £12.30
                          BOLT M14X110 HEX FLN Genuine Aston Martin - New (to order)
                          # 10
                          MPN: 704596
                          NUT, M14 HEX FLG
                          from £0.79
                          from £0.79
                          This part replaces part number 701337
                          NUT M14 HEX FLNG P/T Genuine Aston Martin - New (to order)
                          # 11
                          MPN: 703180
                          BOLT, M12X90
                          BOLT, M12 X 90 Genuine Aston Martin - New (to order)
                          # 12
                          MPN: 703274
                          BOLT, M12 ECCENTRIC
                          from £27.13
                          from £27.13
                          ECCENTRIC BOLT M12 Genuine Aston Martin - New (to order)
                          # 13
                          MPN: 4G43-26-10840
                          CAM, REAR SUSPENSION ADJUSTING
                          from £32.05
                          from £32.05
                          WASHER-M12 ECCENTRIC Genuine Aston Martin - New (to order)
                          # 14
                          MPN: 4G43-5B551-AA
                          ARM ASSEMBLY, TOE CONTROL, REAR
                          Pack of 10
                          from £208.65
                          from £208.65
                          LINK-RR SUSP Genuine Aston Martin - New (to order)
                          LINK-RR SUSP Genuine Aston Martin - Used In stock
                          # 15
                          MPN: 4G43-5K978-AB
                          BOLT, REAR SUSPENSION CAM ADJUSTING
                          from £26.30
                          from £26.30
                          ECCENTRIC BOLT M12 Genuine Aston Martin - New (to order)
