060400-C1 - Rear Brake System

Aston Martin V12 Vantage (2011) Rear Brake System Parts Diagram

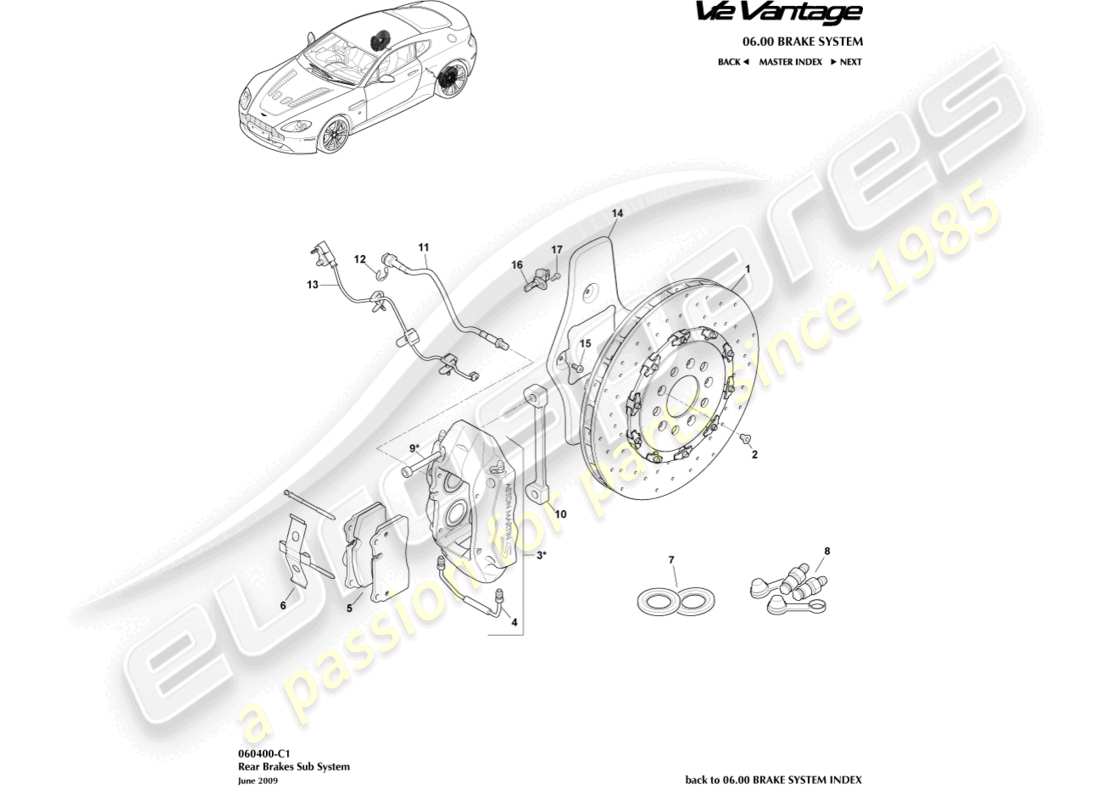

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: ED23-28-10108
                      BRAKE DISC AND PADS, AXLE KIT - BEDDED
                      Carbon Ceramic
                      from £7,737.18
                      from £7,737.18
                      BRAKE DISC AND PADS, AXLE SET-BEDDED Genuine Aston Martin - New (to order)
                      # 2
                      MPN: 4G43-2N389-AA
                      SCREW, RETAINING BRAKE DISC
                      from £0.47
                      from £0.47
                      SCREW M8X14 FLAT COUNTERSUNK Genuine Aston Martin - New In stock
                      # 3
                      MPN: AD23-2C464-CA
                      CALIPER, REAR, NO PADS, BLACK, RH
                      Up to 11MY, inc bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 9 (bolts) MUST BE RENEWED AT THE SAME TIME.)
                      CALIPER, REAR, NO PADS, BLACK, RH Genuine Aston Martin - New (to order)
                      # 3
                      MPN: AD23-2C464-CB
                      CALIPER, REAR, NO PADS, BLACK, RH
                      From 11MY, inc bolts, Non Lacquer, WHEN RENEWING ITEM 3 (caliper), ITEM 9 (bolts) MUST BE RENEWED AT THE SAME TIME.)
                      from £636.40
                      from £636.40
                      CAL ASSEMBLY REAR RH BLK Genuine Aston Martin - New (to order)
                      # 3
                      MPN: AD23-2C464-AB
                      CALIPER, REAR, NO PADS, GREY, RH
                      12MY, inc bolts, Non Lacquer, WHEN RENEWING ITEM 3 (caliper), ITEM 9 (bolts) MUST BE RENEWED AT THE SAME TIME.)
                      from £655.98
                      from £655.98
                      CAL ASSEMBLY REAR RH GREY Genuine Aston Martin - New (to order)
                      # 3
                      MPN: AD23-2C464-FA
                      CALIPER, REAR, NO PADS, YELLOW, RH
                      12MY, inc bolts, Non Lacquer, WHEN RENEWING ITEM 3 (caliper), ITEM 9 (bolts) MUST BE RENEWED AT THE SAME TIME.)
                      from £655.98
                      from £655.98
                      CAL ASSEMBLY REAR RH YEL Genuine Aston Martin - New (to order)
                      # 3
                      MPN: AD23-2C464-DA
                      CALIPER, REAR, NO PADS, RED, RH
                      12MY, inc bolts, Non Lacquer, WHEN RENEWING ITEM 3 (caliper), ITEM 9 (bolts) MUST BE RENEWED AT THE SAME TIME.)
                      from £655.98
                      from £655.98
                      CAL ASSEMBLY REAR RH RED Genuine Aston Martin - New (to order)
                      # 3
                      MPN: AD23-2C465-CA
                      CALIPER, REAR, NO PADS, BLACK, LH
                      Up to 11MY, inc bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 9 (bolts) MUST BE RENEWED AT THE SAME TIME.)
                      CALIPER, REAR, NO PADS, BLACK, LH Genuine Aston Martin - New (to order)
                      # 3
                      MPN: AD23-2C465-CB
                      CALIPER, REAR, NO PADS, BLACK, LH
                      From 11MY, inc bolts, Non Lacquer, WHEN RENEWING ITEM 3 (caliper), ITEM 9 (bolts) MUST BE RENEWED AT THE SAME TIME.)
                      from £636.40
                      from £636.40
                      CAL ASSEMBLY REAR LH BLK Genuine Aston Martin - New (to order)
                      # 3
                      MPN: AD23-2C465-AB
                      CALIPER, REAR, NO PADS, GREY, LH
                      12MY, inc bolts, Non Lacquer, WHEN RENEWING ITEM 3 (caliper), ITEM 9 (bolts) MUST BE RENEWED AT THE SAME TIME.)
                      from £655.98
                      from £655.98
                      CAL ASSEMBLY REAR LH GREY Genuine Aston Martin - New (to order)
                      # 3
                      MPN: AD23-2C465-FA
                      CALIPER, REAR, NO PADS, YELLOW, LH
                      12MY, inc bolts, Non Lacquer, WHEN RENEWING ITEM 3 (caliper), ITEM 9 (bolts) MUST BE RENEWED AT THE SAME TIME.)
                      from £655.98
                      from £655.98
                      CAL ASSEMBLY REAR LH YEL Genuine Aston Martin - New (to order)
                      # 3
                      MPN: AD23-2C465-DA
                      CALIPER, REAR, NO PADS, RED, LH
                      12MY, inc bolts, Non Lacquer, WHEN RENEWING ITEM 3 (caliper), ITEM 9 (bolts) MUST BE RENEWED AT THE SAME TIME.)
                      from £655.98
                      from £655.98
                      CAL ASSEMBLY REAR LH RED Genuine Aston Martin - New (to order)
                      # 5
                      MPN: 8D33-2C562-BA
                      BRAKE PAD KIT, REAR
                      from £597.09
                      from £597.09
                      KIT, BRAKE PADS, AXLE SET Genuine Aston Martin - New (to order)
                      # 6
                      MPN: 8D33-2C588-BA
                      KIT, PAD SPRING AND PIN, REAR CALIPER
                      per caliper
                      from £49.75
                      from £49.75
                      KIT PAD SPR & PIN REAR Genuine Aston Martin - New (to order)
                      # 7
                      MPN: 4G43-32610-AA
                      KIT, DUST BOOT, REAR CALIPER
                      per caliper
                      from £30.10
                      from £30.10
                      KIT, DUST BOOT, REAR CALIPER Genuine Aston Martin - New (to order)
                      # 8
                      MPN: 4G43-2C563-AA
                      KIT, BLEED SCREW
                      per caliper
                      from £10.30
                      from £10.30
                      KIT, BLEED SCREW Genuine Aston Martin - New (to order)
                      # 8
                      MPN: 4G43-33693-AA
                      CAP, BLEED SCREW
                      per caliper
                      from £16.93
                      from £16.93
                      CAP, BLEED SCREW Genuine Aston Martin - New (to order)
                      # 9
                      MPN: 8D33-2C564-AA
                      BOLT, CALIPER TO KNUCKLE
                      Always replace, do not reuse
                      from £6.43
                      from £6.43
                      BOLT-M12 X 1.5 X 95 Genuine Aston Martin - New In stock
                      # 10
                      MPN: 8D33-2B128-AB
                      SPACER, CALIPER TO KNUCKLE
                      from £154.38
                      from £154.38
                      SPACER, CALIPER TO KNUCKLE Genuine Aston Martin - New (to order)
                      # 11
                      MPN: 6G33-2282-AB
                      HOSE ASSY, BRAKE REAR
                      Supersession
                      Supersession
                      Genuine Aston Martin (no longer available to order)
                      # 12
                      MPN: 6G33-JYC10088-AB
                      CLIP
                      from £0.47
                      from £0.47
                      E-CLIP BOWED NOM16MM Genuine Aston Martin - New (to order)
                      # 13
                      MPN: 6G33-2D009-AB
                      PAD WEAR LEAD, REAR
                      from £36.38
                      from £36.38
                      PAD WEAR LEAD REAR Genuine Aston Martin - New In stock
                      # 14
                      MPN: 8D33-2C028-AA
                      SHIELD, REAR BRAKE DISC RH
                      from £35.98
                      from £35.98
                      SHLD-RR WHEEL DSC BRK Genuine Aston Martin - New (to order)
                      # 14
                      MPN: 8D33-2C029-AA
                      SHIELD, REAR BRAKE DISC LH
                      from £17.99
                      from £17.99
                      SHLD- REAR WHEEL DSC BRK Genuine Aston Martin - New (to order)
                      SHLD- REAR WHEEL DSC BRK Genuine Aston Martin - Used In stock
                      # 15
                      MPN: 4G43-13D026-AA
                      SCREW
                      from £0.47
                      from £0.47
                      SCREW M6 X 1.0 X 14 Genuine Aston Martin - New (to order)
                      # 16
                      MPN: 4G43-90-10039
                      SENSOR, ANTI LOCK CONTROL
                      from £49.57
                      from £49.57
                      SENSOR-ABS Genuine Aston Martin - New (to order)
                      SENSOR-ABS Genuine Aston Martin - Used In stock
                      # 17
                      MPN: 4G43-13D026-BA
                      SCREW
                      from £0.73
                      from £0.73
                      SCREW M5 Genuine Aston Martin - New (to order)
