aston martin v12 vantage (2011) parking brake, lhd parts diagram

060500-C1 - Parking Brake, LHD

Aston Martin V12 Vantage (2011) Parking Brake, LHD Parts Diagram

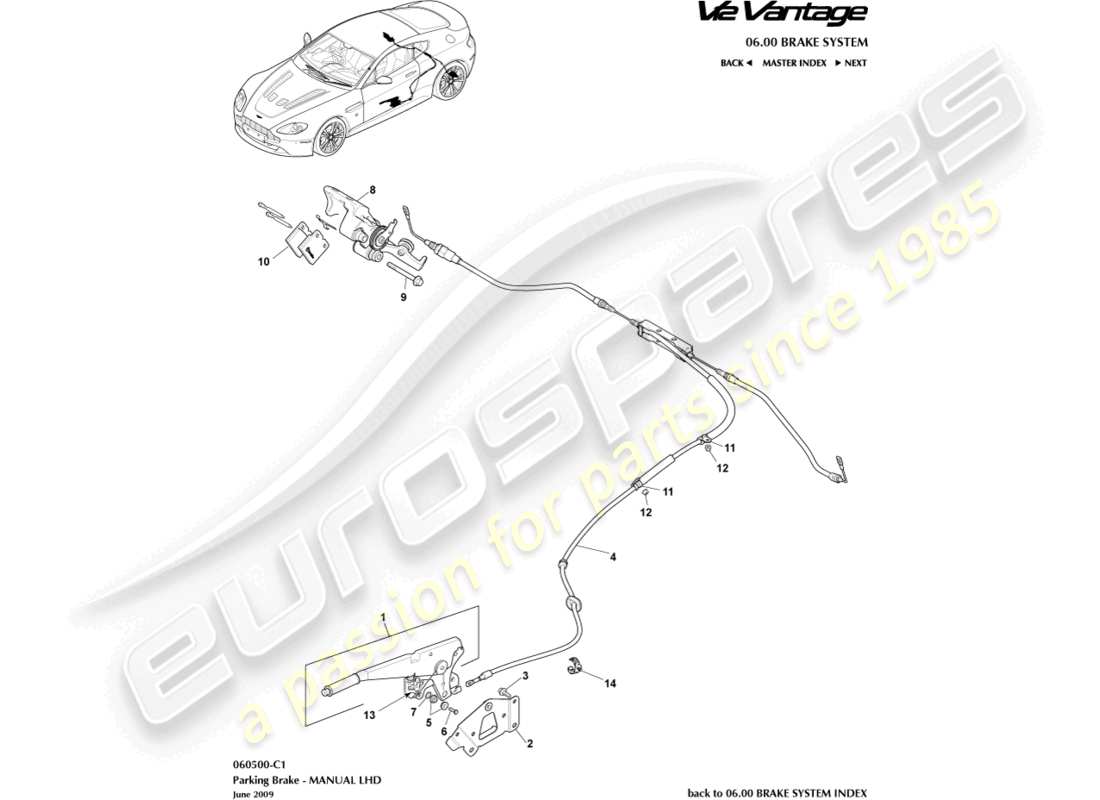

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: 4G43-8492-AC
                      HANDBRAKE LEVER ASSEMBLY
                      LHD
                      HANDBRAKE LEVER ASSEMBLY LHD Genuine Aston Martin - New (to order)
                      # 2
                      MPN: 4G43-2A686-AB
                      BRACKET ASSEMBLY
                      LHD
                      from £519.79
                      from £519.79
                      BRACKET ASSEMBLY P/BRK LVR Genuine Aston Martin - New (to order)
                      # 3
                      MPN: 703121
                      SCREW, M8X20
                      from £0.47
                      from £0.47
                      SCREW M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
                      # 4
                      MPN: AD23-2853-AB
                      CABLE AND CONDUIT ASSY
                      from £222.96
                      from £222.96
                      CABLE AND CONDUIT ASSEMBLY Genuine Aston Martin - New (to order)
                      # 5
                      MPN: 6G33-439136-AA
                      TRUNNION, H/BRAKE CABLE TO LEVER
                      from £1.35
                      from £1.35
                      TRUNNION, HANDBRAKE CABLE Genuine Aston Martin - New (to order)
                      # 6
                      MPN: 6G33-2K605-AA
                      PIVOT PIN, H/BRAKE CABLE TO LEVER
                      from £1.01
                      from £1.01
                      PIVOT PIN, H/BRAKE CABLE TO LEVER Genuine Aston Martin - New (to order)
                      # 7
                      MPN: 6G33-100063-AA-PK
                      PUSH ON FIX, H/BRAKE CABLE TO LEVER
                      from £7.71
                      from £7.71
                      PUSH ON FIX, H/BRAKE CABLE TO LEVER Genuine Aston Martin - New (to order)
                      # 8
                      MPN: AD23-2C464-BB1
                      PARKBRAKE CALIPER ASSEMBLY REAR LH
                      Anodised
                      PARKBRAKE CALIPER ASSEMBLY REAR LH Genuine Aston Martin - New (to order)
                      # 8
                      MPN: AD23-2K327-BB
                      PARKBRAKE CALIPER ASSEMBLY REAR RH
                      Matt Finish, 11MY
                      PARKBRAKE CALIPER ASSEMBLY REAR RH Genuine Aston Martin - New (to order)
                      # 8
                      MPN: AD23-2C465-BB
                      PARKBRAKE CALIPER ASSEMBLY REAR LH
                      Anodised
                      from £403.48
                      from £403.48
                      KIT HANDBRAKE Genuine Aston Martin - New (to order)
                      # 8
                      MPN: AD23-2K328-BB
                      PARKBRAKE CALIPER ASSEMBLY REAR RH
                      Matt Finish, 11MY
                      PARKBRAKE CALIPER ASSEMBLY REAR RH Genuine Aston Martin - New (to order)
                      # 9
                      MPN: 4G43-2C564-CA
                      BOLT, M10X87, FLANGE HEAD
                      from £1.83
                      from £1.83
                      BOLT-M10X87 HEX FLNG Genuine Aston Martin - New (to order)
                      # 10
                      MPN: 4G43-2C562-BA
                      PAD SET
                      (per axle)
                      Supersession
                      Supersession
                      Genuine Aston Martin (no longer available to order)
                      # -
                      -
                      PIN, PAD RETAINING
                      (2 per caliper)
                      # -
                      -
                      BOOT, SLIDING PIN
                      # -
                      -
                      SPRING, ANTI RATTLE
                      (1 per caliper)
                      # 11
                      MPN: 694891
                      P-CLIP
                      from £2.37
                      from £2.37
                      P-CLIP Genuine Aston Martin - New (to order)
                      # 12
                      MPN: 703163
                      NUT, FLG, LOCKING, M6
                      from £0.47
                      from £0.47
                      NUT M6 FLANGE LOCKING Genuine Aston Martin - New (to order)
                      # 13
                      MPN: 37-84688
                      SWITCH, HANDBRAKE
                      from £203.75
                      from £203.75
                      SWITCH, HANDBRAKE Genuine Aston Martin - New (to order)
                      # 14
                      MPN: 702282
                      CLIP, FIR TREE, HANDBRAKE CABLE
                      from £0.77
                      from £0.77
                      CLIP 16-18 5X6 5X1-6 Genuine Aston Martin - New (to order)
