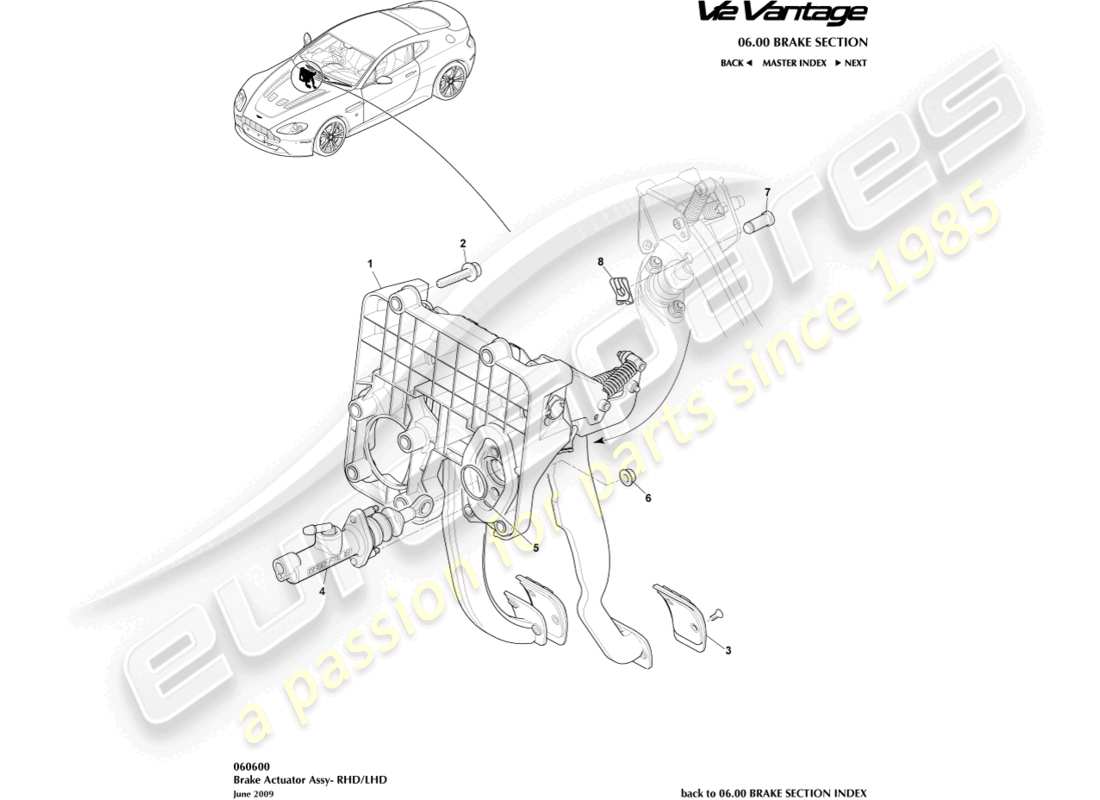

060600 - Brake Actuator Assembly

Aston Martin V12 Vantage (2011) Brake Actuator Assembly Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: 8D33-2450-CD
              PEDAL BOX ASSY, MAN, RHD, SILVER
              from £544.95
              from £544.95
              MAN BRK & BRACKET Genuine Aston Martin - New (to order)
              # 1
              MPN: 8D33-2450-GA
              PEDAL BOX ASSY, MAN, RHD, BLACK
              12.5MY
              from £1,025.53
              from £1,025.53
              PEDAL BOX ASSEMBLY, MAN, RHD, BLACK Genuine Aston Martin - New (to order)
              # 1
              MPN: 8D33-2450-AD
              PEDAL BOX ASSY, MAN, LHD, SILVER
              from £561.31
              from £561.31
              MAN BRK & BRACKET Genuine Aston Martin - New (to order)
              # 1
              MPN: 8D33-2450-EA
              PEDAL BOX ASSY, MAN, LHD, BLACK
              12.5MY
              from £1,062.40
              from £1,062.40
              PEDAL BOX ASSEMBLY, MAN, LHD, BLACK Genuine Aston Martin - New (to order)
              # 2
              MPN: 703584
              SCREW, HEX FLANGE HEAD M8 X 40
              from £0.51
              from £0.51
              SCREW M8X40 FLANGE HD 8 Genuine Aston Martin - New (to order)
              # 3
              MPN: 4G43-2D042-AA
              Kit, Manual Brake and Clutch Pedal, Silver Pedals
              from £298.06
              from £298.06
              KIT PAD BRK PDL Genuine Aston Martin - New (to order)
              # 3
              MPN: CD33-2D042-CA
              Kit, Manual Brake and Clutch Pedal, Black Pedals
              12.5MY
              from £314.27
              from £314.27
              PEDAL PAD KIT, BLACK Genuine Aston Martin - New (to order)
              # 4
              MPN: 4G43-7578-AA
              KIT, CLUTCH MASTER CYLINDER
              from £161.63
              from £161.63
              KIT, MASTER CYLINDER ASSEMBLY Genuine Aston Martin - New (to order)
              KIT, MASTER CYLINDER ASSEMBLY Genuine Aston Martin - Used In stock
              # 5
              MPN: 33-84098
              LIP SEAL, MASTER CYLINDER
              from £5.44
              from £5.44
              LIP SEAL, RESERVOIR Genuine Aston Martin - New (to order)
              # 6
              MPN: 701342-PK
              NUT, FLANGE M8
              from £7.87
              from £7.87
              NUT M8 HEX PT PLS8(5) Genuine Aston Martin - New (to order)
              # 7
              MPN: 29-84879
              PIN, JOINT
              from £10.11
              from £10.11
              JOINT PIN Genuine Aston Martin - New (to order)
              # 8
              MPN: 6G33-27328-AA
              CLIP, SAFETY, NOM SHAFT, 5/16
              from £0.47
              from £0.47
              CLIP SFTY NOM.SHAFT Genuine Aston Martin - New (to order)
