060700 - Power Brake Assembly

Aston Martin V12 Vantage (2011) Power Brake Assembly Parts Diagram

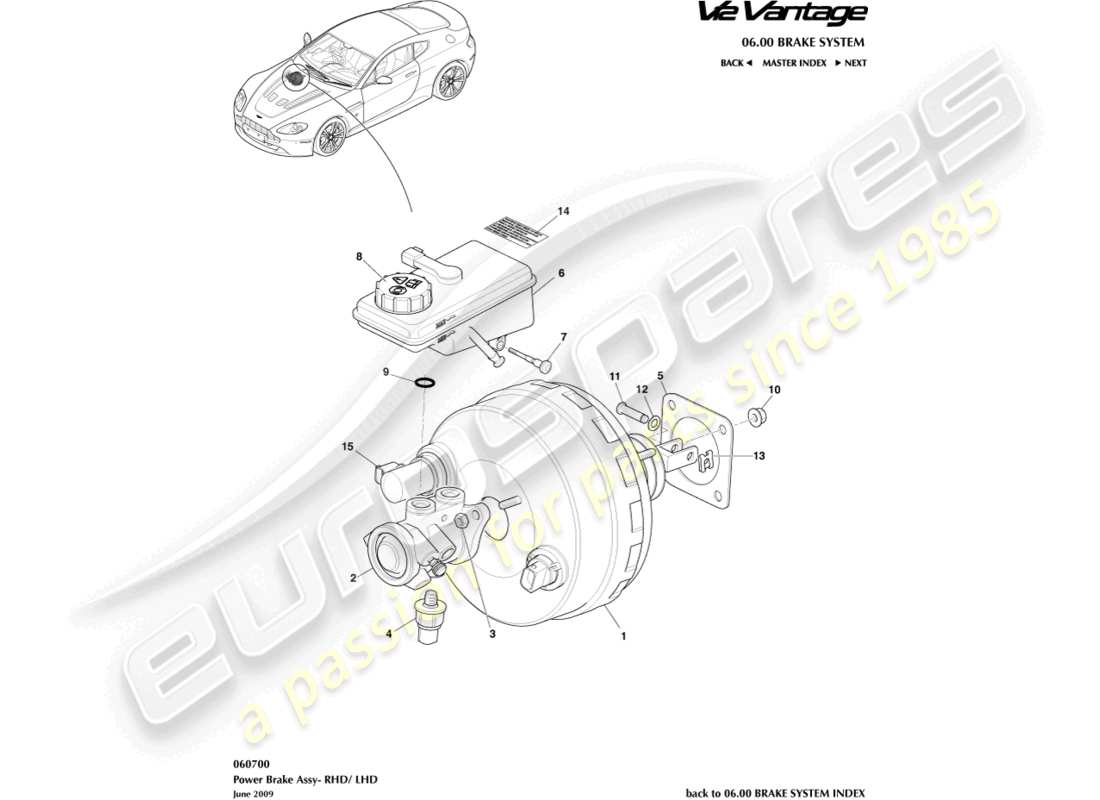

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # -
                          MPN: 4G43-2B195-BC
                          MASTER CYLINDER AND VACUUM BOOSTER
                          MASTER CYLINDER AND VACUUM BOOSTER Genuine Aston Martin - New (to order)
                          # 1
                          MPN: 4G43-2005-BB
                          KIT, BOOSTER ASSEMBLY
                          from £584.54
                          from £584.54
                          This part replaces part number 4G43-2005-AA which we have in stock
                          KIT, BOOSTER ASSEMBLY Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-33-10211
                          KIT, MASTER CYLINDER ASSEMBLY
                          from £213.81
                          from £213.81
                          BR MASTER CYLINDER ASSEMBLY Genuine Aston Martin - New (to order)
                          BR MASTER CYLINDER ASSEMBLY Genuine Aston Martin - Used In stock
                          # 3
                          MPN: 701342
                          NUT, LOCK, M8
                          Mstr Cyl to Booster
                          NUT, M8 Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 4G43-33-10214
                          TRANSDUCER, PRESSURE
                          from £54.08
                          from £54.08
                          TRANSDUCER, PRESSURE Genuine Aston Martin - New (to order)
                          TRANSDUCER, PRESSURE Genuine Aston Martin - Used In stock
                          # 6
                          MPN: 4G43-33-10212
                          KIT, RESERVOIR AND PLUG
                          from £82.31
                          from £82.31
                          BR RESERVOIR&PLUG KT Genuine Aston Martin - New (to order)
                          BR RESERVOIR&PLUG KT Genuine Aston Martin - Used In stock
                          # 7
                          MPN: 4G43-33-10216
                          SCREW, RESERVOIR RETAINER
                          from £4.64
                          from £4.64
                          SCREW, RESERVOIR RETAINER Genuine Aston Martin - New (to order)
                          # 8
                          MPN: 4G43-33-10213
                          CAP, RESERVOIR
                          from £13.77
                          from £13.77
                          CAP, RESERVOIR Genuine Aston Martin - New (to order)
                          CAP, RESERVOIR Genuine Aston Martin - Used In stock
                          # 9
                          MPN: 4G43-33-10215
                          SEAL, RESERVOIR TO M/CYLINDER
                          from £6.26
                          from £6.26
                          BR RESERVOIR PLUG Genuine Aston Martin - New (to order)
                          # 11
                          MPN: 6G33-27328-AA
                          CLIP, SAFETY, NOM SHAFT 5/16
                          from £0.47
                          from £0.47
                          CLIP SFTY NOM.SHAFT Genuine Aston Martin - New (to order)
                          # 12
                          MPN: 703273
                          WASHER, WAVE SPRING
                          from £0.47
                          from £0.47
                          WASHER, WAVE SPRING Genuine Aston Martin - New (to order)
                          # 13
                          MPN: 29-84879
                          PIN, JOINT
                          from £10.11
                          from £10.11
                          JOINT PIN Genuine Aston Martin - New (to order)
                          # 14
                          MPN: 4G43-2C378-AB
                          LABEL, BRAKE MASTER CYLINDER
                          See 200002 Und bon labels
                          from £8.27
                          from £8.27
                          LABEL, BRAKE MASTER CYLINDER Genuine Aston Martin - New (to order)
                          # -
                          -
                          BRAKE FLUID, SUPER DOT 4
                          A/R
                          # 15
                          MPN: 9G43-33-11077
                          PEDAL TRAVEL SENSOR KIT
                          from £87.14
                          from £87.14
                          PEDAL TRAVEL SENSOR KIT Genuine Aston Martin - New (to order)
