070200-R1 - Transmission Cooler

Aston Martin V12 Vantage (2011) Transmission Cooler Parts Diagram

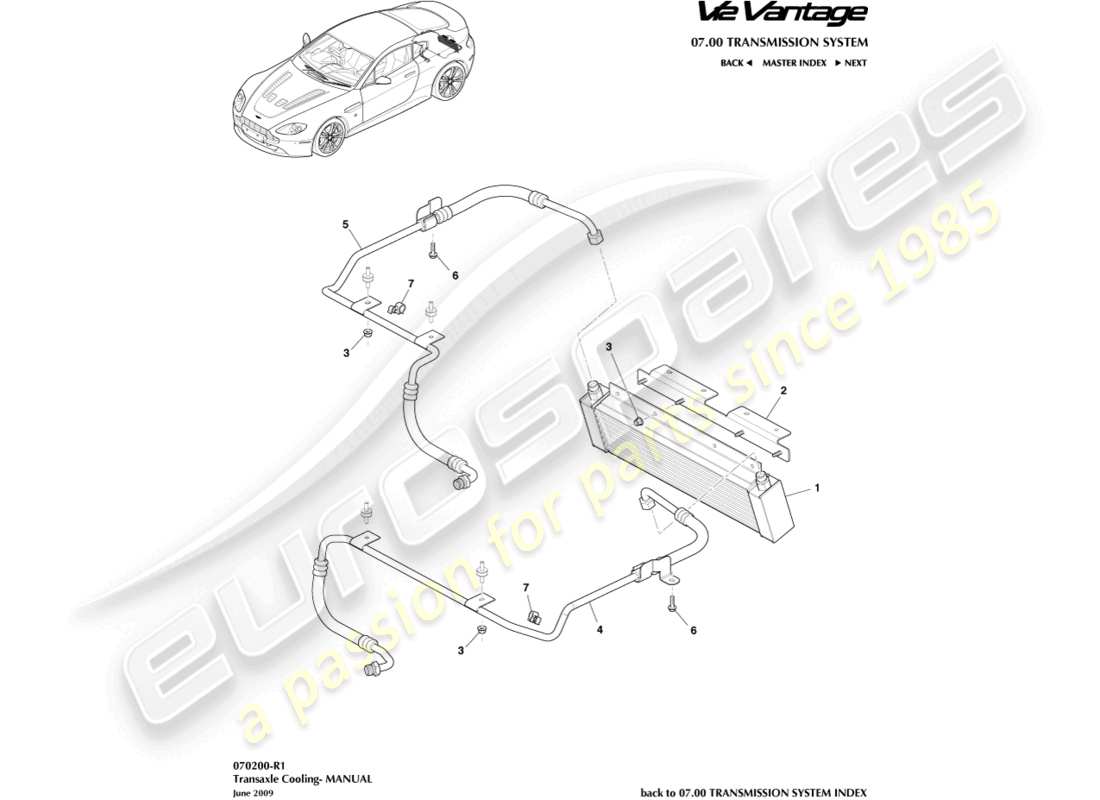

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: AD23-7869-AB
                COOLER ASSY, TRANSMISSION OIL
                from £843.81
                from £843.81
                COOLER ASSEMBLY, TRANSMISSION OIL Genuine Aston Martin - New (to order)
                # 2
                MPN: AD23-17759-AB
                BRACKET, TRANSMISSION COOLER ASSY
                BRACKET, TRANSMISSION COOLER ASSEMBLY Genuine Aston Martin - New (to order)
                # 3
                MPN: 703163
                NUT M6 HEX FLG HD
                from £0.47
                from £0.47
                NUT M6 FLANGE LOCKING Genuine Aston Martin - New (to order)
                # 4
                MPN: 6G33-7F112-DB
                TUBE ASSY, TRANSMISSION OIL, COOL OUTLET
                from £250.36
                from £250.36
                TUBE ASSEMBLY, TRANSMISSION OIL, COOL OUTLET Genuine Aston Martin - New (to order)
                # 5
                MPN: 6G33-7F113-DB
                TUBE ASSY, TRANSMISSION OIL, COOL INLET
                from £343.54
                from £343.54
                TUBE ASSEMBLY, TRANSMISSION OIL, COOL INLET Genuine Aston Martin - New (to order)
                # 6
                MPN: 6G43-01-10045
                SCREW M6X20 HEX FLG HD
                SCREW M6X20 HEX FLANGE HD Genuine Aston Martin - New (to order)
                # 7
                MPN: 702283
                CLIP, 6-6.5MM AND 11-12MM SWVL PLASTIC
                from £0.94
                from £0.94
                CLIP, DOUBLE SWIVEL Genuine Aston Martin - New (to order)
