aston martin v12 vantage (2011) clutch system, lhd parts diagram

080000-R1 - Clutch System, LHD

Aston Martin V12 Vantage (2011) Clutch System, LHD Parts Diagram

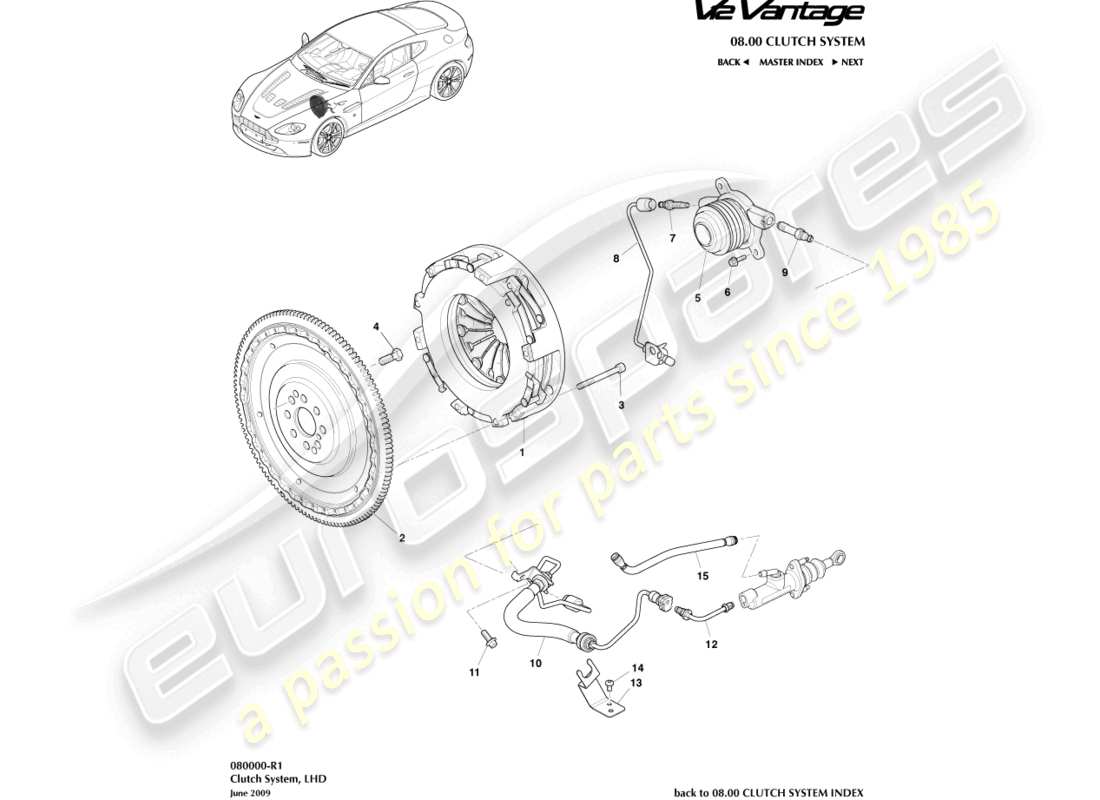

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # -
                MPN: 4G43-11-11200
                CLUTCH KIT
                Includes items 1,2,3,4 and 5 (Calibration required when changing to Valeo clutch)
                from £2,825.02
                from £2,825.02
                This part replaces part number 4G43-7540-AB
                CLUTCH KIT Genuine Aston Martin - New (to order)
                # 1
                MPN: AD23-7540-AB
                CLUTCH, TWIN PLATE
                Prior to VIN S00573 this part will also require items 2,3 and 5 unless already fitted
                from £1,874.10
                from £1,874.10
                CLUTCH, TWIN PLATE Genuine Aston Martin - New (to order)
                # 2
                MPN: 8D33-6375-CA
                FLYWHEEL, SINGLE MASS
                Prior to VIN S00573 this part will also require items 1,3 & 5 unless already fitted
                from £1,104.65
                from £1,104.65
                FLYWHEEL, SINGLE MASS Genuine Aston Martin - New (to order)
                # 3
                MPN: AD23-CD60-AA
                SCREW
                Clutch to Flywheel
                from £2.32
                from £2.32
                BOLT M6.0 X 1.0 Genuine Aston Martin - New (to order)
                # 4
                MPN: 697786-PK
                BOLT, M10 X 30 HEX HD LK
                Discard when removed and install new bolts
                Supersession
                Supersession
                Genuine Aston Martin (no longer available to order)
                # 5
                MPN: AD23-7A564-AA
                CYLINDER, SLAVE, CLUTCH
                Prior to VIN S00573 this part will also require items 1,2 and 3 unless already fitted
                from £871.93
                from £871.93
                CYLINDER, SLAVE, CLUTCH Genuine Aston Martin - New (to order)
                # 6
                MPN: 703203
                SCREW, FL, M6 X 20 CSC TO T/T HSG
                from £0.47
                from £0.47
                SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                # 7
                MPN: 4G43-7K640-AB
                CONNECTOR ASSY, PRESSURE
                from £14.76
                from £14.76
                CONNECTOR ASSEMBLY, PRESSURE Genuine Aston Martin - New (to order)
                # 8
                MPN: 4G43-7H552-AB
                HOSE ASSY, CLUTCH BLEED
                from £76.24
                from £76.24
                PIPE, BLEEDER Genuine Aston Martin - New (to order)
                # 9
                MPN: 4G43-7K640-BB
                CONNECTOR ASSY, BLEED
                from £14.76
                from £14.76
                STUTZEN BLEED Genuine Aston Martin - New (to order)
                # 10
                MPN: 4G43-7608-BB
                TUBE ASSY, LHD
                Mstr Cylinder to Slave Cylinder
                from £105.93
                from £105.93
                HOS ASY-CL MSTR CYLINDER Genuine Aston Martin - New (to order)
                # 11
                MPN: 703121
                SCREW M8X20 HEX FLG HD
                from £0.47
                from £0.47
                SCREW M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
                # 12
                MPN: 4G43-7608-DB
                TUBE ASSY, UPPER, LHD
                Mstr Cylinder to Slave Cylinder
                from £40.98
                from £40.98
                TUB ASSEMBLY MST CYLINDER TO Genuine Aston Martin - New (to order)
                # 13
                MPN: AD23-R7N630-AA
                BRACKET, LHD
                from £99.72
                from £99.72
                BRACKET, LHD Genuine Aston Martin - New (to order)
                # 14
                MPN: 701158
                SCREW M6 X 10 PAN HD LOBE D
                from £0.77
                from £0.77
                SCREW M6X10 TORX BLK Genuine Aston Martin - New (to order)
                # 15
                MPN: 4G43-41360-BA
                HOSE ASSY
                Reservoir to Mstr Cylinder
                from £45.58
                from £45.58
                RES TO M/CYL Genuine Aston Martin - New (to order)
