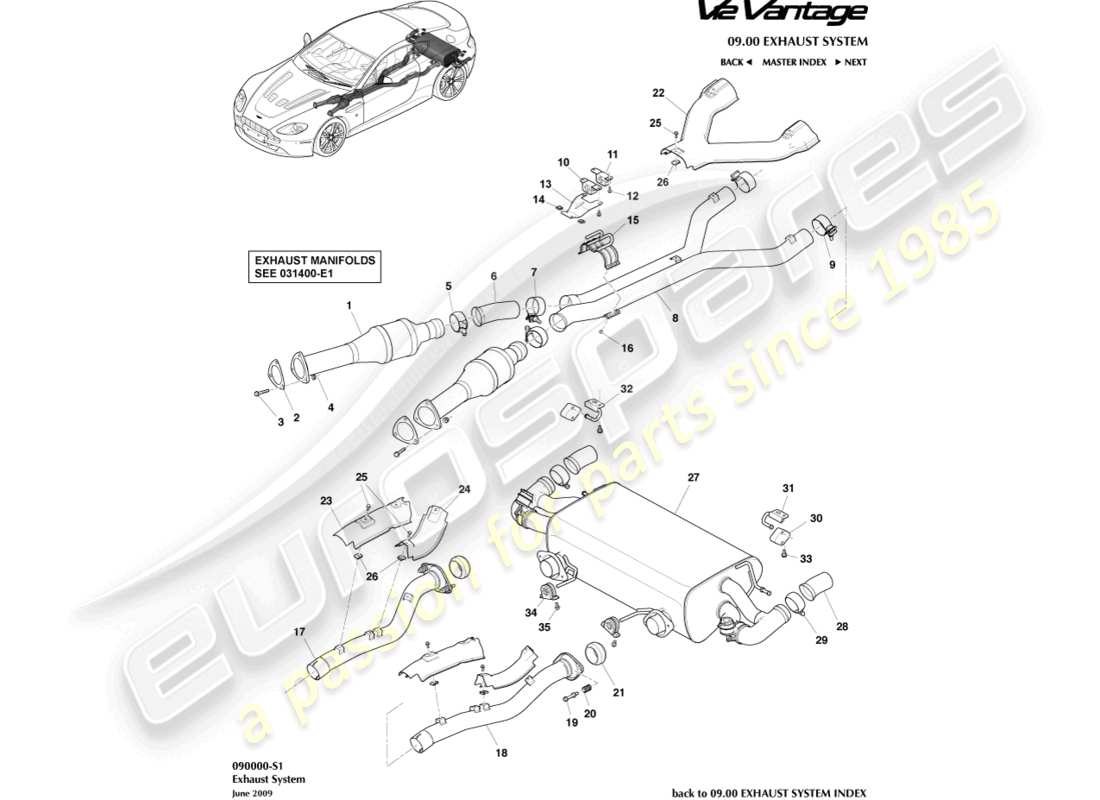

090000-S1 - Exhaust System

Aston Martin V12 Vantage (2011) Exhaust System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Key
                                                            Price
                                                            # 1
                                                            MPN: 8G43-5E211-AC
                                                            CATALYST & PIPE ASSY
                                                            CATALYST & PIPE ASSEMBLY Genuine Aston Martin - New (to order)
                                                            # 2
                                                            MPN: 4G43-5E281-AA-PK
                                                            GASKET
                                                            Pack of 2
                                                            Supersession
                                                            Supersession
                                                            Genuine Aston Martin (no longer available to order)
                                                            # 3
                                                            MPN: 4G43-806156-AA
                                                            BOLT, FLG, M8 X 45
                                                            BOLT, FLANGE , M8 X 45 Genuine Aston Martin - New (to order)
                                                            # 4
                                                            MPN: 4G43-02738-AA-PK
                                                            NUT, M8
                                                            from £38.15
                                                            from £38.15
                                                            This part replaces part number 4G43-02738-AA
                                                            NUT-M8 FLANGE SS(PK 10) Genuine Aston Martin - New (to order)
                                                            # 5
                                                            MPN: 4G43-5221-CA
                                                            CLAMP, EXHAUST PIPE
                                                            from £19.40
                                                            from £19.40
                                                            This part replaces part number 4G43-5221-BA
                                                            CLAMP Genuine Aston Martin - New (to order)
                                                            # 8
                                                            MPN: AD23-5220-AB
                                                            PIPE, EXHAUST CENTRE
                                                            incl Heatshield
                                                            from £437.39
                                                            from £437.39
                                                            PIPE, EXHAUST CENTRE Genuine Aston Martin - New (to order)
                                                            # 10
                                                            MPN: 4G43-3962-FA
                                                            BRACKET, SUPPORT EXHAUST ISOLATOR
                                                            from £25.16
                                                            from £25.16
                                                            BRKT-EXH ISLTR Genuine Aston Martin - New (to order)
                                                            BRKT-EXH ISLTR Genuine Aston Martin - Used In stock
                                                            With Rubber
                                                            # 11
                                                            MPN: 4G43-35-10025
                                                            ISOLATOR, EXHAUST
                                                            from £4.89
                                                            from £4.89
                                                            EXH RUBBER MOUNT Genuine Aston Martin - New (to order)
                                                            # 12
                                                            MPN: 703264
                                                            SCREW, FLG, M6 X 16
                                                            SCREW, M6X12 HEX HD Genuine Aston Martin - New (to order)
                                                            # 13
                                                            MPN: AD23-3962-AA
                                                            BRACKET, SUPPORT EXHAUST PIPE
                                                            from £24.36
                                                            from £24.36
                                                            BRACKET, SUPPORT EXHAUST PIPE Genuine Aston Martin - New (to order)
                                                            # 14
                                                            MPN: 699736
                                                            CLIP, EXHAUST HEAT SHIELD
                                                            from £1.73
                                                            from £1.73
                                                            CLIP - PANEL EDGE Genuine Aston Martin - New (to order)
                                                            # 15
                                                            MPN: AD23-5G298-AA
                                                            BRACE ASSY, EXHAUST PIPE CENTRE
                                                            from £98.44
                                                            from £98.44
                                                            BRACE ASSEMBLY, EXHAUST PIPE CENTRE Genuine Aston Martin - New (to order)
                                                            # 16
                                                            MPN: 703278
                                                            BOLT, M6 X 10 HEX FLG
                                                            from £0.47
                                                            from £0.47
                                                            BOLT M6X10 HEX FLNG Genuine Aston Martin - New (to order)
                                                            # 17
                                                            MPN: 4G43-5220-BD
                                                            PIPE ASSY, EXHAUST REAR LH
                                                            incl Heatshields
                                                            from £149.16
                                                            from £149.16
                                                            PIPE ASSEMBLY EXHAUST REAR, LH Genuine Aston Martin - New (to order)
                                                            PIPE ASSEMBLY EXHAUST REAR, LH Genuine Aston Martin - Used In stock
                                                            # 18
                                                            MPN: 4G43-5220-AD
                                                            PIPE ASSY, EXHAUST REAR RH
                                                            incl Heatshields
                                                            from £149.16
                                                            from £149.16
                                                            PIPE ASSEMBLY EXHAUST REAR, RH Genuine Aston Martin - New (to order)
                                                            PIPE ASSEMBLY EXHAUST REAR, RH Genuine Aston Martin - Used In stock
                                                            # 19
                                                            MPN: 4G43-70816-AA
                                                            BOLT, M8 FLG HD
                                                            from £2.68
                                                            from £2.68
                                                            BOLT Genuine Aston Martin - New (to order)
                                                            # 20
                                                            MPN: 4G43-5F264-AA
                                                            SPRING, EXHAUST PIPE FLANGE
                                                            from £9.42
                                                            from £9.42
                                                            SPRING-EXH PIP FLANGE H Genuine Aston Martin - New (to order)
                                                            # 21
                                                            MPN: 4G43-17213-AA
                                                            SEALING RING
                                                            SEALING RING Genuine Aston Martin - New (to order)
                                                            # 22
                                                            MPN: 6G33-5G221-AB
                                                            HEATSHIELD ASSY, EXHAUST REAR
                                                            from £679.85
                                                            from £679.85
                                                            HEATSHIELD ASSEMBLY, EXHAUST REAR Genuine Aston Martin - New (to order)
                                                            # 23
                                                            MPN: 6G33-5G221-BC
                                                            HEATSHIELD ASSY, EXHAUST REAR
                                                            HEATSHIELD ASSEMBLY, EXHAUST REAR Genuine Aston Martin - New (to order)
                                                            # 24
                                                            MPN: 6G33-5G221-CB
                                                            HEATSHIELD ASSY, EXHAUST REAR
                                                            from £212.07
                                                            from £212.07
                                                            HEATSHIELD ASSEMBLY, EXHAUST REAR Genuine Aston Martin - New (to order)
                                                            # 25
                                                            MPN: 703264
                                                            SCREW, FLG, M6 X 16
                                                            SCREW, M6X12 HEX HD Genuine Aston Martin - New (to order)
                                                            # 26
                                                            MPN: 699736
                                                            CLIP, SPRING
                                                            from £1.73
                                                            from £1.73
                                                            CLIP - PANEL EDGE Genuine Aston Martin - New (to order)
                                                            # 27
                                                            MPN: AD23-5230-AC
                                                            MUFFLER ASSY
                                                            MUFFLER ASSEMBLY Genuine Aston Martin - New (to order)
                                                            # 28
                                                            MPN: 6G33-5220-FA
                                                            PIPE, EXHAUST OUTLET STUB
                                                            from £29.34
                                                            from £29.34
                                                            Genuine Aston Martin (no longer available to order)
                                                            PIPE, EXHAUST OUTLET STUB Genuine Aston Martin - Used In stock
                                                            # 29
                                                            MPN: 4G43-5221-CA
                                                            CLAMP, EXHAUST PIPE OUTLET STUB
                                                            from £19.40
                                                            from £19.40
                                                            This part replaces part number 4G43-5221-BA
                                                            CLAMP Genuine Aston Martin - New (to order)
                                                            # 30
                                                            MPN: 4G43-35-10026
                                                            INSULATOR, MUFFLER HANGER MOUNTING
                                                            from £19.99
                                                            from £19.99
                                                            EXH RUBBER MOUNT Genuine Aston Martin - New (to order)
                                                            EXH RUBBER MOUNT Genuine Aston Martin - Used In stock
                                                            # 31
                                                            MPN: 6G33-5N201-HB
                                                            BRACKET, MUFFLER MOUNTING LH
                                                            from £39.48
                                                            from £39.48
                                                            Genuine Aston Martin (no longer available to order)
                                                            BRACKET, MUFFLER MOUNTING LH Genuine Aston Martin - Used In stock
                                                            # 32
                                                            MPN: 6G33-5N201-JB
                                                            BRACKET, MUFFLER MOUNTING RH
                                                            from £6.92
                                                            from £6.92
                                                            BRACKET, MUFFLER MOUNTING RH Genuine Aston Martin - New (to order)
                                                            BRACKET, MUFFLER MOUNTING RH Genuine Aston Martin - Used In stock
                                                            # 33
                                                            MPN: 703121
                                                            SCREW, FLG, M8 X 20
                                                            from £0.47
                                                            from £0.47
                                                            SCREW M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
                                                            # 34
                                                            MPN: 6G43-09-10036
                                                            ISOLATOR, MUFFLER SUPPORT FRT
                                                            from £33.54
                                                            from £33.54
                                                            ISOLATOR, MUFFLER SUPPORT FRONT Genuine Aston Martin - New (to order)
                                                            # 35
                                                            MPN: 703730
                                                            SCREW M8X16 HEX FLNG HD
                                                            from £0.47
                                                            from £0.47
                                                            SCREW-M8X16 HEX FLG8 Genuine Aston Martin - New (to order)
