090400-S1 - Heatshield Subsystem

Aston Martin V12 Vantage (2011) Heatshield Subsystem Parts Diagram

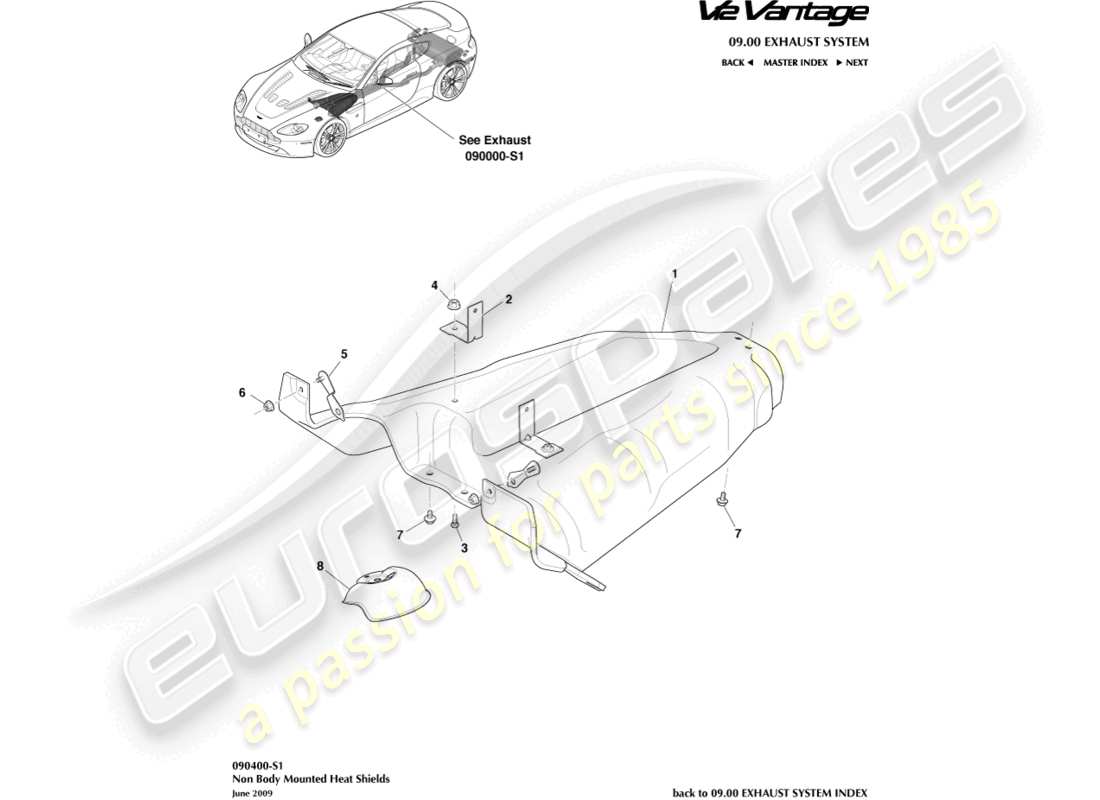

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: AD23-11398-AA
                  HEAT SHIELD, FRONT FLOOR
                  from £328.36
                  from £328.36
                  HEAT SHIELD, FRONT FLOOR Genuine Aston Martin - New (to order)
                  # 2
                  MPN: 4G43-3962-CD
                  BRACKET, SUPPORT- FRT FLOOR HEAT SHEILD
                  from £3.57
                  from £3.57
                  DEFL FRONT FLR HT BRACKET Genuine Aston Martin - New (to order)
                  DEFL FRONT FLR HT BRACKET Genuine Aston Martin - Used In stock
                  # 3
                  MPN: 703151
                  SCREW & WASHER M6X16 HEX FLG
                  from £0.47
                  from £0.47
                  SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                  LOWER MESH BOLTS Genuine Ferrari Part - New (to order)
                  # 4
                  MPN: 703162
                  NUT & WASHER M6 HEX 8
                  from £0.47
                  from £0.47
                  NUT M8 HF 8 Genuine Aston Martin - New (to order)
                  # 5
                  MPN: 4G43-3962-GA
                  BRACKET, SUPPORT- FRT FLOOR HEAT SHEILD
                  from £2.81
                  from £2.81
                  BRACKET-SUPPORT Genuine Aston Martin - New (to order)
                  # 6
                  MPN: 701191
                  NUT & WASHER M6 HEX
                  from £0.47
                  from £0.47
                  NUT & WASHER M6 HEX Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 703752
                  BOLT & WASHER M6X14 HEX FLG
                  from £0.84
                  from £0.84
                  BOLT & WASHER-M6X14 Genuine Aston Martin - New (to order)
                  # 8
                  MPN: 6G33-6C038-BB
                  HEAT SHIELD, ENGINE MOUNT
                  from £16.64
                  from £16.64
                  SHLD ENG MOUNT Genuine Aston Martin - New (to order)
