aston martin v12 vantage (2011) fuel tank assy, coupe parts diagram

100100-S1 - Fuel Tank Assy, Coupe

Aston Martin V12 Vantage (2011) Fuel Tank Assy, Coupe Parts Diagram

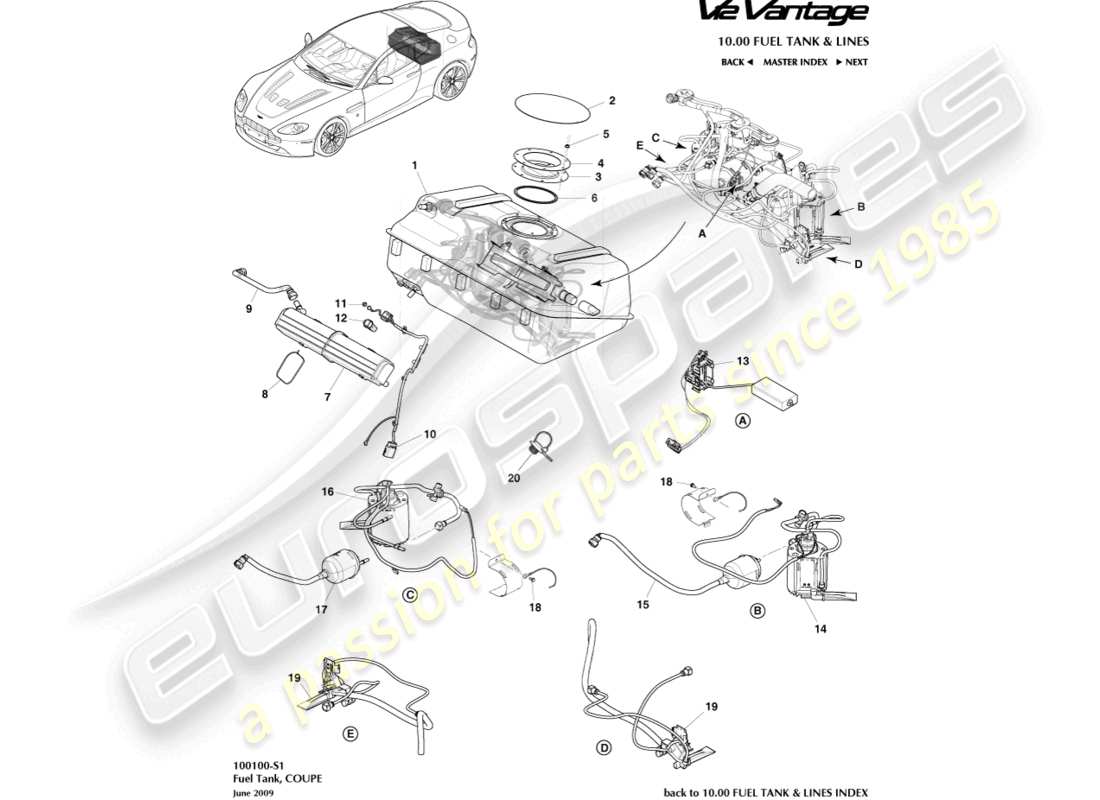

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: AD23-9C133-AF
                      TANK AND CANISTER ASSY
                      For Vehicles Up To VIN S00967
                      from £4,811.64
                      from £4,811.64
                      TANK AND CANISTER ASSEMBLY Genuine Aston Martin - New (to order)
                      # 1
                      MPN: BD23-9C133-AA
                      TANK AND CANISTER ASSY
                      For Vehicles From VIN S00967
                      from £2,926.35
                      from £2,926.35
                      TANK AND CANISTER ASSEMBLY Genuine Aston Martin - New (to order)
                      # 2
                      MPN: 4G43-9074-EA
                      COVER, FUEL TANK
                      from £12.59
                      from £12.59
                      PLATE ASSEMBLY, FUEL TANK COVER Genuine Aston Martin - New (to order)
                      PLATE ASSEMBLY, FUEL TANK COVER Genuine Aston Martin - Used In stock
                      # 2
                      MPN: CD33-9074-AA
                      COVER, FUEL TANK
                      12.5MY
                      from £97.32
                      from £97.32
                      PLATE ASSEMBLY, FUEL TANK COVER Genuine Aston Martin - New (to order)
                      # 3
                      MPN: 4G43-9C055-CA
                      COVER PLATE, FUEL TANK
                      from £6.43
                      from £6.43
                      CVR-FU/TNK COVER PLT Genuine Aston Martin - New (to order)
                      CVR-FU/TNK COVER PLT Genuine Aston Martin - Used In stock
                      # 4
                      MPN: 4G43-32133-BA
                      CLAMP PLATE, FUEL TANK
                      from £5.18
                      from £5.18
                      CLAMP PLATE Genuine Aston Martin - New (to order)
                      CLAMP PLATE Genuine Aston Martin - Used In stock
                      # 5
                      MPN: 703169
                      NUT, FLG, M6 LOCK
                      For Vehicles Up To VIN S00967
                      from £0.71
                      from £0.71
                      This part replaces part number 703168
                      NUT M6 HEX FLANGE Genuine Aston Martin - New (to order)
                      # 5
                      MPN: W520101
                      NUT, M6
                      For Vehicles From VIN S00967
                      NUT, M6 Genuine Aston Martin - New (to order)
                      # 6
                      MPN: 4G43-9073-AA
                      GASKET, FUEL TANK COVER PLATE
                      Replace each time Cover Plate is removed
                      from £20.84
                      from £20.84
                      GSKT-FU/TNK COVER PLT Genuine Aston Martin - New (to order)
                      # 7
                      MPN: 4G43-9D653-AA
                      CANISTER ASSY
                      For Vehicles Up To VIN S00967
                      from £103.23
                      from £103.23
                      CNSTR & BRACKET ASY-FU Genuine Aston Martin - New (to order)
                      CNSTR & BRACKET ASY-FU Genuine Aston Martin - Used In stock
                      # 7
                      MPN: BG43-9D653-AA
                      CANISTER ASSY
                      For Vehicles From VIN S00967
                      from £425.69
                      from £425.69
                      BRACKET FU/VPR STEERING CN Genuine Aston Martin - New (to order)
                      # 8
                      MPN: 4G43-9C133-A-PIA03
                      TIE-WRAP
                      For Vehicles Up To VIN S00967
                      TIE-WRAP Genuine Aston Martin - New (to order)
                      # 8
                      MPN: BG43-9C133-A-PIA03
                      TIE-WRAP
                      For Vehicles From VIN S00967
                      TIE-WRAP, HELLERMAN Genuine Aston Martin - New (to order)
                      # 9
                      MPN: 6G33-4090-AA
                      TUBE, ASSY, FUEL VAPOUR TO CANISTER
                      For Vehicles Up To VIN S00967
                      from £18.85
                      from £18.85
                      TUBE, ASSEMBLY, FUEL VAPOUR TO CANISTER Genuine Aston Martin - New (to order)
                      TUBE, ASSEMBLY, FUEL VAPOUR TO CANISTER Genuine Aston Martin - Used In stock
                      # -
                      -
                      HOSE
                      For Vehicles From VIN S00967
                      # -
                      -
                      FILTER, VAPOUR LINE
                      # 10
                      MPN: AD23-14007-AC
                      HARNESS, FUEL TANK
                      HARNESS, FUEL TANK Genuine Aston Martin - New (to order)
                      # 10
                      MPN: AD23-14407-AC
                      HARNESS, FUEL TANK
                      For Vehicles From VIN S00967
                      from £309.18
                      from £309.18
                      HARNESS, FUEL TANK Genuine Aston Martin - New (to order)
                      # 11
                      MPN: 703163
                      NUT, FLG, M6 LOCK
                      For Vehicles Up To VIN S00967
                      from £0.47
                      from £0.47
                      NUT M6 FLANGE LOCKING Genuine Aston Martin - New (to order)
                      # 11
                      MPN: 697177
                      NUT, M6
                      For Vehicles From VIN S00967
                      from £0.47
                      from £0.47
                      NUT M6 FLANGED Genuine Aston Martin - New (to order)
                      # 12
                      MPN: 4G43-37-10041
                      CONNECTOR, ELECT 6 WAY SUMITOMO
                      without O ring
                      from £40.52
                      from £40.52
                      ELEC CONNECTOR-6 WAY Genuine Aston Martin - New (to order)
                      # 13
                      MPN: 4G43-9E275-AA
                      SENDER ASSY, FUEL TANK
                      from £67.75
                      from £67.75
                      SE-FU/TNK SDR Genuine Aston Martin - New (to order)
                      # 14
                      MPN: 8G43-9B260-AC
                      PUMP AND RESERVOIR ASSY, LH
                      from £560.69
                      from £560.69
                      PMP & RESR ASSEMBLY - FUL Genuine Aston Martin - New (to order)
                      # 15
                      MPN: 8G43-9155-BA
                      FILTER ASSY, FUEL, LH
                      FILTER ASSEMBLY, FUEL, LH Genuine Aston Martin - New (to order)
                      # 16
                      MPN: 6G33-9B260-CC
                      PUMP AND RESERVOIR ASSY, RH
                      from £584.43
                      from £584.43
                      FUEL PUMP MODULE ASSEMBLY Genuine Aston Martin - New (to order)
                      # 17
                      MPN: 6G33-9155-AB
                      FILTER ASSY, FUEL, RH
                      from £263.51
                      from £263.51
                      FILTER ASSEMBLY - RHS Genuine Aston Martin - New (to order)
                      # 18
                      MPN: 702082
                      BOLT M5X12, SELF LOCKING
                      from £0.74
                      from £0.74
                      BOLT M5X12 S/LOCK Genuine Aston Martin - New (to order)
                      # 19
                      MPN: 6G33-9B260-BD
                      PUMP, JET ASSY
                      from £116.46
                      from £116.46
                      JET PUMP MODULE Genuine Aston Martin - New (to order)
                      JET PUMP MODULE Genuine Aston Martin - Used In stock
                      # 20
                      MPN: 4G43-9012-A-PIA01
                      TIE WRAP, FIR TREE
                      from £11.15
                      from £11.15
                      TIE WRAP, FIR TREE Genuine Aston Martin - New (to order)
