aston martin v12 vantage (2011) fuel tank assy, roadster parts diagram

100100-S2 - Fuel Tank Assy, Roadster

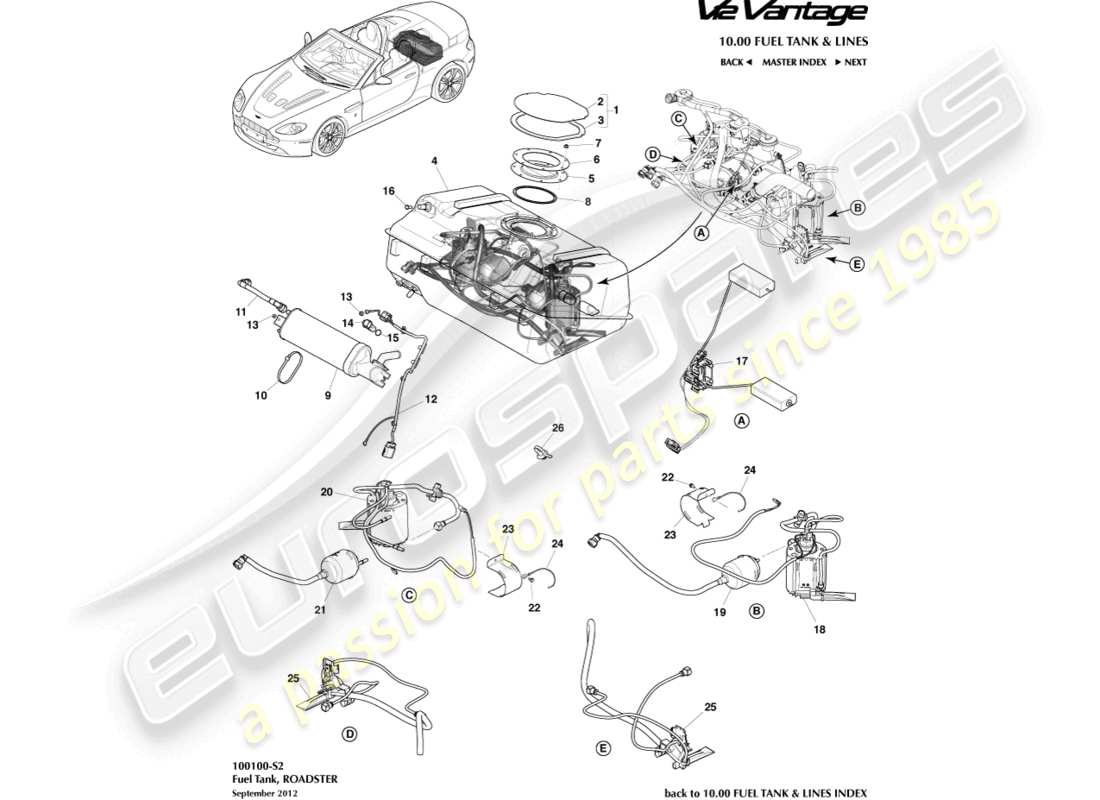

Aston Martin V12 Vantage (2011) Fuel Tank Assy, Roadster Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Key
                                                  Price
                                                  # 1
                                                  MPN: CD33-9074-AA
                                                  PLATE ASSY, FUEL TANK COVER
                                                  from £97.32
                                                  from £97.32
                                                  PLATE ASSEMBLY, FUEL TANK COVER Genuine Aston Martin - New (to order)
                                                  # 2
                                                  MPN: CD33-9074-BA
                                                  PLATE, FUEL TANK COVER
                                                  PLATE, FUEL TANK COVER Genuine Aston Martin - New (to order)
                                                  # 3
                                                  MPN: CD33-9073-BA
                                                  GASKET, FUEL TANK COVER PLATE
                                                  GASKET, FUEL TANK COVER PLATE Genuine Aston Martin - New (to order)
                                                  # 4
                                                  MPN: DD23-9C133-AA
                                                  TANK AND CANISTER ASSY, FUEL
                                                  Includes Items 5 to 26
                                                  TANK AND CANISTER ASSEMBLY, FUEL Genuine Aston Martin - New (to order)
                                                  # 5
                                                  MPN: 4G43-9C055-CA
                                                  COVER, FUEL TANK
                                                  from £6.43
                                                  from £6.43
                                                  CVR-FU/TNK COVER PLT Genuine Aston Martin - New (to order)
                                                  CVR-FU/TNK COVER PLT Genuine Aston Martin - Used In stock
                                                  # 6
                                                  MPN: 4G43-32133-BA
                                                  CLAMP PLATE
                                                  from £5.18
                                                  from £5.18
                                                  CLAMP PLATE Genuine Aston Martin - New (to order)
                                                  CLAMP PLATE Genuine Aston Martin - Used In stock
                                                  # 8
                                                  MPN: 4G43-9073-AA
                                                  GASKET, FUEL TANK COVER PLATE
                                                  from £20.84
                                                  from £20.84
                                                  GSKT-FU/TNK COVER PLT Genuine Aston Martin - New (to order)
                                                  # 9
                                                  MPN: BG43-9D653-AA
                                                  CANISTER, CHARCOAL VAPOUR STORAGE
                                                  from £425.69
                                                  from £425.69
                                                  BRACKET FU/VPR STEERING CN Genuine Aston Martin - New (to order)
                                                  # 11
                                                  MPN: BG43-4090-AA
                                                  HOSE ASSEMBLY
                                                  from £57.82
                                                  from £57.82
                                                  HOSE ASSEMBLY Genuine Aston Martin - New (to order)
                                                  # 12
                                                  MPN: AD23-14407-AC
                                                  HARNESS, FUEL TANK
                                                  from £309.18
                                                  from £309.18
                                                  HARNESS, FUEL TANK Genuine Aston Martin - New (to order)
                                                  # 13
                                                  MPN: 697177
                                                  NUT, M6
                                                  from £0.47
                                                  from £0.47
                                                  NUT M6 FLANGED Genuine Aston Martin - New (to order)
                                                  # 14
                                                  MPN: 4G43-37-10041
                                                  CONNECTOR, ELECTRICAL, 6 WAY SUMITOMO
                                                  from £40.52
                                                  from £40.52
                                                  ELEC CONNECTOR-6 WAY Genuine Aston Martin - New (to order)
                                                  # 15
                                                  MPN: 1R12-34-10013
                                                  O RING
                                                  from £13.59
                                                  from £13.59
                                                  O RING FOR USE WITH ITEM 21 Genuine Aston Martin - New (to order)
                                                  # 16
                                                  MPN: DG33-9155-AB
                                                  FILTER, VAPOUR, FUEL TANK
                                                  FILTER, VAPOUR, FUEL TANK Genuine Aston Martin - New (to order)
                                                  # 17
                                                  MPN: 4G43-9E275-AA
                                                  SENDER, FUEL TANK SENSOR
                                                  from £67.75
                                                  from £67.75
                                                  SE-FU/TNK SDR Genuine Aston Martin - New (to order)
                                                  # 18
                                                  MPN: 8G43-9B260-AC
                                                  PUMP AND RESERVOIR ASSY
                                                  from £560.69
                                                  from £560.69
                                                  PMP & RESR ASSEMBLY - FUL Genuine Aston Martin - New (to order)
                                                  # 19
                                                  MPN: 8G43-9155-AA
                                                  FILTER ASSY, FUEL, LH
                                                  from £164.18
                                                  from £164.18
                                                  FILTER ASSEMBLY Genuine Aston Martin - New (to order)
                                                  # 20
                                                  MPN: 6G33-9B260-CC
                                                  FUEL PUMP MODULE ASSY
                                                  from £584.43
                                                  from £584.43
                                                  FUEL PUMP MODULE ASSEMBLY Genuine Aston Martin - New (to order)
                                                  # 21
                                                  MPN: 6G33-9155-AB
                                                  FILTER ASSY, FUEL, RH
                                                  from £263.51
                                                  from £263.51
                                                  FILTER ASSEMBLY - RHS Genuine Aston Martin - New (to order)
                                                  # 22
                                                  MPN: 702082
                                                  BOLT, M5 X 12, SELF LOCKING
                                                  from £0.74
                                                  from £0.74
                                                  BOLT M5X12 S/LOCK Genuine Aston Martin - New (to order)
                                                  # 23
                                                  MPN: 8G43-9180-AA
                                                  BRACKET, FUEL FILTER
                                                  BRACKET, FUEL FILTER Genuine Aston Martin - New (to order)
                                                  # 24
                                                  MPN: 6G33-66991-AB
                                                  WIRE, EARTH
                                                  WIRE, EARTH Genuine Aston Martin - New (to order)
                                                  # 25
                                                  MPN: 6G33-9B260-BD
                                                  JET PUMP MODULE ASSY
                                                  from £116.46
                                                  from £116.46
                                                  JET PUMP MODULE Genuine Aston Martin - New (to order)
                                                  JET PUMP MODULE Genuine Aston Martin - Used In stock
                                                  # 26
                                                  MPN: 4G43-9012-A-PIA01
                                                  TIE WRAP, FIR TREE
                                                  from £11.15
                                                  from £11.15
                                                  TIE WRAP, FIR TREE Genuine Aston Martin - New (to order)
