aston martin v12 vantage (2011) fuel filler, coupe parts diagram

100104-S1 - Fuel Filler, Coupe

Aston Martin V12 Vantage (2011) Fuel Filler, Coupe Parts Diagram

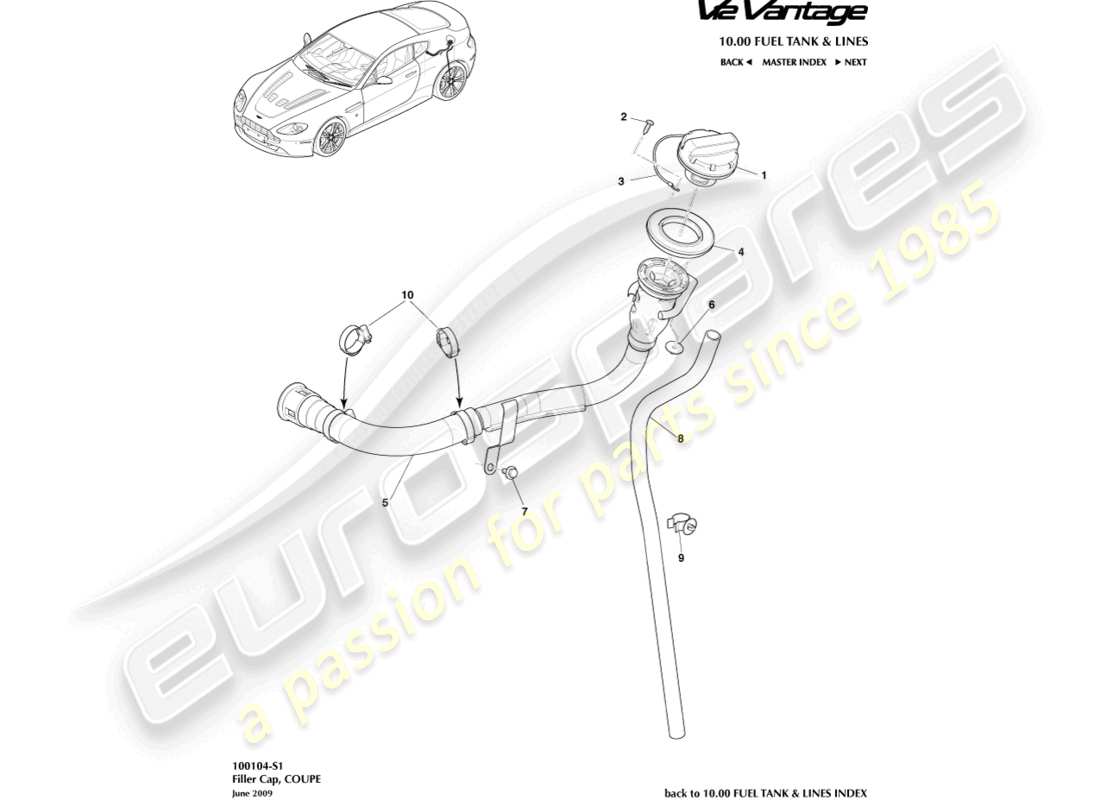

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 4G43-9030-AG
                    CAP, FUEL FILLER
                    CAP, FUEL FILLER Genuine Aston Martin - New (to order)
                    # 2
                    MPN: 701195
                    SCREW, PAN HEAD, M5 X 16
                    tether to body
                    SCREW, PAN HEAD, M5 X 16 Genuine Aston Martin - New (to order)
                    # 3
                    MPN: 4G43-9C027-AA
                    TETHER, FUEL TANK FILLER CAP
                    from £48.70
                    from £48.70
                    TETHER, FUEL TANK FILLER CAP Genuine Aston Martin - New (to order)
                    # 4
                    MPN: 4G43-8703-AA
                    GAITER, FUEL FILLER PIPE
                    from £6.83
                    from £6.83
                    GAITER FUEL FILL PPE Genuine Aston Martin - New (to order)
                    GAITER FUEL FILL PPE Genuine Aston Martin - Used In stock
                    # 5
                    MPN: DD23-9032-AA
                    PIPE AND HOSE ASSY, FUEL TANK FILLER
                    from £129.25
                    from £129.25
                    PIPE AND HOSE ASSEMBLY, FUEL TANK FILLER Genuine Aston Martin - New (to order)
                    # 6
                    MPN: 701194
                    NUT & WASHER, M6
                    from £0.47
                    from £0.47
                    NUT&WASHER M6 HEXFLG Genuine Aston Martin - New (to order)
                    # 7
                    MPN: 703151
                    SCREW & WASHER HEX HEAD, M6 X 16
                    from £0.47
                    from £0.47
                    SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                    LOWER MESH BOLTS Genuine Ferrari Part - New (to order)
                    # 8
                    MPN: 4G43-9C071-AA
                    PIPE, FUEL FILL OVERFLOW
                    from £7.52
                    from £7.52
                    PIPE FU FILL O/FLOW Genuine Aston Martin - New (to order)
                    PIPE FU FILL O/FLOW Genuine Aston Martin - Used In stock
                    # 9
                    MPN: 4G43-9A317-AA
                    CLIP, FUEL FILL OVERFLOW
                    from £3.00
                    from £3.00
                    CLIP FUEL HOSE Genuine Aston Martin - New (to order)
                    # 10
                    MPN: 4G43-9A064-AA
                    CLAMP, FUEL HOSE
                    from £39.36
                    from £39.36
                    CLMP-ASY-FU/TNK FILL Genuine Aston Martin - New (to order)
