aston martin v12 vantage (2011) steering column assembly parts diagram

110401-C2 - STEERING COLUMN ASSEMBLY

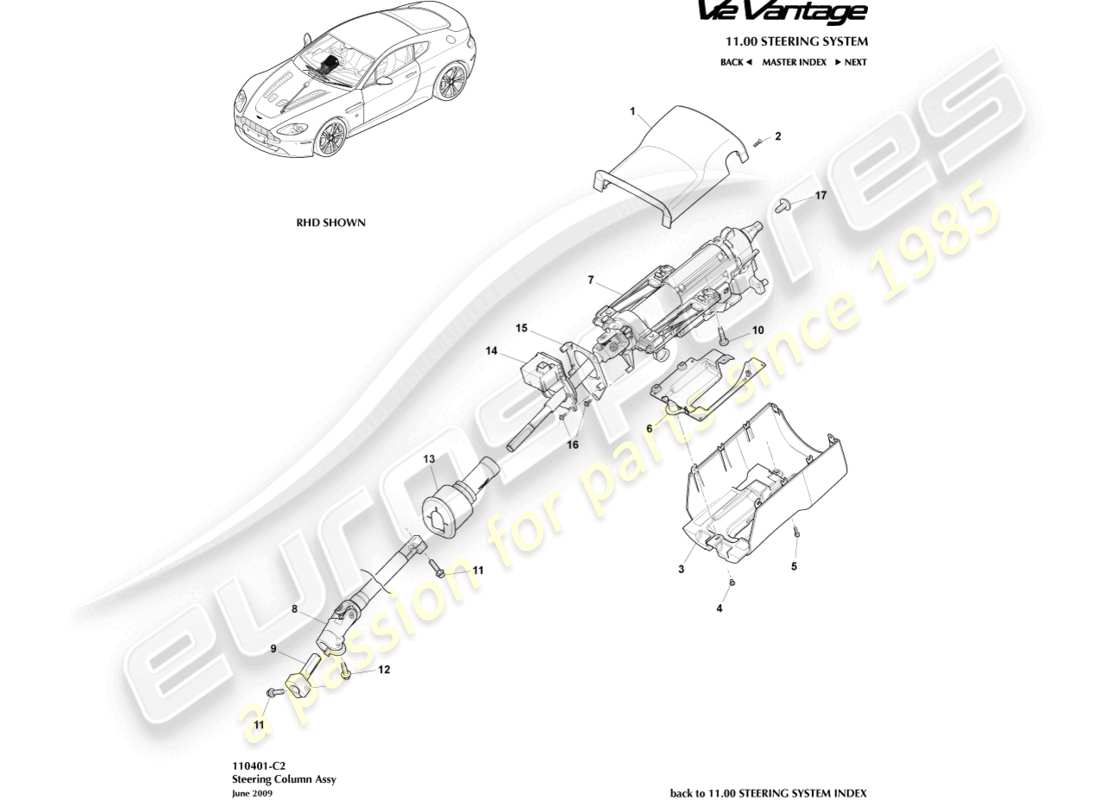

Aston Martin V12 Vantage (2011) Steering Column Assembly Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 1
                                  MPN: 4G43-3C695-BCW
                                  SHROUD ASSY, STEERING COLUMN UPPER
                                  from £92.12
                                  from £92.12
                                  SHROUD ASSEMBLY, STEERING COLUMN UPPER Genuine Aston Martin - New (to order)
                                  SHROUD ASSEMBLY, STEERING COLUMN UPPER Genuine Aston Martin - Used In stock
                                  # 2
                                  MPN: 4G43-103081-BA
                                  SCREW, M4 X 16 SOCKET, CSK HD
                                  from £0.47
                                  from £0.47
                                  SCREW COUNTERSUNK M4 X 16 Genuine Aston Martin - New (to order)
                                  # 3
                                  MPN: 8D33-3533-ADW
                                  SHROUD ASSY, STEERING COLUMN LOWER
                                  from £420.30
                                  from £420.30
                                  SHRD ASSEMBLY STNG COL LW Genuine Aston Martin - New (to order)
                                  # 4
                                  MPN: 701140
                                  SCREW ST4.2X9.5 SMALL WASHER HD
                                  from £125.66
                                  from £125.66
                                  SCREW ST4.2X9.5 SMALL WASHER HD Genuine Aston Martin - New (to order)
                                  # 5
                                  MPN: 703736
                                  SCREW, 4.2 X 19 WASHER HEAD
                                  from £0.47
                                  from £0.47
                                  SCREW-4.2X19 WSH HD Genuine Aston Martin - New (to order)
                                  # 6
                                  MPN: 8D33-3E721-AB
                                  PLATE, STEERING COLUMN, LOAD SPREAD
                                  from £3.06
                                  from £3.06
                                  PLT STNG COL Genuine Aston Martin - New (to order)
                                  PLT STNG COL Genuine Aston Martin - Used In stock
                                  # 7
                                  MPN: 8D33-3C529-AC
                                  COLUMN ASSY, STEERING
                                  Coupe
                                  COLUMN ASSEMBLY, STEERING UPPER Genuine Aston Martin - New (to order)
                                  # 7
                                  MPN: AD43-3C529-AB
                                  COLUMN ASSY, STEERING
                                  Roadster
                                  from £941.32
                                  from £941.32
                                  ELEC STEERING COLM ASSEMBLY Genuine Aston Martin - New (to order)
                                  # 8
                                  MPN: 4G43-3C662-AD
                                  SHAFT ASSY, STEERING COLUMN INTERMEDIATE
                                  Supersession
                                  Supersession
                                  Genuine Aston Martin (no longer available to order)
                                  # 9
                                  MPN: 4G43-3N997-AC
                                  COUPLING, STEERING COLUMN SHAFT
                                  from £34.05
                                  from £34.05
                                  CPL-STNG COL SHFT Genuine Aston Martin - New (to order)
                                  CPL-STNG COL SHFT Genuine Aston Martin - Used In stock
                                  # 10
                                  MPN: 701353
                                  SCREW M8X30 PAN HD
                                  from £0.76
                                  from £0.76
                                  SCREW M8X30 PAN HD Genuine Aston Martin - New (to order)
                                  # 11
                                  MPN: 4G43-3C684-AB
                                  BOLT, STEERING COLUMN CLAMP
                                  from £1.90
                                  from £1.90
                                  BOLT - STEERING COL CLAMP Genuine Aston Martin - New (to order)
                                  # 12
                                  MPN: 703138-PK
                                  BOLT, M8 X 25 PATCH
                                  from £4.07
                                  from £4.07
                                  BOLT, M8 X 25, PATCH Genuine Aston Martin - New (to order)
                                  # 13
                                  MPN: 4G43-3D677-BA
                                  GAITER, RHD
                                  from £16.94
                                  from £16.94
                                  SE ASY-STNG COL OPG Genuine Aston Martin - New (to order)
                                  SE ASY-STNG COL OPG Genuine Aston Martin - Used In stock
                                  # 13
                                  MPN: 4G43-3D677-AA
                                  GAITER, LHD
                                  from £34.56
                                  from £34.56
                                  SE ASY-STNG COL OPG Genuine Aston Martin - New (to order)
                                  # 14
                                  MPN: 4G43-3F818-AA
                                  SENSOR ASSY, STEERING ROTATION
                                  from £117.84
                                  from £117.84
                                  SNS ASSEMBLY - STNG ROT Genuine Aston Martin - New (to order)
                                  SNS ASSEMBLY - STNG ROT Genuine Aston Martin - Used In stock
                                  # 15
                                  MPN: 4G43-ALR3219-AB
                                  BRACKET
                                  from £1,356.28
                                  from £1,356.28
                                  BRACKET, STEERING ANGLE SENSOR Genuine Aston Martin - New (to order)
                                  BRACKET, STEERING ANGLE SENSOR Genuine Aston Martin - Used In stock
                                  # 16
                                  MPN: 701354
                                  SCREW & WASHER, M3.5 X 13
                                  from £0.47
                                  from £0.47
                                  SCREW M3.5X13 PAN FLANGE Genuine Aston Martin - New (to order)
                                  # 17
                                  MPN: 701355
                                  SCREW, M10 X 21.8
                                  from £0.73
                                  from £0.73
                                  SCREW M10X1.5X21.8 Genuine Aston Martin - New (to order)
