120102 - Air Distribution Components

Aston Martin V12 Vantage (2011) Air Distribution Components Parts Diagram

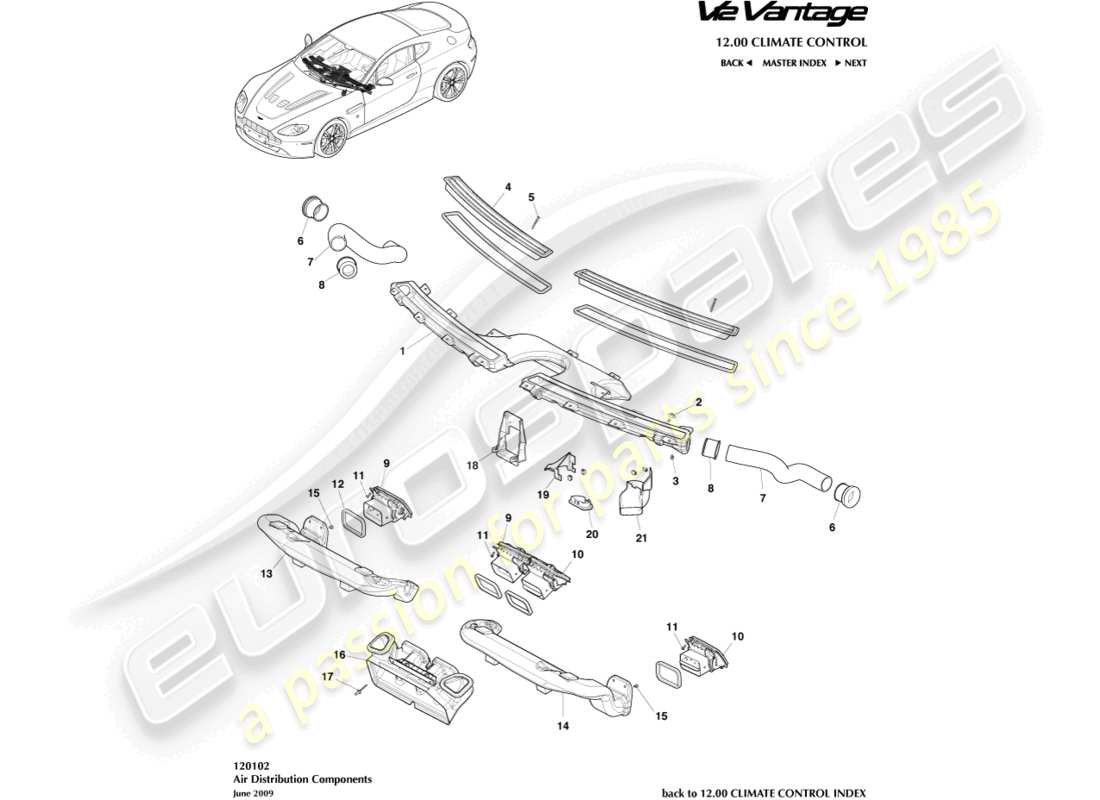

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 1
                                      MPN: 6G33-04432-AA
                                      DUCT ASSEMBLY, WINDSHIELD DEFLECTOR, LHD
                                      from £82.31
                                      from £82.31
                                      DUCT ASSEMBLY, WINDSHIELD DEFLECTOR, LHD Genuine Aston Martin - New (to order)
                                      # 1
                                      MPN: 6G33-04432-BA
                                      DUCT ASSEMBLY, WINDSHIELD DEFLECTOR, RHD
                                      from £81.68
                                      from £81.68
                                      DUCT ASSEMBLY, WINDSHIELD DEFLECTOR, RHD Genuine Aston Martin - New (to order)
                                      # 2
                                      MPN: 703156
                                      BOLT & WASHER, M6 X 18 PN
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 703743
                                      SCREW/WASHER M6X18 Genuine Aston Martin - New In stock
                                      # 3
                                      MPN: 703068
                                      SCREW, 4.2 X 9 PAN CLLR INT LOB TAP
                                      from £0.47
                                      from £0.47
                                      SCREW 4.2X9 Genuine Aston Martin - New (to order)
                                      # 4
                                      MPN: 4G43-18C491-AJ
                                      GRILLE, WINDOW DEFROST
                                      from £364.93
                                      from £364.93
                                      GRILLE, WINDOW DEFROST Genuine Aston Martin - New (to order)
                                      # 5
                                      MPN: 6G33-79231-AA
                                      SCREW, M3.5 X 38, POZI
                                      SCREW, M3.5 X 38, POZI Genuine Aston Martin - New (to order)
                                      # 6
                                      MPN: 4G43-C046B80-AC
                                      SEAL, IP DEFROST OPENING GRILLE
                                      from £5.69
                                      from £5.69
                                      SE I/PNL DEF OPG GRL Genuine Aston Martin - New (to order)
                                      # 7
                                      MPN: 4G43-19E658-AC
                                      HOSE, A/C SIDE WINDOW DEMISTER
                                      from £17.19
                                      from £17.19
                                      HOSE-A/C WDO DMSTR Genuine Aston Martin - New (to order)
                                      HOSE-A/C WDO DMSTR Genuine Aston Martin - Used In stock
                                      # 8
                                      MPN: 4G43-19E680-AD
                                      CONNECTOR, A/C DEMISTER HOSE
                                      from £5.69
                                      from £5.69
                                      CONNECTOR, DEMIST HOSE Genuine Aston Martin - New (to order)
                                      # 9
                                      MPN: 4G43-046B30-BB
                                      REGISTER ASSEMBLY, A/C RH
                                      Graphite with White Symbols
                                      from £43.73
                                      from £43.73
                                      RGSTR ASSEMBLY I/PNL A/C Genuine Aston Martin - New (to order)
                                      RGSTR ASSEMBLY I/PNL A/C Genuine Aston Martin - Used In stock
                                      # 9
                                      MPN: 8D33-046B30-BB
                                      REGISTER ASSEMBLY, A/C RH
                                      Iridium Silver with White Symbols
                                      from £89.30
                                      from £89.30
                                      RGSTR ASSEMBLY I/PNL A/C Genuine Aston Martin - New (to order)
                                      # 10
                                      MPN: 4G43-046B31-BB
                                      REGISTER ASSEMBLY, A/C LH
                                      Graphite with White Symbols
                                      from £43.73
                                      from £43.73
                                      This part replaces part number 4G43-046B31-AB which we have in stock - and 2 more. Click to view details
                                      RGSTR ASSEMBLY I/PNL A/C Genuine Aston Martin - New (to order)
                                      RGSTR ASSEMBLY I/PNL A/C Genuine Aston Martin - Used In stock
                                      # 10
                                      MPN: 8D33-046B31-BB
                                      REGISTER ASSEMBLY, A/C LH
                                      Iridium Silver with White Symbols
                                      from £89.30
                                      from £89.30
                                      RGSTR ASSEMBLY I/PNL A/C Genuine Aston Martin - New (to order)
                                      # 11
                                      MPN: 701447
                                      SCREW, M4 X 12
                                      from £0.47
                                      from £0.47
                                      SCREW 4X12 PAN Genuine Aston Martin - New (to order)
                                      # 12
                                      MPN: 4G43-18D404-CA
                                      SEAL, AIR VENT DUCT
                                      from £1.48
                                      from £1.48
                                      FOAM SEAL - AIR DIST Genuine Aston Martin - New (to order)
                                      # 13
                                      MPN: 8G43-19C804-AC
                                      DUCT ASSEMBLY, RH, INSTRUMENT PANEL
                                      DUCT, RH, INSTRUMENT PANEL Genuine Aston Martin - New (to order)
                                      # 14
                                      MPN: 8G43-19C805-AC
                                      DUCT ASSEMBLY, LH, INSTRUMENT PANEL
                                      from £43.59
                                      from £43.59
                                      DCT ASSEMBLY AIR CONDITIONING I/PNL CTR Genuine Aston Martin - New (to order)
                                      # 15
                                      MPN: 703068
                                      SCREW, 4.2 X 9 PAN CLLR INT LOB TAP
                                      per Duct
                                      from £0.47
                                      from £0.47
                                      SCREW 4.2X9 Genuine Aston Martin - New (to order)
                                      # 16
                                      MPN: 8G43-18D404-AC
                                      DUCT ASSEMBLY, HEATER AIR DIST, CENTRE LHD
                                      from £49.46
                                      from £49.46
                                      DCT ASY-HTR AIR DSTR Genuine Aston Martin - New (to order)
                                      # 16
                                      MPN: 8G43-18D404-BB
                                      DUCT ASSEMBLY, HEATER AIR DIST, CENTRE RHD
                                      from £51.24
                                      from £51.24
                                      DCT ASY-HTR AIR DSTR Genuine Aston Martin - New (to order)
                                      # 17
                                      MPN: 4G43-17A873-AA
                                      RIVET, 4.8 X 12
                                      from £1.11
                                      from £1.11
                                      RIVET 4.8 X 12 Genuine Aston Martin - New (to order)
                                      # 18
                                      MPN: 7G43-370807-AA
                                      BRACKET ASSEMBLY, TPM
                                      BRACKET ASSEMBLY TPM Genuine Aston Martin - New (to order)
                                      # 19
                                      MPN: 8G43-014K96-AB
                                      DUCT, ASSEMBLY VENT AIR LOWER RH, LHD
                                      from £24.08
                                      from £24.08
                                      DCT ASSEMBLY VEN AUR LOWER Genuine Aston Martin - New (to order)
                                      # 19
                                      MPN: 8G43-014K96-BB
                                      DUCT, ASSEMBLY VENT AIR LOWER RH, RHD
                                      from £21.19
                                      from £21.19
                                      DUCT, ASSEMBLY VENT AIR LOWER, RS, RHD Genuine Aston Martin - New (to order)
                                      # 20
                                      MPN: 7G43-014K00-AA
                                      PLUG ASSEMBLY, FOOT DUCT OUTLET, LHD
                                      from £8.05
                                      from £8.05
                                      ASSEMBLY PLUG OLET F/DUCT Genuine Aston Martin - New (to order)
                                      # 21
                                      MPN: 9D33-014K97-AA
                                      DUCT, ASSEMBLY VENT AIR LOWER LH LHD
                                      from £4.67
                                      from £4.67
                                      DCT ASSEMBLY VEN AIR LOWER Genuine Aston Martin - New (to order)
                                      # 21
                                      MPN: 8G43-014K97-BB
                                      DUCT, ASSEMBLY VENT AIR LOWER LH RHD
                                      from £24.08
                                      from £24.08
                                      DCT ASSEMBLY VEN AIR LOWER Genuine Aston Martin - New (to order)
