aston martin v12 vantage (2011) air con lines parts diagram

120305 - Air Con Lines

Aston Martin V12 Vantage (2011) Air Con Lines Parts Diagram

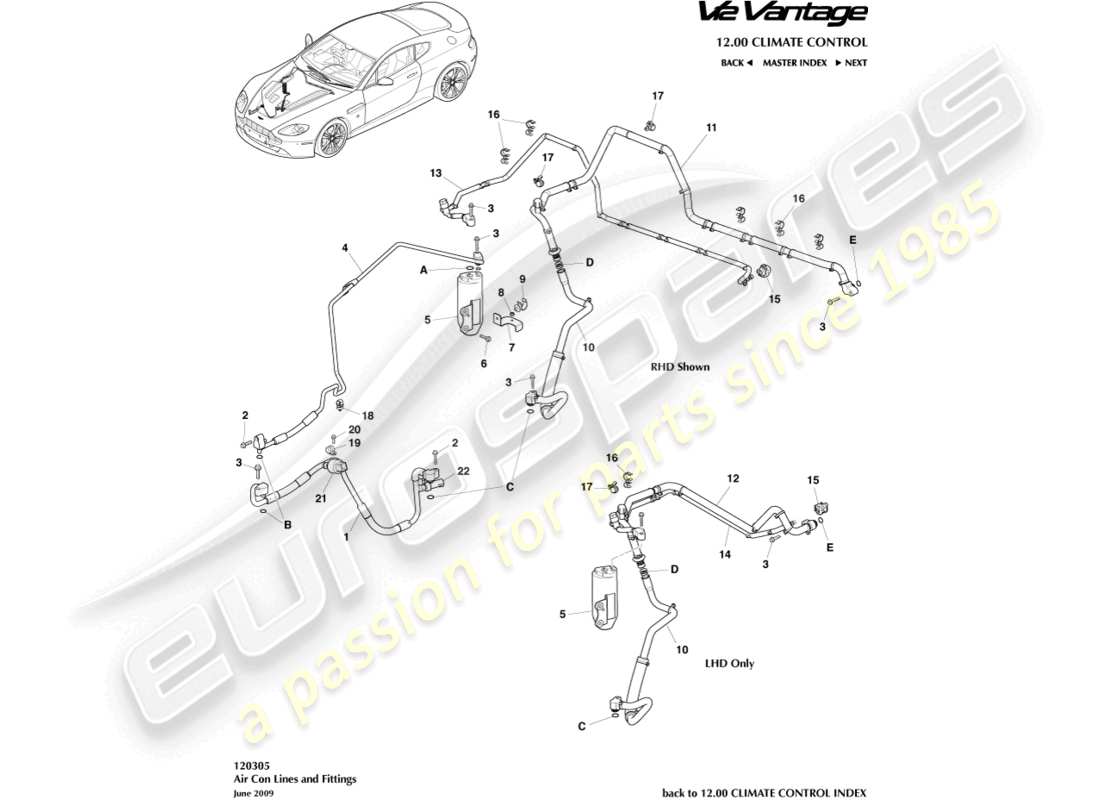

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 1
                                                        MPN: AD23-19972-AA
                                                        TUBE ASSY, AC COMPRESSOR TO CONDENSER
                                                        from £313.76
                                                        from £313.76
                                                        TUBE ASSEMBLY, AIR CONDITIONING COMPRESSOR TO CONDENSER Genuine Aston Martin - New (to order)
                                                        # 2
                                                        MPN: 703199
                                                        BOLT, M6X30 HEX FLG HD
                                                        from £0.47
                                                        from £0.47
                                                        BOLT M6X30 HEX FLANGE Genuine Aston Martin - New (to order)
                                                        # 3
                                                        MPN: 703201
                                                        SCREW, M8X30 HEX FLG HD
                                                        from £0.47
                                                        from £0.47
                                                        SCREW M8X30 HEX FLNG Genuine Aston Martin - New (to order)
                                                        # 4
                                                        MPN: AD23-19D719-AA
                                                        TUBE ASSY, AC DEHY INLET
                                                        from £116.52
                                                        from £116.52
                                                        TUBE ASSEMBLY, AIR CONDITIONING DEHY INLET Genuine Aston Martin - New (to order)
                                                        # 6
                                                        MPN: 703903
                                                        BOLT, M6 X30 HEX FLG HD
                                                        BOLT-M6X30 HF 8 FLANGE Genuine Aston Martin - New (to order)
                                                        # 7
                                                        MPN: AD23-6147X-AB
                                                        BRACKET, AC LINE
                                                        from £19.56
                                                        from £19.56
                                                        BRACKET, AIR CONDITIONING LINE Genuine Aston Martin - New (to order)
                                                        # 8
                                                        MPN: 702295
                                                        NUT, M5 HEX FLG HD
                                                        from £0.47
                                                        from £0.47
                                                        NUT M5 HEX FLANGE Genuine Aston Martin - New (to order)
                                                        # 9
                                                        MPN: W704412-SA
                                                        CLIP, PIPE SWIVEL PNL
                                                        CLIP, PIPE SWIVEL PANEL Genuine Aston Martin - New (to order)
                                                        # 10
                                                        MPN: AG43-19A705-AA
                                                        TUBE, ASSY, AIRCON EVAP OUTLET
                                                        from £199.69
                                                        from £199.69
                                                        TUB ASSEMBLY A/C EVP OLET Genuine Aston Martin - New (to order)
                                                        # 11
                                                        MPN: AD23-19A705-CA
                                                        TUBE ASSY AC EVAP OUTLET, RHD
                                                        from £158.91
                                                        from £158.91
                                                        TUBE ASSEMBLY AIR CONDITIONING EVAPORATOR OUTLET, RHD Genuine Aston Martin - New (to order)
                                                        # 12
                                                        MPN: 8G43-19A705-BA
                                                        TUBE ASSY AC EVAP OUTLET, LHD
                                                        from £85.07
                                                        from £85.07
                                                        TUBE ASSEMBLY, A/C EVAPORATOR OUTLET, UPPER Genuine Aston Martin - New (to order)
                                                        # 13
                                                        MPN: AD23-19835-BA
                                                        TUBE ASSY, AC DEHY TO EVAP, RHD
                                                        from £180.11
                                                        from £180.11
                                                        TUBE ASSEMBLY, AIR CONDITIONING DEHY TO EVAPORATOR , RHD Genuine Aston Martin - New (to order)
                                                        # 14
                                                        MPN: AD23-19835-AA
                                                        TUBE ASSY, AC DEHY TO EVAP, LHD
                                                        from £169.51
                                                        from £169.51
                                                        TUBE ASSEMBLY, AIR CONDITIONING DEHY TO EVAPORATOR , LHD Genuine Aston Martin - New (to order)
                                                        # 15
                                                        MPN: 4G43-4073A-AA
                                                        CLAMP
                                                        from £3.07
                                                        from £3.07
                                                        CLAMP Genuine Aston Martin - New (to order)
                                                        # 16
                                                        MPN: 701182
                                                        CLIP, SWIVEL
                                                        from £1.20
                                                        from £1.20
                                                        CLIP-SWIVEL Genuine Aston Martin - New (to order)
                                                        # 17
                                                        MPN: 4G43-65-10059-PK
                                                        CLIP, PUSH TIE
                                                        from £39.48
                                                        from £39.48
                                                        CLIP-FIRTREE PK 100 Genuine Aston Martin - New (to order)
                                                        # 18
                                                        MPN: 701180
                                                        CLIP, 14 OPEN PUSH IN
                                                        from £0.82
                                                        from £0.82
                                                        CLIP 14.0X4.0 PUSHIN Genuine Aston Martin - New (to order)
                                                        # 19
                                                        MPN: 699634
                                                        CLIP, 13MM
                                                        from £1.29
                                                        from £1.29
                                                        P-CLIP 13X15XM6 Genuine Aston Martin - New (to order)
                                                        # 20
                                                        MPN: 703203
                                                        SCREW, M6X20 HEX FLG HD
                                                        from £0.47
                                                        from £0.47
                                                        SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                                                        LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                                                        # 21
                                                        MPN: 6F93-19D594-AA
                                                        SWITCH ASSY, AIR CONDITIONING PRESSURE CUT OFF
                                                        Genuine Aston Martin (no longer available to order)
                                                        SWITCH, AIR CONDITIONING , PRESSURE CUTOFF Genuine Aston Martin - Used In stock
                                                        # 22
                                                        MPN: 1R12-89-10192
                                                        SWITCH ASSY, AIR CONDITIONING PRESSURE CUT OFF
                                                        from £165.55
                                                        from £165.55
                                                        A/C SWITCH-HIGH PRES Genuine Aston Martin - New (to order)
                                                        A/C SWITCH-HIGH PRES Genuine Aston Martin - Used In stock
                                                        # -
                                                        -
                                                        AIR CON REFRIGERANT
                                                        As required
                                                        # A
                                                        MPN: 4G43-89-10908-PK
                                                        O RING KIT
                                                        from £3.44
                                                        from £3.44
                                                        O RINGS-RECEIVER(2) Genuine Aston Martin - New (to order)
                                                        # B
                                                        MPN: 4G43-89-10910-PK
                                                        O RING KIT
                                                        from £3.51
                                                        from £3.51
                                                        O RINGS-CONDENSER (pack of 2) Genuine Aston Martin - New In stock
                                                        # C
                                                        MPN: 4G43-89-10909-PK
                                                        O RING KIT
                                                        from £3.51
                                                        from £3.51
                                                        O RINGS-COMPRESSOR-2 Genuine Aston Martin - New (to order)
                                                        # D
                                                        MPN: 4G43-89-10912-PK
                                                        O RING KIT
                                                        from £4.83
                                                        from £4.83
                                                        O RING KIT Genuine Aston Martin - New (to order)
                                                        # E
                                                        MPN: 6G43-89-10446-PK
                                                        O RING KIT
                                                        from £5.64
                                                        from £5.64
                                                        O RING KIT, FOR THE EVAPORATOR Genuine Aston Martin - New (to order)
