aston martin v12 vantage (2011) parking aid sensors parts diagram

131301-D1 - Parking Aid Sensors

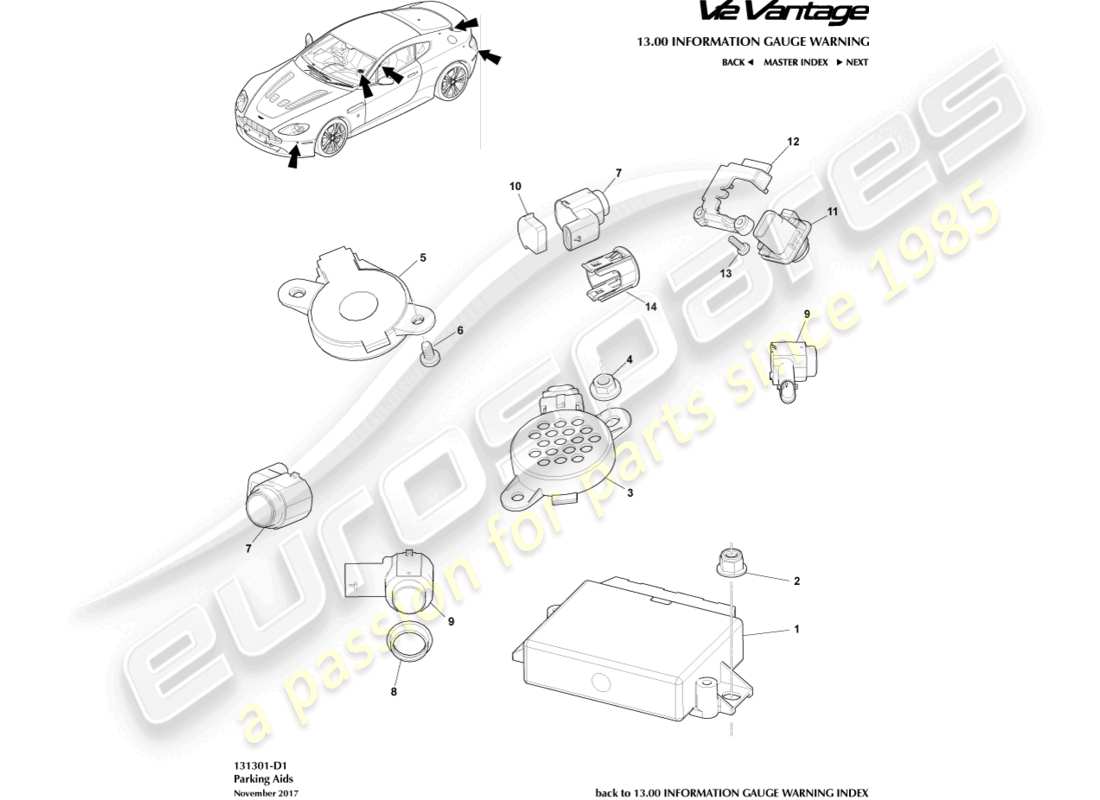

Aston Martin V12 Vantage (2011) Parking Aid Sensors Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: 6G43-37-10354
                          MODULE, PARKING AID
                          from £111.76
                          from £111.76
                          Genuine Aston Martin (no longer available to order)
                          MODULE, PARKING AID Genuine Aston Martin - Used In stock
                          # 2
                          MPN: 703163
                          NUT, WASHER HEAD, M6
                          from £0.47
                          from £0.47
                          NUT M6 FLANGE LOCKING Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 9G33-37-10502
                          SPEAKER, PARKING AID WITH DUAL LO
                          from £15.54
                          from £15.54
                          SPEAKER, PARKING AID WITH DUAL LO Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 702295
                          NUT, FLG, M5
                          from £0.47
                          from £0.47
                          NUT M5 HEX FLANGE Genuine Aston Martin - New (to order)
                          # 5
                          MPN: 9G33-37-10502
                          SPEAKER, PARKING AID
                          from £15.54
                          from £15.54
                          SPEAKER, PARKING AID WITH DUAL LO Genuine Aston Martin - New (to order)
                          # 6
                          MPN: 703178
                          SCREW, M4X8 THD FORM
                          from £0.47
                          from £0.47
                          M4 X 8MM SCREW THRD Genuine Aston Martin - New (to order)
                          # 7
                          MPN: AH42-15K859-AB
                          SENSOR, PARKING AID, FRONT & REAR - INNER
                          from £35.34
                          from £35.34
                          PARKING AID SENSOR Genuine Aston Martin - New (to order)
                          # -
                          -
                          Bracket, sensor parking aid, front & rear - inner
                          This part replaces part number 6M2T-15K872-AA
                          # 8
                          MPN: 9G92-15B864-AA
                          DECOUPLING RING, PARKING SENSOR
                          from £9.50
                          from £9.50
                          DECOUPLING RING Genuine Aston Martin - New (to order)
                          # 9
                          MPN: 9G92-15K859-AB
                          Sensor, parking aid, front & rear - outer
                          from £64.02
                          from £64.02
                          PARKING AID SENSOR Genuine Aston Martin - New (to order)
                          FRONT PDC SENSOR Genuine Ferrari Part - New (to order)
                          # 10
                          MPN: 8D33-090400-AA
                          HEATSHIELD, PDC SENSOR, INBOARD REAR SENSORS
                          from £2.81
                          from £2.81
                          HEATSHIELD, PDC SENSOR, INBOARD REAR SENSORS Genuine Aston Martin - New (to order)
                          # 11
                          MPN: DD23-19G490-BC
                          CAMERA, REAR FACING
                          12.5MY
                          from £285.26
                          from £285.26
                          CAMERA, REAR FACING Genuine Aston Martin - New (to order)
                          # 12
                          MPN: DD23-19H421-AA
                          BRACKET, REAR CAMERA
                          12.5MY
                          from £3.82
                          from £3.82
                          BRACKET, REAR FACING CAMERA Genuine Aston Martin - New (to order)
                          # 13
                          MPN: CD33-W505513-AA
                          BOLT, M4X12, PAN HEAD
                          12.5MY
                          from £0.47
                          from £0.47
                          SCREW, M4X12, PAN HD Genuine Aston Martin - New (to order)
                          # 14
                          MPN: 8D33-37-10004
                          BRACKET, PARK AID SENSOR, INNER
                          from £2.27
                          from £2.27
                          This part replaces part number 6M2T-15K872-AA
                          BRKT-PRK AID SNS INNER Genuine Aston Martin - New (to order)
