aston martin v12 vantage (2011) battery hold downs parts diagram

140102-B1 - Battery Hold Downs

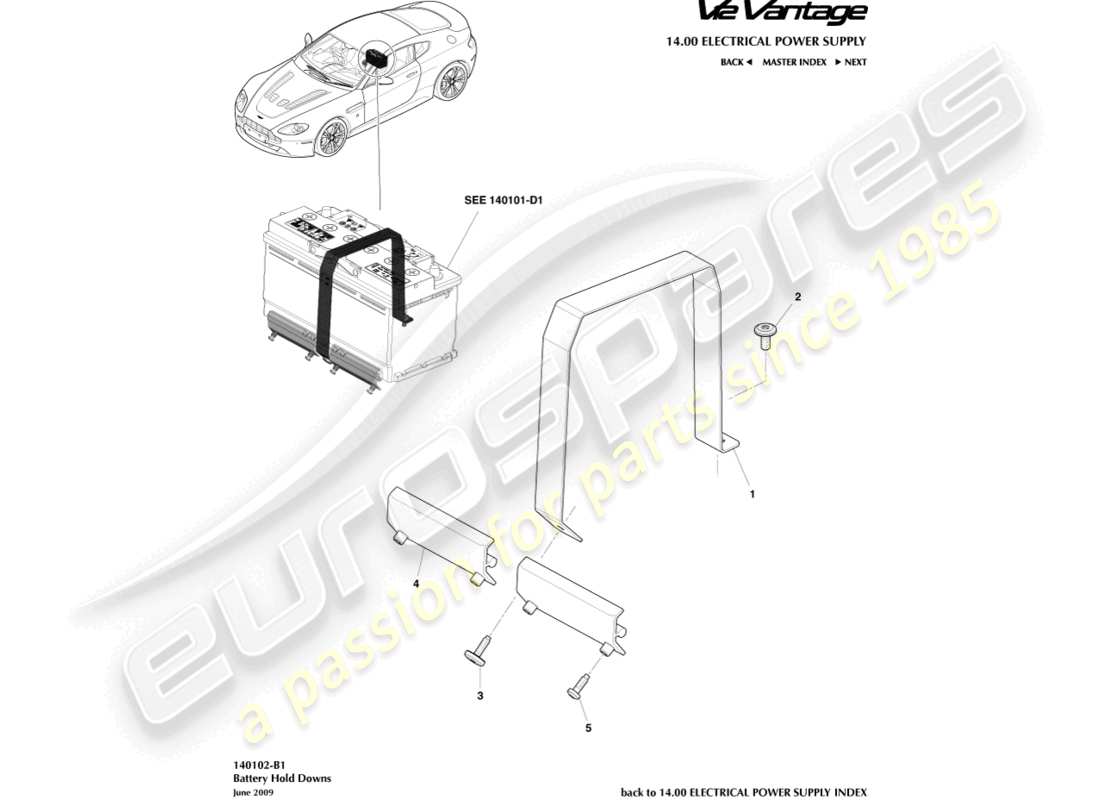

Aston Martin V12 Vantage (2011) Battery Hold Downs Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 6G33-10A786-BD
          BRACKET, BATTERY CLAMP
          from £7.91
          from £7.91
          CLAMP, BATTERY Genuine Aston Martin - New (to order)
          # 1
          MPN: 6G33-10A786-BE
          BRACKET, BATTERY CLAMP
          12.5MY
          from £35.72
          from £35.72
          CLAMP, BATTERY Genuine Aston Martin - New (to order)
          # 2
          MPN: 703141
          SCREW M8X16
          from £1.25
          from £1.25
          SCREW M8X16 Genuine Aston Martin - New (to order)
          FRONT UNDERTRAY BOLTS Genuine Ferrari Part - New (to order)
          # 3
          MPN: 6G33-FA0115-AB
          SCREW AND WASHER, M6 X 19 PAN HD
          Supersession
          Supersession
          Genuine Aston Martin (no longer available to order)
          # 4
          MPN: 6G33-10A668-AB
          CLAMP, BATTERY
          from £12.14
          from £12.14
          CLAMP, BATTERY Genuine Aston Martin - New (to order)
          # 4
          MPN: AG33-10A668-AB
          CLAMP, BATTERY
          12MY
          CLAMP, BATTERY Genuine Aston Martin - New (to order)
          # 5
          MPN: 702294
          SCREW, M6X16, PAN HEAD
          from £0.47
          from £0.47
          SCREW M6X1.00X16 PAN Genuine Aston Martin - New (to order)
          # -
          -
          FOAM STRIP, ANTI-RATTLE
